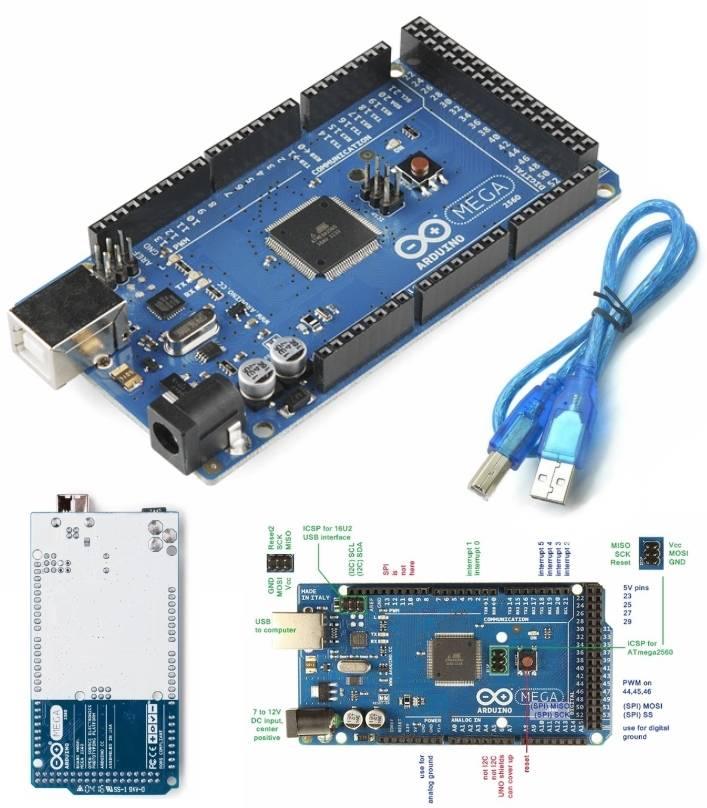

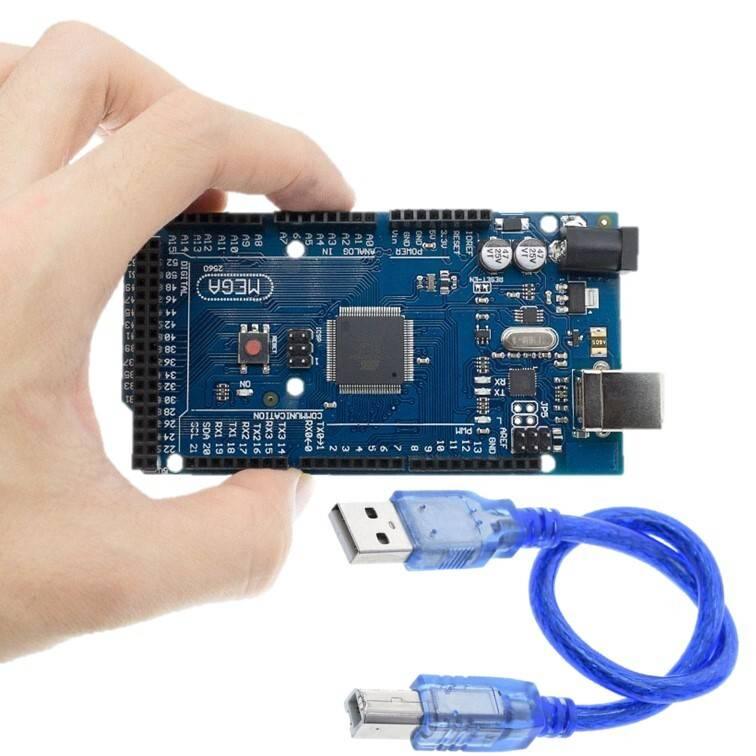

Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours

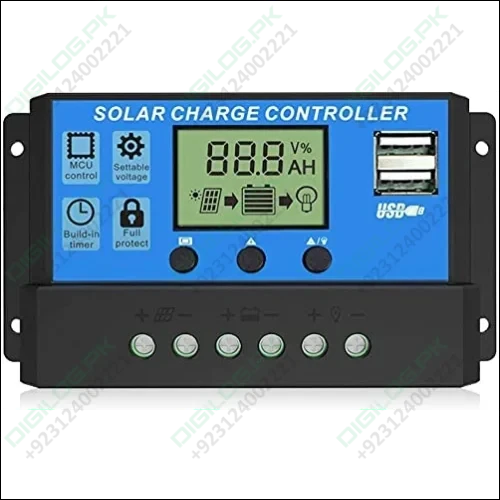

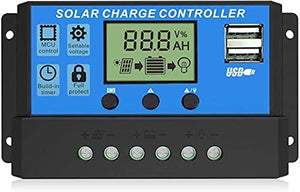

12V 24V 10A Solar Charge Controller Dy-002

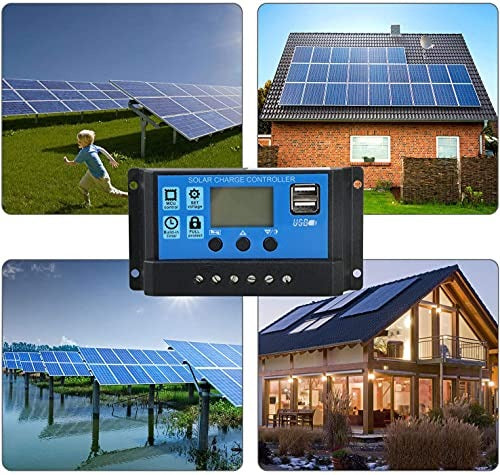

The Dy-002 Solar Charge Controller can automatically manage the working of solar panels and batteries in a solar system. A solar charge controller is used for protecting the lifespan of your battery, but once the voltage of the battery drop below 8V, the solar controller will turn off automatically (LCD will be unavailable at the same time).
Dual USB Port Of Solar charge controller:
The solar charge controller with dual USB ports:
- USB Output: 5V/2A max. 12V/24V auto
- Rated Charge & Discharge Current: 10A
- Settable operating modes of loads
- fully 4-stage PWM charge management.
Solar Battery:
Solar Charge controller is only suitable for lead-acid batteries: OPEN, AGM, GEL, not for nickel hydride, lithium, Li-ions, or other batteries. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically

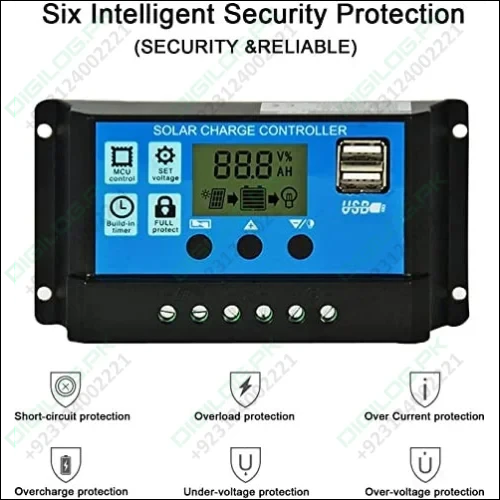

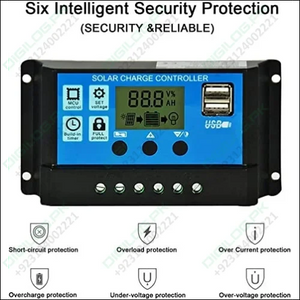

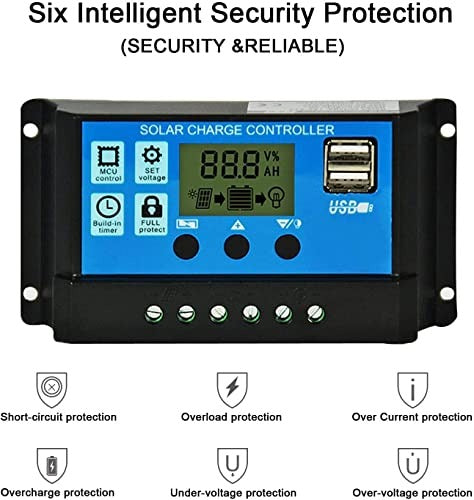

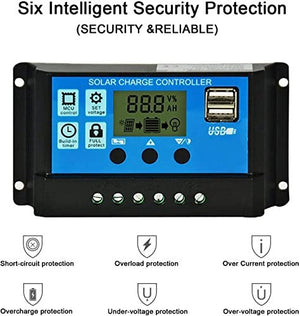

Multiple Electric Protection of Solar Charge Controller:
Short-circuit protection,open-circuit protection, reverse protection, overload protection, more safety for using, suitable for home, industrial, commercial etc.
Easy to Install and Operate Solar Charge Controller:

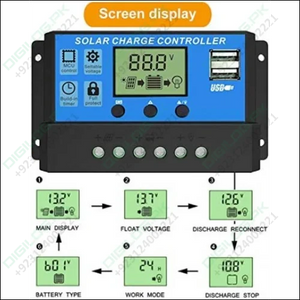

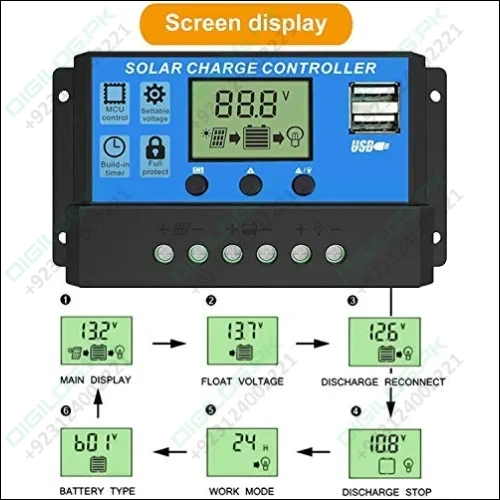

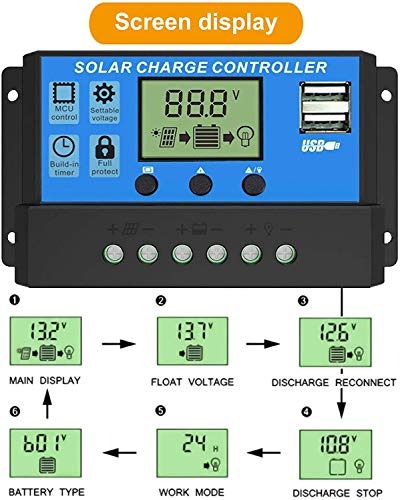

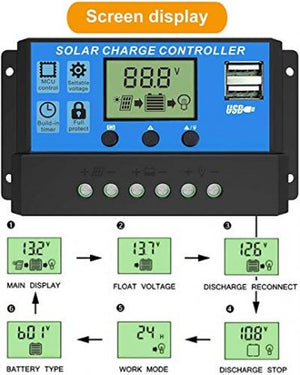

Hence Solar controller can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration.
Good Heat Dissipation:
Dual mosfet reverse current protection, low heat production(ALL electronic components generate heat when they are running, it is better to shelter them for better heat dissipation, avoid direct sunlight exposure or damp place)
Easy to Operate and Installation:
Wiring STEPS: Screw the adjustment screw counter-clockwise until the plates move down. Insert the wire into the new opening between the plate and the "top" of the Terminal hole, not under it. Moreover Screw the adjuster clockwise and the plate will move upwards thereby squishing the wire
in the Terminal hole.

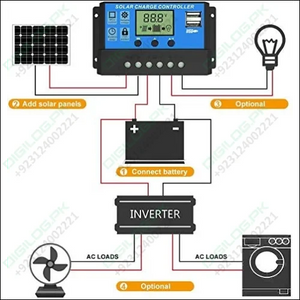

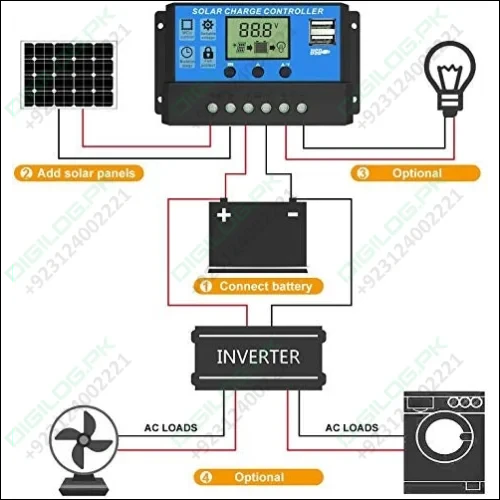

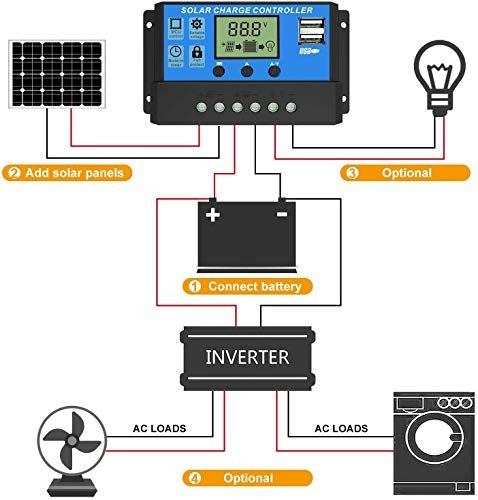

Installation STEPS：Connect the system in the order of 1.Battery > 2. Load > 3.PV Array in accordance with Figure, and disconnect the system in the reverse order 3. 2 .1.
