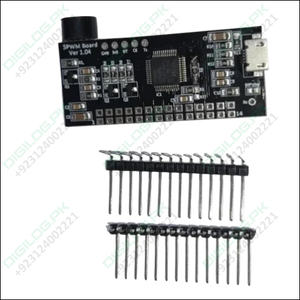

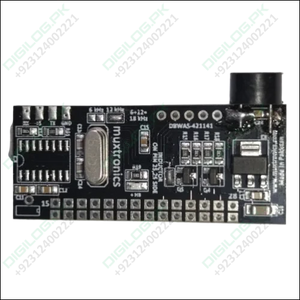

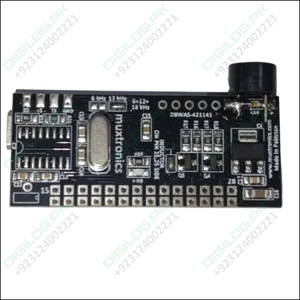

STM Sinewave Inverter Drive Module
High-Efficiency Sinusoidal Pulse Width Modulation Board
This high-performance SPWM board is designed for precision and efficiency and is suitable for various electronic applications.
Specifications
| Feature | Details |
|---|---|
| Operating Voltage | 5V DC |
| Carrier Frequency | 6 kHz, 12 kHz and 18 kHz (User-selectable) |
| Output Frequency | 50Hz (Fixed) |
| Dimensions | 51mm x 22mm |
| Operating Temperature | 0°C to 55°C |
| Operating Modes | Modified Unipolar/Bipolar (User-selectable) |
| Audible Warnings | Integrated DC buzzer |
| Communication Ports | 1 x USART (RS232-C), 1 x USB (VCOM 2.0) |
| PWM Output | 3.3V, 20 mA (Max) |
Display Compatibility
| Display Options | Description |
|---|---|
| 16x2 LCD Module | Compact and easy-to-read display |
| 20x4 LCD Module | Larger screen for more information |
| HT1621 LCD Module | Low-power, versatile display |
| i-Mux TFT Display | Advanced graphical interface |
This STM-SPWM Board is the perfect solution for projects requiring sinusoidal PWM signals with advanced features like selectable carrier frequencies, dual operating modes, and multiple communication interfaces. Its compact size and compatibility with various displays make it ideal for modern applications.
