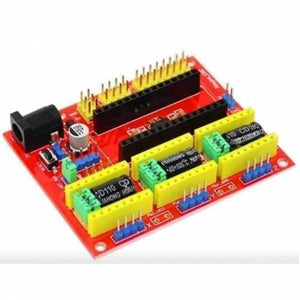

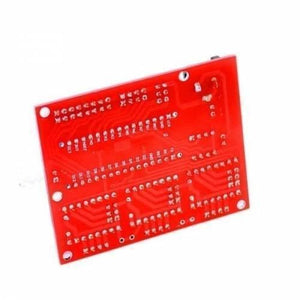

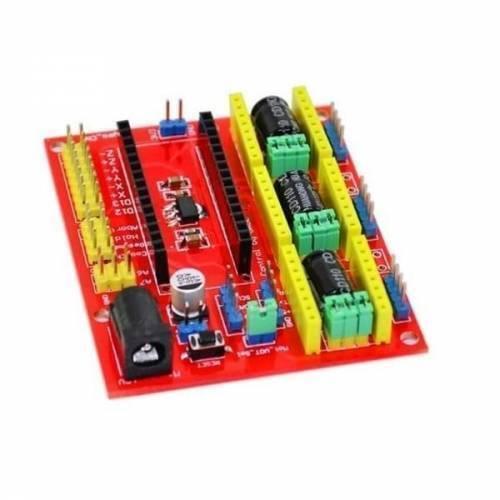

Arduino Nano CNC Shield V4 Expansion Board Stepper Motor Driver Board
Pickup available at Digilog Electronics
Usually ready in 2 hours

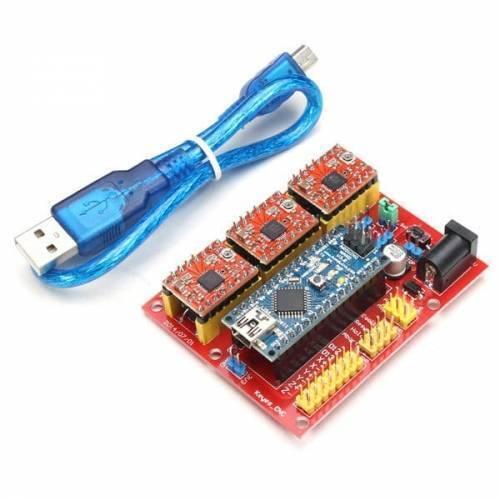

CNC shield V4 needs to work with Arduino Nano. It can be used as Driver Expansion Board for engraving machines and 3D printers. It has in total 3 channel slots forA4988 Stepper Motor Driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This Breakout shield can make quick work for managing stepper motors in your project.
Features And Specifications Of CNC shield v4 engraving machine comparable with Nano 3.0 /3D Printer/A4988 driver GRBL :
- 3 axis stepper motor driver
- Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine
- Can control the two-phase four-wire stepper motor up to 2A
- Digital IO interface enables easy connections to other modules, such as ENDSTOPs
- I2C interface enables connection to the LCD I2C or other I2C module
- DC5v interface, 7.5-12V voltage input
- GRBL compatible
- This model is designed to do full steps only
- Dimensions: 71.5 x 58 x 12.5mm
Package Includes :
-
1 x 3D Printer CNC Shield V4 Expansion Board
