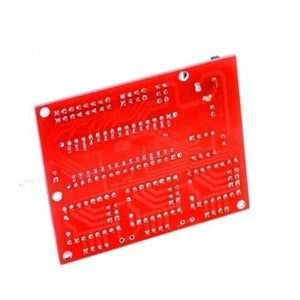

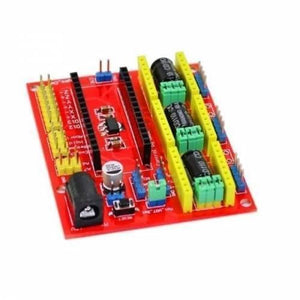

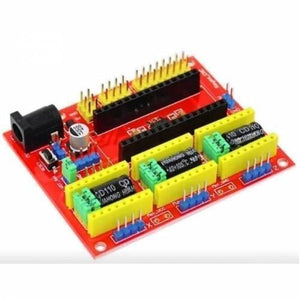

Name: Arduino Nano Cnc Shield V4 Expansion Board Stepper Motor Driver Board
Availability: InStock

Rs 370 PKR

SKU: B08,KRT07,IMP50,Th25,A

Availability: In Stock In Stock Out of stock

Description
Reviews

Description

CNC shield V4 needs to work with Arduino Nano. It can be used as Driver Expansion Board for engraving machines and 3D printers. It has in total 3 channel slots forA4988 Stepper Motor Driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This Breakout shield can make quick work for managing stepper motors in your project.

Features And Specifications Of CNC shield v4 engraving machine comparable with Nano 3.0 /3D Printer/A4988 driver GRBL :

3 axis stepper motor driver
Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine
Can control the two-phase four-wire stepper motor up to 2A
Digital IO interface enables easy connections to other modules, such as ENDSTOPs
I2C interface enables connection to the LCD I2C or other I2C module
DC5v interface, 7.5-12V voltage input
GRBL compatible
This model is designed to do full steps only
Dimensions: 71.5 x 58 x 12.5mm

Package Includes :

1 x 3D Printer CNC Shield V4 Expansion Board
