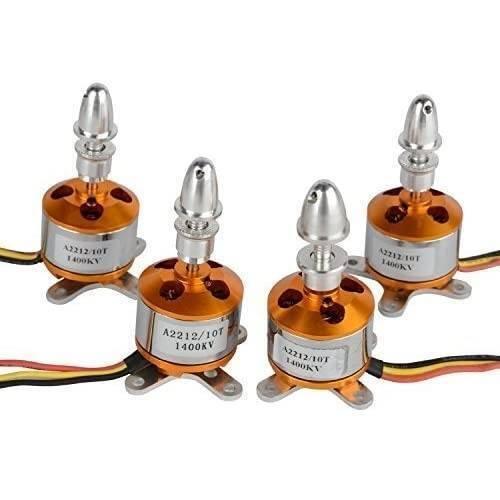

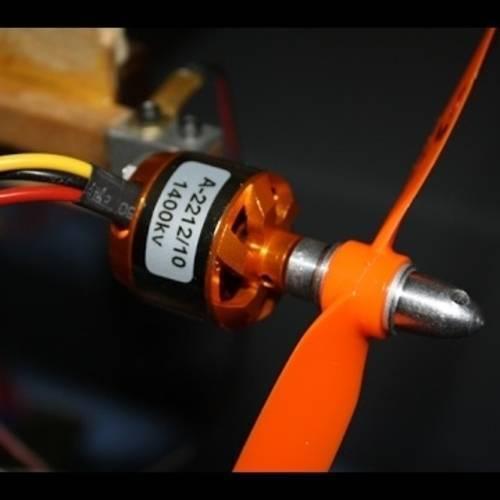

A2212 1400kV Brushless DC BLDC Motor For DIY Rc Aircraft Multicopter
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
1400kv brushless motor A2212-10T specifically made for quadcopters and multi-copters. This A2212 motor provides high performance, superpower, and brilliant efficiency. This 2212 brushless motor 1400kv motor is perfect for medium size quadcopters with 8 inches to 10-inch propellers. Use this to build powerful and efficient quadcopters.
Brushless A2212 comes complete with mounting bolts, prop adapters, and power leads. It can be used with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.
Features Of A2212 1400KV Brushless Motor For DIY RC Aircraft Multicopter:
- A2212 is used when the project cost is low. 2212 is one of the cheapest and robust motors on the market. It is available in any electronic market.
- A2212 is easy to work with considering many driver modules out there for the motor. With these modules, we can easily control the speed of the brushless motor.
- Because of three-phase connections, we can control the speed of the motor more accurately and also more smoothly.
- Efficiency is also one of the reasons for choosing this motor. This motor efficiency is good considering its purchase cost.
- The lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Suitable for RC helicopter, airplane, quadcopter, and multi-copter.
Specifications Of Drone Quadcopter A2212 Blushless DC Motor:
- Model: A2212 10T
- Motor KV (RPM/V): 1400
- Maximum Efficiency: 80%
- Current Capacity: 16A Per 60S
- No-Load Current(A): 0.7A @10V
- Max. Efficiency Current: 6-12A
- Maximum Watts(W): 180
- Internal Resistance(mΩ): 65
- Poles: 14
- Shaft Diameter (mm): 3.17
- LiPO Batteries: 2S-3S
- Length (mm): 27.5
- Width (mm): 26.5
- Weight (gm): 62

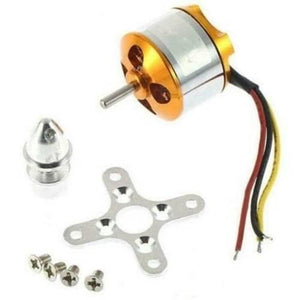

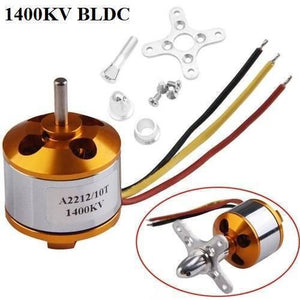

Package Includes:
- 1 x A2212-10T 1400KV Brushless Motor
- 1 x Prop adapter
- 1 x Mount
- 4 x Screws
