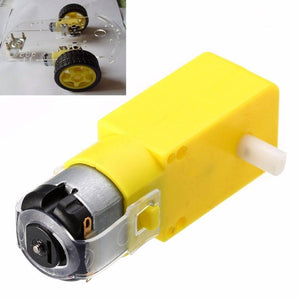

DC 3V 6V DC Gear Motors - shown as a yellow plastic-encased motor with a white output shaft and a metallic motor housing, with an inset showing a robot base.
DC 3V 6V DC Gear Motors - a yellow plastic gearbox with a white output shaft attached to a silver metal motor with two electrical contact terminals.
DC 3V 6V DC Gear Motors - shown as a yellow plastic-encased motor with a white output shaft and a metallic motor housing, with an inset showing a robot base.
DC 3V 6V DC Gear Motors - a yellow plastic gearbox with a white output shaft attached to a silver metal motor with two electrical contact terminals.

DC 3V 6V DC Gear Motors

Sale price Rs 240
SKU: B651,krt188,IMP2000,Th1000,S
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

DC 3V 6V DC Gear Motors - shown as a yellow plastic-encased motor with a white output shaft and a metallic motor housing, with an inset showing a robot base.
+
1 Piece Tt Motor Rubber Tires Dia 68mm Width 26mm Geared Tyre For DIY Rc Cars Wheels Model Robot Tire Plastic Wheel Rim Hub - with a black rubber tread, including dimension labels showing 69mm, 46mm, and 26mm measurements.
+
Universal Wheel For Smart Car Robot Omni Wheel Furniture Caster Robot Wheel Tire - a single swivel caster with a white plastic wheel and a square metal mounting plate with four screw holes.
+
L293 L293D Motor Driver Module Arduino Motor Driver Shield - a blue rectangular circuit board featuring three integrated circuits, blue screw terminals, a reset button, and a yellow jumper.
L293 L293D Motor Driver Module Arduino Motor Driver Shield - a blue rectangular circuit board featuring three integrated circuits, blue screw terminals, a reset button, and a yellow jumper.
This item: DC 3V 6V DC Gear Motors -
Sale price Rs 240
1 Piece Tt Motor Rubber Tires Dia 68mm Width 26mm Geared Tyre For DIY Rc Cars Wheels Model Robot Tire Plastic Wheel Rim Hub - with a black rubber tread, including dimension labels showing 69mm, 46mm, and 26mm measurements.
1 Piece Tt Motor Rubber Tires Dia 68mm Width 26mm Geared Tyre For DIY Rc Cars Wheels Model Robot Tire Plastic Wheel Rim Hub -
Sale price Rs 110
Universal Wheel For Smart Car Robot Omni Wheel Furniture Caster Robot Wheel Tire - a single swivel caster with a white plastic wheel and a square metal mounting plate with four screw holes.
Universal Wheel For Smart Car Robot Omni Wheel Furniture Caster Robot Wheel Tire -
Sale price Rs 180
L293 L293D Motor Driver Module Arduino Motor Driver Shield - a blue rectangular circuit board featuring three integrated circuits, blue screw terminals, a reset button, and a yellow jumper.
L293 L293D Motor Driver Module Arduino Motor Driver Shield -
Sale price Rs 410
Price for all:
Sale total price Rs 940

Pickup available at Digilog Electronics

Usually ready in 2 hours

DC 3V 6V DC Gear Motors - shown as a yellow plastic-encased motor with a white output shaft and a metallic motor housing, with an inset showing a robot base.

DC 3V 6V DC Gear Motors

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
DC 3V 6V DC Gear Motors - shown as a yellow plastic-encased motor with a white output shaft and a metallic motor housing, with an inset showing a robot base.
DC 3V 6V DC Gear Motors
Sale priceRs 240

This gear motor is perfect for your next robotics project. This gear motor is ideal for robotic car or line-tracing robot. With plastic construction and colored in bright yellow, the DC gear motor measures approx. 2.5 inch long, 0.85 inch wide and 0.7 inch thick. The wheel can be mounted on either side and the Gearmotor works well between 4V to 7V (recommended 6 Volts). At a ratio of 1:48 you can get some really good torque at 5 Volts.



SPECIFICATIONS OF DC Gear Motor:

  1. Voltage (Range):  3Volt
  2. Current (Stall): 100mA
  3. Speed: 125RPM
  4. Torque: 0.8kg.cm
  5. Gearmotor Style: Hobby
  6. Gear Material: Plastic
  7. Gearbox Ratio: 48:1
  8. Encoder: No

EXTRA SPECIFICATIONS

  1. Voltage: 3V
  2. RPM: 125r / minute
  3. Current: 80 - 100mA
  4. Reduction: 48:1
  5. Output Torque: 0.8kg.cm
  6. Brush-type: Brush

FEATURES

  1. DIY Projects
  2. Battery-operated toys
  3. Disk drives Steel rolling mills Paper
  4. Machines Medical equipment
  5. Radio-controlled aircraft
  6. Automobiles Drive systems Positioning
  7. Industrial and consumer actuators Winches Robotics Mixers
  8. Robotic projects

Dimensions

  1. 70x22x18mm
  2. Shaft Size: 8mm x 5.4mm diameter
  3. Weight: 17gr

=============================================

Package Includes:

  1x dc motor as shown in the picture

===========================================
