LiFePO4 BMS

digilog.pk stocks LiFePO4 (LFP) BMS protection boards specifically calibrated for lithium iron phosphate battery chemistry — with charge cutoff at 3.65V/cell and discharge cutoff at 2.5V/cell, matching the flat voltage curve of LFP cells. LiFePO4 batteries are the safest lithium chemistry for solar storage, UPS, and e-vehicle applications, and pairing them with the correct LFP-calibrated BMS is critical for long cycle life and safe operation in Pakistan.

Why LiFePO4 Needs Its Own BMS?

• Different voltage thresholds — LFP cells charge to 3.65V (not 4.2V); using a Li-ion BMS on LFP cells will undercharge or overprotect
• Safer chemistry — LiFePO4 does not undergo thermal runaway like Li-ion; still needs protection from deep discharge
• Longer cycle life — properly managed LFP packs last 2000–5000 cycles vs 500–1000 for Li-ion
• Solar preferred — LFP's thermal stability makes it the industry standard for solar home storage

Available LiFePO4 BMS

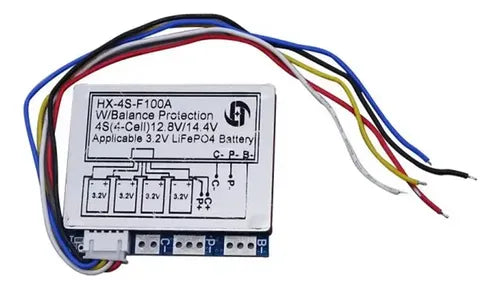

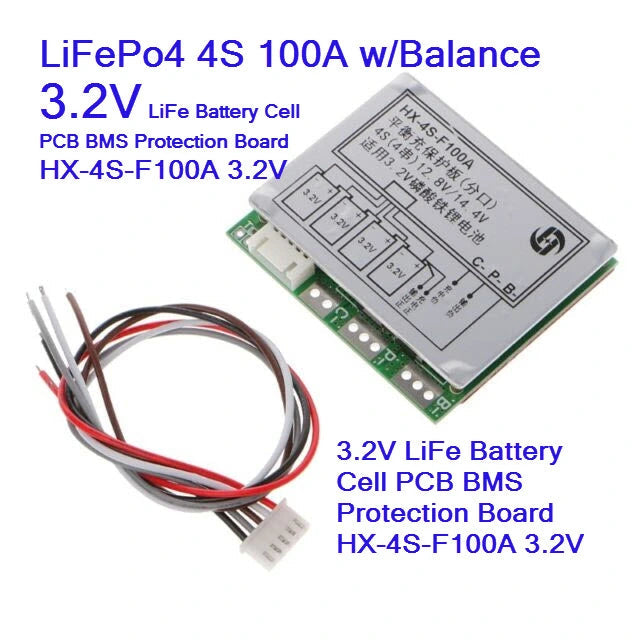

• 4S 12V LiFePO4 BMS — 12.8V nominal; drop-in replacement for 12V lead-acid in UPS and solar systems
• 8S 24V LiFePO4 BMS — 25.6V nominal; for 24V solar storage and inverter systems
• 16S 48V LiFePO4 BMS — 51.2V nominal; most popular for home solar battery banks in Pakistan

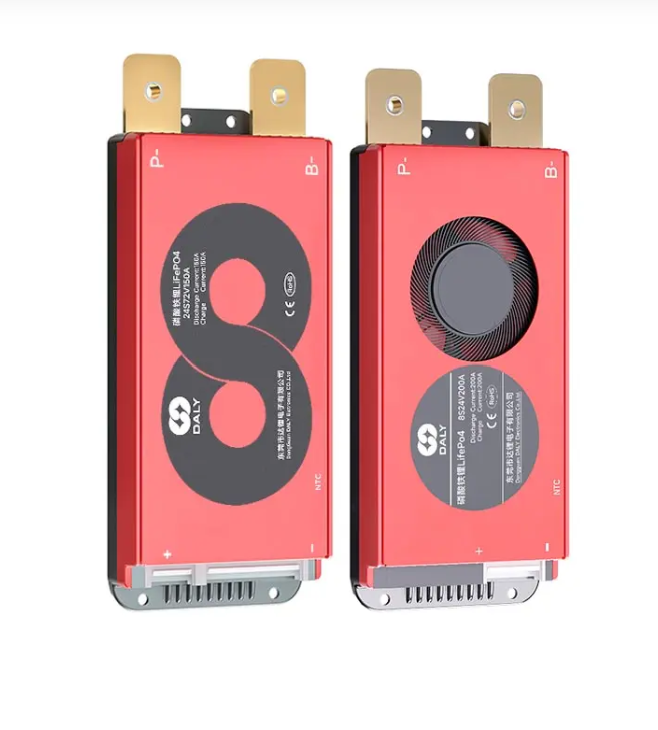

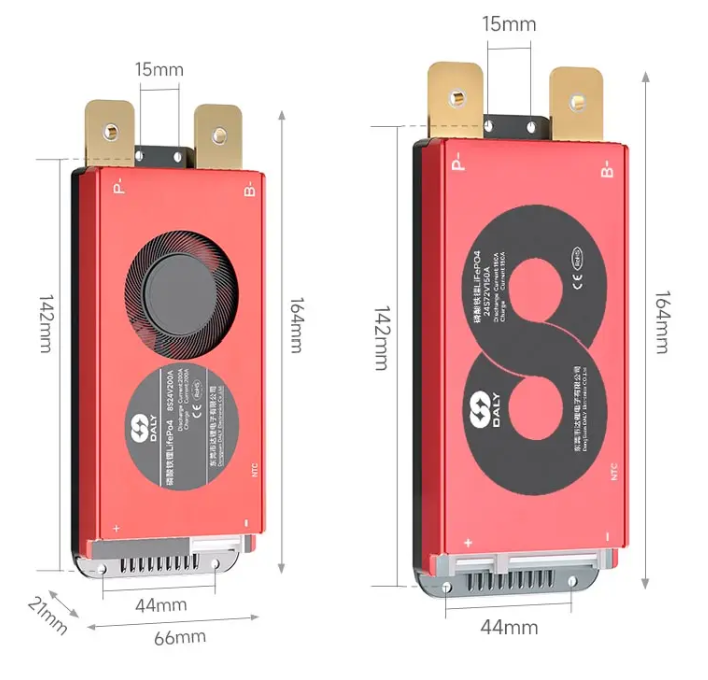

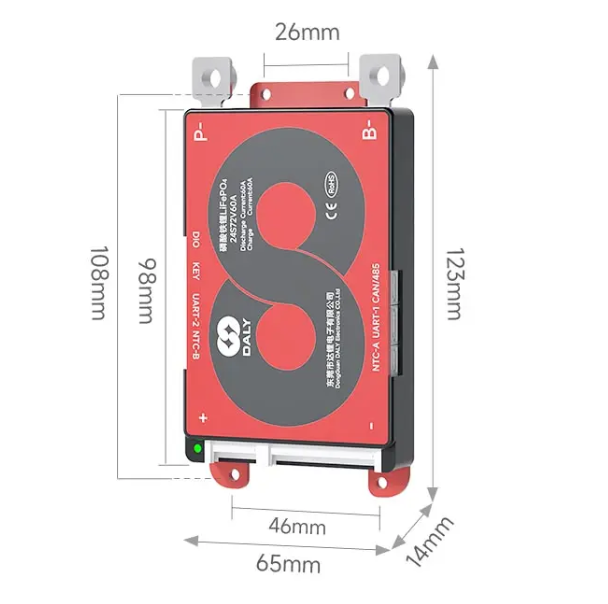

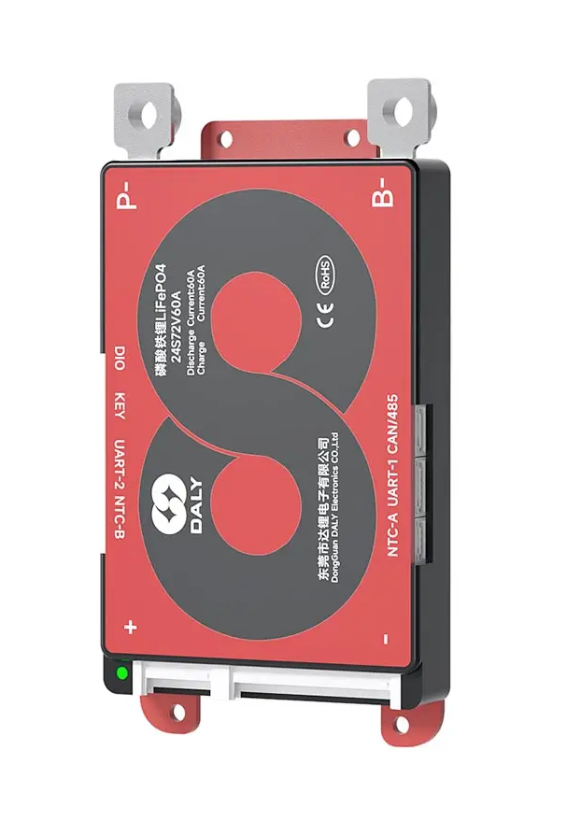

• DALY LiFePO4 BMS — see DALY BMS for Bluetooth-enabled LFP options
• JK Smart LiFePO4 BMS — see JK Smart BMS for active-balancing LFP boards

Related Categories

See all BMS options at BMS - Battery Management Systems. Integrate with solar charge controllers and inverters from Solar & Inverter. For e-bike specific high-current BMS see BMS for E-Bike & Electric Scooter. Pair with LiFePO4 cells from Batteries & Chargers.

Common Applications

• Home solar battery bank — 16S LiFePO4 cells + 16S LFP BMS + 48V MPPT controller — see Solar & Inverter
• 12V lead-acid replacement — 4S LFP + 4S BMS + compatible charger for UPS and solar systems
• 24V off-grid system — 8S LFP + 8S BMS for smaller off-grid solar installations
• DIY Powerwall — 16S LFP packs with JK Smart BMS for home energy storage

How to Choose

1. Voltage — 4S for 12V systems; 8S for 24V; 16S for 48V (most common for solar)
2. Current — size to inverter or load peak current; choose BMS with 25% headroom
3. Balancing — passive BMS (DALY) for smaller packs; active (JK Smart) for 100Ah+ solar banks
4. LFP calibration confirmed — verify charge voltage cutoff is 3.65V/cell, not 4.2V/cell

Learning Resources

• LiFePO4 Battery — Wikipedia — chemistry, voltage curves, and safety advantages
• Types of Lithium-Ion — Battery University — LFP vs NMC vs NCA comparison
• DIY Solar Forum — LFP battery build threads and BMS configuration
• Solar System Sizing Guide

For DALY LFP BMS with Bluetooth see DALY BMS. For JK active balancing LFP see JK Smart BMS. For bulk LFP system supply contact info@digilog.pk.
