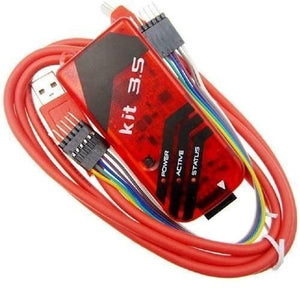

PICKIT3.5 PIC KIT3.5 PICKIT 3.5 Programmer is offline programming simulation PIC microcontroller chip. PICkit3 Microchip In-Circuit Debugger / Programmer uses in-circuit logic debugging built into each chip with flash memory to provide a low-cost hardware debugger and programmer and this pickit programmer is the 3.5 upgrade Kit, the best choice, after the upgrade advantages.

Features Of PICKit 3.5 USB PIC Programmer/Debugger Compatible:

• Offline programming never stops, so download more smoothly and completely conquer all versions of MPLAB, MPLAB X.
• Each PICkit3.5 with a single serial number, MPLAB X under, can operate more Kit3.5.
• Increase the external power supply current, the output voltage is more stable.
• Interface protection is more perfect.
• USB (Full speed 12 Mbit / s host PC interface).
• Real-time.
• MPLAB IDE compliant execution (free download from Microchip).
• Built-in over-voltage / short circuit monitor.
• Firmware is upgradeable from PC / Web download.
• Fully closed.
• Diagnostic LED ( power, busy, error).
• The program read/write and microcontroller memory data.
• Clear space with verification program memory.
• Freeze-peripherals at the breakpoint.
• Program up to 512K byte flash with the Programmer-to-Go.
• ICSP cable included.

Applications Of Pickit 3.5 PIC Programmer:

• Program PIC Microcontrollers.
• Debug PIC Microcontrollers.
• Code dumping in the production process.
• Flashing or Firmware update.

PicKit 3 Pinout:

1. MCLR/Vpp: Connected to Master clear external reset pin of PIC to reset the MCU before programming
2. VDD (Target): Target voltage of PIC, 5V or 3.3V
3. Ground: Ground pin of the system
4. PGD/ICS0PDAT: Program Data(PDG) is connected to the In-Circuit Serial Programming (ICSP) data pin
5. PGC/ICSPCLK: Program Clock (PGC) is connected to In-Circuit Serial Programming (ICSP) clock pin
6. No connection: This pin is reserved for future use

Tutorial Of PICKIT 3.5 Programmer Programming Adapter:

•   https://microcontrollerslab.com/pickit3-upload-code-pic-microcontroller/

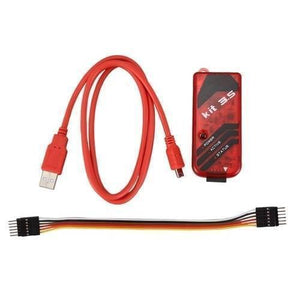

Package Includes:

• 1 x Pickit 3.5
• 1 x USB cable
• 1 x Jumper wire
