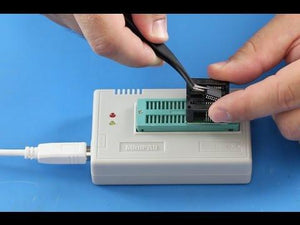

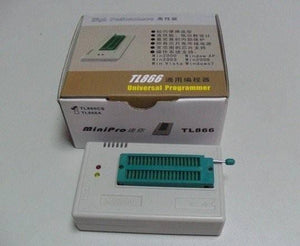

Mini Pro TL866CS USB BIOS Universal Programmer in pakistan

TL866CS Bios Programmer:

The Outstanding advantages of TL866 programmer

1. Support simultaneously burn with 4 Programmers each computer
2. The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
3. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
4. Best internal 40 foot over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
5. Wide range of chip 13000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
6. Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
7. Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
8. Chip auto serial number is the most complete and practical.
9. Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.



High Speed Programming

This programmer has Built-in MCU with high-performance and high-capacity USB interface at the communication speed of 12Mbps being in line with ( For each chip) well-designed programming algorithm and USB high-speed communications. It may be one of the fastest integrated development programmers, the speed has been met the needs of small-quantity efficient production.



Unique ultra-low power consumption

The whole programmer is equipped with the ultra-low power chips and it is furnished with electricity via USB Interface. It is the first comprehensive programmer to program all the chips without an external power supply. Their own power consumption is less than 20mA (it is 7mA when the programmer is not programming, LED power indicator use largest electricity, 5mA each one) and Programming power loss rate is less than 20% so that the programmer can supply the high VCC VPP programming electric current. Programmable chip can be provided with enough programming power (the largest programming power output is 2 watts that is impossible for a chip to use 2 watts of programming power). And you hardly feel the heat of the programmer after such long continuous work.



easily portable performance

This is one of the smallest products in the world and the dimensions are 10CM*6CM*2.5CM (it is as small as a driving license). In addition, you don’t need to carry with an external power supply because of its ultra-low power that makes it more portable.



Programmable programming power supply

VPP and VCC programming voltages are independently program-controlled: programmable VCC is from 3.3V to 6.5V; VPP is from 3.3V to 21V. The fluctuation of power supply is minor because of the multi-stage LC filter.



Best overvoltage, overcurrent protection

VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off power supply. Each pin of 40-pin programming socket has VPP overvoltage protection. It can effectively prevent from putting a chip in the wrong place or short circuit due to other reason. In this programming case, it can also stop VPP high voltage from coming back to the internal of the programmer and damaging the device. Really make sure that the programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.
This programmer will cut off the programming power supply VPP and VCC within 100us and send the message to the application program when there is short circuit. The programmer and PC won’t be reset when there is short circuit because of the multilevel overcurrent protection.



40PIN universal pin

It is the most versatile pin among 40PIN quasi-universal pins. You don’t need to move or turn around the chip when programming, just congruously put the chip forward and the handle direction of the programmer is the PIN1 place. Its design accords with the common operating habit of user.



upgrading Function

This programmer is equipped with upgrading Function of the built-in hardware firmware program that can make sure your programmer’s firmware flash and application software can be timely updated. You can complete the upgrade by downloading the upgrading program through the manufacturer’s website.



Second development function of chip serial number

This programmer has a variety of automatic numbering functions that are used commonly. You can get any serial number through DLL Dynamic Link Libraries by using the custom algorithm. In mass production, the function enables each chip to produce only one identifying information that can be encrypted by the custom algorithm. So you can effectively protect your rights as a customer.



Unique universal serial programming interface ICSP

(Only TL866A can support, TL866CS cannot use this function)
This TL866A programmer can program through the 40-PIN universal socket and is provided with an ICSP serial programming port. For some in-circuit serial programmable chips, you can program MCU by choosing ICSP port. You can get the clear instruction diagram in the programming software for the ICSP port wiring method. That is to say, you can directly program and update the chip soldered on the board.
Note: Now ICSP can in-circuit serial program ATMEL89S51, ATMEL89S52, AT45DBxxx, a whole series of AVR ATMEGAxxx, MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx, as well as a full serial of SYNCMOS SM59Dxx SM59Rxx. The variety of microcontroller that can be supported in-circuit programming will be continually increased in the future. Six ICSP wires of this programmer, except a ground wire, other wires led full functional I2C, SPI and UART serial main wire, be suitable for all kinds of serial communication. In addition, each wire can supply VCC, VPP or GND with high current.



54/74F/LS/HC CMOS4000 series IC functional tests

This is the first development programmer to test the common logic integrated circuit and this test can be located the errors of logic gate circuit, as well as test any possible input combinations of integrated circuit.



Programmer self-testing function

This programmer can test itself on each pin of VPP, VCC, GND and I/O information, at the same time it can run an inside short-circuit test on VPP, VCC current.



AVR microcontroller one-to-one soft encryption

AVR microcontroller has an RC Calibration (calibrate bytes). Only one of dozens of chips may have the same bytes value and it cannot be modified. Microcontroller software can read this value and determine whether the code is used by other chips. Through custom encryption algorithm, it can stop those who decrypt chips with ulterior motives from directly using. The encryption algorithm is so complex that it is not easy to decrypt. But, about “encryption”, there is a problem for developers – each chip is different – it is impossible to manually calculate one by one and respectively compile source code if the algorithm is complex. This programmer can automatically read into RC bytes before programming. The developer can get the bytes value of the chip in the DLL dynamic function and then automatically calculate the encrypted data according to the request and put it in the memory, efficiently completing mass production. (A detailed encrypted instance of the ATMEGA8 in the installation package is available for reference)



Unified and convenient user interface

The user interface is well-designed and is in complete accord with the operating habit of the Windows series of software. Built-in binary editer is comparable to pure professional editing software. You can directly read, write and modify the files such as BIN format, HEX format, JED format and so on. In addition, it has the complete and practical project mode that makes the mass production more convenient and safer.

Library List Is Here.

TL866A TL866CS  USB高性能多功能迷你编程器支持芯片列表：
 TL866A/CS High-Performance Universal USB Programmer Device Support List:

应用软件版本号 Software Version: V6.50
支持总数 Supported Devices: 14037 pcs
操作系统支持 Supported Operating Systems: Windows 2000,XP,2003,2008,Vista & Win7(32/64) WIN8 WIN10

===================================================================
按CTRL+F可查找相关型号 Press Ctrl+F to search support list
===================================================================

===================================================================
TL866CS 与 TL866A编程器的芯片支持区别 Features: TL866CS VS. TL866A
===================================================================

1. ICSP interface (6-pin interface of the programmer right side) is limited to the TL866A model.

编程器右侧 6针的ICSP接口只能在TL866A上使用，TL866CS无此功能.

2. Partly Microchip’s MCU with More than 40pins require the use of the TL866A for ICSP interface programming .
Most of Microchip’s PICs MCU support programming on ICSP and 40PIN seat.

部分MICROCHIP 的引脚较多PIC芯片，只能使用TL866A的ICSP口编程.
大部分PIC芯片同时支持ICSP口及40PIN锁紧座上编程.

3. About ATMEGAxxxx and SYNCMOS’s MCU SM89xxx SM59xxx
TL866A support serial programming on ICSP and parallel programming on the seat.
TL886CS only support parallel programming on the seat.

对于ATMEL ATEMGAxxx系列芯片及台湾新茂的SM59/89xxx系列芯片
TL866A同时支持通过ICSP口进行串行在线编程及在40PIN锁紧座上的并行高压编程。
TL866CS只可在40PIN锁紧座上的并行高压编程。

4. AT45DBxxxx can only be programmed using the ICSP interface (TL866A only).

AT45DBxxxx芯片，只能用ICSP接口编程，TL866CS不可用。

5. To all other chips. TL866A and TL866CS no diffrent.
Both programmers work with genuine TL866 Adapters for devices up to 48 pins.

对其他芯片的编程，TL866CS、TL866A无区别.

=============================================================
Device Support List:
=============================================================

[ ACE ] 71 PCS

ACE24C02A ACE24C02A @SOIC8 ACE24C02A @TSSOP8 ACE24C02B
ACE24C02B @SOIC8 ACE24C02B @TSSOP8 ACE24C04A ACE24C04A @SOIC8
ACE24C04A @TSSOP8 ACE24C04B ACE24C04B @SOIC8 ACE24C04B @TSSOP8
ACE24C08A ACE24C08A @SOIC8 ACE24C08A @TSSOP8 ACE24C08B
ACE24C08B @SOIC8 ACE24C08B @TSSOP8 ACE24C16A ACE24C16A @SOIC8
ACE24C16A @TSSOP8 ACE24C16B ACE24C16B @SOIC8 ACE24C16B @TSSOP8
ACE24C32 ACE24C32 @SOIC8 ACE24C32 @TSSOP8 ACE24C64
ACE24C64 @SOIC8 ACE24C64 @TSSOP8 ACE24C128 ACE24C128 @SOIC8
ACE24C128 @TSSOP8 ACE24C256 ACE24C256 @SOIC8 ACE24C256 @TSSOP8
ACE24C512 ACE24C512 @SOIC8 ACE24C512 @TSSOP8 ACE24C1024
ACE24C1024 @SOIC8 ACE24LC02 ACE24LC02 @SOIC8 ACE24LC02 @TSSOP8
ACE24LC04 ACE24LC04 @SOIC8 ACE24LC04 @TSSOP8 ACE24LC08
ACE24LC08 @SOIC8 ACE24LC08 @TSSOP8 ACE24LC16 ACE24LC16 @SOIC8
ACE24LC16 @TSSOP8 ACE93C46(x8) ACE93C46(x8) @SOIC8 ACE93C46(x8) @TSSOP8
ACE93C46(x16) ACE93C46(x16) @SOIC8 ACE93C46(x16) @TSSOP8 ACE93C56(x8)
ACE93C56(x8) @SOIC8 ACE93C56(x8) @TSSOP8 ACE93C56(x16) ACE93C56(x16) @SOIC8
ACE93C56(x16) @TSSOP8 ACE93C66(x8) ACE93C66(x8) @SOIC8 ACE93C66(x8) @TSSOP8
ACE93C66(x16) ACE93C66(x16) @SOIC8 ACE93C66(x16) @TSSOP8

[ ACT ] 16 PCS

93LC46(x8) 93LC46(x8) @SOIC8 93LC46(x16) 93LC46(x16) @SOIC8
93LC56(x8) 93LC56(x8) @SOIC8 93LC56(x16) 93LC56(x16) @SOIC8
93LC66(x8) 93LC66(x8) @SOIC8 93LC66(x16) 93LC66(x16) @SOIC8
93LC86(x8) 93LC86(x8) @SOIC8 93LC86(x16) 93LC86(x16) @SOIC8

[ ACTRANS ] 9 PCS

AC39LV010 @PLCC32 AC39LV010 @TSOP32 AC39LV020 @PLCC32 AC39LV020 @TSOP32
AC39LV040 @PLCC32 AC39LV040 @TSOP32 AC39LV080 @TSOP40 AC39LV512 @PLCC32
AC39LV512 @TSOP32

[ ADVANCE GROUP ] 51 PCS

AF24BC01 AF24BC01 @SOIC8 AF24BC01 @TSOP8 AF24BC02
AF24BC02 @SOIC8 AF24BC02 @TSOP8 AF24BC04 AF24BC04 @SOIC8
AF24BC04 @TSOP8 AF24BC08 AF24BC08 @SOIC8 AF24BC08 @TSOP8
AF24BC16 AF24BC16 @SOIC8 AF24BC16 @TSOP8 AF24C32
AF24C32 @SOIC8 AF24C32 @TSOP8 AF24C64 AF24C64 @SOIC8
AF24C64 @TSOP8 AF24C128 AF24C128 @SOIC8 AF24C128 @TSOP8
AF24C256 AF24C256 @SOIC8 AF24C256 @TSOP8 AF93C46(x8)
AF93C46(x8) @SOIC8 AF93C46(x8) @TSSOP8 AF93C46(x16) AF93C46(x16) @SOIC8
AF93C46(x16) @TSSOP8 AF93C56(x8) AF93C56(x8) @SOIC8 AF93C56(x8) @TSSOP8
AF93C56(x16) AF93C56(x16) @SOIC8 AF93C56(x16) @TSSOP8 AF93C66(x8)
AF93C66(x8) @SOIC8 AF93C66(x8) @TSSOP8 AF93C66(x16) AF93C66(x16) @SOIC8
AF93C66(x16) @TSSOP8 AF93C86(x8) AF93C86(x8) @SOIC8 AF93C86(x8) @TSSOP8
AF93C86(x16) AF93C86(x16) @SOIC8 AF93C86(x16) @TSSOP8

[ AiT Semi ] 12 PCS

A24C02 A24C02 @SOIC8 A24C02 @TSOP8 A24C04
A24C04 @SOIC8 A24C04 @TSOP8 A24C08 A24C08 @SOIC8
A24C08 @TSOP8 A24C16 A24C16 @SOIC8 A24C16 @TSOP8

[ ALI(Acer) ] 2 PCS

M8720 M8720 @PLCC32

[ ALLIANCE ] 20 PCS

AS29F002T AS29F002T @PLCC32 AS29F002T @TSOP32 AS29F002B
AS29F002B @PLCC32 AS29F002B @TSOP32 AS29LV160T @TSOP48 AS29LV160B @TSOP48
AS29F200B @TSOP48 AS29F200B @PSOP44 AS29F200T @TSOP48 AS29F200T @PSOP44
AS29LV400B @TSOP48 AS29LV400B @PSOP44 AS29LV400T @TSOP48 AS29LV400T @PSOP44
AS29LV800B @TSOP48 AS29LV800B @PSOP44 AS29LV800T @TSOP48 AS29LV800T @PSOP44

[ AMD ] 249 PCS

AM2716B @DIP24 AM2732B @DIP24 AM2764A @DIP28 AM2764A @PLCC32
AM27128A @DIP28 AM27128A @PLCC32 AM27256 @DIP28 AM27256 @PLCC32
AM27512 @DIP28 AM27512 @PLCC32 AM27C64 @DIP28 AM27C64 @PLCC32
AM27C010 @DIP32 AM27C010 @PLCC32 AM27C020 @DIP32 AM27C020 @PLCC32
AM27C040 @DIP32 AM27C040 @PLCC32 AM27C080 @DIP32 AM27C080 @PLCC32
AM27C128 @DIP28 AM27C128 @PLCC32 AM27C256 @DIP28 AM27C256 @PLCC32
AM27C512 @DIP28 AM27C512 @PLCC32 AM27C1024 @DIP40 AM27C2048 @DIP40
AM27C4096 @DIP40 AM27LV010 @DIP32 AM27LV010 @PLCC32 AM27LV010 @TSOP32
AM27LV020 @DIP32 AM27LV020 @PLCC32 AM27LV020 @TSOP32 AM27LV020B @DIP32
AM27LV020B @PLCC32 AM27LV020B @TSOP32 AM27LV040 @DIP32 AM27LV040 @PLCC32
AM27LV040 @TSOP32 AM27LV080 @DIP32 AM27LV080 @PLCC32 AM27LV080 @TSOP32
AM27H010 @DIP32 AM27H010 @PLCC32 AM27H010 @TSOP32 AM27H256 @DIP28
AM27H256 @PLCC32 AM27HB010 @DIP32 AM27HB010 @PLCC32 AM27HB010 @TSOP32
AM28C16A @DIP24 AM28C16A @PLCC32 AM28C17A @DIP28 AM28C17A @PLCC32
AM28C17A @SOIC28 AM28C64A @DIP28 AM28C64A @PLCC32 AM28C64A @SOIC28
AM28C64AE @DIP28 AM28C64AE @PLCC32 AM28C64AE @SOIC28 AM28C64B @DIP28
AM28C64B @PLCC32 AM28C64B @SOIC28 AM28C64BE @DIP28 AM28C64BE @PLCC32
AM28C64BE @SOIC28 AM28F256 AM28F256 @PLCC32 AM28F256 @TSOP32
AM28F512 AM28F512 @PLCC32 AM28F512 @TSOP32 AM28F010
AM28F010 @PLCC32 AM28F010 @TSOP32 AM28F020 AM28F020 @PLCC32
AM28F020 @TSOP32 AM29BL162CB @SOP56 AM29BL802CB @SOP56 AM29DL161DB @TSOP48
AM29DL161DT @TSOP48 AM29DL162DB @TSOP48 AM29DL162DT @TSOP48 AM29DL163DB @TSOP48
AM29DL163DT @TSOP48 AM29DL164DB @TSOP48 AM29DL164DT @TSOP48 AM29DL322DB @TSOP48
AM29DL322DT @TSOP48 AM29DL322GB @TSOP48 AM29DL322GT @TSOP48 AM29DL323DB @TSOP48
AM29DL323DT @TSOP48 AM29DL323GB @TSOP48 AM29DL323GT @TSOP48 AM29DL324DB @TSOP48
AM29DL324DT @TSOP48 AM29DL324GB @TSOP48 AM29DL324GT @TSOP48 AM29DL400BB @TSOP48
AM29DL400BB @SOP44 AM29DL400BT @TSOP48 AM29DL400BT @SOP44 AM29DL800BB @TSOP48
AM29DL800BB @SOP44 AM29DL800BT @TSOP48 AM29DL800BT @SOP44 AM29F002B @DIP32
AM29F002B @PLCC32 AM29F002B @TSOP32 AM29F002BB @DIP32 AM29F002BB @PLCC32
AM29F002BB @TSOP32 AM29F002BT @DIP32 AM29F002BT @PLCC32 AM29F002BT @TSOP32
AM29F002NB @DIP32 AM29F002NB @PLCC32 AM29F002NB @TSOP32 AM29F002NBB @DIP32
AM29F002NBB @PLCC32 AM29F002NBB @TSOP32 AM29F002NBT @DIP32 AM29F002NBT @PLCC32
AM29F002NBT @TSOP32 AM29F002NT @DIP32 AM29F002NT @PLCC32 AM29F002NT @TSOP32
AM29F002T @DIP32 AM29F002T @PLCC32 AM29F002T @TSOP32 AM29F010 @DIP32
AM29F010 @PLCC32 AM29F010 @TSOP32 AM29F010B @DIP32 AM29F010B @PLCC32
AM29F010B @TSOP32 AM29F016D @TSOP40 AM29F040 @DIP32 AM29F040 @PLCC32
AM29F040 @TSOP32 AM29F040B @DIP32 AM29F040B @PLCC32 AM29F040B @TSOP32
AM29F080 @TSOP40 AM29F080B @TSOP40 AM29F100AB @TSOP48 AM29F100AB @SOP44
AM29F100AT @TSOP48 AM29F100AT @SOP44 AM29F100B @TSOP48 AM29F100B @SOP44
AM29F100T @TSOP48 AM29F100T @SOP44 AM29F160DB @TSOP48 AM29F160DT @TSOP48
AM29F200AB @TSOP48 AM29F200AB @SOP44 AM29F200AT @TSOP48 AM29F200AT @SOP44
AM29F200BB @TSOP48 AM29F200BB @SOP44 AM29F200BT @TSOP48 AM29F200BT @SOP44
AM29F400AB @TSOP48 AM29F400AB @SOP44 AM29F400AT @TSOP48 AM29F400AT @SOP44
AM29F400BB @TSOP48 AM29F400BB @SOP44 AM29F400BT @TSOP48 AM29F400BT @SOP44
AM29F800AB @TSOP48 AM29F800AB @SOP44 AM29F800AT @TSOP48 AM29F800AT @SOP44
AM29F800B @TSOP48 AM29F800B @SOP44 AM29F800BB @TSOP48 AM29F800BB @SOP44
AM29F800BT @TSOP48 AM29F800BT @SOP44 AM29F800T @TSOP48 AM29F800T @SOP44
AM29LV001B @PLCC32 AM29LV001B @TSOP32 AM29LV001BB @PLCC32 AM29LV001BB @TSOP32
AM29LV001BT @PLCC32 AM29LV001BT @TSOP32 AM29LV001T @PLCC32 AM29LV001T @TSOP32
AM29LV002B @TSOP40 AM29LV002T @TSOP40 AM29LV004B @TSOP40 AM29LV004BB @TSOP40
AM29LV004BT @TSOP40 AM29LV004T @TSOP40 AM29LV008B @TSOP40 AM29LV008BB @TSOP40
AM29LV008BT @TSOP40 AM29LV008T @TSOP40 AM29LV010B @PLCC32 AM29LV010B @TSOP32
AM29LV017 @TSOP40 AM29LV020B @PLCC32 AM29LV020B @TSOP32 AM29LV033C @TSOP40
AM29LV033M @TSOP40 AM29LV040B @PLCC32 AM29LV040B @TSOP32 AM29LV081 @TSOP40
AM29LV160BB @TSOP48 AM29LV160BT @TSOP48 AM29LV160DB @TSOP48 AM29LV160DT @TSOP48
AM29LV200B @TSOP48 AM29LV200B @SOP44 AM29LV200BB @TSOP48 AM29LV200BB @SOP44
AM29LV200BT @TSOP48 AM29LV200BT @SOP44 AM29LV200T @SOP44 AM29LV200T @TSOP48
AM29LV320DB @TSOP48 AM29LV320DT @TSOP48 AM29LV320MB @TSOP48 AM29LV320MT @TSOP48
AM29LV400B @TSOP48 AM29LV400B @SOP44 AM29LV400BB @TSOP48 AM29LV400BB @SOP44
AM29LV400BT @TSOP48 AM29LV400BT @SOP44 AM29LV400T @TSOP48 AM29LV400T @SOP44
AM29LV641D @TSOP48 AM29LV800B @TSOP48 AM29LV800B @SOP44 AM29LV800BB @TSOP48
AM29LV800BB @SOP44 AM29LV800BT @TSOP48 AM29LV800BT @SOP44 AM29LV800T @TSOP48
AM29LV800T @SOP44

[ AMIC ] 204 PCS

A25L05PT @DIP8 A25L05PT @SOP8 A25L05PT @TSOP8 A25L05PU @DIP8
A25L05PU @SOP8 A25L05PU @TSOP8 A25L10PT @DIP8 A25L10PT @SOP8
A25L10PT @TSOP8 A25L10PU @DIP8 A25L10PU @SOP8 A25L10PU @TSOP8
A25L20PT @DIP8 A25L20PT @SOP8 A25L20PT @TSOP8 A25L20PU @DIP8
A25L20PU @SOP8 A25L20PU @TSOP8 A25L40PT @DIP8 A25L40PT @SOP8
A25L40PT @SOP16 A25L40PU @DIP8 A25L40PU @SOP8 A25L40PU @SOP16
A25L80PT @DIP8 A25L80PT @SOP8 A25L80PT @SOP16 A25L80PU @DIP8
A25L80PU @SOP8 A25L80PU @SOP16 A25L16PT @DIP8 A25L16PT @SOP8
A25L16PT @SOP16 A25L16PU @DIP8 A25L16PU @SOP8 A25L16PU @SOP16
A25L512 @DIP8 A25L512 @SOP8 A25L512 @TSOP8 A25L010 @DIP8
A25L010 @SOP8 A25L010 @TSOP8 A25L020 @DIP8 A25L020 @SOP8
A25L020 @TSOP8 A25L040 @DIP8 A25L040 @SOP8 A25L040 @TSOP8
A25L080 @DIP8 A25L080 @SOP8 A25L080 @TSOP8 A25L016 @DIP8
A25L016 @SOP8 A25L016 @SOP16 A25L032 @DIP8 A25L032 @SOP8
A25L032 @SOP16 A25LQ16 @DIP8 A25LQ16 @SOP8 A25LQ16 @SOP16
A25LQ32A @DIP8 A25LQ32A @SOP8 A25LQ32A @SOP16 A27020 @DIP32
A27020 @TSOP32 A27020L @PLCC32 A276308 @DIP28 A276308 @SOP28
A276308L @PLCC32 A276308A @DIP28 A276308A @SOP28 A276308AL @PLCC32
A278308 @DIP28 A278308L @PLCC32 A278308A @DIP28 A278308AL @PLCC32
A29001T A29001T @PLCC32 A29001T @TSOP32 A29001U
A29001U @PLCC32 A29001U @TSOP32 A290011T A290011T @PLCC32
A290011T @TSOP32 A290011U A290011U @PLCC32 A290011U @TSOP32
A29002T A29002T @PLCC32 A29002T @TSOP32 A29002U
A29002U @PLCC32 A29002U @TSOP32 A290021T A290021T @PLCC32
A290021T @TSOP32 A290021U A290021U @PLCC32 A290021U @TSOP32
A29512 A29512 @PLCC32 A29512 @TSOP32 A29512A
A29512A @PLCC32 A29512A @TSOP32 A29010 A29010 @PLCC32
A29010 @TSOP32 A29040 A29040 @PLCC32 A29040 @TSOP32
A29040A A29040A @PLCC32 A29040A @TSOP32 A29040B
A29040B @PLCC32 A29040B @TSOP32 A29400TV @TSOP48 A29400TM @SOP44
A29400UV @TSOP48 A29400UM @SOP44 A29800TV @TSOP48 A29800TM @SOP44
A29800UV @TSOP48 A29800UM @SOP44 A29801TV @TSOP48 A29801TM @SOP44
A29801UV @TSOP48 A29801UM @SOP44 A29DL162TV @TSOP48 A29DL162UV @TSOP48
A29DL163TV @TSOP48 A29DL163UV @TSOP48 A29DL164TV @TSOP48 A29DL164UV @TSOP48
A29DL322TV @TSOP48 A29DL322UV @TSOP48 A29DL323TV @TSOP48 A29DL323UV @TSOP48
A29DL324TV @TSOP48 A29DL324UV @TSOP48 A29L040 @DIP32 A29L040 @PLCC32
A29L040 @TSOP32 A29L040A @DIP32 A29L040A @PLCC32 A29L040A @TSOP32
A29L004ATL @PLCC32 A29L004ATV @TSOP32 A29L004ATW @TSOP40 A29L004ATX @TSOP32
A29L004ATY @TSOP32 A29L004AUL @PLCC32 A29L004AUV @TSOP32 A29L004AUW @TSOP40
A29L004AUX @TSOP32 A29L004AUY @TSOP32 A29L004TL @PLCC32 A29L004TV @TSOP32
A29L004TW @TSOP40 A29L004TX @TSOP32 A29L004UL @PLCC32 A29L004UV @TSOP32
A29L004UW @TSOP40 A29L004UX @TSOP32 A29L008TV @TSOP40 A29L008UV @TSOP40
A29L008ATV @TSOP40 A29L008AUV @TSOP40 A29L400TV @TSOP48 A29L400TM @SOP44
A29L400UV @TSOP48 A29L400UM @SOP44 A29L400ATV @TSOP48 A29L400ATM @SOP44
A29L400AUM @SOP44 A29L400AUV @TSOP48 A29L800TV @TSOP48 A29L800TM @SOP44
A29L800UV @TSOP48 A29L800UM @SOP44 A29L800ATV @TSOP48 A29L800ATM @SOP44
A29L800AUV @TSOP48 A29L800AUM @SOP44 A29L160TV @TSOP48 A29L160UV @TSOP48
A29L160ATV @TSOP48 A29L160AUV @TSOP48 A29L320TV @TSOP48 A29L320UV @TSOP48
A29L320ATV @TSOP48 A29L320AUV @TSOP48 A29L640TV @TSOP48 A29L640UV @TSOP48
A49LF004TL @PLCC32 A49LF004TX @TSOP32 A49LF040TL @PLC
