Name: Bios RT809F Serial Isp Programmer RT809
Brand: China
SKU: B843,krt207,TMD1,Th6
Price: 14620.0 PKR
Availability: InStock

Home Instruments & Tools

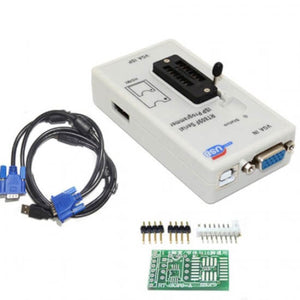

Bios RT809F Serial Isp Programmer RT809 - Bios RT809F Serial ISP Programmer shown with a white main unit, a ZIF socket, VGA and USB cables, a green adapter board, and header pins.

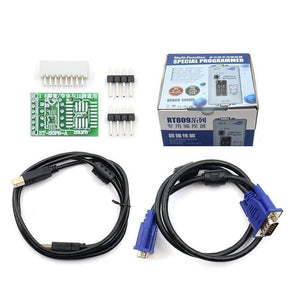

Bios RT809F Serial Isp Programmer RT809 With 3 Adapters - a branded box, a green circuit board adapter, two pin headers, a USB cable, and a VGA cable.

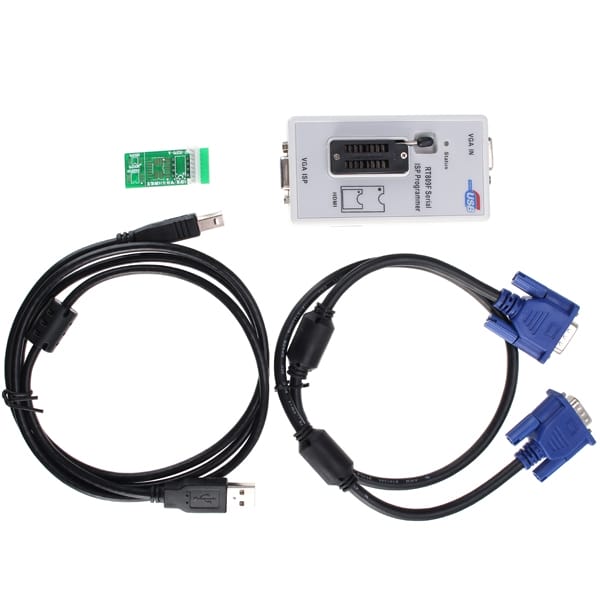

Bios RT809F Serial Isp Programmer RT809 - RT809F Serial ISP Programmer shown with a white programmer unit, a small green circuit board, a USB cable, and a VGA cable with two blue connectors.

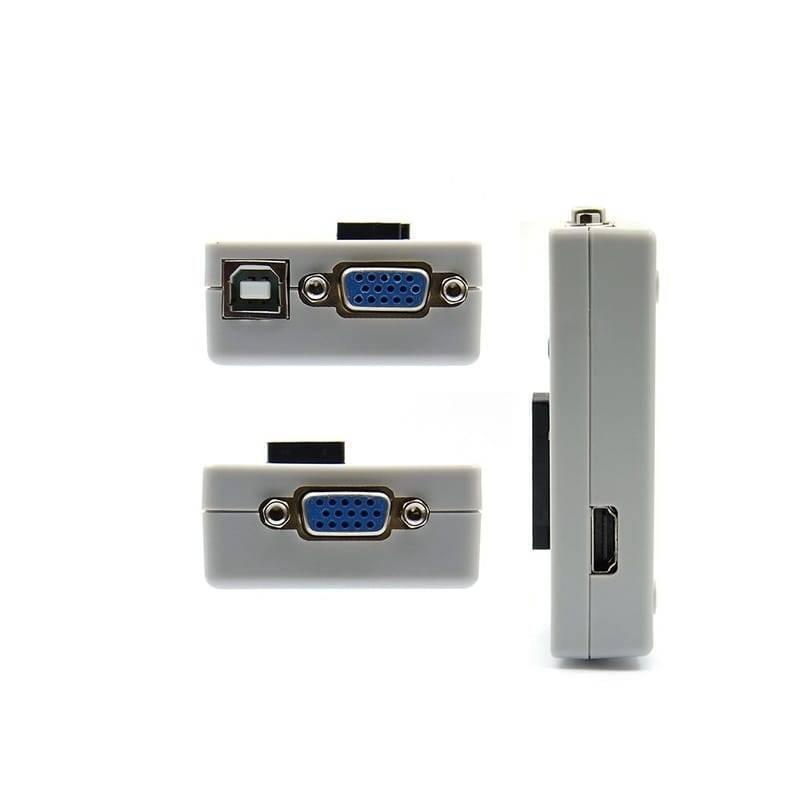

Bios RT809F Serial Isp Programmer RT809 With 3 Adapters - three views of the grey rectangular device with a VGA port, a USB port, and an HDMI port.

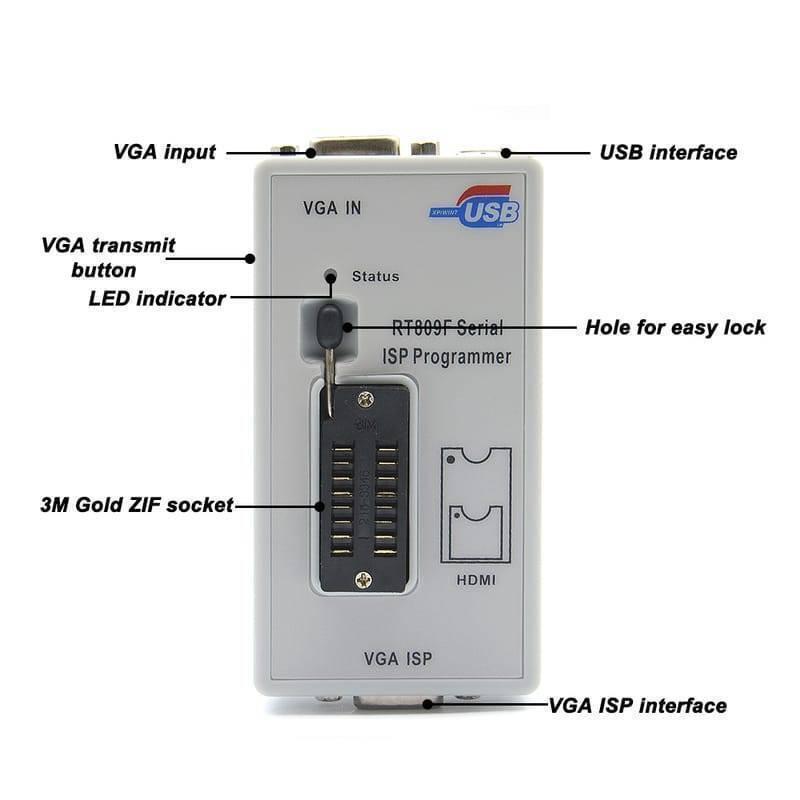

Bios RT809F Serial Isp Programmer RT809 With 3 Adapters - a white rectangular device featuring a 3M Gold ZIF socket, VGA ports, a USB interface, and a status LED indicator.

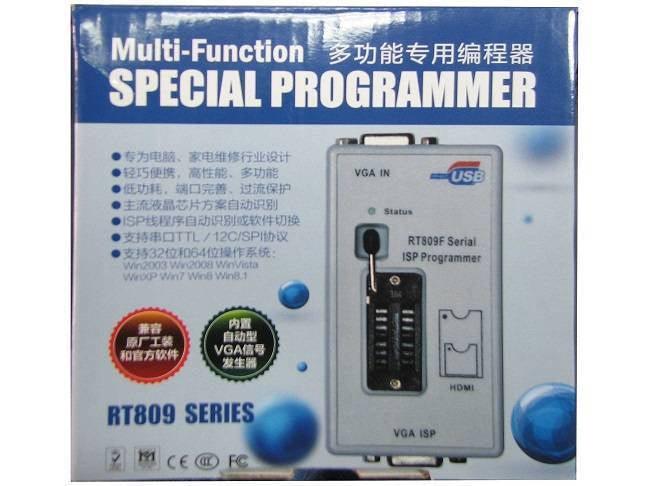

Bios RT809F Serial Isp Programmer RT809 With 3 Adapters - shown in its blue and white retail packaging, featuring a VGA port, status LED, ZIF socket, and HDMI port label.

Bios RT809F Serial Isp Programmer RT809

Rs 14,620

SKU: B843,krt207,TMD1,Th6

Pickup available at Digilog Electronics

Usually ready in 2 hours

Bios RT809F Serial Isp Programmer RT809

Rs 14,620

T809F programmer is an excellent high-speed programming tool that program (read&write) all equipment like LCD/LED W, Laptop, PC Motherboard, DVD, Routers, DVRs, Home appliances and other many electronic types of equipment. RT809F ISP programmer, Its VGA ISP is specially designed for programming LCD/LED monitors and TVs without opening it with the help of VGA cable and can also we save a backup of programs. RT809 bios programmer, its HDMI port support for bigger LED/LCD Ws to Program and backup the software that can directly program the following packages

8 pins DIP package family, SMD package must use Adapter.
6 pins DIP package family, SMD package must use Adapter.

Features Of Bios Programmer RT809F:

Support all series of 24, 25,26 and 93 ISP flash memory chips.
Support identify the chips part number automatically.
Support notebook 8 pin, 14 pin password chip and battery chip (especially 24RF08/ 6480APJ BR9080/ 9016 other special models).
Read and write commonly used 8 and 16 pins EEPROM chips.
Can read and write SPO memory DDRI, DDR2 and DDR3 chips. Especially support 24c02 chips and many other special numbers.
Can read and write NAND/NOR chips. Support Offline and online read and write.

Applications Of VGA ISP Programmer:

Computer motherboard / DDR / Bios
Laptop
LCD TV / DVD Player
Routers
Satellite Receiver (STB)
Home appliances
Other appliances/product
Education / DIYer's programmer

It's fast and easy to use which is connected via USB and driven by a PC software with English, Chinese, Russian language selection.

Interfaces:

USB connection to PC
VGA
HDM
16 pins ZIF Socket (Universal for expandability with adapters)

Package Includes:

1 x RT809F Programmer with package
1 x USB cable
1x VGA cable
1 x RT-SOP8-A Simple Adapter 1pcs
