200mil SOP8 Socket To DIP8 IC Programmer Adapter Soic8 EEPROM Flash

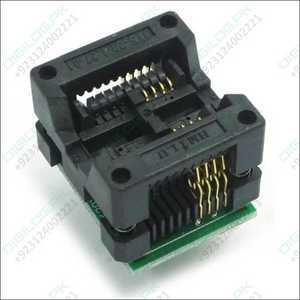

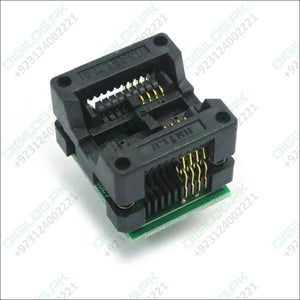

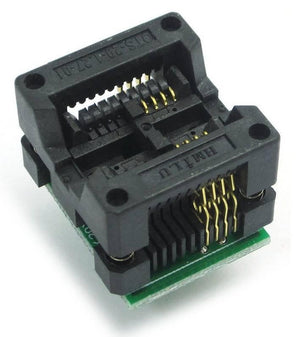

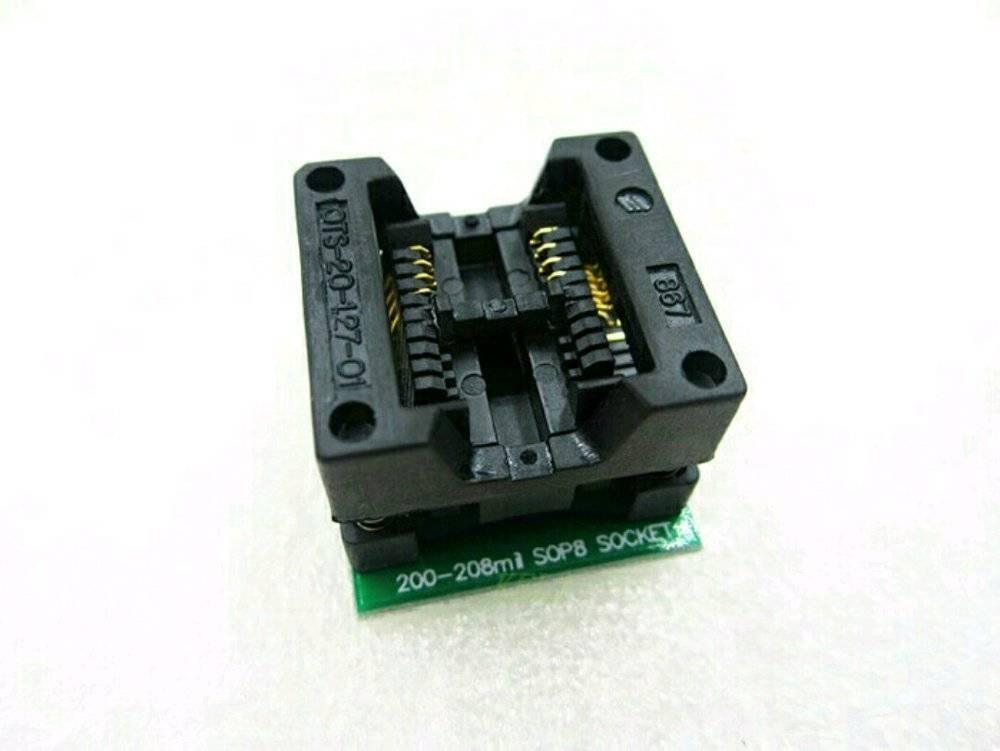

This is SOP8 To DIP8 200mil IC Test and Burn-In Socket. It applies to all the chips of SOP8 that has a wide body. This chip prog socket is brand new and high quality. It is RoHS compliant.
Features of 200-209 mil SOP8 Programmer Adapter Socket Converter Module:
- SOP8 to DIP8 IC socket adapter 200ml to 209ml IC's
- Applications: Programmer,test socket,for SOP8 IC chips.
- Package:SOP8/SOIC8/SO8,lead pitch 1.27mm,Chip body width is 5.27mm
- Features:SOP8 to DIP8，baseplate lead to double row DIP 8P,lead pitch 2.54mm(100mil),width 1.52cm(600mil)
- Use for OnePro/MiniPro/DreamPro programmer.
- SMD Flash burn
- 8M bits(=1M bytes) or more 25 SPI FLASH series are Wide SOP8 package
- 4M bits(=512k bytes) or less 25 SPI FLASH series are narrow SOP8 package
- 24C02 and 24EEPROM chips are narrow SOP8 package
Package Included:
- 1PC x SOIC SOP8 200ml 209 to DIP8 EZ Programmer adapter Socket
