BMS - Battery Management Systems – Page 5

digilog.pk stocks Pakistan's most comprehensive range of BMS (Battery Management Systems) protection boards — covering 1S to 24S lithium cell configurations for Li-ion, LiPo, and LiFePO4 battery packs. Whether you're building a DIY power bank, e-bike battery, solar storage system, or industrial UPS, a BMS is essential for safe operation — it protects against overcharge, over-discharge, short circuit, and over-temperature. We stock all major brands including DALY, JK Smart (JIKONG), and generic protection boards at the best prices in Pakistan.

Why Every Lithium Pack Needs a BMS

Overcharge protection — cuts charging at 4.2V/cell (Li-ion) to prevent thermal runaway
Over-discharge protection — disconnects load at 2.5–3.0V/cell to prevent cell damage
Short circuit protection — cuts output within microseconds of a short event
Cell balancing — passive or active balancing keeps all cells at equal state of charge
Temperature monitoring — NTC thermistor input stops charging/discharging when too hot

BMS Sub-Collections

Small Pack BMS (1S–4S) — for power banks, drones, small UPS, and RC toys
Medium Pack BMS (5S–13S) — for e-bikes, power tools, and 18V–48V battery packs
High Voltage BMS (14S–24S) — for solar storage, large UPS, and industrial energy systems
DALY BMS — reliable common and separate port BMS in 3S–24S variants

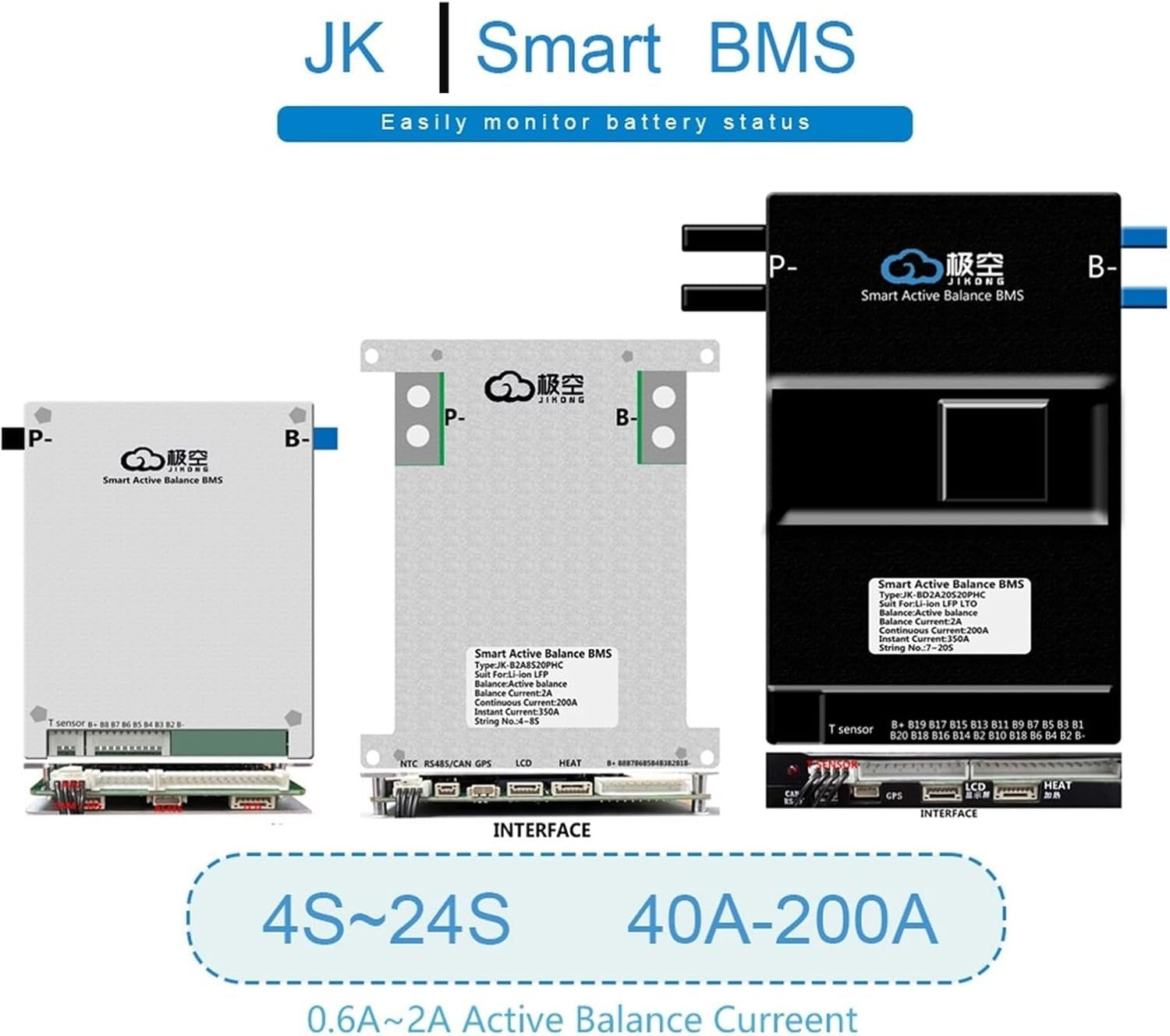

JK Smart BMS (JIKONG) — active balancing BMS with Bluetooth monitoring
LiFePO4 BMS — specifically calibrated for LFP chemistry (3.2V nominal cells)
E-Bike & Scooter BMS — high-current rated with heatsink for 36V–60V traction packs

Related Categories

Pair BMS boards with cells from Batteries & Chargers. Charge packs via Battery & Charging modules. For solar-charged battery banks see Solar & Inverter. For e-bike motor systems see our Motors & Actuators.

Common Applications

DIY power bank — 3S or 4S 18650 pack + small BMS + TP4056 charger
E-bike battery — 13S 48V pack + 30A BMS with heatsink — see E-Bike BMS
Solar storage — 16S LiFePO4 pack + DALY 100A BMS + MPPT controller
Home UPS upgrade — replace lead-acid with lithium + compatible BMS
Power tools — 10S 36V pack with high-C rate BMS for drill and saw batteries

How to Choose a BMS

Cell count (S) — must match your pack's series cell count exactly
Chemistry — Li-ion cutoffs (4.2V/2.5V) differ from LiFePO4 (3.65V/2.5V); choose the right calibration
Continuous current rating — must exceed your load's peak current draw with margin
Common port vs separate port — common port: same terminal for charge and discharge; separate port: dedicated terminals
Balancing — passive balancing for small packs; active balancing (JK BMS) for large packs needing efficiency

Learning Resources

Cell Balancing — Battery University — why balancing matters and how passive/active balancing works
Battery Management System — Wikipedia — technical overview of BMS architecture and protection functions
DIY Solar Forum — BMS Basics — community discussion on BMS selection for solar builds
DALY BMS Wiring Tutorials — YouTube — video guides for common port and separate port wiring

Need lithium cells to pair with your BMS? Browse Batteries & Chargers. For bulk BMS procurement for e-bike assembly or solar system integration contact info@digilog.pk.
