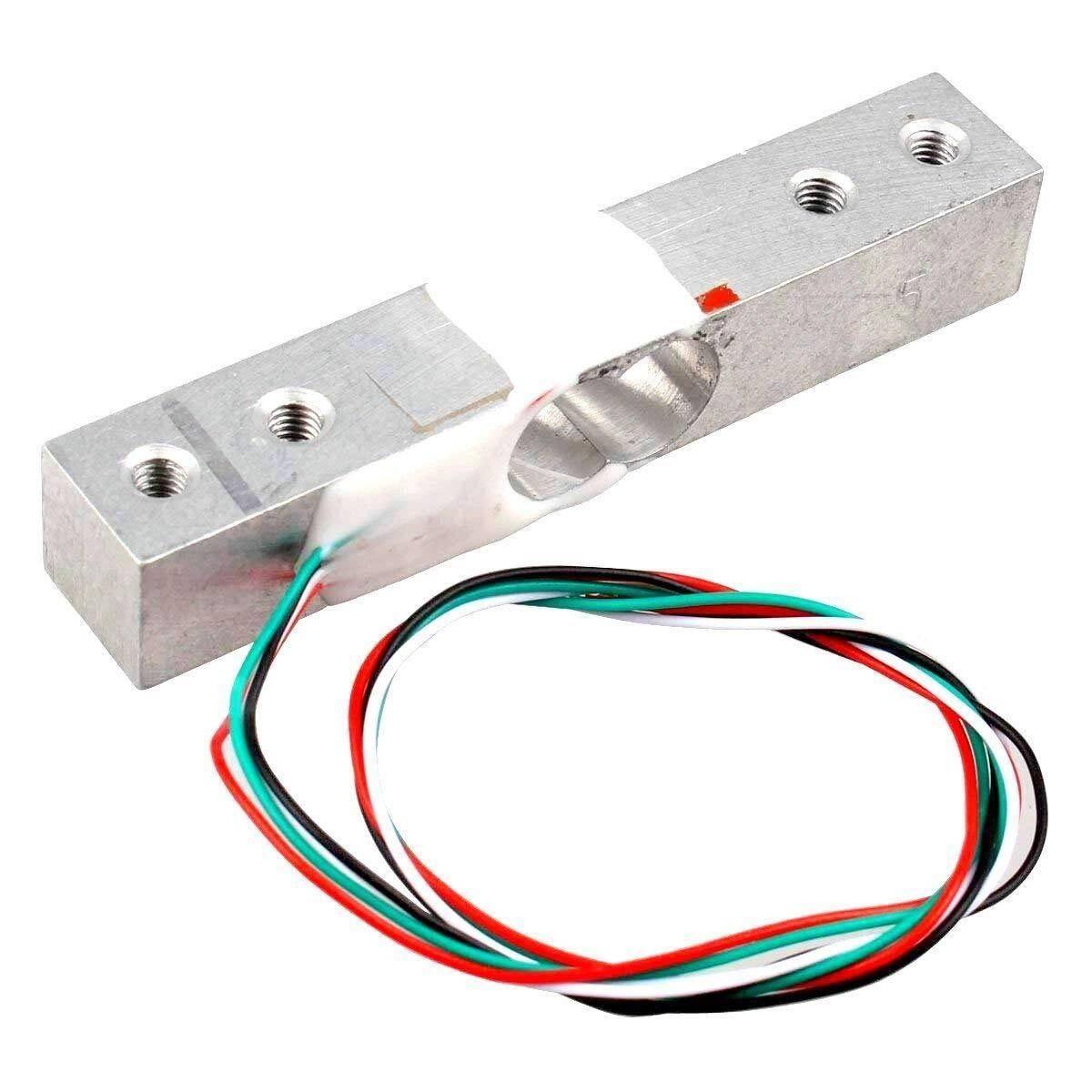

10kg Range Weighing Sensor Load Cell Sensor For Electronic Yzc-131
Load Cell Sensor For Electronic Yzc-131 has Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.
Specification of Load Cell Sensor For Electronic Yzc-131:
- Rated Load: 10Kg
- Rated Output: 1.0 ±0.15mV/V
- Zero Output: ±0.1mV/V
- Cree: 0.03%F.S./30min
- Input End: Red+, Black-
- Output End: Green+, White-
- Input Impedance: 1115±10% Ω
- Output Impedance: 1000±10% Ω
- Maximum working voltage: 15V DC
- Operating temperature range: -20~60°C
- Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L X W X H)
Buy this product at Pakistan best online shopping store digilog.pk at cheap price. We deliver in Gujranwala ,Karachi, Lahore, Islamabad , Rawalpindi , Multan, Quetta , Faisalabad and all over the Pakistan.
Frequently Bought Together

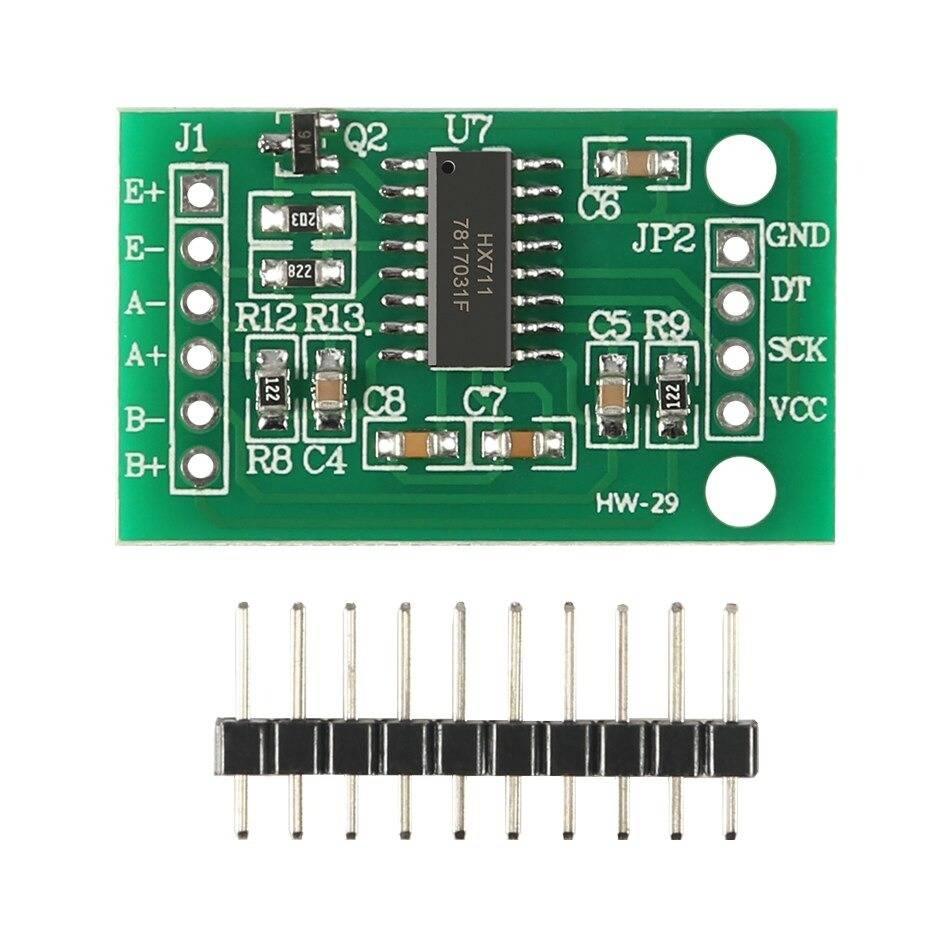

HW29 Hw 29 HX711 Weighing Sensor Load Cell Amplifier Module Analog To Digital Converter Pressure Sensor

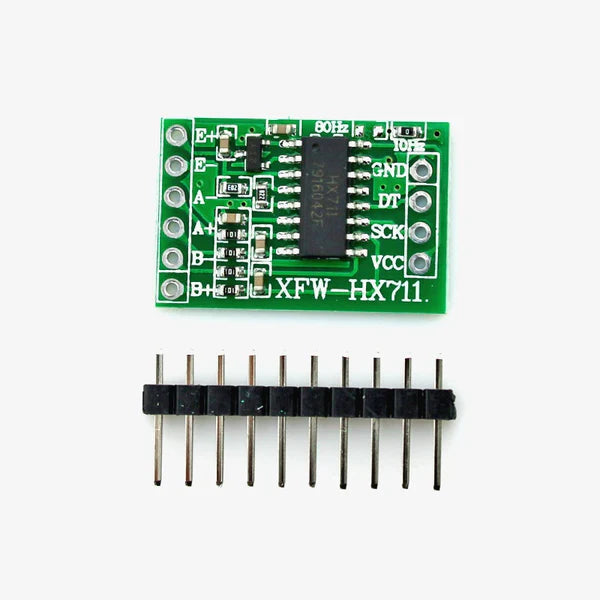

Big PCB HX711 Weighing Sensor Load Cell Amplifier Module Analog To Digital Converter Pressure Sensor

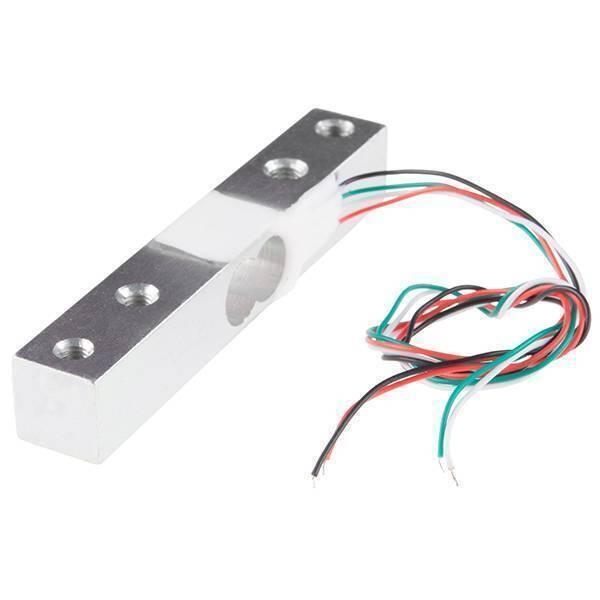

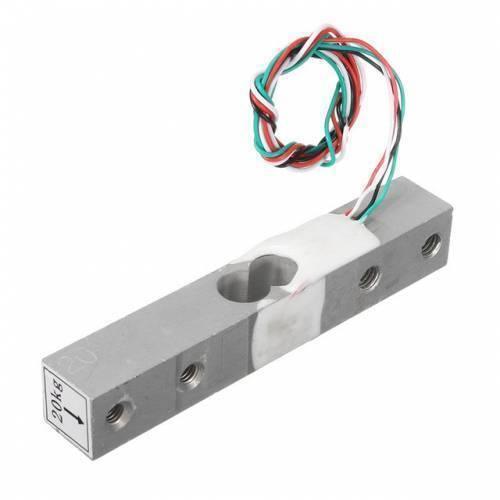

20kg Range Weighing Sensor Load Cell Sensor For Electronic Yzc-133
