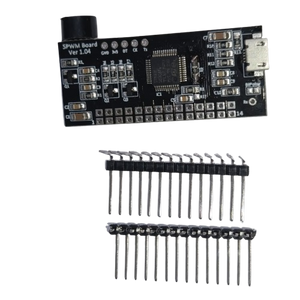

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - SPWM Board Ver 1.04, a small black PCB with a QFP microcontroller, micro-USB port and labelled header pads, shown above two loose strips of pin headers.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a green rectangular circuit board with a central chip, multiple pin headers, and several small electronic components.

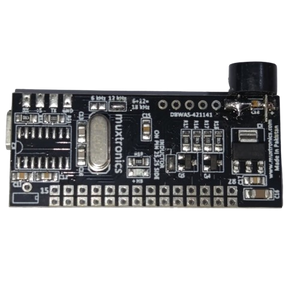

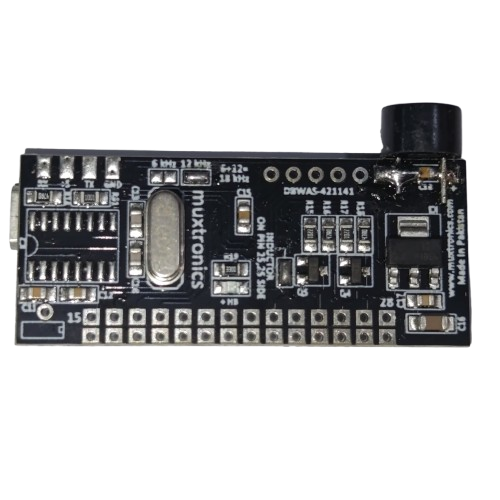

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board with a silver crystal oscillator, multiple pins, and a small black buzzer component.

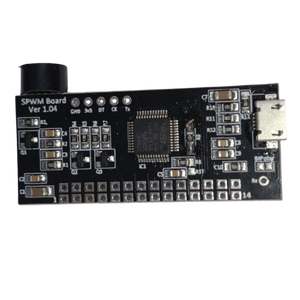

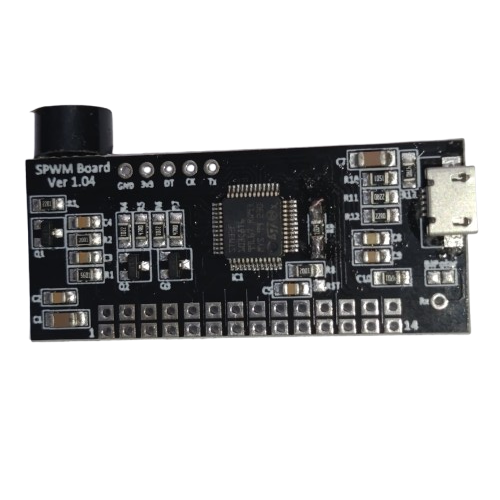

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board featuring a central microcontroller, a micro-USB port, and a row of pin headers.

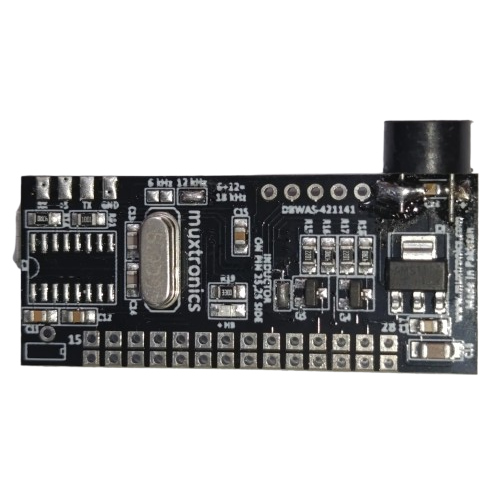

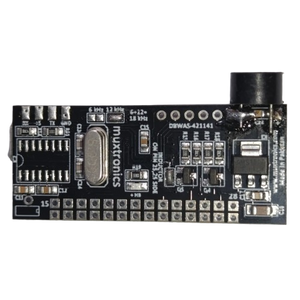

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board featuring a crystal oscillator, a power jack, and numerous surface-mount components.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board with a silver crystal oscillator, a buzzer, and multiple surface-mount components.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - SPWM Board Ver 1.04, a small black PCB with a QFP microcontroller, micro-USB port and labelled header pads, shown above two loose strips of pin headers.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a green rectangular circuit board with a central chip, multiple pin headers, and several small electronic components.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board with a silver crystal oscillator, multiple pins, and a small black buzzer component.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board featuring a central microcontroller, a micro-USB port, and a row of pin headers.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board featuring a crystal oscillator, a power jack, and numerous surface-mount components.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - a black rectangular circuit board with a silver crystal oscillator, a buzzer, and multiple surface-mount components.

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010

Sale price Rs 1,520
SKU: b805,krt208
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - SPWM Board Ver 1.04, a small black PCB with a QFP microcontroller, micro-USB port and labelled header pads, shown above two loose strips of pin headers.

STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010 - SPWM Board Ver 1.04, a small black PCB with a QFP microcontroller, micro-USB port and labelled header pads, shown above two loose strips of pin headers.
STM Sinewave Inverter Drive Module Pin to pin replacement for DSPIC30F2010
Sale priceRs 1,520
⭐ Compatability Pin to pin replacement for dsPIC30F2010 uController
⭐ Premium Quality Products designed for reliability and durability.
🚚 Fast Shipping Quick delivery to your doorstep.
🔒 Secure Payments Multiple safe payment options are available.

STM Sinewave Inverter Drive Module

High-Efficiency Sinusoidal Pulse Width Modulation Board

This high-performance SPWM board is designed for precision and efficiency and is suitable for various electronic applications.

Specifications

Feature Details
Operating Voltage 5V DC
Carrier Frequency 6 kHz, 12 kHz and 18 kHz (User-selectable)
Output Frequency 50Hz (Fixed)
Dimensions 51mm x 22mm
Operating Temperature 0°C to 55°C
Operating Modes Modified Unipolar/Bipolar (User-selectable)
Audible Warnings Integrated DC buzzer
Communication Ports 1 x USART (RS232-C), 1 x USB (VCOM 2.0)
PWM Output 3.3V, 20 mA (Max)

Display Compatibility

Display Options Description
16x2 LCD Module Compact and easy-to-read display
20x4 LCD Module Larger screen for more information
HT1621 LCD Module Low-power, versatile display
i-Mux TFT Display Advanced graphical interface

This STM-SPWM Board is the perfect solution for projects requiring sinusoidal PWM signals with advanced features like selectable carrier frequencies, dual operating modes, and multiple communication interfaces. Its compact size and compatibility with various displays make it ideal for modern applications.
