Name: Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack
Brand: Digilog Electronics
SKU: B384,IMP1000,Th500,KRT0,S
Price: 30.0 PKR
Availability: InStock

Home ALL Products

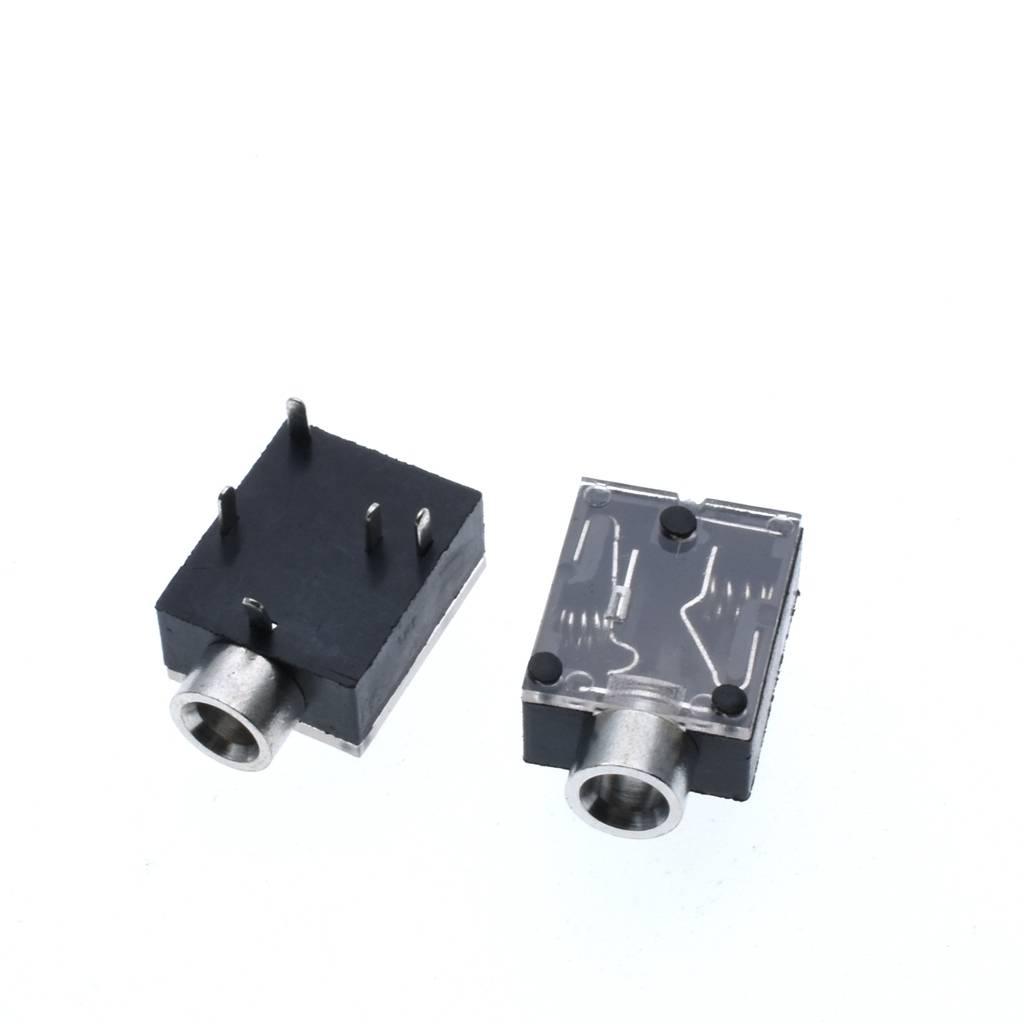

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack - two black and clear plastic stereo headphone jacks with metal ports and pins for PCB mounting.

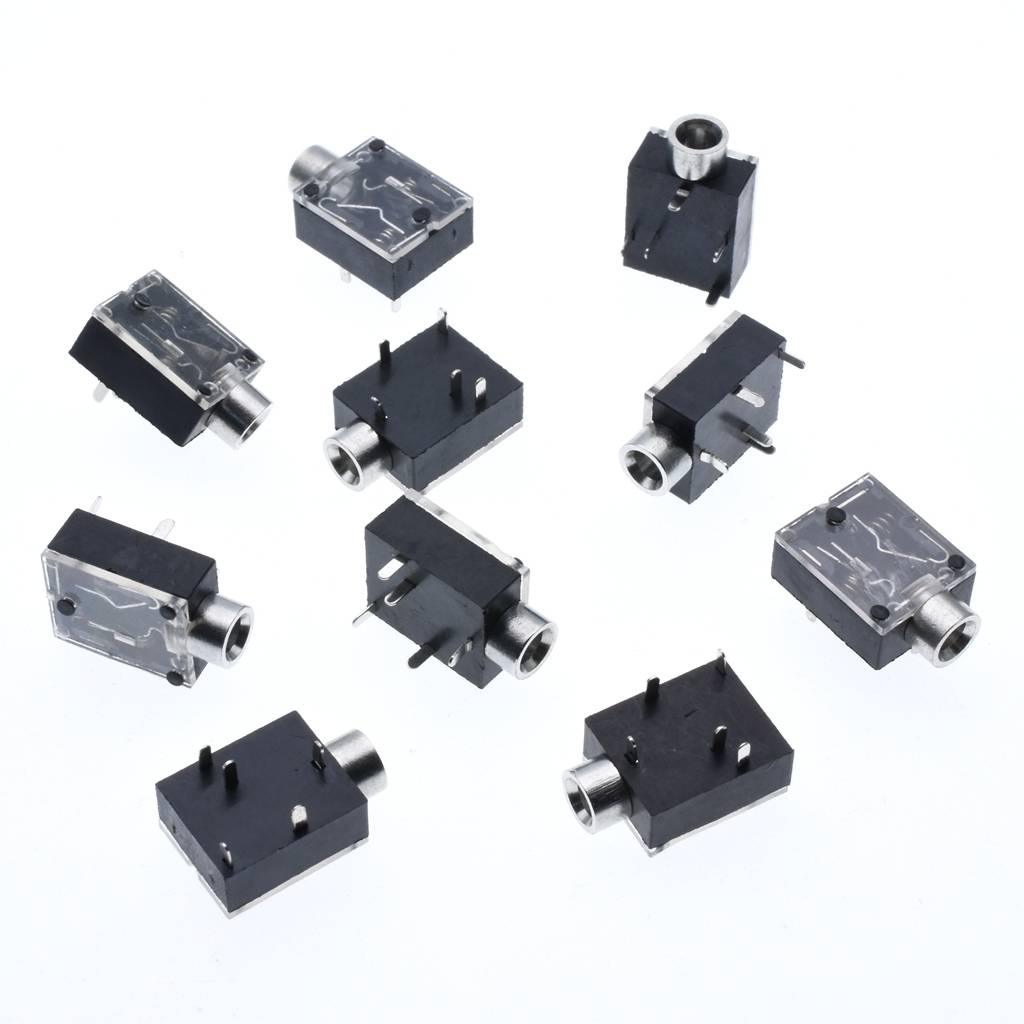

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack - a collection of black and transparent plastic stereo headphone jacks with metal ports on a white background.

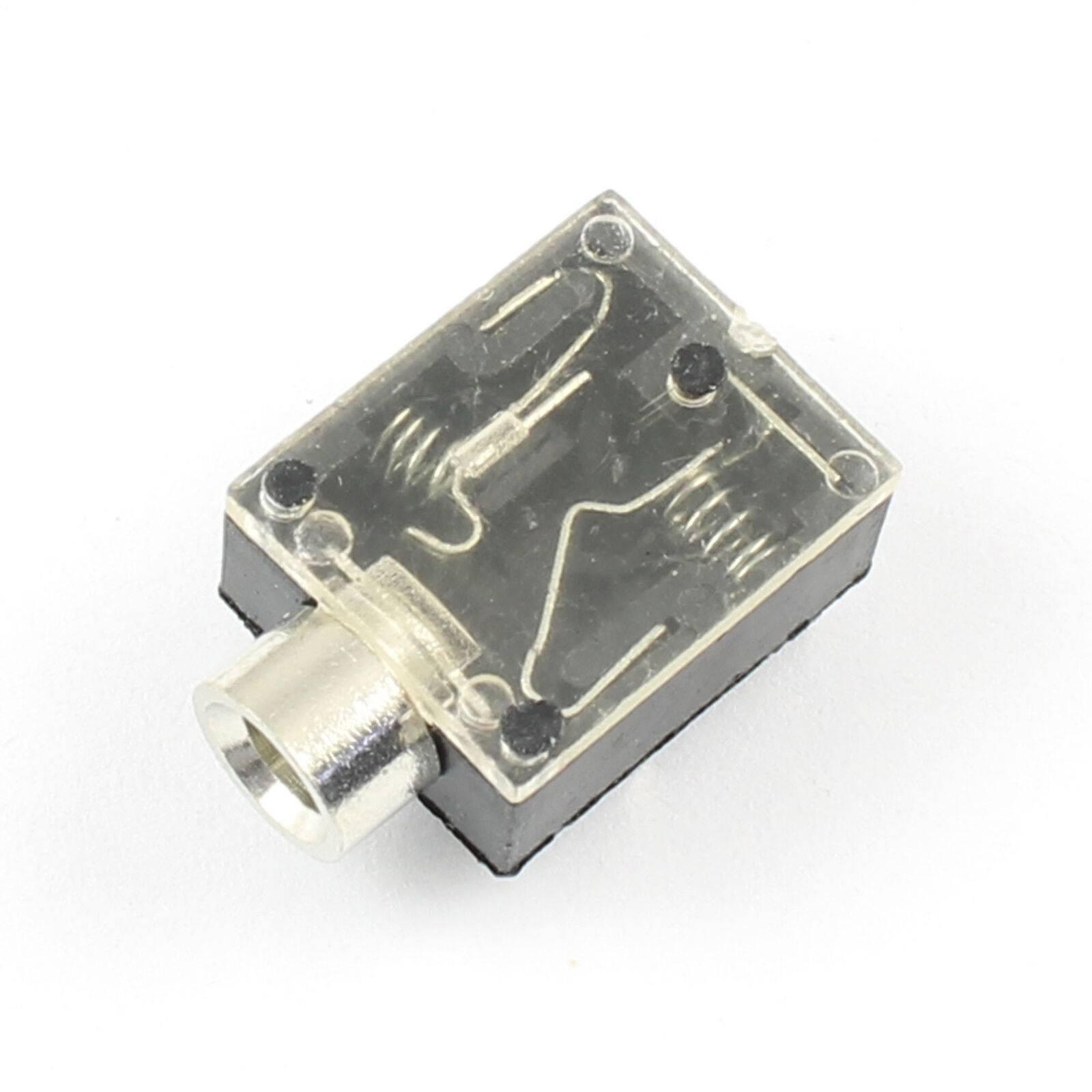

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack - shown as a close-up of the black rectangular component with a silver metal port.

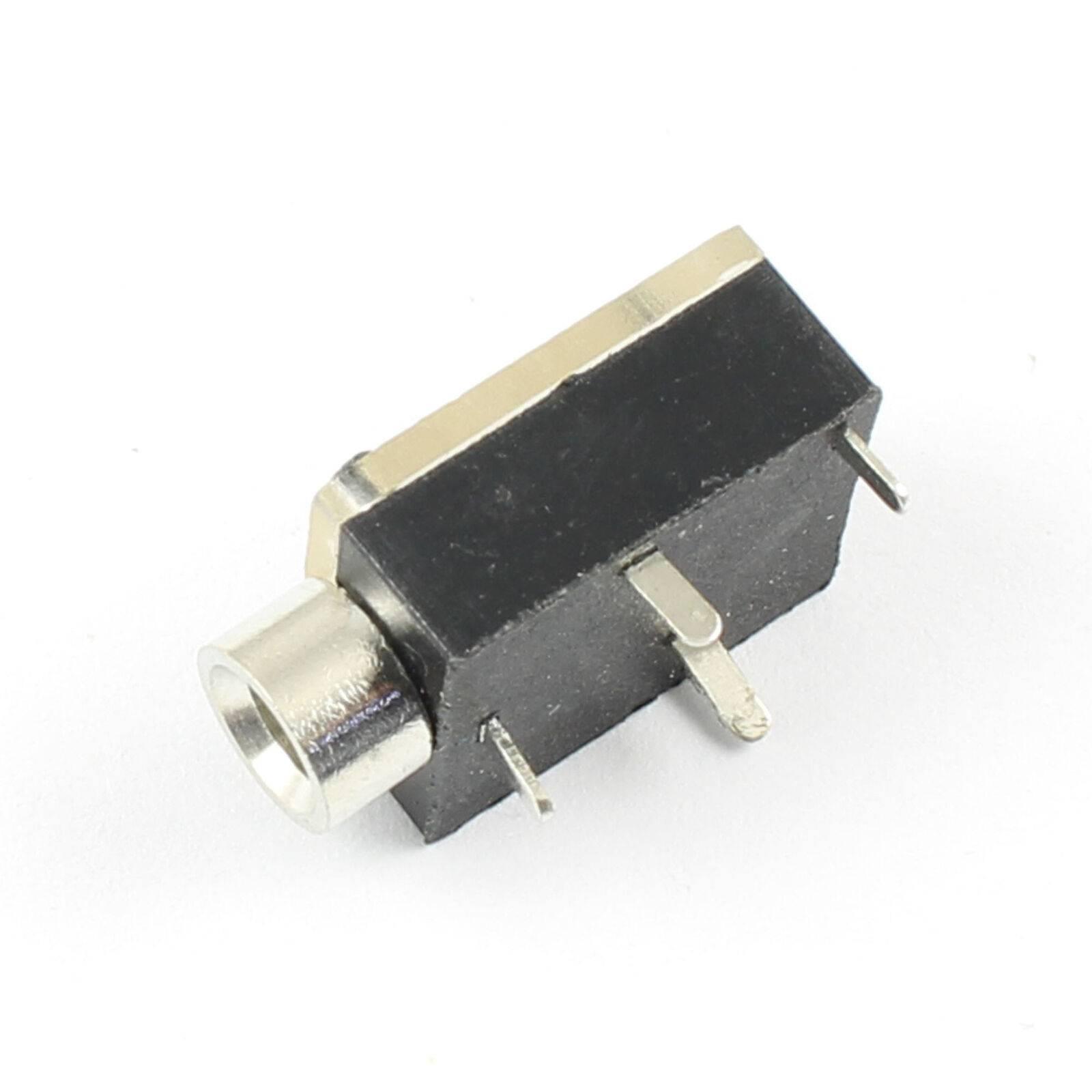

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack - a black rectangular stereo headphone jack with a silver metal port and three protruding metal pins.

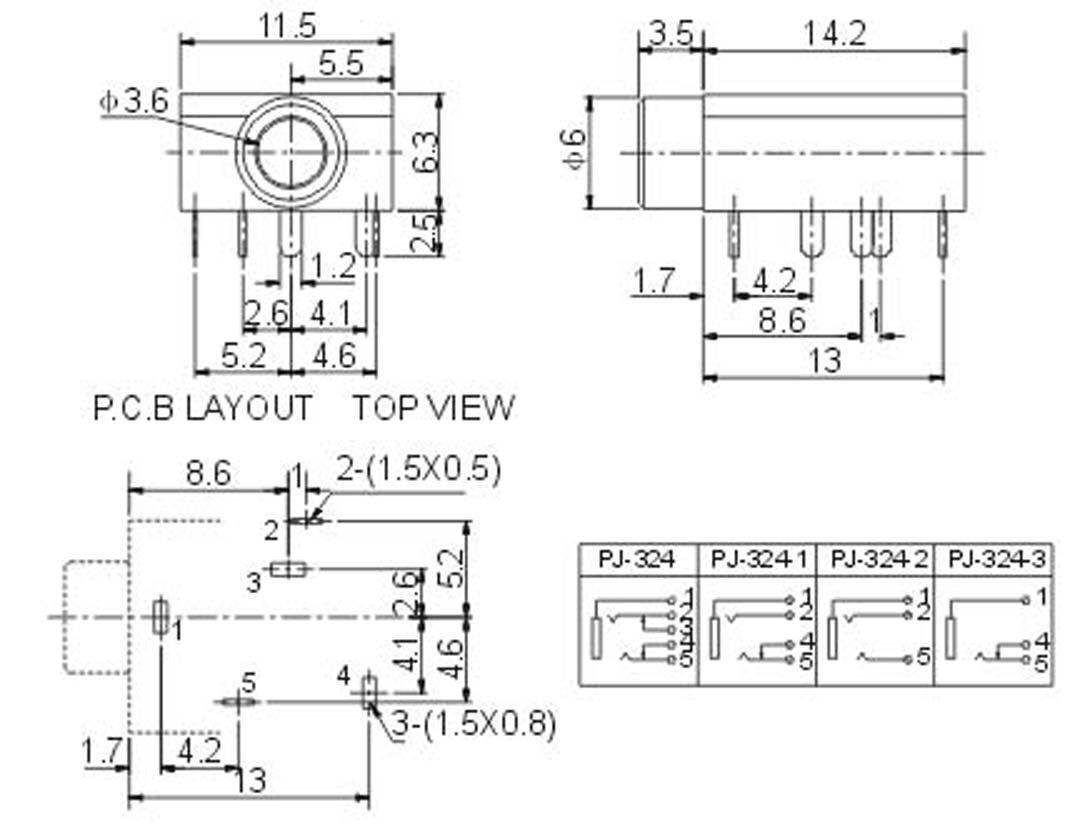

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack - a technical dimension diagram with front, side, and P.C.B. layout views and internal circuit schematics.

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack

Rs 30

SKU: B384,IMP1000,Th500,KRT0,S

Pickup available at Digilog Electronics

Usually ready in 2 hours

Pj-324 PCB Mount Female Audio Connector DIP Stereo Headphone Jack

Rs 30

PCB Mount Female Audio Connector DIP Stereo Headphone Jack
3.5mm Stereo Jack Socket Chassis with nut PCB Panel Mount Chassis adapter

Specifications:

Size : 1.7 x 1.1 x 0.9cm / 0.67″ x 0.43″ x 0.35″(L*W*H);
Color : Silver Tone, Black
Jack Connection: Female
Contact Resistance: =0.03O
Insulation Resistance: =100MO
Withstand Voltage: AC500V(50Hz)/min
Temperature Range: -40~ 55
Rated Load: DC 30V 0.5A
Insertion and Extraction Force: 3~20N
Lift: 5000 times
3.5mm DIP phone jack used for mobile phone,MP3/MP4 player, other electronical equipment.
