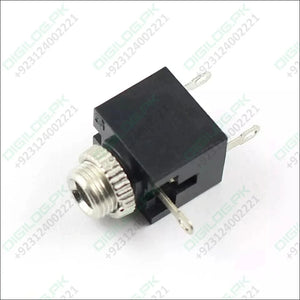

With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M - a black rectangular component with a silver threaded port and three metal pins.

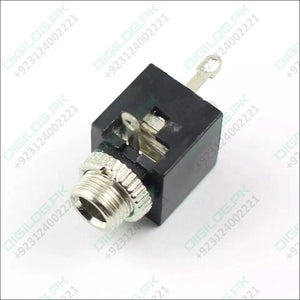

With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M - a black rectangular component with a silver threaded port and metal pins.

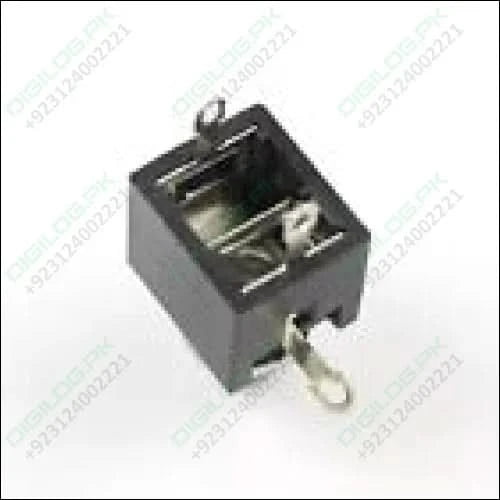

With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M - a black rectangular component with three visible metal contact pins.
Sold out
With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M - a black rectangular component with a silver threaded port and three metal pins.
With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M - a black rectangular component with a silver threaded port and metal pins.
With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M - a black rectangular component with three visible metal contact pins.

With Fitting Nut 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M

Sale price Rs 60
SKU: b608
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.
3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M.
Features:
  1. BRAND NEW!
  2. Gender: Female
  3. Contact Resistance: ≤0.03Ω ℃
  4. Insulation Resistance: ≥100MΩ
  5. Withstand Voltage: AC500V(50Hz)/min
  6. Temperature Range: -40~ 55℃
  7. Rated Load: DC 30V 0.5A
  8. Insertion and Extraction Force: 3~20N
  9. Lift: 5000 times
  10. 3.5mm phone jack used for mobile phone,MP3/MP4 player, other electronic equipment.
Package Included:
50Pcs 3.5mm 1/8 Female Audio Connector 5 Pin DIP Stereo Headphone Jack PJ3024M
