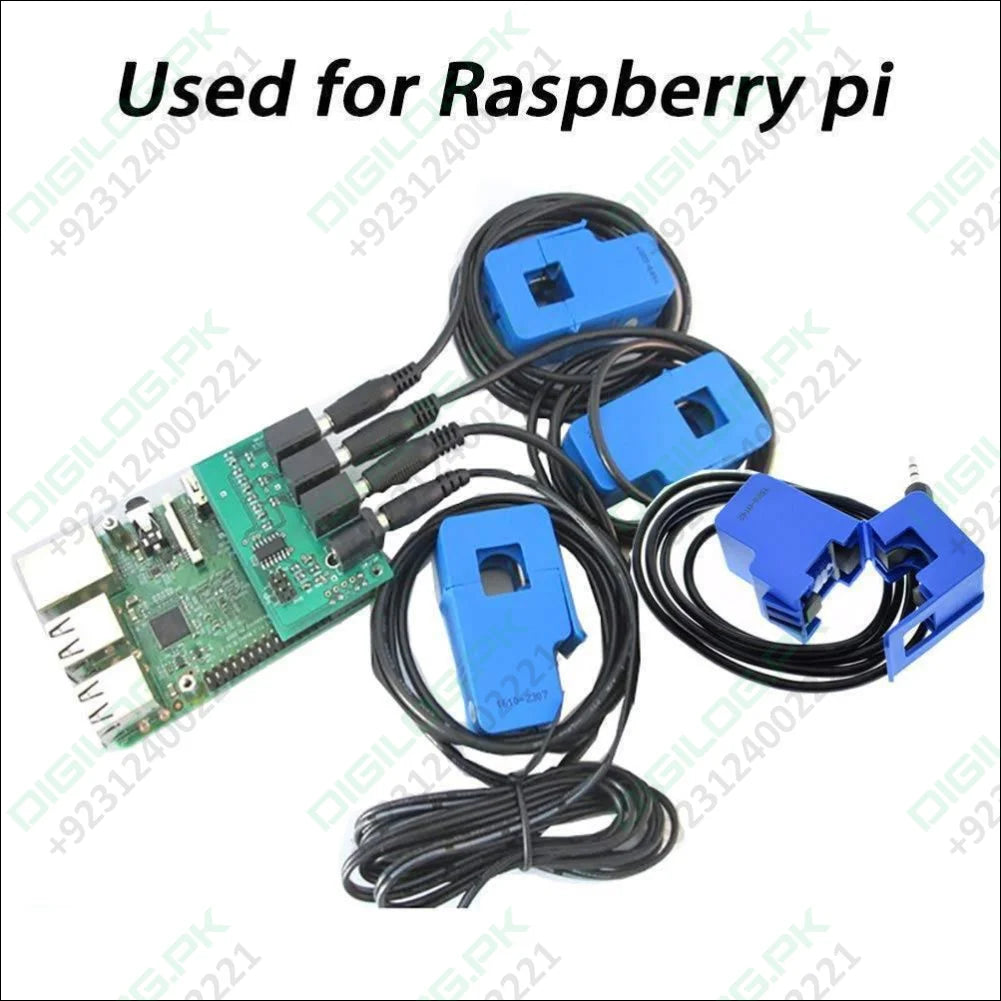

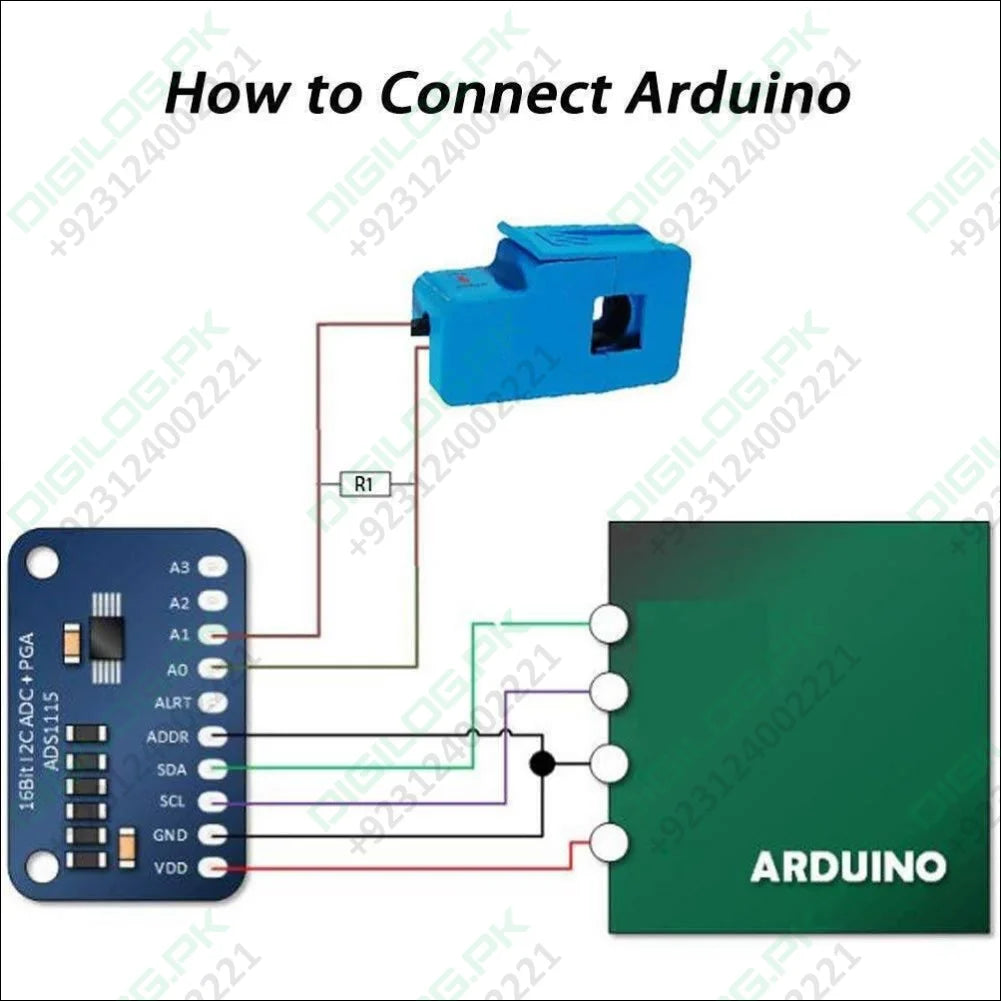

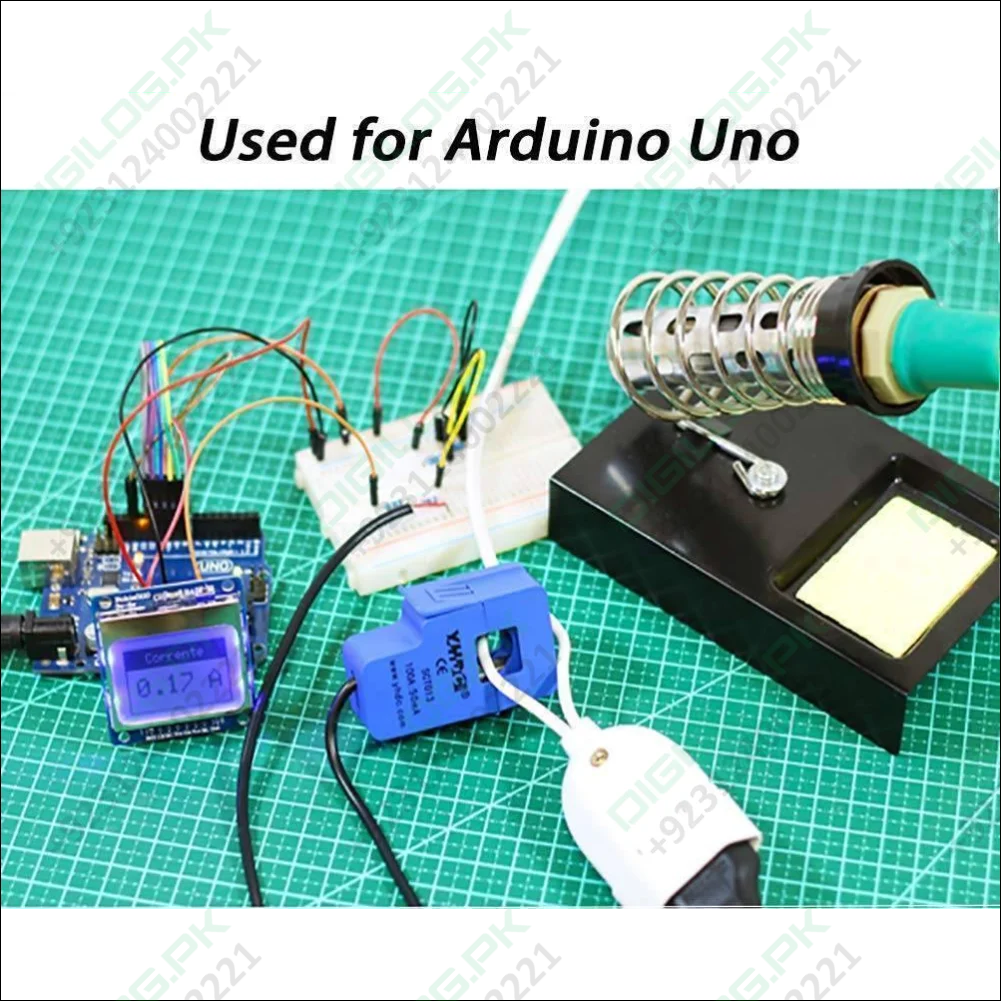

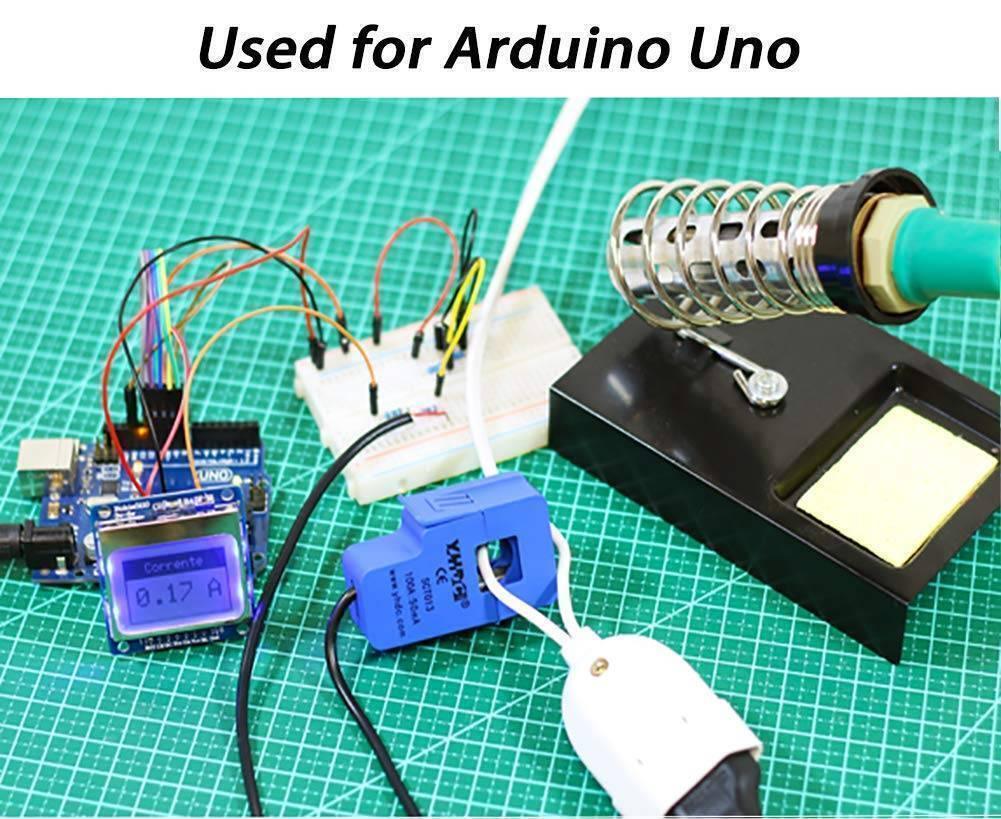

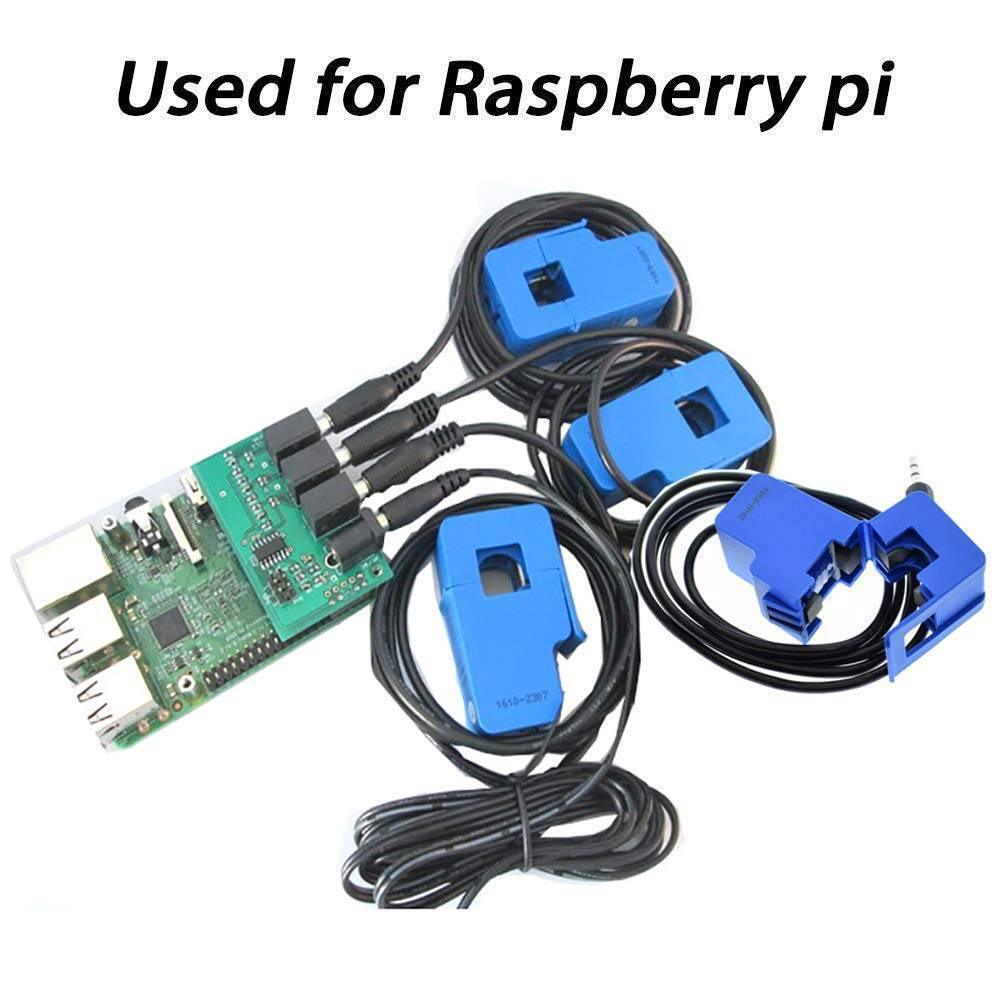

This SCT-013-050 ac current sensor used for measuring alternating current, particularly used for whole building consumption or generation. This split-core current transformer is particularly suitable for DIY use and it works well with Arduino and raspberry pi. Use this 50a current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection device for an AC load.

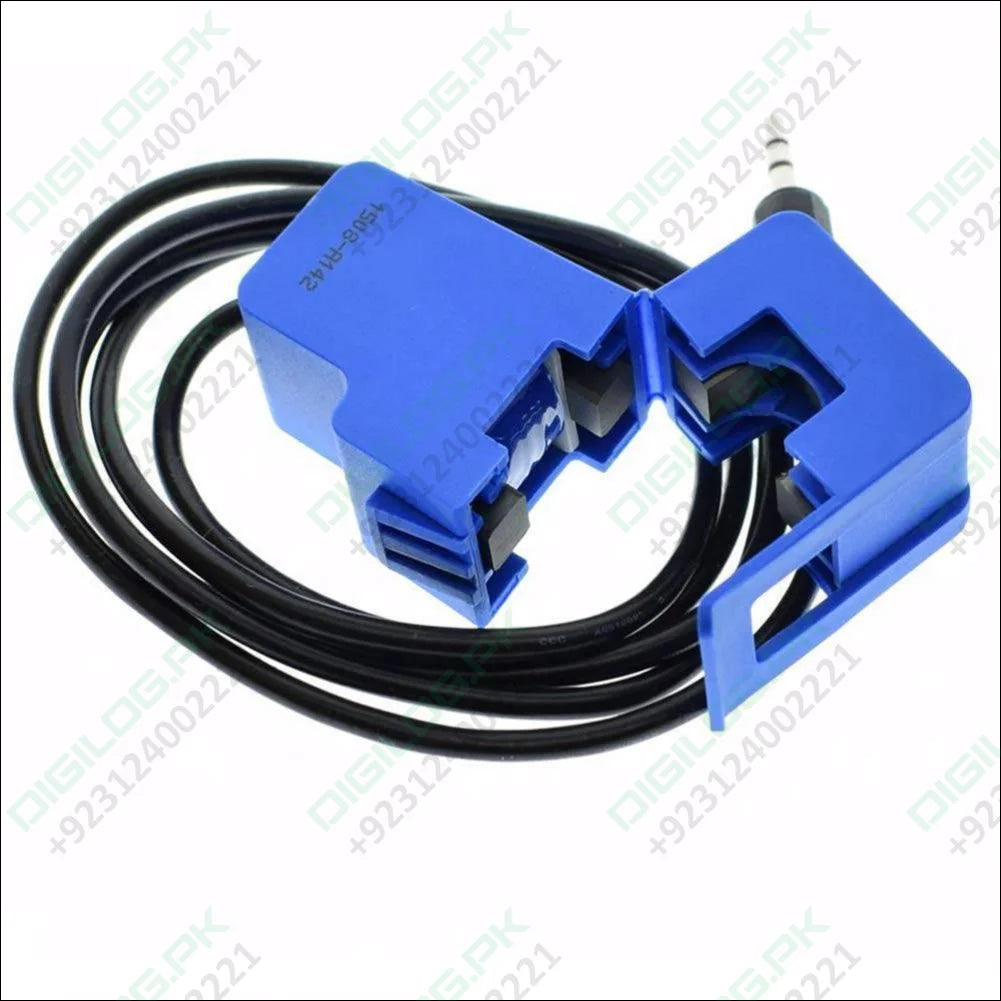

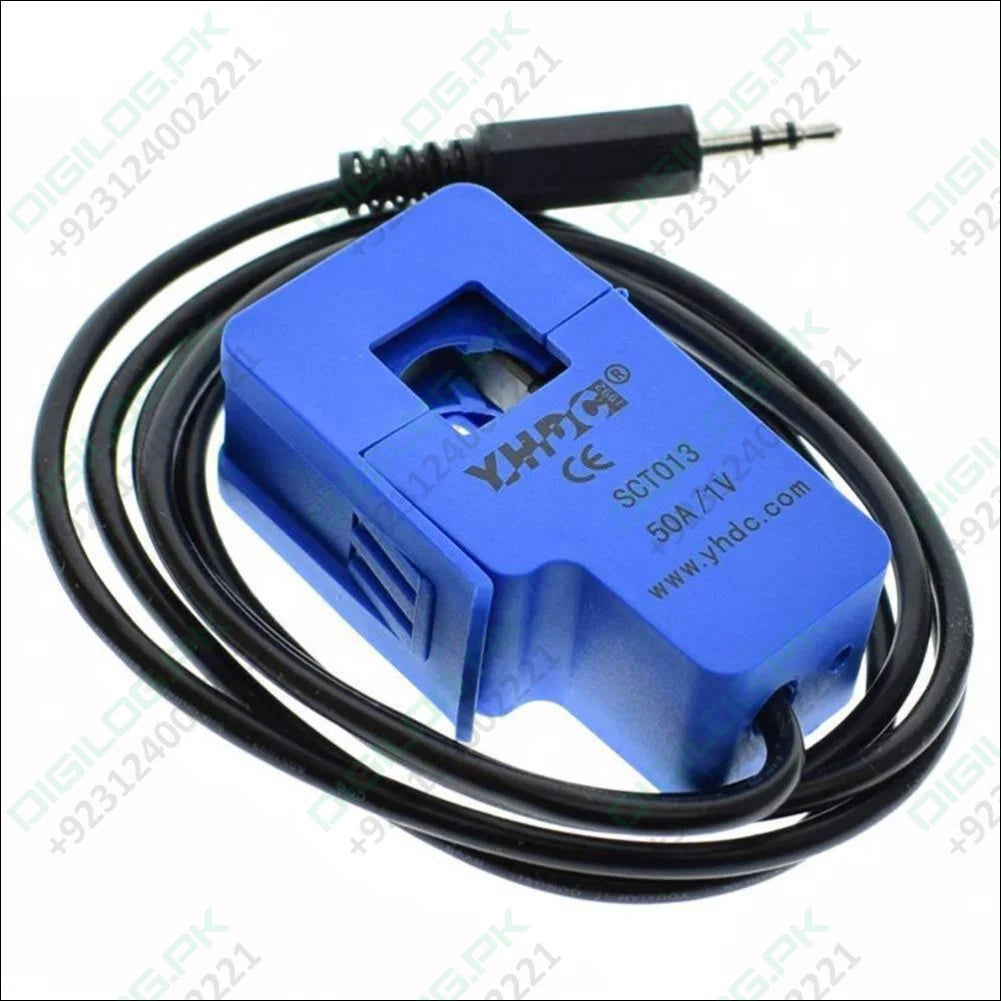

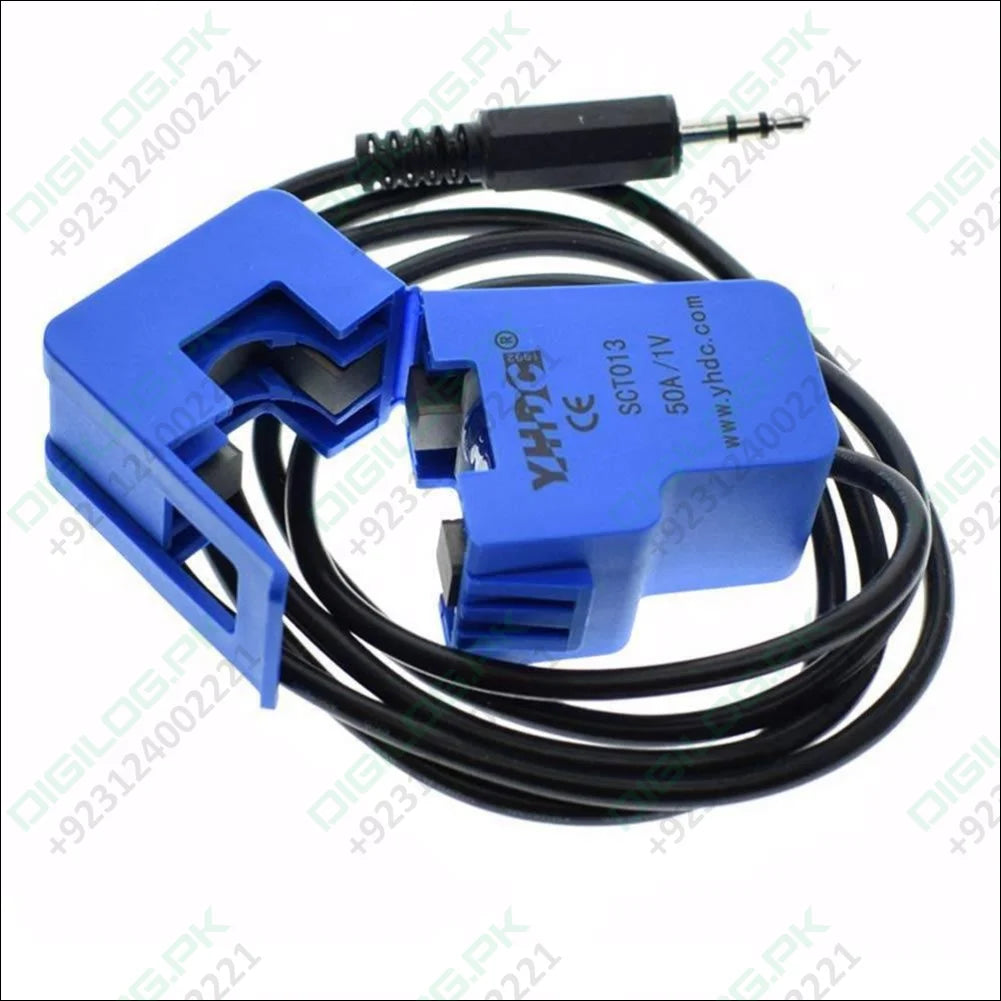

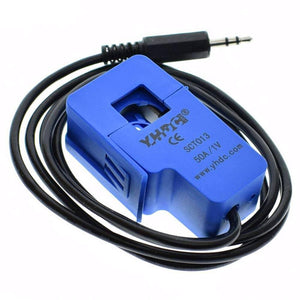

Features SCT-013-050 50A Non-invasive AC Current Sensor Split-Core Current Transformer :

1. Model: SCT-013-050
2. Core Material: Ferrite
3. Input Current: 50a AC
4. Leading Wire in Length: 1.5m
5. Turns Ratio: 1: 1800
6. Resistance Grade: Grade B
7. Max Sampling Resistance: 10 Ω
8. Linearity: ±3%
9. Accuracy: ±1%
10. Work Frequency: 50-1 KHz
11. Work Temperature: -25˚C ~ 70˚C
12. Reference project: Open Energy Monitor
13. Dielectric Strength: 6000V AC/1min
14. Two Form of Output: current output or voltage output (voltage output built-in the sampling resistor);
15. Mechanical strength: opening and closing times, no less than 1000 times (20 ℃)
16. High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0)

Package Include:

• 1 X SCT-013-050 50A Non-invasive AC Current Sensor Split-Core Current Transformer for Arduino Raspberry pi
