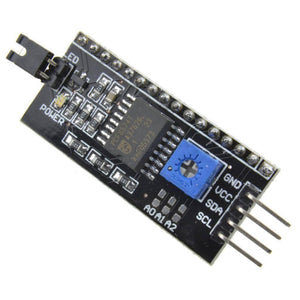

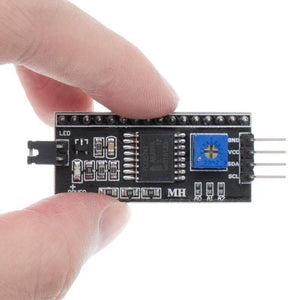

PCF8574 IIC I2c Serial Interface Adapter Module IIC I2C LCD Module
Pickup available at Digilog Electronics
Usually ready in 2 hours
This is a RoHS compliant I2C Serial LCD Daughter board that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too.
This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one it’s own address)
Specifications and Features:
- 5V power supply.
- Serial I2C control of LCD display using PCF8574.

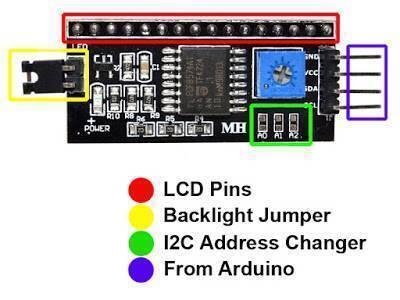

- The backlight can be enabled or disabled via a jumper on the board.
- Contrast control via a potentiometer.
- Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.
- Size ：41.6 x 19.2 mm.
Tutorial:
https://components101.com/modules/i2c-serial-interface-adapter-module
Package Includes:
1x PCF8574 Module wITHOUT LCD
