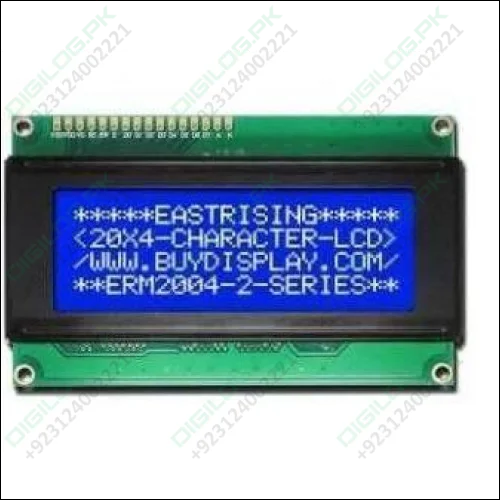

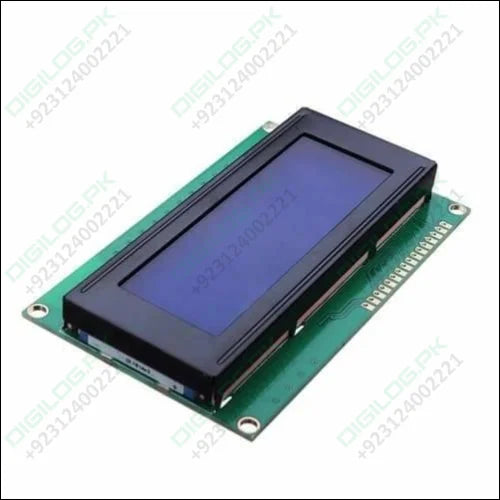

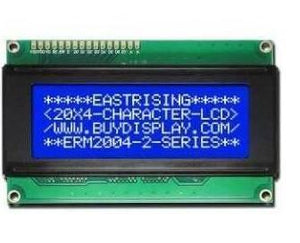

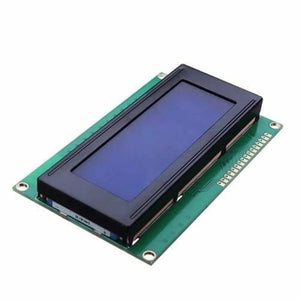

2004a 20x4 Character Blue Color Lcd Display For Arduino

2004A 20X4 Character Blue Color LCD Display is designed to display letters, numbers, symbols, dot matrix. This 2004A LCD Display can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5x7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5x8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to the origin, display on / off, the cursor on / off, display character blink, cursor shift, display shift and so on.

Features of 2004A 20X4 Character Blue Color LCD Display:

1. 20 characters wide, 4 rows
2. White text on blue background
3. Connection port is 0.1″ pitch, single row for easy breadboarding and wiring
4. Single LED backlight with a resistor included, you can power it directly from 5V. If it’s too bright for you, it can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
5. Can be fully controlled with only 6 digital lines!
6. The built-in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
7. Up to 8 extra characters can be created for custom glyphs or ‘foreign’ language support (like special accents)

Specifications of 2004A 20X4 Character Blue Color LCD Display:

1. Module size(W x H x T): 98.0 x 60.0 x 14.0mm
2. Viewing area(W x H): 76.0 x 26.0mm
3. Character size(W x H): 2.94 x 4.74mm
4. Dot size:(W x H): 0.54 x 0.54mm
5. LCD type & color: STN(Blue), FSTN
6. View angle: 6 O'clock
7. Display type: positive / negative type
8. Control IC & package: KS0073 or EQV, COB
9. Operating temperature: -20°C - +70°C
10. Storage temperature: -30°C - 80°C

Package Includes:

1 x 2004A 20X4 Character Blue Color LCD Display
