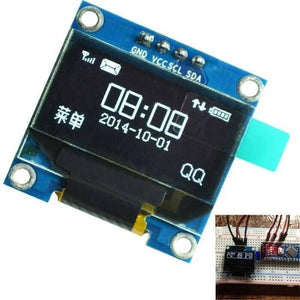

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a blue circuit board with a screen displaying time, date, and icons, plus a breadboard setup in the corner.

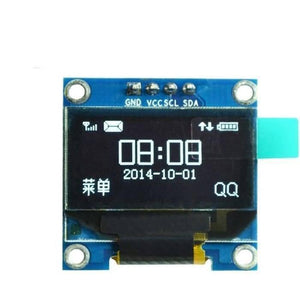

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a blue square screen showing a digital clock, date, and icons, with four pins labeled at the top.

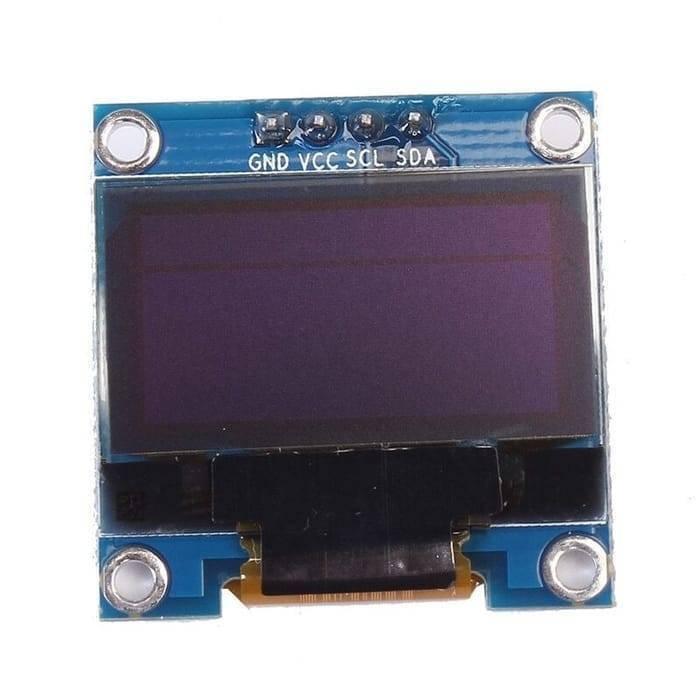

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a square blue circuit board with a rectangular black screen and four pins labeled GND, VCC, SCL, and SDA.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a rectangular blue circuit board with a black screen and four labeled pins: GND, VCC, SCL, and SDA.

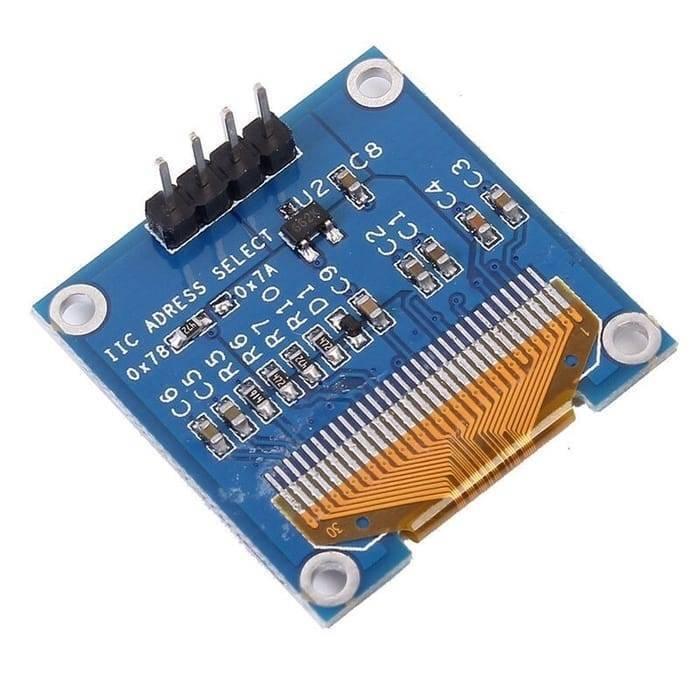

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - the blue circuit board back with a four-pin connector, surface-mounted components, and a ribbon cable.

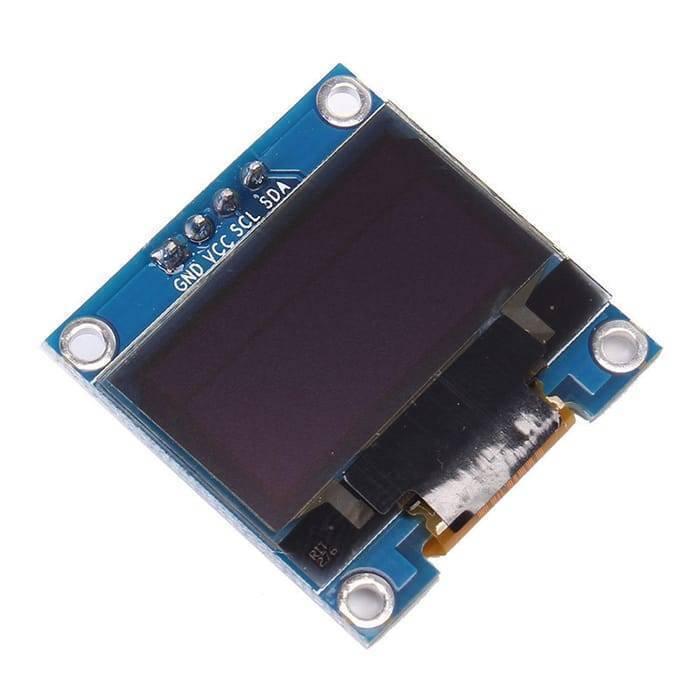

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a rectangular blue module with a dark screen and four pins labeled GND, VCC, SCL, and SDA.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a close-up side view showing the rectangular screen mounted on a blue circuit board with four downward-facing pins.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - side-view close-up of the thin circuit board showing the screen, a vertical pin connector, and surface components.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a blue circuit board with a screen displaying time, date, and icons, plus a breadboard setup in the corner.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a blue square screen showing a digital clock, date, and icons, with four pins labeled at the top.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a square blue circuit board with a rectangular black screen and four pins labeled GND, VCC, SCL, and SDA.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a rectangular blue circuit board with a black screen and four labeled pins: GND, VCC, SCL, and SDA.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - the blue circuit board back with a four-pin connector, surface-mounted components, and a ribbon cable.

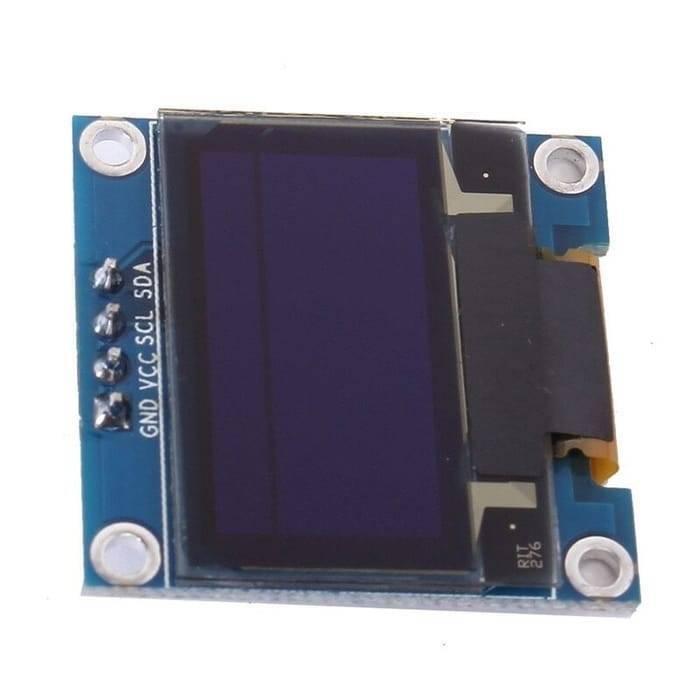

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a rectangular blue module with a dark screen and four pins labeled GND, VCC, SCL, and SDA.

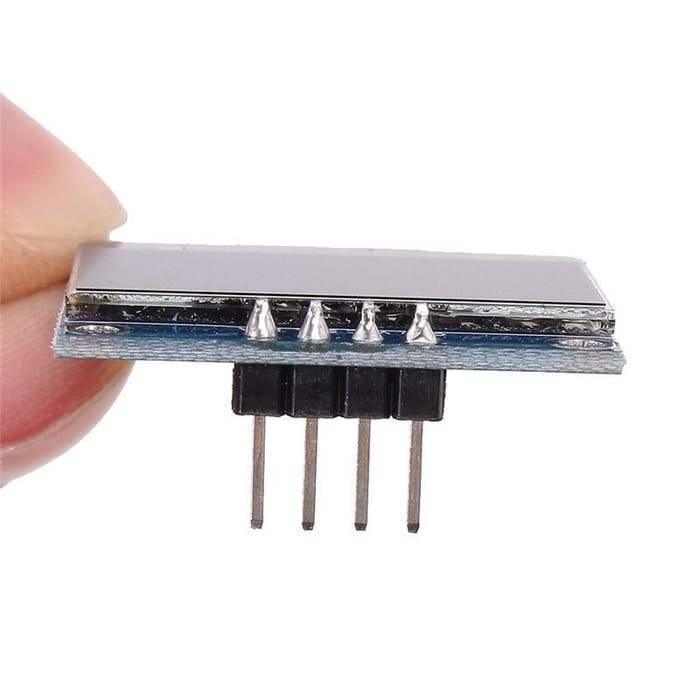

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a close-up side view showing the rectangular screen mounted on a blue circuit board with four downward-facing pins.

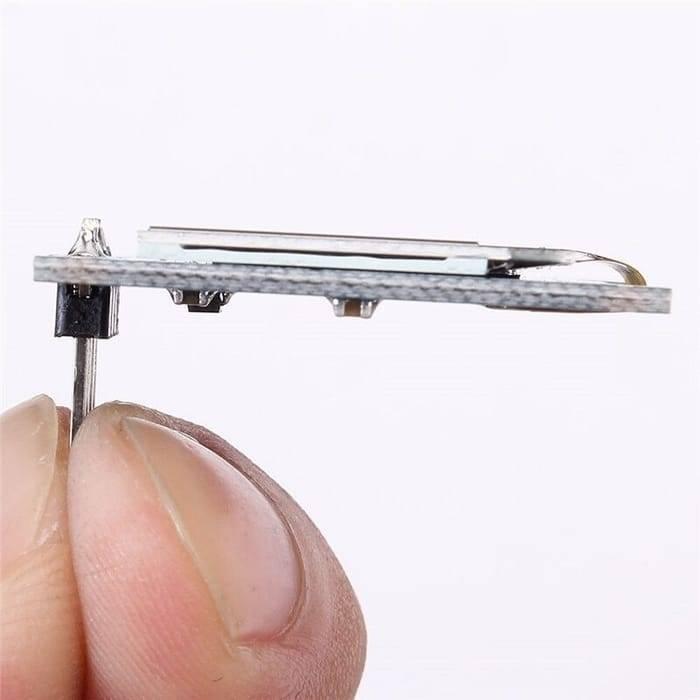

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - side-view close-up of the thin circuit board showing the screen, a vertical pin connector, and surface components.

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background

Sale price Rs 500
SKU: B316,krt107,krt105,IMP500,Th250,A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a blue circuit board with a screen displaying time, date, and icons, plus a breadboard setup in the corner.

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background - a blue circuit board with a screen displaying time, date, and icons, plus a breadboard setup in the corner.
Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background
Sale priceRs 500

This 0.96 inch OLED display is based on a popular SSD 1306 display controller. This OLED display module works on both I2C (TWI). The display is small in size and very crisp. This LCD screen board has a resolution of 128 x 64 pixels. It is ideal for projects, where you want, do display graphics, bitmaps and fonts of various sizes. Since this LED 128X64 I2C Arduino is based on popular display controller libraries are available for Raspberry Pi, Arduino, AVR, PIC and ARM microcontrollers.

NOTE: This board/chip uses I2C 7-bit address 0x3C.

Features Of 0.96 inch IIC Serial Yellow Blue OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board:

  • Needn’t backlight, the display unit can self-luminous
  • The display is self-illuminating
  • Power requirement is low
  • They are offering a large viewing angle
  • Fully Compatible with Arduino
  • The ultra-low power consumption of around 0.08w at full-screen lit.

Specifications Of 0.96 inch 128X64 OLED Display Module:

  • High resolution: 128 * 64
  • Viewing angle: > 160 °
  • Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
  • Ultra-low power consumption: Full screen lit 0.08W
  • Voltage: 3V ~ 5V DC
  • Working Temperature: -30 ? ~ 70 ?
  • Module Size: 27.0MM * 27.0MM * 4.1MM
  • Interface: I2C/IIC Interface, need 2 IO only.
  • Driver IC: SSD1306
  • Colour: White

Package Includes:

  • 1 x White Background Arduino 0.96 inch IIC OLED Display 128X64 I2C SSD1306 LCD Screen

Best Online Shopping website for Arduino 0.96 inch IIC OLED Display 128X64 I2C SSD1306 LCD Screen Board in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

Arduino 0.96 Inch Iic Oled Display 128x64 I2c Ssd1306 LcdImage result for 128X64 I2C SSD1306 LCD Screen

Frequently Bought Together

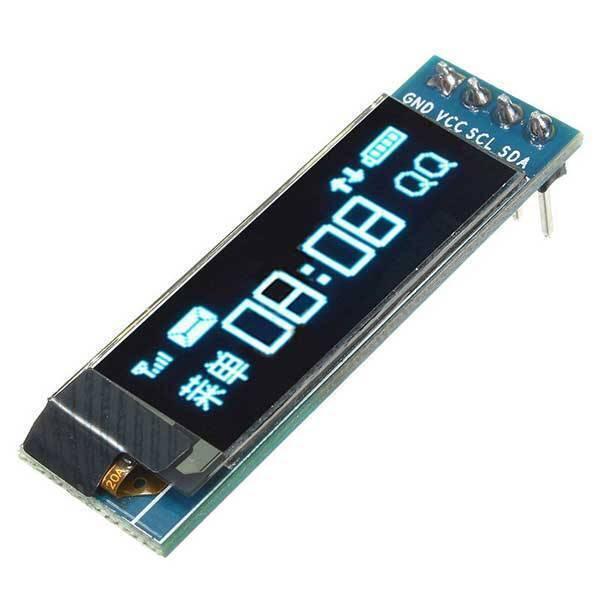

0.91 Inch 128×32 OLED LCD Display Module IC I2c DC 3.3V 5V For Arduino Pic - a blue rectangular circuit board with a screen displaying "08:08" and four pin connectors labeled GND, VCC, SCL, SDA. 0.91 Inch 128×32 OLED LCD Display Module IC I2c DC 3.3V 5V For Arduino Pic - the blue rectangular back side of the PCB with surface-mount components and a four-pin header connector.
Log in to use Wishlist
Add to Compare

0.91 Inch 128×32 OLED LCD Display Module IC I2c DC 3.3V 5V For Arduino Pic

Sale priceRs 460
SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - the black rectangular sensor module and four yellow four-pin headers on a white background. SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor - a top view of the sensor component and a bottom view with labeled pinouts for VIN, SDA, SCL, GND, RD, and IRD.
Log in to use Wishlist
Add to Compare

SPO2 MAX30102 Blood Oxygen Concentration Sensor PPG Sensor

Sale priceRs 460
MQ135 Air Quality Detector Sensor Module - a silver metallic sensor head on a blue circuit board with four output pins and a blue potentiometer. MQ135 Air Quality Detector Sensor Module - a blue rectangular circuit board with a blue potentiometer, four pins, and two LEDs, shown with dimension labels.
Log in to use Wishlist
Add to Compare

MQ135 Air Quality Detector Sensor Module

Sale priceRs 310
OLED 1.3 Inch Display Module 128x64 I2C Communicate 4pin SSD1106 Blue Text Color - held by a hand, showing its blue screen, four connection pins labeled GND, VCC, SCL, and SDA. OLED 1.3 Inch Display Module 128x64 I2C Communicate 4pin SSD1106 Blue Text Color - rectangular screen mounted on a blue PCB with four pin connectors labeled GND, VCC, SCL, and SDA.
-21%
 Log in to use Wishlist
Add to Compare

OLED 1.3 Inch Display Module 128x64 I2C Communicate 4pin SSD1106 Blue Text Color

Regular price Rs 900 Sale priceRs 710
Pulse Sensor Pulse Heart Rate Sensor Arduino Heartbeat Sensor - a close-up of the circular heart-shaped black and white PCB held by fingers with three attached red, black, and purple wires. Pulse Sensor Pulse Heart Rate Sensor Arduino Heartbeat Sensor - connected to an Arduino Uno board with a finger on the sensor and a pulse graph displayed on a computer screen.
Log in to use Wishlist
Add to Compare

Pulse Sensor Pulse Heart Rate Sensor Arduino Heartbeat Sensor

Sale priceRs 410

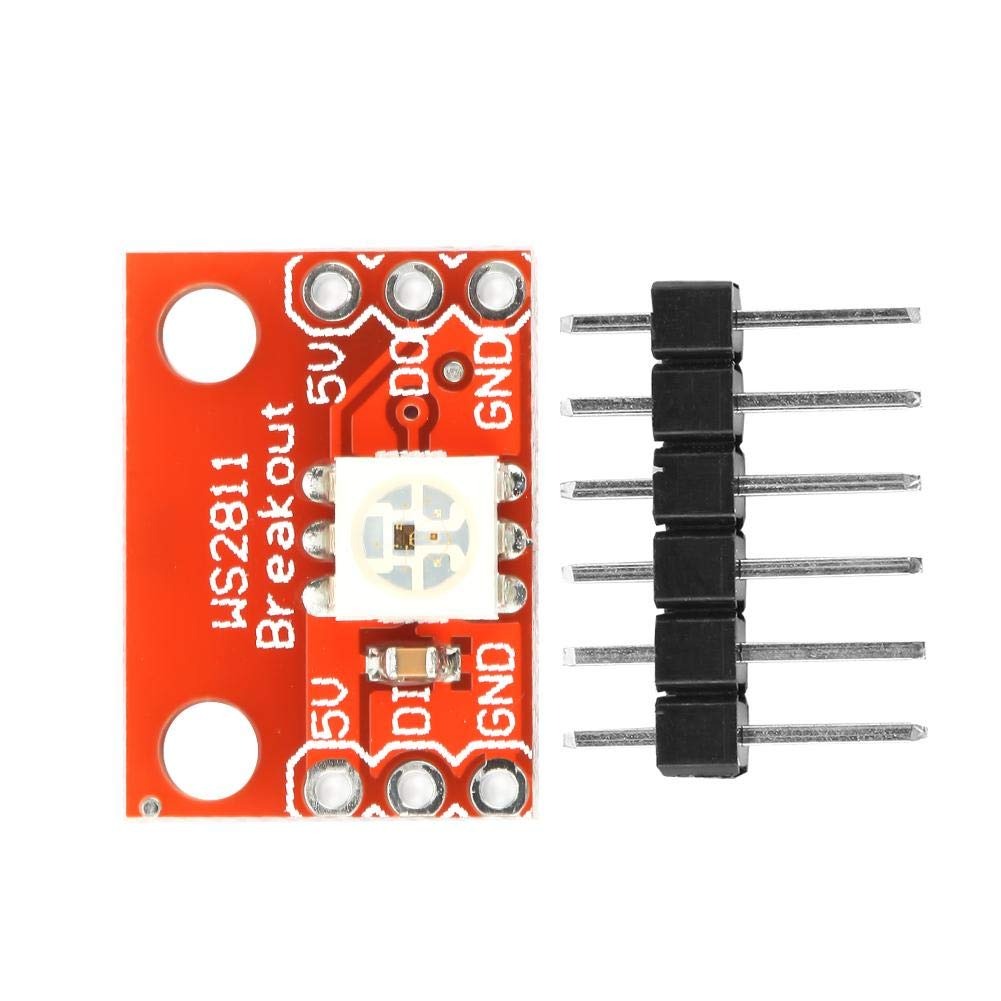

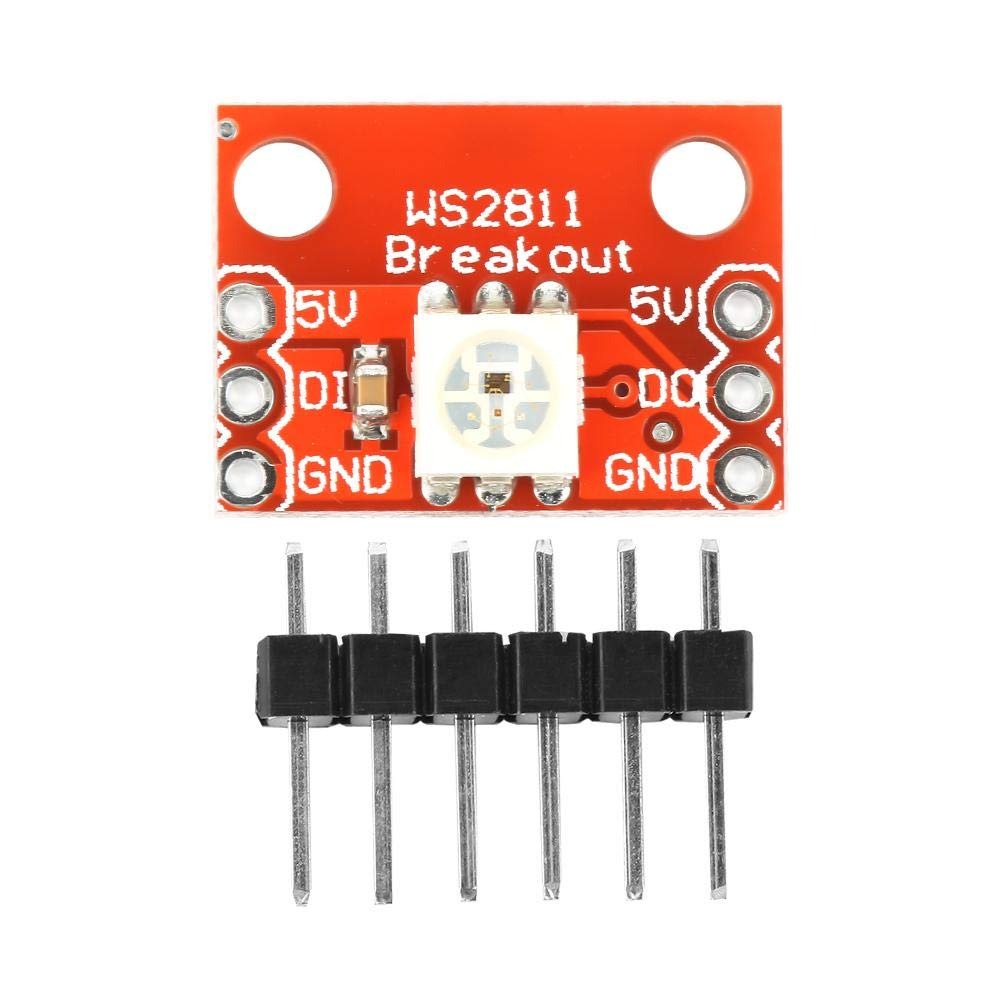

WS2812 RGB LED Breakout Board Module | Smart Addressable LED for Arduino & Projects - a red rectangular PCB with a central LED and six pin headers next to it. WS2812 RGB LED Breakout Board Module | Smart Addressable LED for Arduino & Projects - shown as a red rectangular PCB with a central LED and a separate 6-pin header strip below it.
