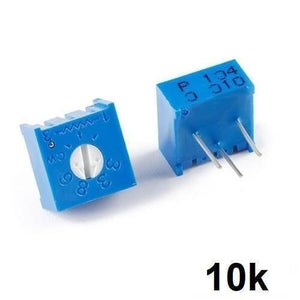

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - two blue square-shaped electronic components with white adjustment screws and pins.
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a blue square electronic component with a white slotted adjustment screw and three pins.
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a square blue electronic component with three metal pins extending from the top.
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - two blue square-shaped electronic components with white adjustment screws and pins.
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a blue square electronic component with a white slotted adjustment screw and three pins.
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a square blue electronic component with three metal pins extending from the top.

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer

Sale price Rs 40
SKU: b815,L100,Th50
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - two blue square-shaped electronic components with white adjustment screws and pins.

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer - two blue square-shaped electronic components with white adjustment screws and pins.
10k Variable Resistor 3386 Single Turn Trimmer Potentiometer
Sale priceRs 40

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins.

The voltage between the terminal varies as the trimpot is rotate. The Variable resistors are use for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Features And Specifications Of 10K Variable Resistor 3386 Single Turn Trimmer Potentiometer:

  • Trimmer is a high accuracy variable resistor and PCB mountable with 3 terminal pins.
  • The voltage between the terminal varies as the trimpot is rotated.
  •  Resistance: 10K
  • Resistance Tolerance: ± 5%
  • Temperature Coefficient: ± 50 ppm/°C
  • Potentiometer Mounting: Through Hole
  • Adjustment Type: Top
  • Contact Resistance Variation +: 1%
  • Full Power Rating Temperature: 85°C
  • Lead Diameter: 0.5mm
  • Operating Temperature Range: -55°C to +125°C
  • Resistor Element Material: Variable Rotary Trimmer

Package Include:

  • 1 x 10K Potentiometer Trimmer

Best online shopping website for 10K Variable Resistor 3386 Single Turn Trimmer Potentiometer at cheap price in Lahore Sialkot Gujranwala Gujrat Rahim Yar khan Daska Faislabad Multan Vehari Okara and all over Pakistan

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer

10k Variable Resistor 3386 Single Turn Trimmer Potentiometer

Frequently Bought Together

100k Variable Resistor 3386 Single Turn Trimmer Potentiometer - shown as two blue square components with three metal pins and a white adjustment screw. 100k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a blue square electronic component with a white slotted adjustment screw and three pins.
Log in to use Wishlist
Add to Compare

100k Variable Resistor 3386 Single Turn Trimmer Potentiometer

Sale priceRs 30

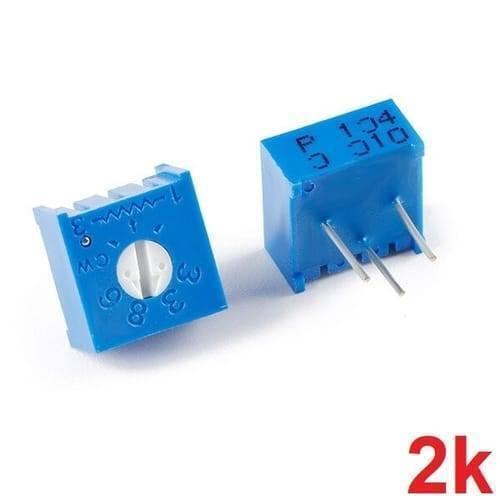

2k Variable Resistor 3386 Single Turn Trimmer Potentiometer - shown as two blue, square-shaped electronic components with three metal pins and a white dial. 2k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a blue, square-shaped electronic component with a white adjustment screw and three pins.
Log in to use Wishlist
Add to Compare

2k Variable Resistor 3386 Single Turn Trimmer Potentiometer

Sale priceRs 40

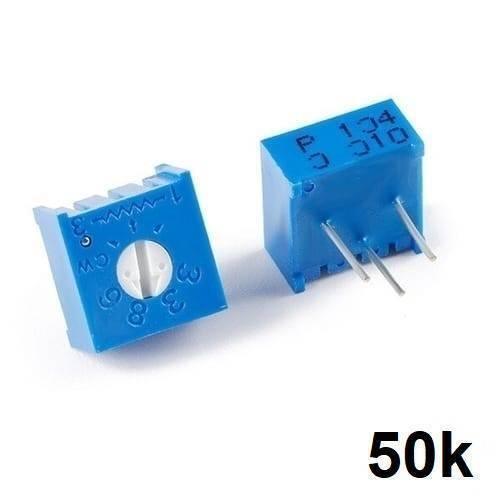

50k Variable Resistor 3386 Single Turn Trimmer Potentiometer - two blue square-shaped components with white adjustment screws and three metal pins. 50k Variable Resistor 3386 Single Turn Trimmer Potentiometer - a blue square component with a white slotted adjustment screw and three metal pins.
