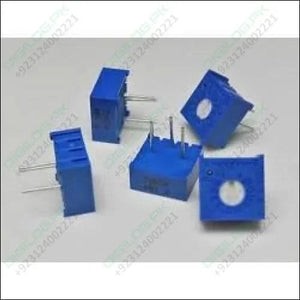

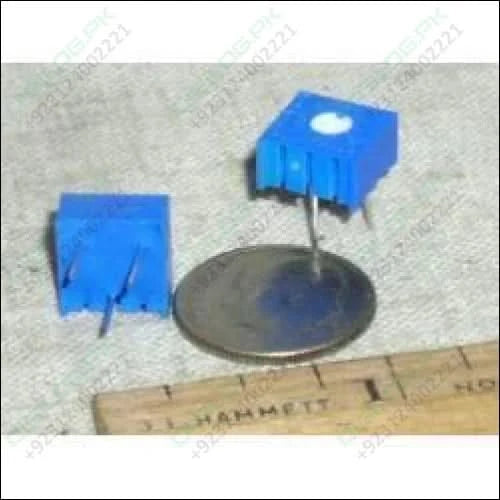

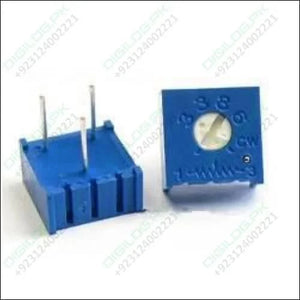

20k 3386 Single Turn Variable Potentiometer Trimmer
20k 3386 Single Turn Variable Potentiometer Trimmer
20k 3386 Single Turn Variable Potentiometer Trimmer

20k 3386 Single Turn Variable Potentiometer Trimmer Resistor

Rs 30 PKR
SKU: b833
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Features of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

  1. Trimmer is a high accuracy variable resistor and PCB mountable with 3 terminal pins.
  2. The voltage between the terminal varies as the trimpot is rotated.
  3. The Variable resistors are used for variating voltage as per the need in a circuit.
  4. The outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Specifications of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

  1. Track Resistance: Select Value
  2. Resistance Tolerance: ± 5%
  3. Temperature Coefficient: ± 50 ppm/°C
  4. Potentiometer Mounting: Through Hole
  5. Adjustment Type: Top
  6. Contact Resistance Variation +: 1%
  7. Full Power Rating Temperature: 85°C
  8. Lead Diameter: 0.5mm
  9. Operating Temperature Range: -55°C to +125°C
  10. Resistance: 1K ohm, 2k ohm,5k ohm, 10k ohm, 20k ohm, 50k ohm, 100k ohm, 500k ohm, 1 Megohm
  11. Resistor Element Material: Variable Rotary Trimmer

Image result for 3386 Trimmer Resistor

Image result for 3386 Trimmer Resistor

Applications:

  1. Industrial
  2. Consumer Electronics
  3. Portable Devices
  4. Power Management

Package Includes:

1 x 3386 Single Turn Variable Potentiometer Trimmer Resistor
