ZS-X4A 5A PWM DC Motor Speed Controller Module Light Dimmer LED Dimmer lighting dimmer is a Mini wide voltage DC motor governor adopts the latest low voltage drive technology, the current is up to 5A, the smallest volume is only 1 yuan coin size, the applicable voltage is the widest 3-35V, and it is equipped with a self-recovery fuse, pocket DC governor, Also suitable for LED dimming.

Features of ZS-X4A 5A PWM DC Motor Speed Controller Module Light Dimmer LED Dimmer lighting dimmer:

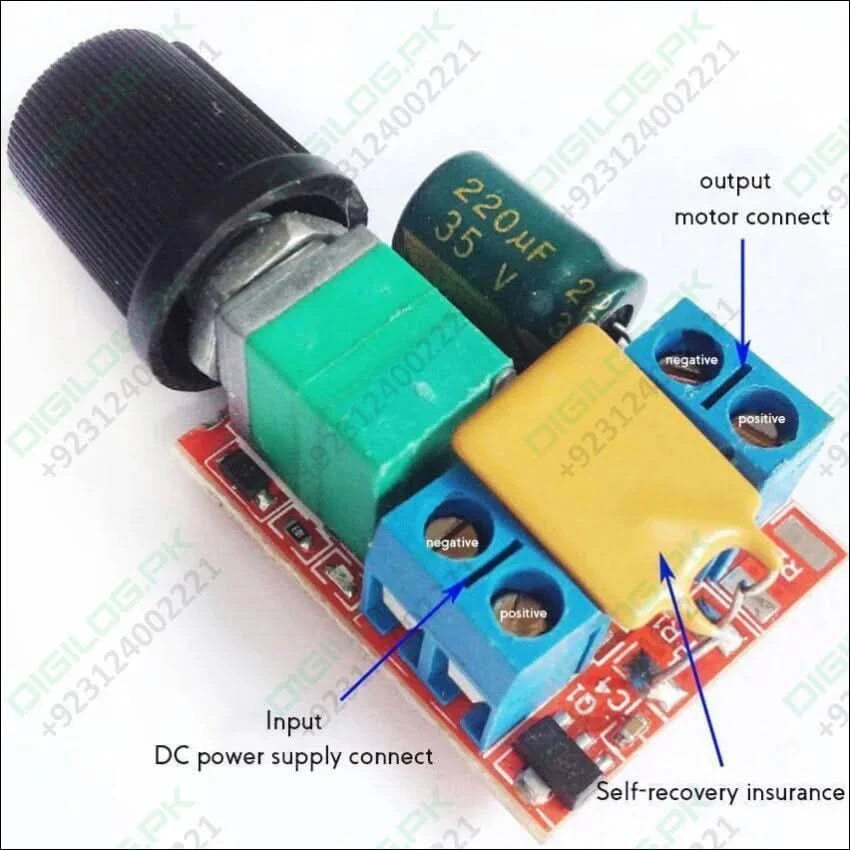

• With high voltage and high current self-recovery fuse, the current is automatically disconnected, the fuse is automatically restored after a few seconds of power-off cooling, almost never need to change the fuse

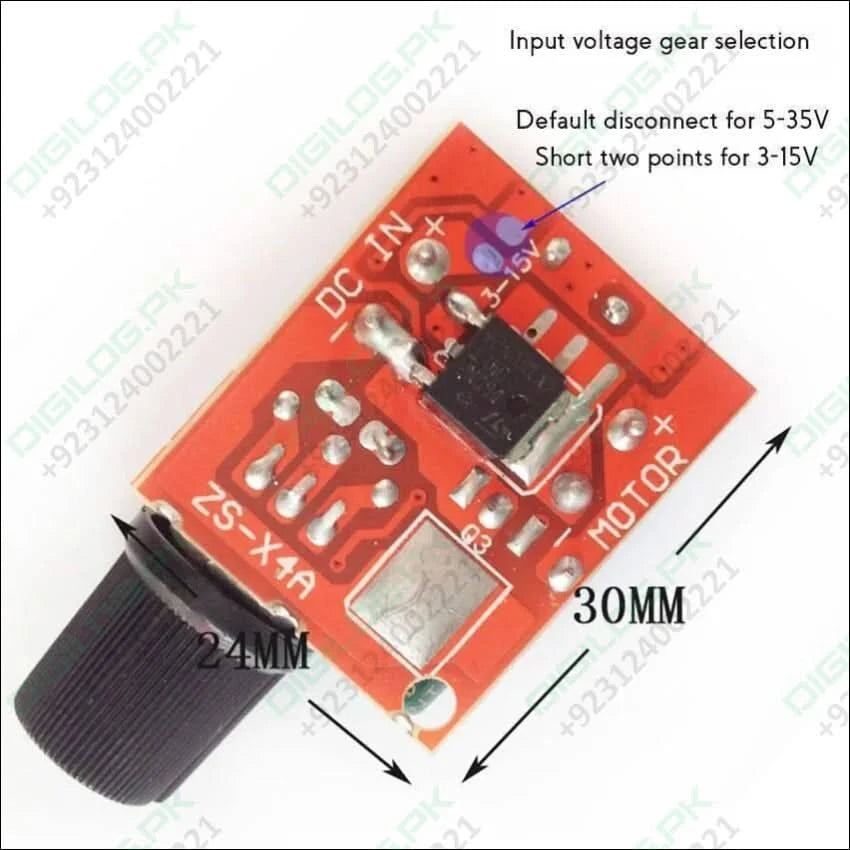

• Input voltage selection is divided into two gear positions. By default, the short-circuit point is applied to the voltage of 5-35V input.
• If the short-circuit point is connected, the low-voltage 3-15V input is applied. The default is to disconnect the short-circuit point and apply the voltage to 5-35V input. Low voltage input gear can be changed by yourself.

Specifications of ZS-X4A 5A PWM DC Motor Speed Controller Module Light Dimmer LED Dimmer lighting dimmer:

1. Working voltage: DC3V-35V
2. Control power: 90W (maximum)
3. Quiescent current: 0.015A (standby state)
4. PWM duty cycle: 1%-100%
5. PWM frequency: 10khz
6. Model: ZS-X4A
7. Shell size: 30MMx width 24MM (without handle) total height 15MM

Package Includes :

• 1 x Mini DC Motor PWM Governor Speed Controller
