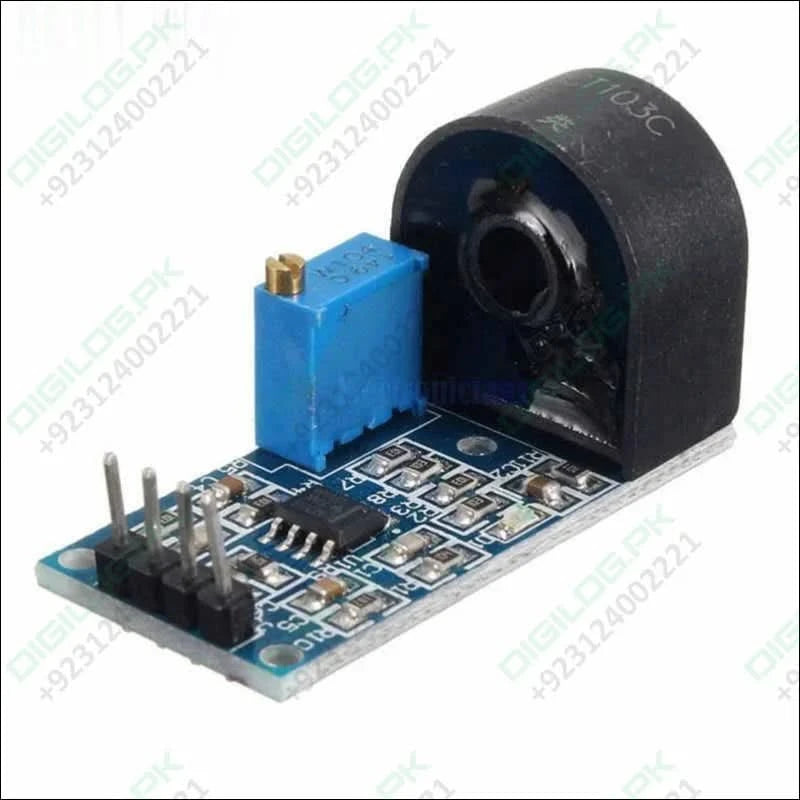

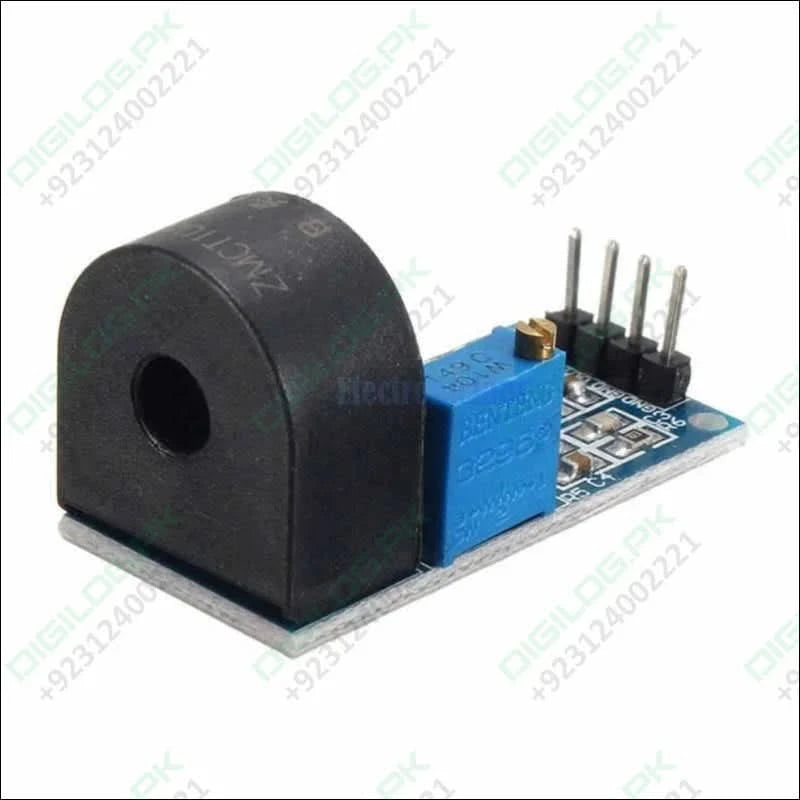

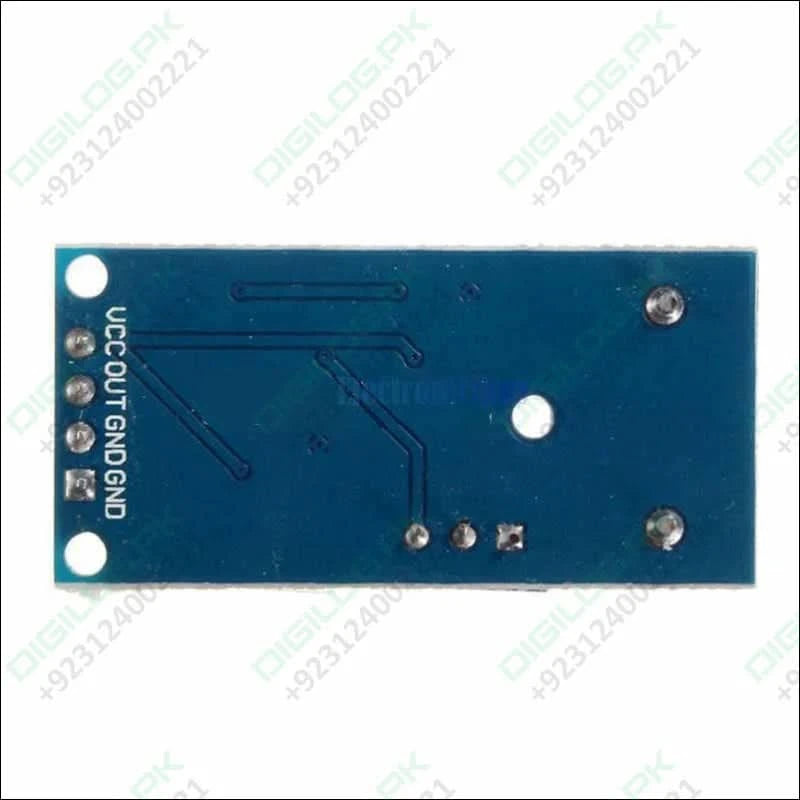

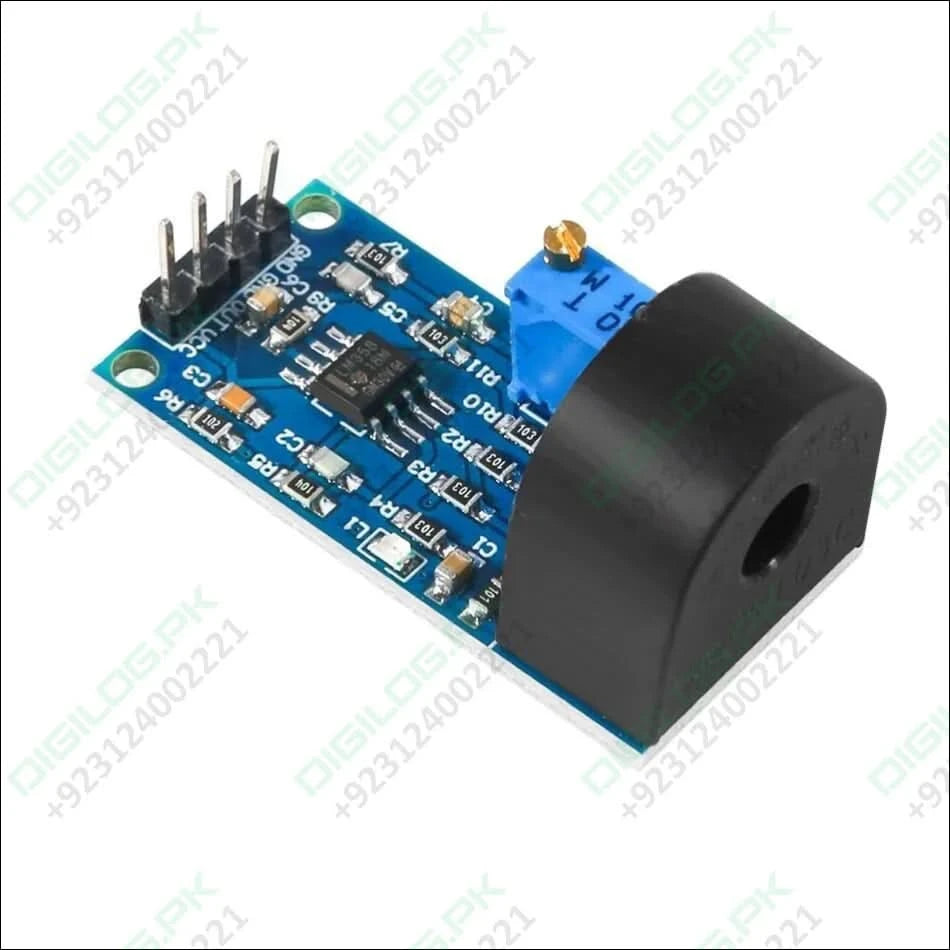

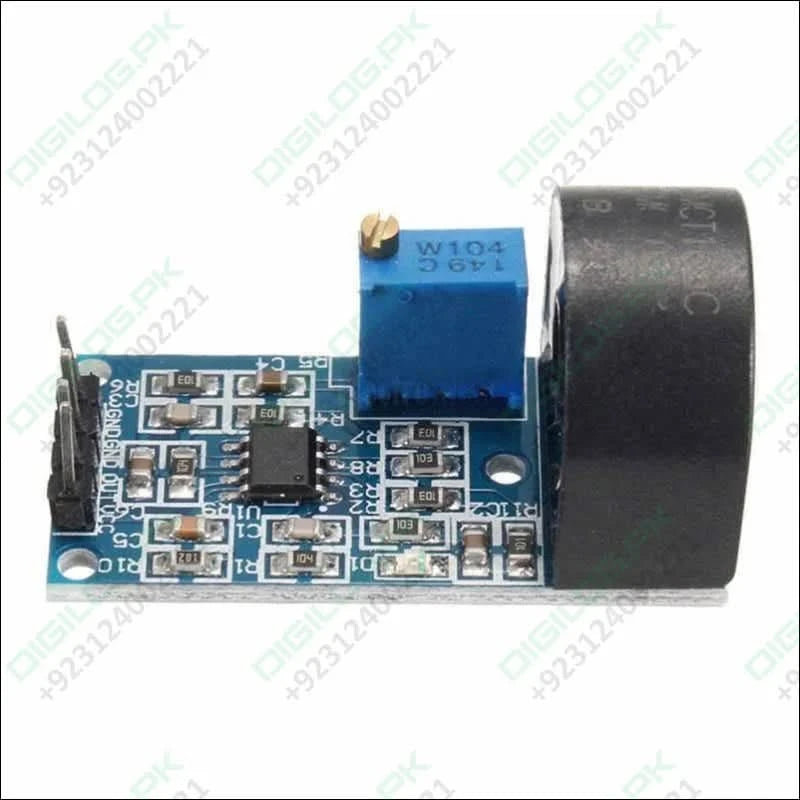

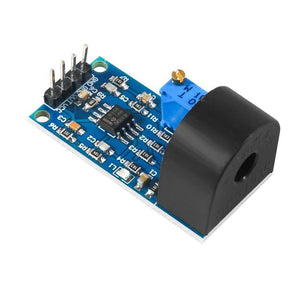

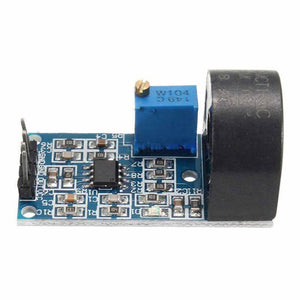

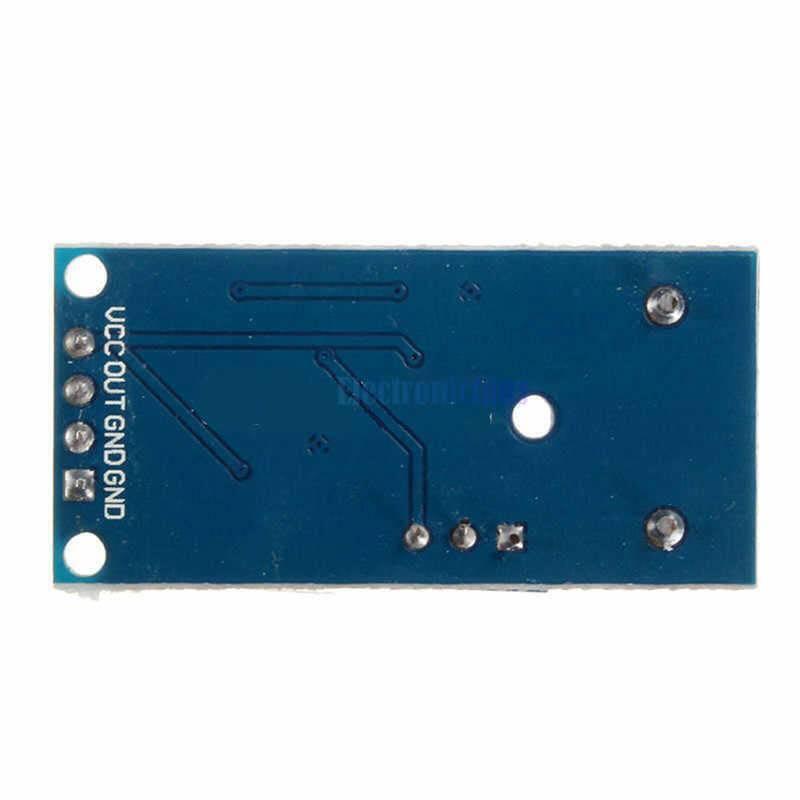

Zmct103c 5a Range Single Phase Ac Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino

The module is equipped with the ZMCT103C series of small high-precision current transformers and high-precision op amp circuits for accurate sampling and proper compensation of signals. It is convenient for signal acquisition of AC power within 5A. The corresponding output analog AC signal can be adjusted. The required output voltage can be adjusted according to the potentiometer (adjusting the amplification ratio, the amplification range is 0-100 times), but the maximum voltage at the output (OUT) will not exceed 1/2 VCC.

:Features

• ZMCT103C parameters
• Rated input current: 5A
• Rated output current: 5mA
• Change ratio: 1000:1
• Phase difference: less than or equal to 20' (100Ω)
• Linear range: 0-10A (100Ω)
• Linearity: 0.2%
• Precision level: 0.2
• Isolation withstand voltage: 3000V
• Working temperature: -40 ° C ~ 70 ° C
• Sealing material: epoxy resin
• Module supply voltage: 5-30V DC

Package Include:

• 1 x ZMCT103C 5A Range Single Phase AC Active Output Current Transformer Module
