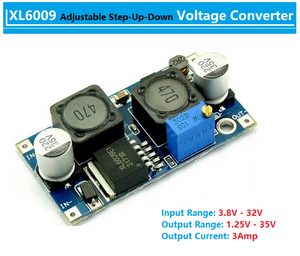

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a silver potentiometer, and input/output solder pads.

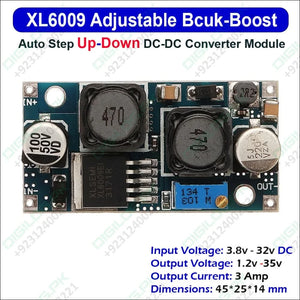

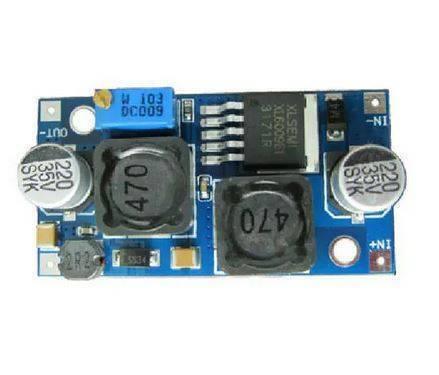

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a blue potentiometer, two silver capacitors, and input/output pads.

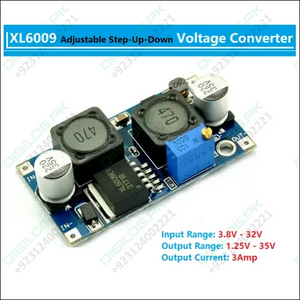

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, two silver capacitors, a blue potentiometer, and a black chip.

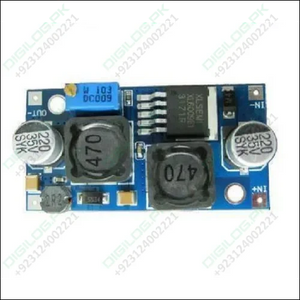

XL6009 Buck Boost Convertor Module - a blue rectangular circuit board with two black inductors, two silver capacitors, and a brass-colored potentiometer.

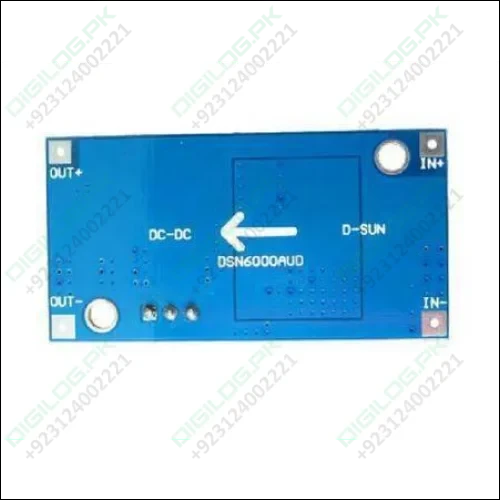

XL6009 Buck Boost Convertor Module - a blue rectangular circuit board with labeled IN+, IN-, OUT+, and OUT- connection points and a white arrow.

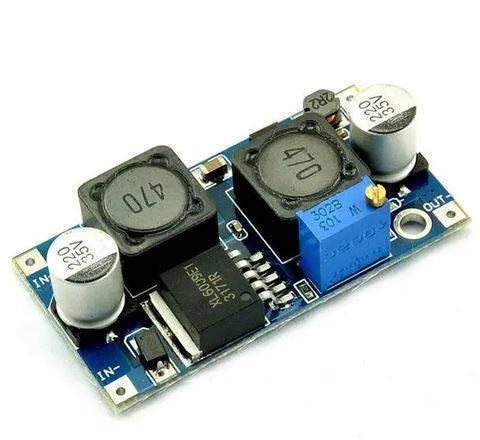

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a silver potentiometer, and input/output solder pads.

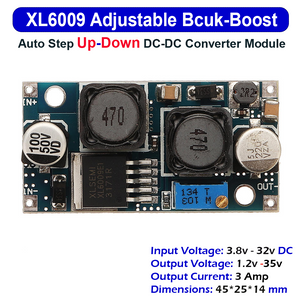

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a blue potentiometer, two silver capacitors, and input/output pads.
XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, two silver capacitors, a blue potentiometer, and a black chip.
XL6009 Buck Boost Convertor Module - a blue rectangular circuit board with two black inductors, two silver capacitors, and a brass-colored potentiometer.

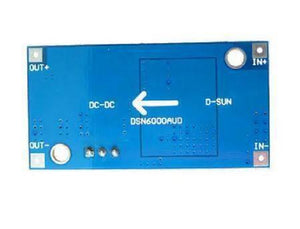

XL6009 Buck Boost Convertor Module - a blue rectangular circuit board with labeled IN+, IN-, OUT+, and OUT- connection points and a white arrow.

XL6009 Buck Boost Convertor Module

Sale price Rs 340
SKU: B207,krt69,IMP100,Th50,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a silver potentiometer, and input/output solder pads.
+
DC Male Power Connector DC Jack - with a black and red two-wire lead attached to a black barrel connector with a yellow tip.
+
XL6019 5A DC-DC Step Up Boost Converter Price - a red rectangular circuit board featuring a blue potentiometer, two screw terminals, and a black inductor.
+
4A Buck-boost Converter Module Adjustable Buck Boost Board With LCD Display - with blue PCB, LCD display showing 14.90V and 1.315A, two blue terminal blocks, two buttons, and a heatsink.
4A Buck-boost Converter Module Adjustable Buck Boost Board With LCD Display - with blue PCB, LCD display showing 14.90V and 1.315A, two blue terminal blocks, two buttons, and a heatsink.
This item: XL6009 Buck Boost Convertor Module -
Sale price Rs 340
DC Male Power Connector DC Jack - with a black and red two-wire lead attached to a black barrel connector with a yellow tip.
DC Male Power Connector DC Jack -
Sale price Rs 40
XL6019 5A DC-DC Step Up Boost Converter Price - a red rectangular circuit board featuring a blue potentiometer, two screw terminals, and a black inductor.
XL6019 5A DC-DC Step Up Boost Converter Price -
Sale price Rs 280
4A Buck-boost Converter Module Adjustable Buck Boost Board With LCD Display - with blue PCB, LCD display showing 14.90V and 1.315A, two blue terminal blocks, two buttons, and a heatsink.
4A Buck-boost Converter Module Adjustable Buck Boost Board With LCD Display -
Sale price Rs 1,520
Price for all:
Sale total price Rs 2,180

Pickup available at Digilog Electronics

Usually ready in 2 hours

XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a silver potentiometer, and input/output solder pads.

XL6009 Buck Boost Convertor Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
XL6009 Buck Boost Convertor Module - a blue circuit board with two black inductors, a silver potentiometer, and input/output solder pads.
XL6009 Buck Boost Convertor Module
Sale priceRs 340

XL6009: Your Reliable Automatic Buck-Boost Converter

The XL6009 is a versatile DC-DC converter module that provides automatic voltage regulation and efficient power conversion. Whether you need to step up or step down voltage, the XL6009 is a reliable solution for your electronic projects.

Key Features:

  • Automatic Voltage Regulation: Automatically adjusts the output voltage to match the input voltage.
  • Wide Input Voltage Range: Operates from 3.8V to 32V, accommodating various power sources.
  • Adjustable Output Voltage: Set the output voltage from 1.25V to 35V to suit your specific needs.
  • High Efficiency: Offers up to 94% conversion efficiency, minimizing power loss.
  • Compact Size: Small and lightweight for easy integration into your projects.
  • Overcurrent and Overvoltage Protection: Built-in safeguards for reliable operation.

Applications:

  • Car Regulators: Stabilize voltage for car electronics.
  • Solar and Wind Power Systems: Provide efficient power conversion.
  • Electronic Devices: Power various electronic devices and circuits.
  • DIY Projects: Build your own power supplies, amplifiers, and other electronic creations.

Specifications:

    • Input Voltage: 3.8V-32V
    • Output Voltage: 1.25V-35V
    • Input Current: 3A (max)
    • Conversion Efficiency: Up to 94%
    • Switching Frequency: 400kHz



    • Output Ripple: 50mV (max)



    • Load Regulation: ±0.5%



    • Voltage Regulation: ±0.5%



  • Operating Temperature: -40°C to +85°C
  • Dimensions: 48 x 25 x 14mm

Order Your XL6009 Automatic Buck-Boost Converter Today!

Enhance your electronic projects with the XL6009 converter. Order yours now and enjoy reliable power conversion and efficient operation.
