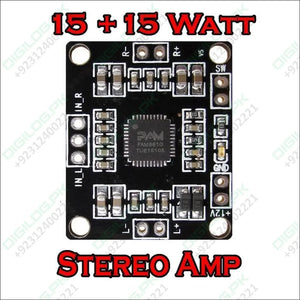

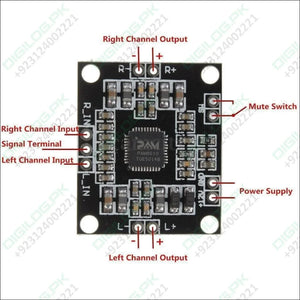

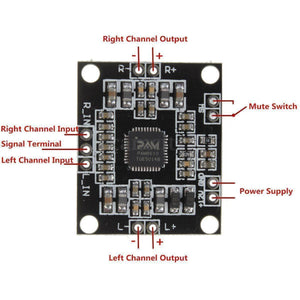

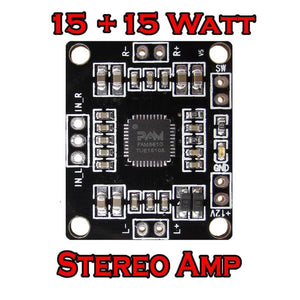

Xhm181 Xh M181 Pam8610 12v Dual-channel Stereo Audio Amplifier Board

PAM8610: A Powerful and Efficient Stereo Amplifier

The PAM8610 is a high-performance stereo class-D amplifier board designed to deliver exceptional audio quality. With its low distortion, high efficiency, and DC volume control, the PAM8610 is ideal for a wide range of audio applications.

Key Features:

• Class-D Amplification: Offers high efficiency and reduced heat generation.
• Low Distortion: Provides clear and distortion-free audio.
• DC Volume Control: Easily adjust the volume level to your preference.
• Wide Power Supply Range: Operates from 7V to 15V.
• Compact Design: Small and lightweight for easy integration into your projects.

Specifications:

• Power Output: 10W x 2 (8Ω), 15W x 2 (4Ω)
• Frequency Response: 20Hz-15kHz
• Static Current: 20mA (DC12V)
• SNR: 90dB
• Input Impedance: 15K
• Output Impedance: 4-8Ω
• Harmonic Distortion: <0.1%
• Dimensions: 30 x 25 x 4mm
• Weight: 12g

Applications:

• Home Audio Systems: Power speakers for your stereo setup.
• Portable Audio Devices: Drive speakers in portable speakers or headphones.
• DIY Audio Projects: Build your own amplifiers and audio systems.

Order Your PAM8610 Amplifier Board Today!

Upgrade your audio experience with the PAM8610 amplifier board. Order yours now and enjoy high-quality sound reproduction.
