Wemos D1 Mini Pro With External Antenna In Pakistan

Online Shopping website for Wemos D1 Pro. Here you get Wemos D1 Pro in reasonable price in karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakistan. With esp8266 chip It has comparison with nodemcu, Arduino wifi and other wifi modules.

Have External Connector for an antenna with ESP8266 CP2104 WIFI Development Board With Compatible pins for WEMOS D1 Mini.

Features Of WEMOS D1 Mini Pro:

1. 11 digital input/output pins
2. Interrupt/PWM/I2C/one-wire
3. 1 analog input(3.2V max input)
4. 4M byte Flash
5. External antenna connector
6. Built-in ceramic antenna
7. New CP2104 USB-TO-UART IC
8. Same size as D1 mini, but more light

Specification

1. Microcontroller ESP-8266EX
2. Operating Voltage 3.3V
3. Digital I/O Pins 11
4. Analog Input Pins 1(Max input: 3.2V)
5. Clock Speed 80MHz/160MHz
6. Flash 4M bytes
7. Length 34.2mm
8. Width 25.6mm
9. Weight 2.5g
10. NOTE: All of the IO pins have interrupt/PWM/I2C/one-wire support except D0,  All of the IO pins run at 3.3V.

Package

1. 1 x D1 Mini Pro V1.1.0
2. 1 x Set of header pins

Downloads:

1. Click me For Drivers OF WeMos D1 Mini Pro

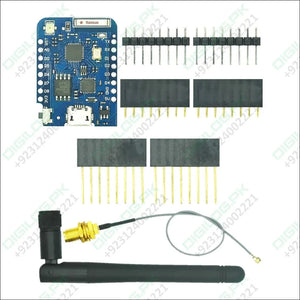

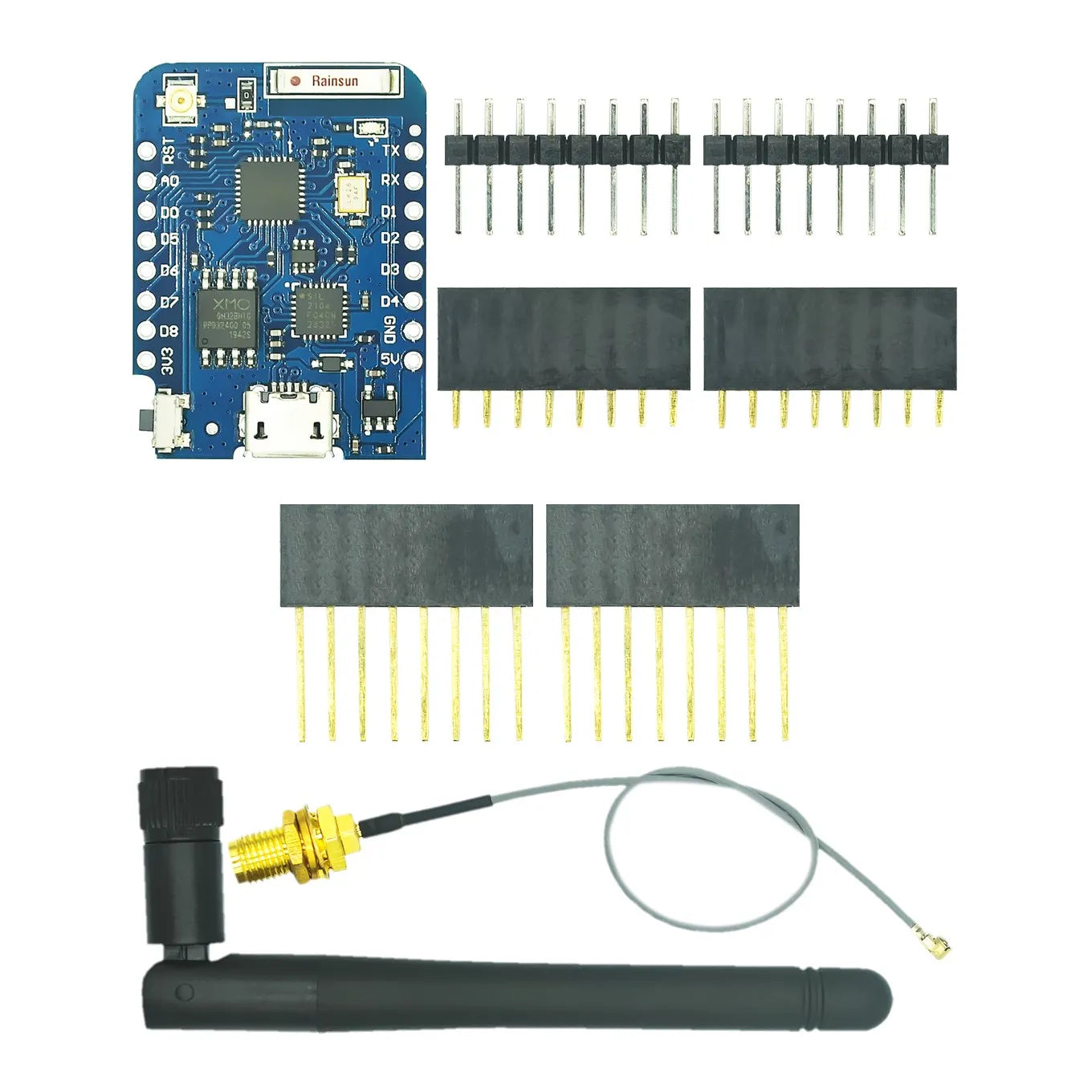

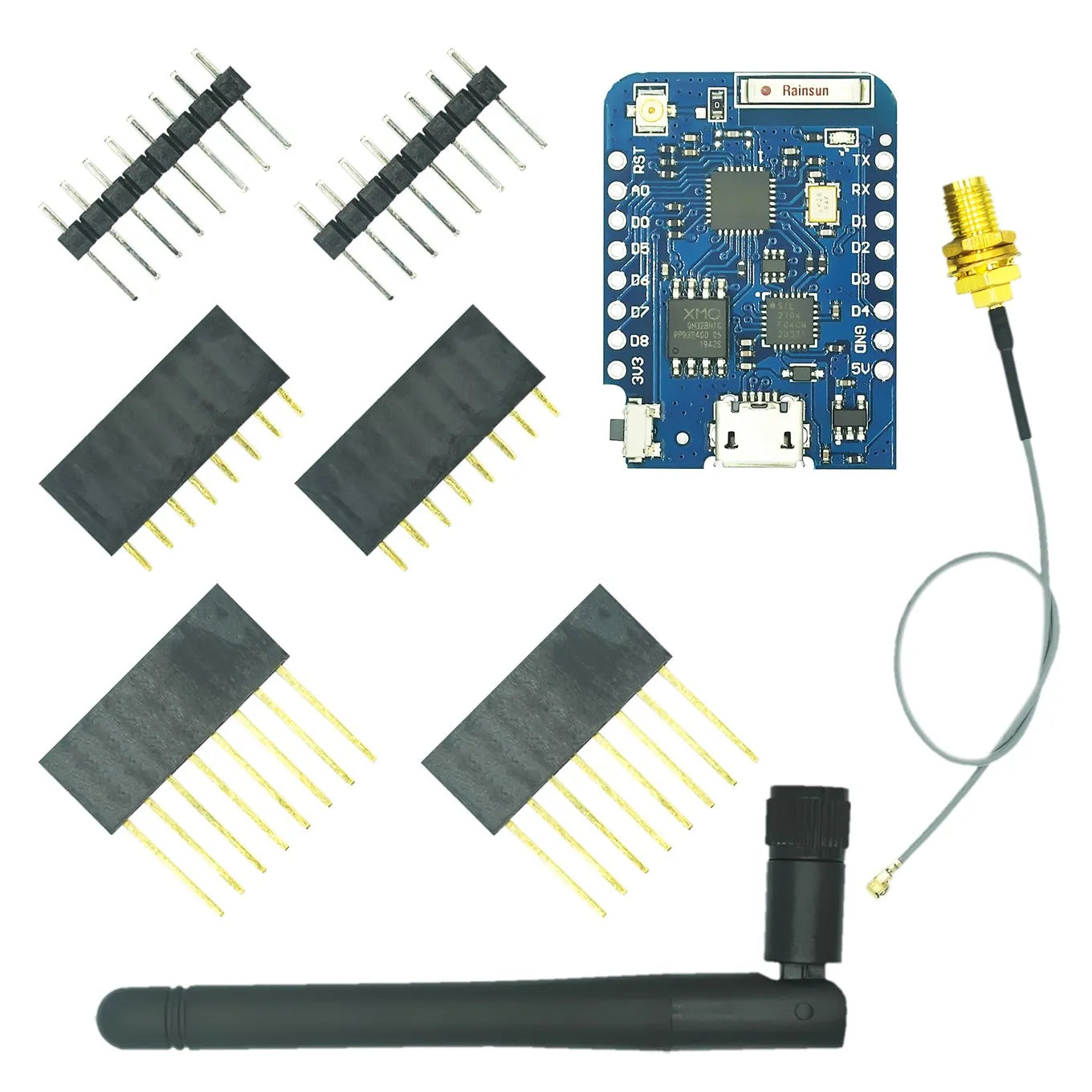

Package includes:

• 1x WEMOS D1 Mini Pro module
• 2x 20-pin headers (customer can cut small piece as needed)
• 1x Antenna
• 1x ipx Connector
