WEMOS D1 Mini Pro With External Antenna Connector Without
WEMOS D1 Mini Pro With External Antenna Connector Without

WEMOS D1 Mini Pro With External Antenna Connector Without Antenna

Rs 750 PKR
SKU: B352,IMP50,Th25,A
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

Have External Connector for an antenna with ESP8266 CP2104 WIFI Development Board With Compatible pins for WEMOS D1 Mini.

Features:

  1. 11 digital input/output pins
  2. Interrupt/PWM/I2C/one-wire
  3. 1 analog input(3.2V max input)
  4. 4M byte Flash
  5. External antenna connector
  6. Built-in ceramic antenna
  7. New CP2104 USB-TO-UART IC
  8. Same size as D1 mini, but more light

Specification

  1. Microcontroller ESP-8266EX
  2. Operating Voltage 3.3V
  3. Digital I/O Pins 11
  4. Analog Input Pins 1(Max input: 3.2V)
  5. Clock Speed 80MHz/160MHz
  6. Flash 4M bytes
  7. Length 34.2mm
  8. Width 25.6mm
  9. Weight 2.5g
  10. NOTE: All of the IO pins have interrupt/PWM/I2C/one-wire support except D0,  All of the IO pins run at 3.3V.

Package

  1. 1 x D1 Mini Pro V1.1.0
  2. 1 x Set of header pins

Downloads:

  1. Click me For Drivers OF WeMos D1 Mini Pro

Package includes:

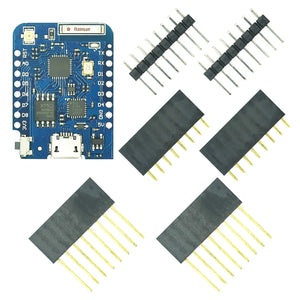

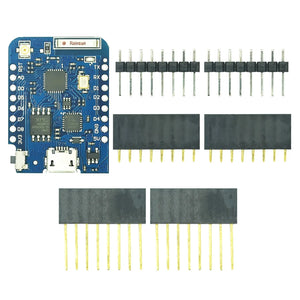

  • 1x WEMOS D1 Mini Pro module
  • 2x 20-pin headers (customer can cut small piece as needed)
