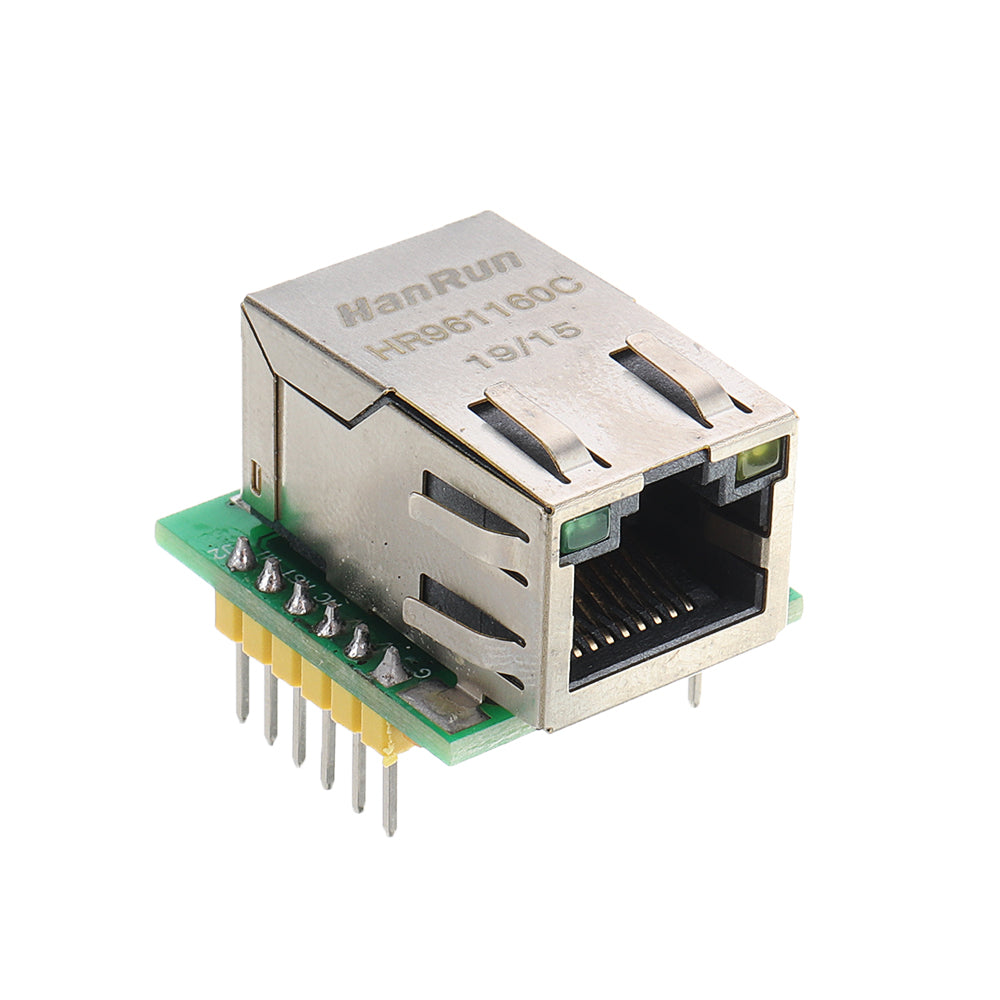

W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - a close-up of the silver and green RJ45 Ethernet port connector with HanRun HR961160C printed on top.

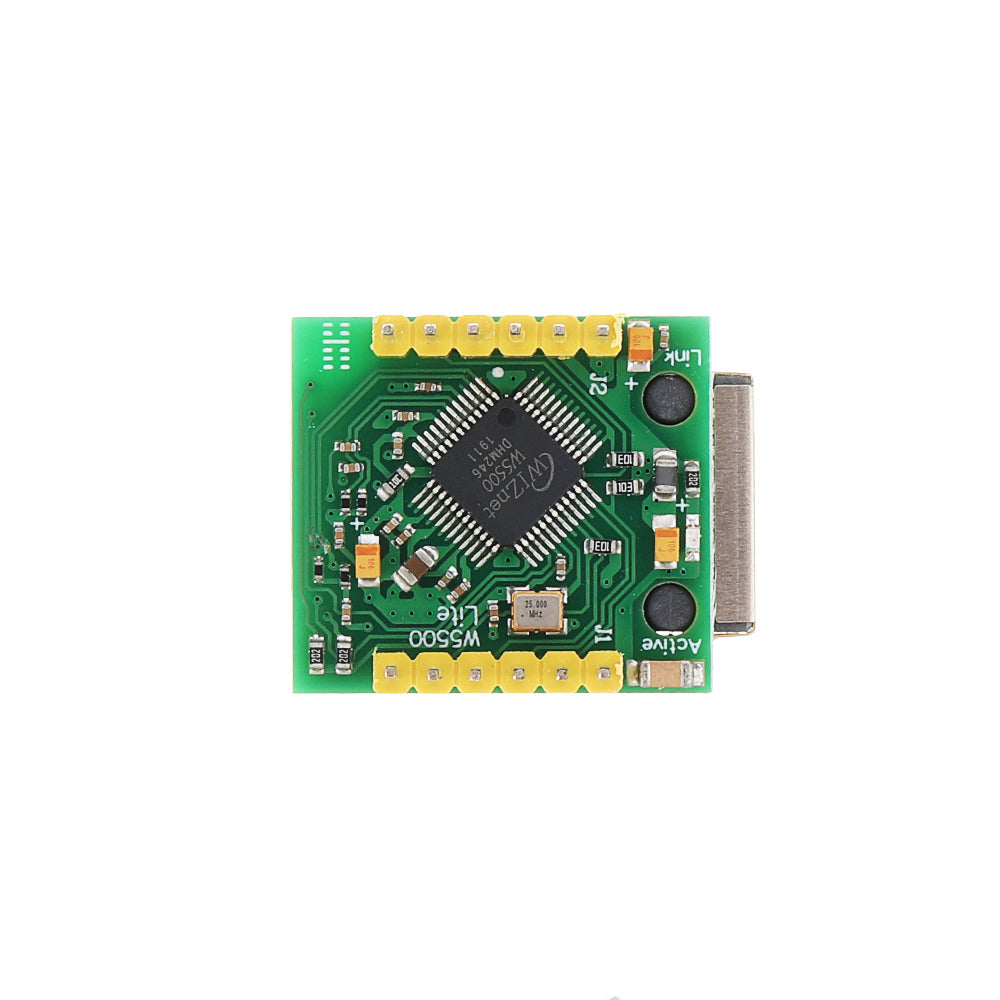

W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - a green circuit board with a central WIZnet chip, a side-mounted RJ45 connector, and two rows of header pins.
W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - a green circuit board with an integrated RJ45 Ethernet port, a WIZnet chip, and two rows of yellow header pins.

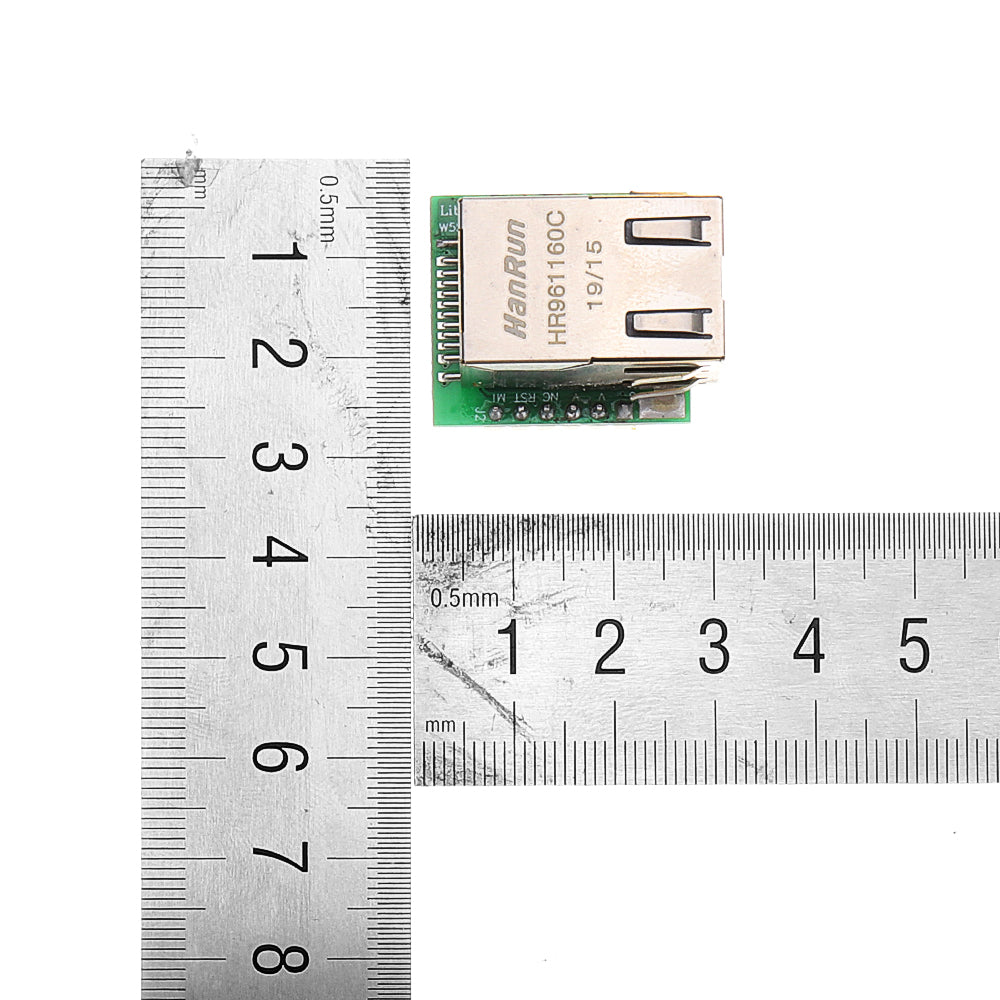

W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - shown from above with a HanRun HR961160C Ethernet port, measured by two metal rulers in centimeters.
Sold out
W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - a close-up of the silver and green RJ45 Ethernet port connector with HanRun HR961160C printed on top.
W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - a green circuit board with a central WIZnet chip, a side-mounted RJ45 connector, and two rows of header pins.
W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - a green circuit board with an integrated RJ45 Ethernet port, a WIZnet chip, and two rows of yellow header pins.
W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield - shown from above with a HanRun HR961160C Ethernet port, measured by two metal rulers in centimeters.

W5500 Ethernet TCP/IP Protocol Stack SPI IOT Compatible WIZ820IO Shield

Sale price Rs 1,800
SKU: b229,krt46
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Simplify internet connectivity for your embedded systems with the W5500 Ethernet Module. This versatile module provides a comprehensive solution for seamless network integration.

Key Features:

  • Integrated TCP/IP protocol stack for easy internet access
  • Supports 8 independent socket connections
  • Compatible with various microcontrollers
  • High-speed SPI interface
  • Internal 32K byte send and receive buffer
  • Embedded 10BaseT/100BaseTX Ethernet PHY
  • Auto-negotiation for optimal network performance
  • Compact and easy-to-use design

Specifications:

  • Power supply: 3.3V external power supply
  • Control interface: 3.3V TTL level, SPI interface
  • PCB size: 23 * 25 mm
  • Mechanical dimensions: 28.5 * 23 * 24 mm

Applications:

  • IoT devices
  • Home automation
  • Industrial control
  • Data acquisition
  • Networking projects
