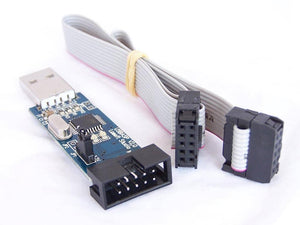

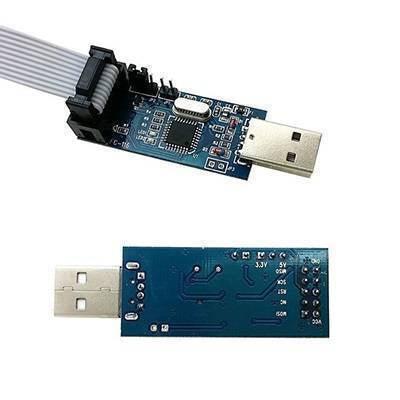

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.

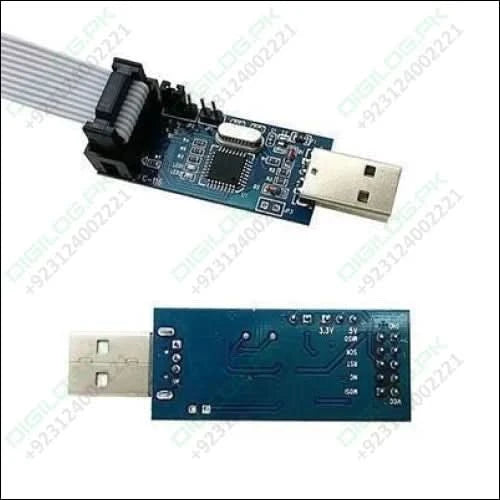

USB Asp Usbasp Microcontroller Programmer - a blue USB circuit board with a 10-pin header and a separate grey ribbon cable with two 10-pin connectors.

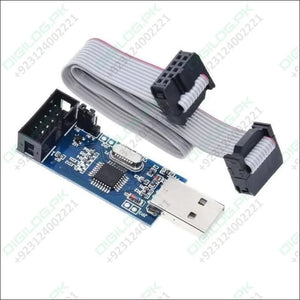

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.

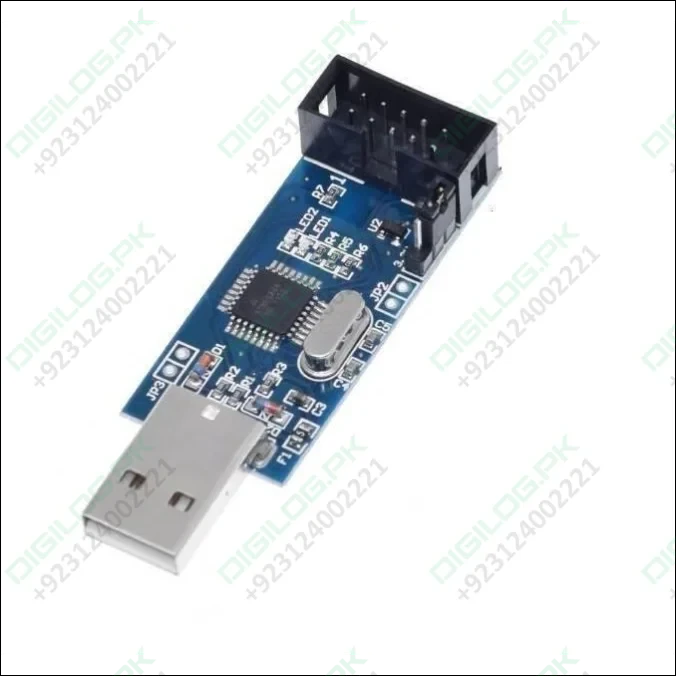

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, a crystal oscillator, and LEDs.

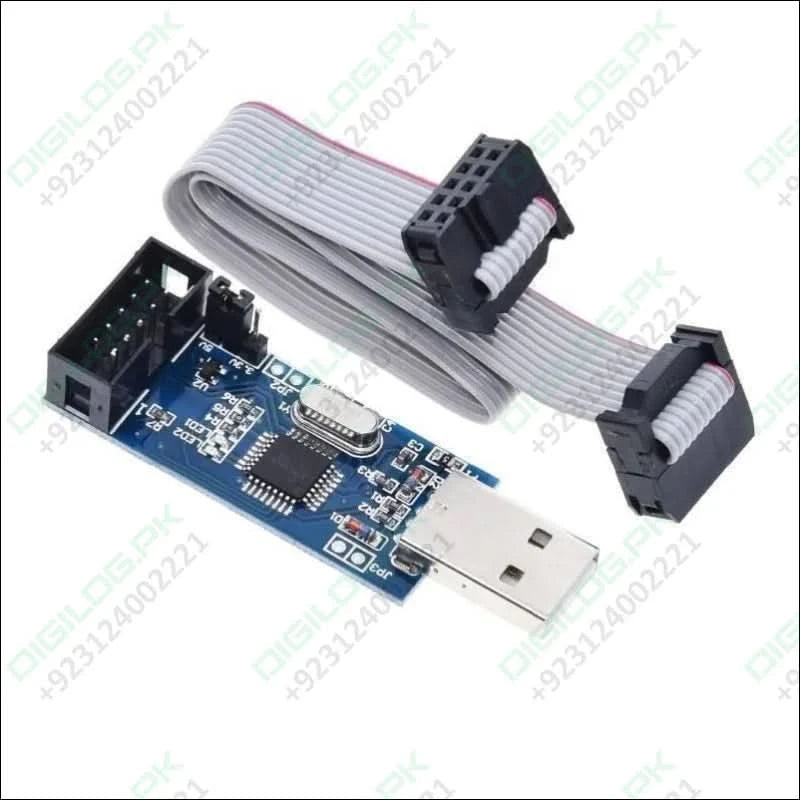

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.
USB Asp Usbasp Microcontroller Programmer - a blue USB circuit board with a 10-pin header and a separate grey ribbon cable with two 10-pin connectors.

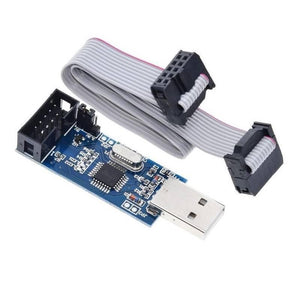

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.

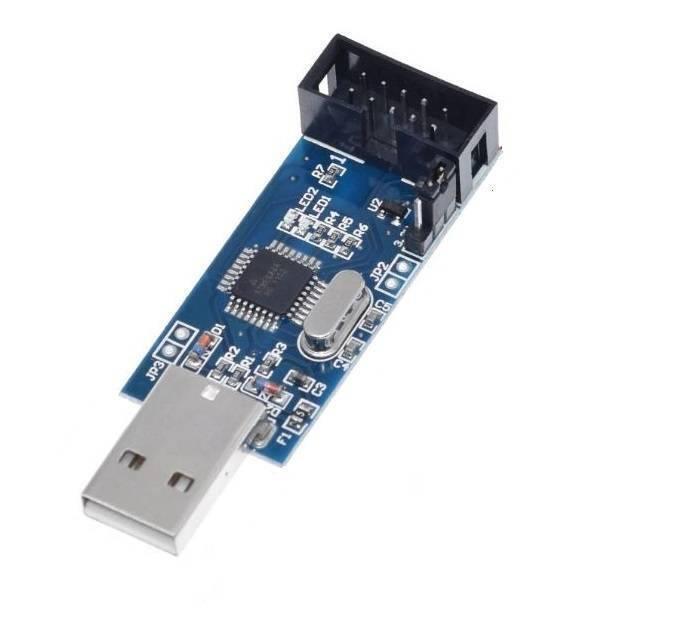

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, a crystal oscillator, and LEDs.

USB Asp Usbasp Microcontroller Programmer

Sale price Rs 510
SKU: B301,krt7,IMP20,Th10,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.
+
Mikroduino Kiwi Avr ATMEGA32 Arduino Ready Development Board Without LCD Without Microcontroller - an LCD screen displaying "MIKROTRONICS *** Pakistan ***", LEDs, buttons, and power ports.
+
ATMEGA32 ATMEGA32A Atmega 32 - a black rectangular microcontroller chip with 40 metallic pins, shown from an angled perspective on a white background.
+
ATMEGA16 Atmega 16 - a black 40-pin dual in-line package microcontroller chip with white text reading "ATMEL ATMEGA16 16PI 0531K" on its surface.
ATMEGA16 Atmega 16 - a black 40-pin dual in-line package microcontroller chip with white text reading "ATMEL ATMEGA16 16PI 0531K" on its surface.
This item: USB Asp Usbasp Microcontroller Programmer -
Sale price Rs 510
Mikroduino Kiwi Avr ATMEGA32 Arduino Ready Development Board Without LCD Without Microcontroller - an LCD screen displaying "MIKROTRONICS *** Pakistan ***", LEDs, buttons, and power ports.
Mikroduino Kiwi Avr ATMEGA32 Arduino Ready Development Board Without LCD Without Microcontroller -
Sale price Rs 3,030
ATMEGA32 ATMEGA32A Atmega 32 - a black rectangular microcontroller chip with 40 metallic pins, shown from an angled perspective on a white background.
ATMEGA32 ATMEGA32A Atmega 32 -
Sale price Rs 2,830
ATMEGA16 Atmega 16 - a black 40-pin dual in-line package microcontroller chip with white text reading "ATMEL ATMEGA16 16PI 0531K" on its surface.
ATMEGA16 Atmega 16 -
Sale price Rs 1,520
Price for all:
Sale total price Rs 7,890

Pickup available at Digilog Electronics

Usually ready in 2 hours

USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.

USB Asp Usbasp Microcontroller Programmer

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
USB Asp Usbasp Microcontroller Programmer - a blue circuit board with a USB connector, a 10-pin header, and an attached grey ribbon cable.
USB Asp Usbasp Microcontroller Programmer
Sale priceRs 510



The USB ASP AVR Programming Device for ATMEL processors is a USB in-circuit programmer for Atmel AVR controllers. Device for ATMEL Processors simply consists of an ATMega88 or an ATMega8 and a couple of passive components. The programmer uses a firmware-only USB driver; no special USB controller is needed.

Specifications and Features :

  1. Model No.: USB ASP AVR Programming Device for ATMEL Processors
  2. Compatible Chips:
    1. ATMega Series
    2. Tiny Series
    3. Classic Series
    4. CAN Series
    5. PWM Series

Features of USBASP Programmer

  1. Support for AVRDude Allows you to read or write the microcontroller EEPROM,firmware, fuse bits and lock bits Support for Linux, Mac OS X and Windows XP,7,8 5 KB/sec maximum write speed Software controlled SCK option to support targets with low clock speed (< 1.5MHz) 10 pin ISP interface Supported microcontrollers include:
  • Mega Series : ATmega8, ATmega48, ATmega88, ATmega168, ATmega328, ATmega103, ATmega128, ATmega1280, ATmega1281, ATmega16, ATmega161, ATmega162, ATmega163, ATmega164, ATmega169, ATmega2560, ATmega2561, ATmega32, ATmega324, ATmega329, ATmega3290, ATmega64, ATmega640, ATmega644, ATmega649, ATmega6490, ATmega8515, ATmega8535.
  • Tiny Series : ATtiny12, ATtiny13, ATtiny15, ATtiny25, ATtiny26, ATtiny45, ATtiny85, ATtiny2313.
  • Classic Series : AT90S1200, AT90S2313, AT90S2333, AT90S2343, AT90S4414, AT90S4433, AT90S4434, AT90S8515, AT90S8535.
  • CAN Series :  AT90CAN128
  • PWM Series :  AT90PWM2, AT90PWM3.



Package Includes :

1 x USB ASP AVR Programming Device.

1 x FRC cable.
