Tip127 Pnp Medium-power Complementary Silicon Transistors

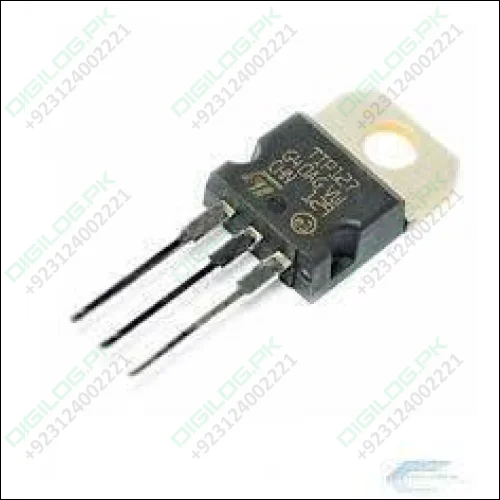

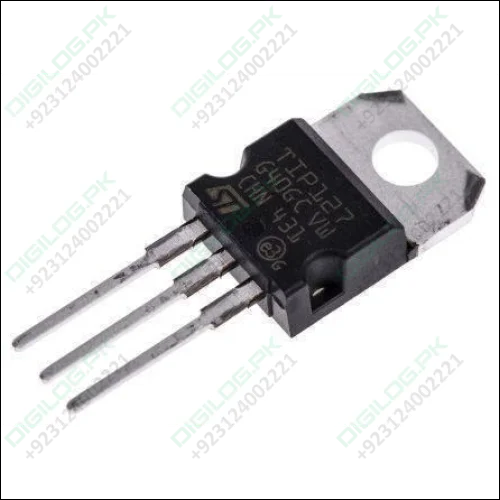

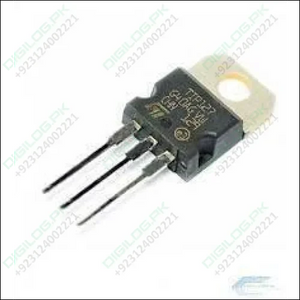

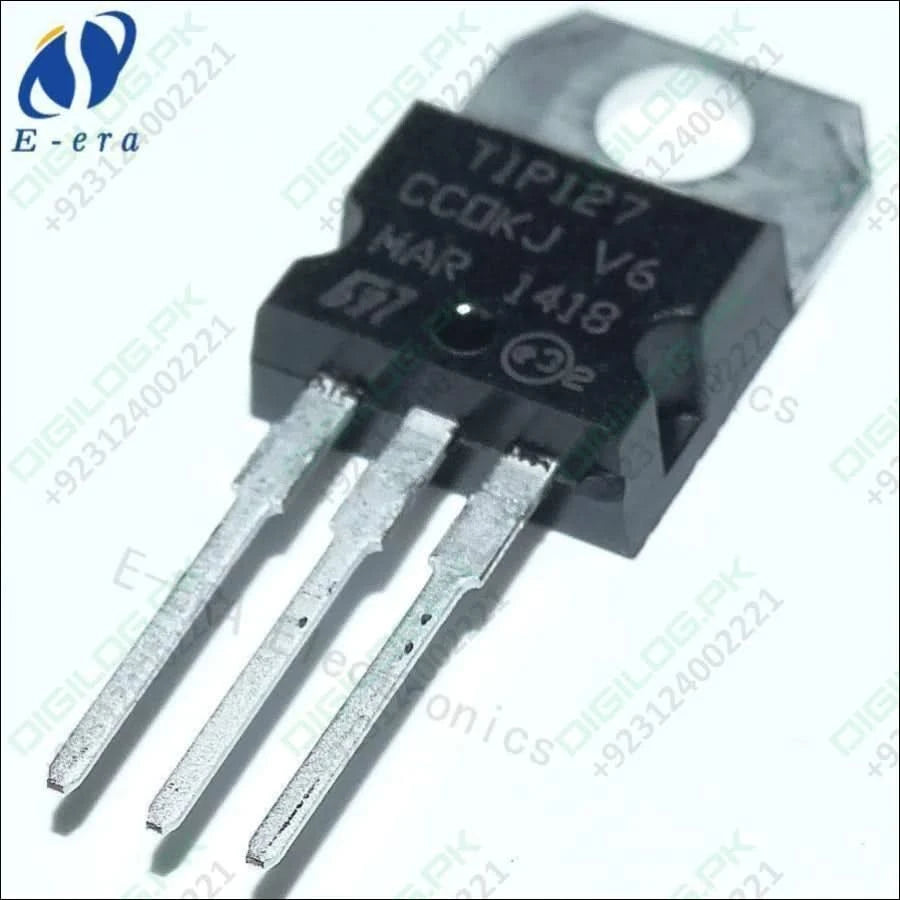

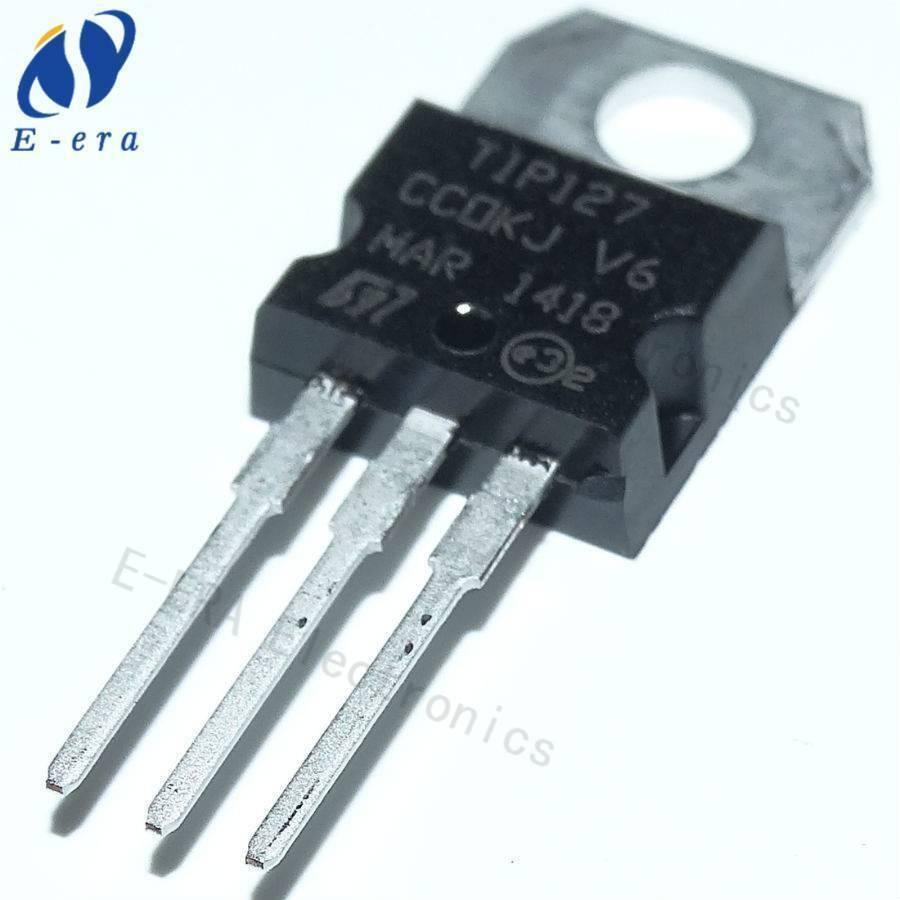

TIP127 PNP Power Darlington Transistor - High Current Amplification

The TIP127 is a high-performance PNP Darlington pair transistor designed for driving high current loads and achieving high amplification. With its robust construction, exceptional power handling capabilities, and easy-to-use TO-220 package, the TIP127 is a versatile choice for various electronic projects.

Key Features:

• High Current Handling: Capable of handling up to 5A of continuous current.
• High Voltage Capability: Withstands voltages up to 100V.
• High Gain: Delivers high current amplification (hFE of 1000) for efficient switching and signal amplification.
• Compact TO-220 Package: Convenient and space-saving design.

Ideal for applications such as:

• Driving High Current Devices: Control motors, LEDs, and other high current loads.
• Audio Amplifiers: Achieve high gain for powerful audio amplification.
• General-Purpose Switching: Control circuits efficiently with high current capacity.
• Inverter and Rectifier Circuits: Manage power conversion tasks effectively.

Upgrade your electronic projects with the TIP127 PNP Power Darlington Transistor.

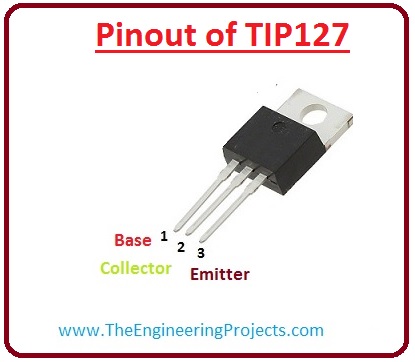

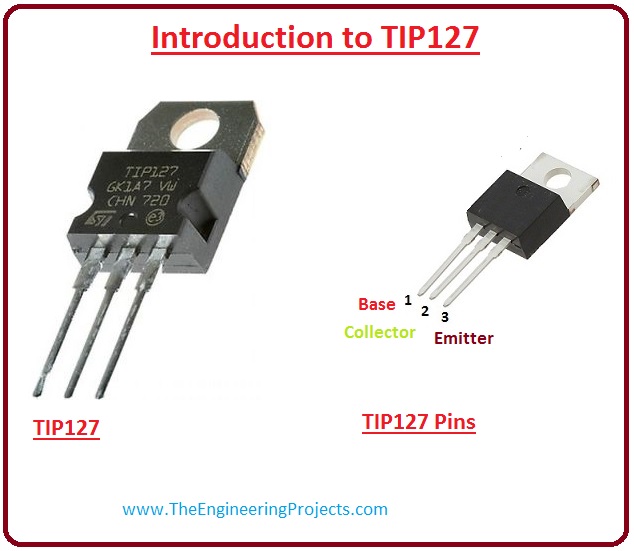

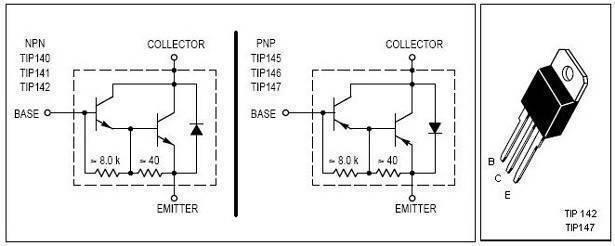

Let’s see a diagram of the pinout.
