This Magnetic PCB Board Fixture Is Compatible With Most Electronic Devices, Such As PCB Chip, jig board, Samsung Galaxy, and more. easy to install and remove, no tools needed. just put the phone in the hole of the magnetic case, then screw it on the metal surface. made of high-quality materials, which are durable and have a long service life. it can be used for a long time.

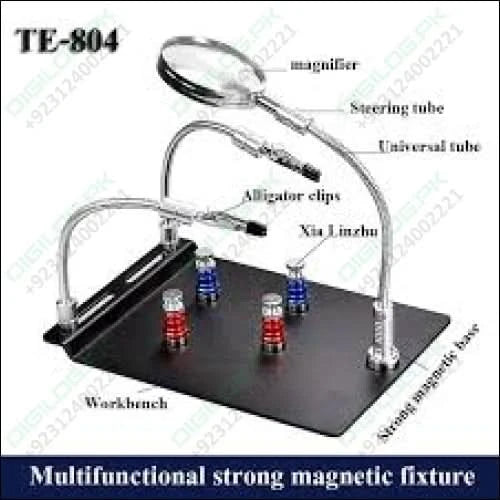

Specification of TE-804 Soldering Third Hand Magnetic Universal PCB Motherboard Fixture With Magnifier:
- Model: TE-804
- Condition: 100% Brand New
- Item Type: Magnetic PCB Holder
- Material: Steel/Acrylic Optical Lens/Magnet
- Color: As Pictures Shown
- Workbench Size: Approx. 210 x 145 x 12mm/8.3 x 5.7 x 0.5in
- Mirror Diameter: Approx. 62mm/2.4in
- Magnification: x3
- Application: Suitable for any board with thickness between 0.2‑2MM/0.008‑0.08in.

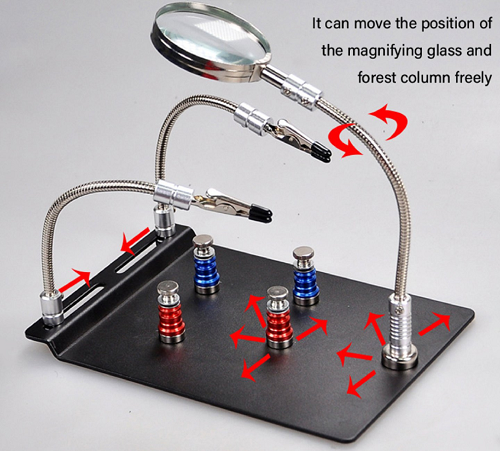

Feature of TE-804 Soldering Third Hand Magnetic Universal PCB Motherboard Fixture With Magnifier:
- The bottom plate is treated with high‑quality plastic spraying, and the fixed column is all two‑color electrochemical treatment.
- The fixed columns red and blue are attracted to each other, so the combination of red and blue columns will be better when fixing the small board.
- The electrified column is insulated and can be clamped for online debugging or maintenance of the PCB, but it should still not be in contact with solder joints or lines as much as possible.
- Fine workmanship, smooth polishing, and effective protection of the motherboard from damage, suitable for any thickness between 0.2‑2MM/0.008‑0.08in.
- Be careful not to blow the column directly with the hot air gun, the neodymium iron boron magnet is easy to fail under high temperatures.
-
Package Include:
-
1 x Workbench
-
2 x Spring Clip
-
1 x Magnifier
-
4 x Fixed Column
-
