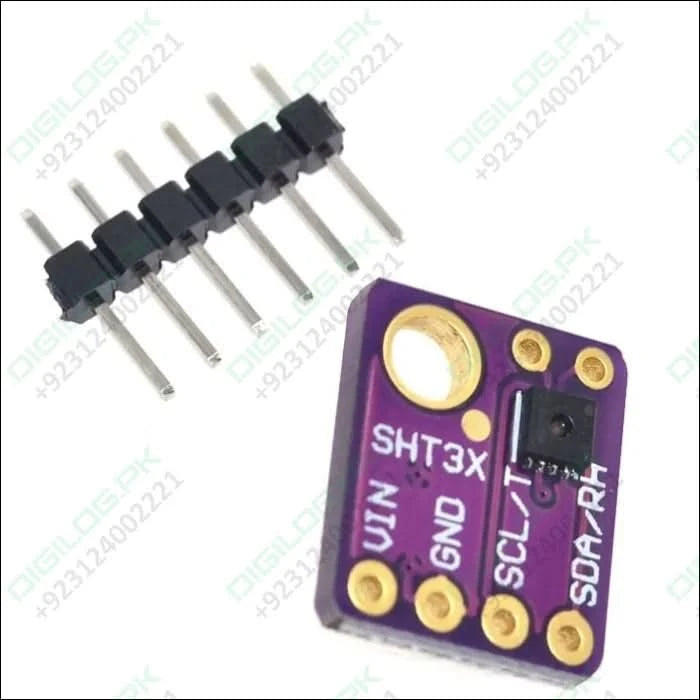

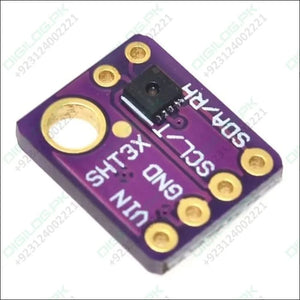

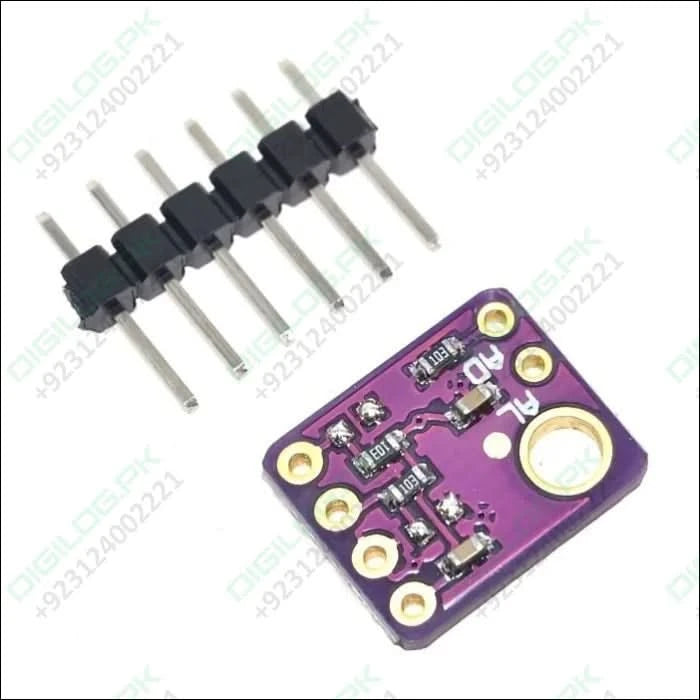

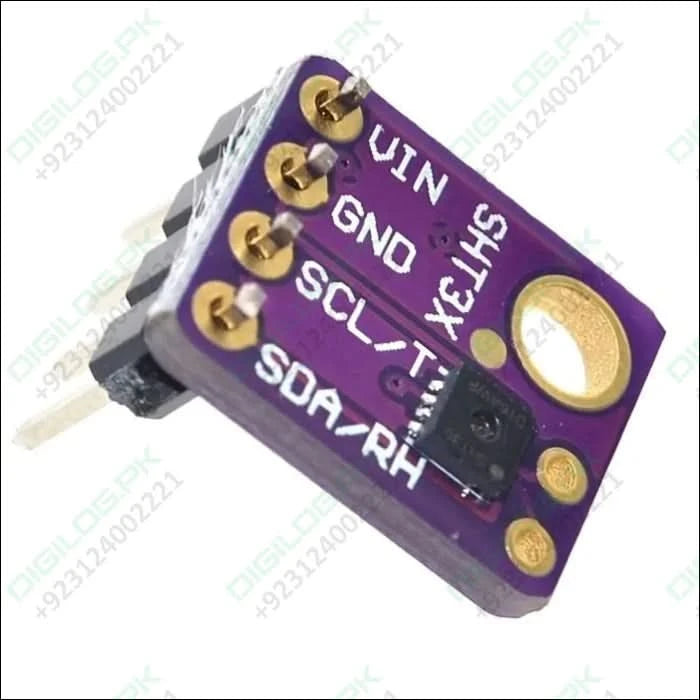

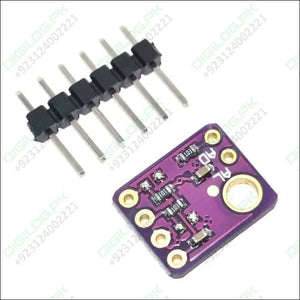

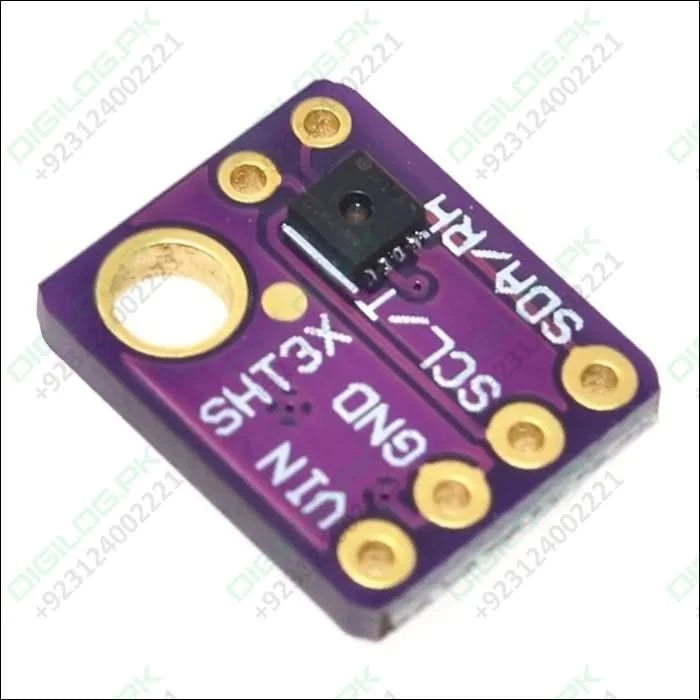

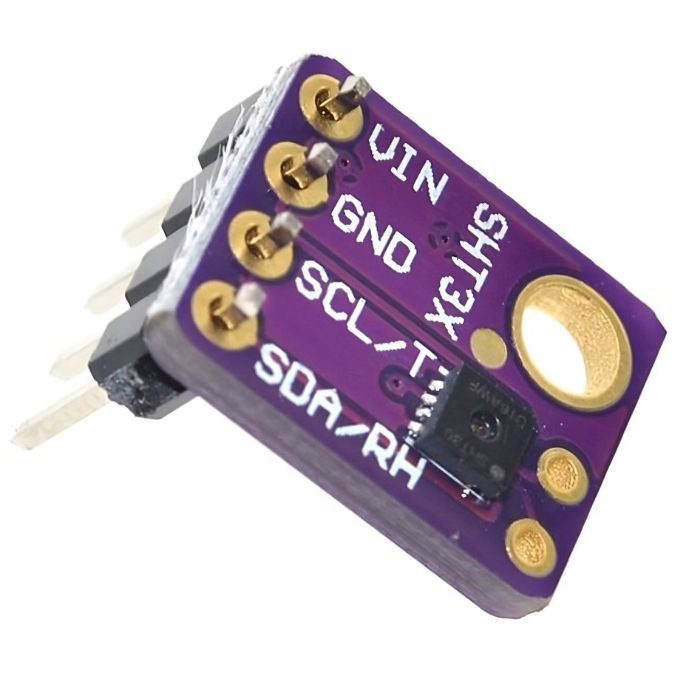

Sensirion SHT30-DIS I2C humidity & temperature sensor. SHT3x-DIS is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMO sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz. The DFN package has a footprint of 2.5 x 2.5 mm2 while keeping a height of 0.9 mm. This allows for integration of the SHT3x-DIS into a great variety of applications. Additionally, the wide supply voltage range of 2.4 V to 5.5 V guarantees compatibility with diverse assembly situations. All in all, the SHT3x-DIS incorporates 15 years of knowledge of Sensirion, the leader in the humidity sensor industry.
Pin description:
| 1 |
Vin |
this is the power pin |
| 2 |
GND |
common ground for power and logic I2C Logic pins |
| 3 |
SCL |
I2C clock pin, connect to your microcontrollers I2C clock line |
| 4 |
SDA |
I2C data pin, connect to your microcontrollers I2C data line |
| 5 |
ADR |
This is the I2C address selection pin |
| 6 |
RST |
Hardware reset pin |
| 7 |
ALR |
Alert/Interrupt output |
Package Includes:
- 1 x Sensirion SHT30-DIS I2C humidity and temperature sensor
Specifications
| Operating Voltage |
2.4 V - 5.5V |
| Length |
13mm
|
| Width |
10mm |
| Weight |
2gm |
