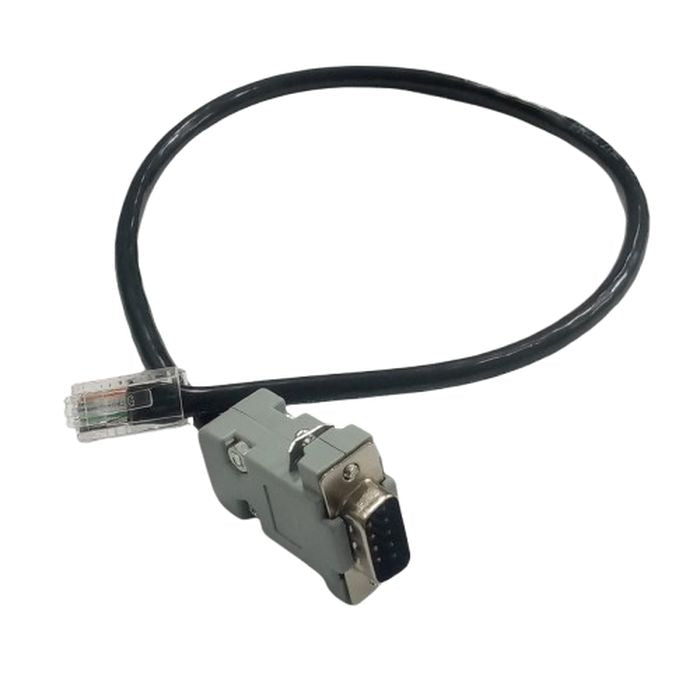

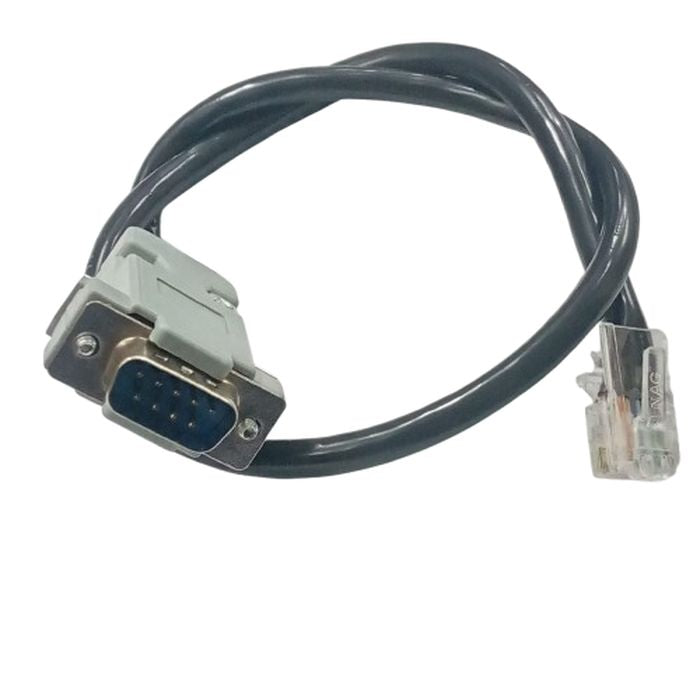

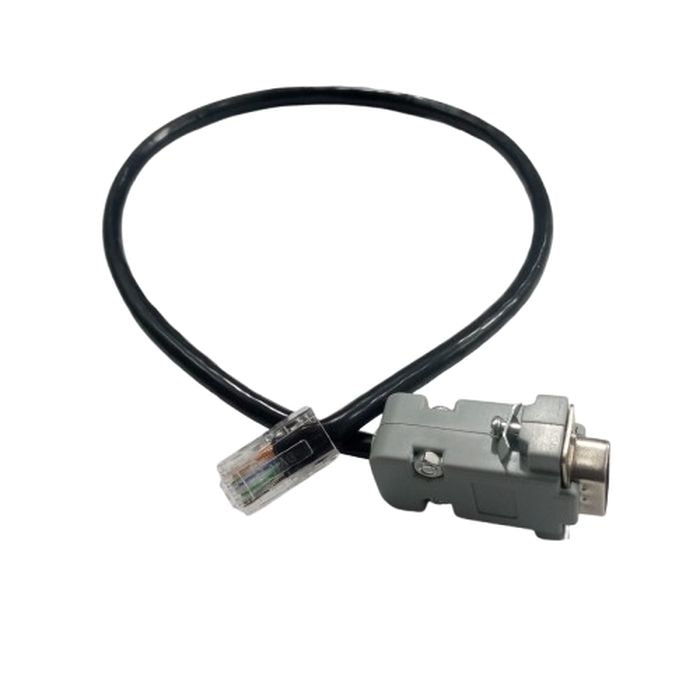

RS232 DB9 to RJ45 Connector cable only for inverter zone device
An RS232 DB9 to RJ45 connector cable is designed to adapt a device with a DB9 serial port (RS232 standard) to one that uses an RJ45 port. This type of cable is commonly used for serial communication, especially in networking environments like router or switch configuration. Here's a detailed description:
1. RS232 DB9 Connector:
- RS232 DB9 is a 9-pin D-subminiature connector used for serial communication.
- The DB9 connector has 9 pins, which include:
- TX (Transmit Data) – Pin 3
- RX (Receive Data) – Pin 2
- GND (Ground) – Pin 5
- Other pins handle control signals like RTS (Request to Send) and CTS (Clear to Send).
- RS232 is commonly used in older computers, industrial equipment, and networking devices to send data in serial format.
2. RJ45 Connector:
- RJ45 is an 8-pin modular connector typically associated with Ethernet networking.
- In this cable, it’s repurposed to carry serial data, not Ethernet signals.
- The RJ45 connector is used in networking equipment such as routers and switches, where it often functions as a console port.
3. Cable Functionality:
- This cable converts RS232 signals from a DB9 serial port (e.g., on a computer or terminal) to the RJ45 interface, which connects to a device like a network switch or router for console management.
- Commonly used by network administrators to configure and monitor network devices via serial connection.
4. Pin Mapping:
- The 9 pins of the DB9 connector are mapped to the 8 pins of the RJ45 connector. The mapping varies based on the manufacturer or device requirements but generally follows a specific pattern for compatibility with devices.
5. Typical Use Cases:
- Console Cable: This cable is often referred to as a console cable and is used for accessing and configuring networking devices like Cisco routers, switches, or firewalls via a serial interface.
- Serial Communication: For legacy devices that communicate over RS232 but use an RJ45 console port, this cable is essential for linking the two different interfaces.
In summary, the RS232 DB9 to RJ45 cable enables the connection between devices that communicate over serial (DB9) and devices that use an RJ45 console interface, commonly found in network hardware configurations.
Package Included:
1x RS232 DB9 to RJ45 Connctor cable
