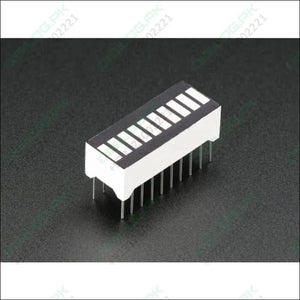

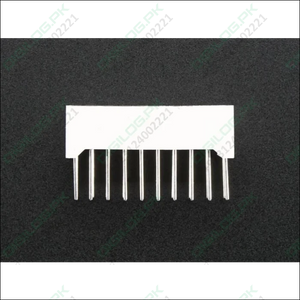

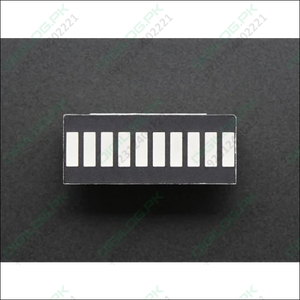

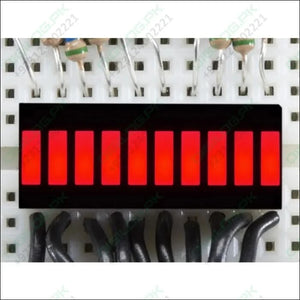

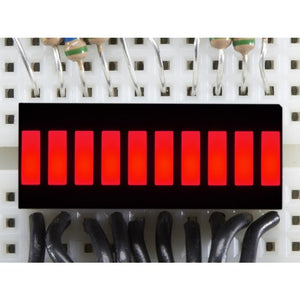

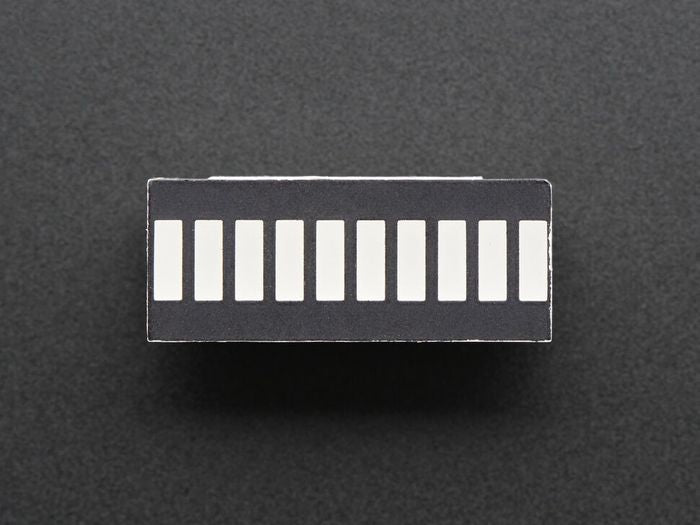

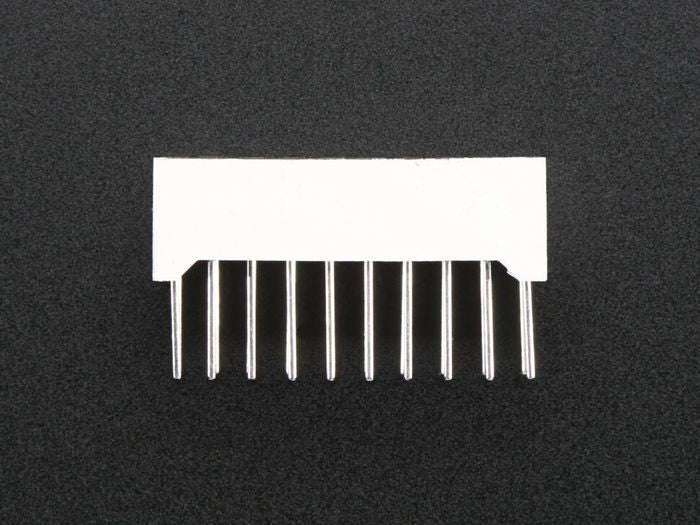

Red 10-Segment LED Bar Graph Display – Audio VU Meter, Power & Signal Level Indicator Module
Pickup available at Digilog Electronics
Usually ready in 2 hours
📝 Product Description:
The Red 10 Segment Light Bar Graph LED Display is a compact, energy-efficient, and high-visibility indicator module designed for a wide range of applications, from audio equipment to instrumentation and consumer electronics.
Featuring ten bright red LED segments in a linear arrangement, this bar graph display allows precise and independent control of each segment through microcontrollers, ICs, or digital signals. Its adjustable brightness, compact PCB mount design, and long lifespan make it a versatile choice for both professional and DIY electronics projects.
Whether you’re building an audio VU meter, power supply level indicator, or automotive dashboard display, this module delivers accuracy, durability, and low power consumption, making it ideal for modern electronic systems.
🔧 Key Features
-
🔴 10-Segment Red LED Display – Bright, clear, and energy-efficient
-
⚡ Digital Control Compatible – Works with microcontrollers & IC drivers
-
🖥 Independent Segment Control – Create custom patterns or indicators
-
🔋 Energy-Efficient LEDs – Perfect for battery-powered devices
-
🔧 Durable & Long-Lasting – LED technology ensures extended lifespan
-
🌍 Versatile Applications – Audio, instrumentation, automotive, consumer electronics
📋 Technical Specifications
| Attribute | Details |
|---|---|
| Type | LED Bar Graph / Light Bar Display |
| Number of Segments | 10 |
| LED Color | Red |
| Mounting Style | PCB mount / module housing |
| Control Method | Digital signals, microcontrollers, ICs |
| Brightness | Adjustable (depending on circuit design) |
| Size | Compact (few mm to cm per segment) |
| Durability | Long lifespan with LED technology |
| Power Efficiency | Low power consumption, battery-friendly |
🌍 Applications
-
🎵 Audio Equipment – VU meters, sound level indicators
-
⚡ Instrumentation – Voltage, pressure, or temperature monitoring
-
🚗 Automotive – Dashboards, fuel/battery indicators
-
📱 Consumer Electronics – Appliances, gadgets, status displays
-
🔬 DIY & Microcontroller Projects – Arduino, ESP32, STM32-based systems
📦 Package Includes
-
1 × Red 10-Segment LED Bar Graph Display
