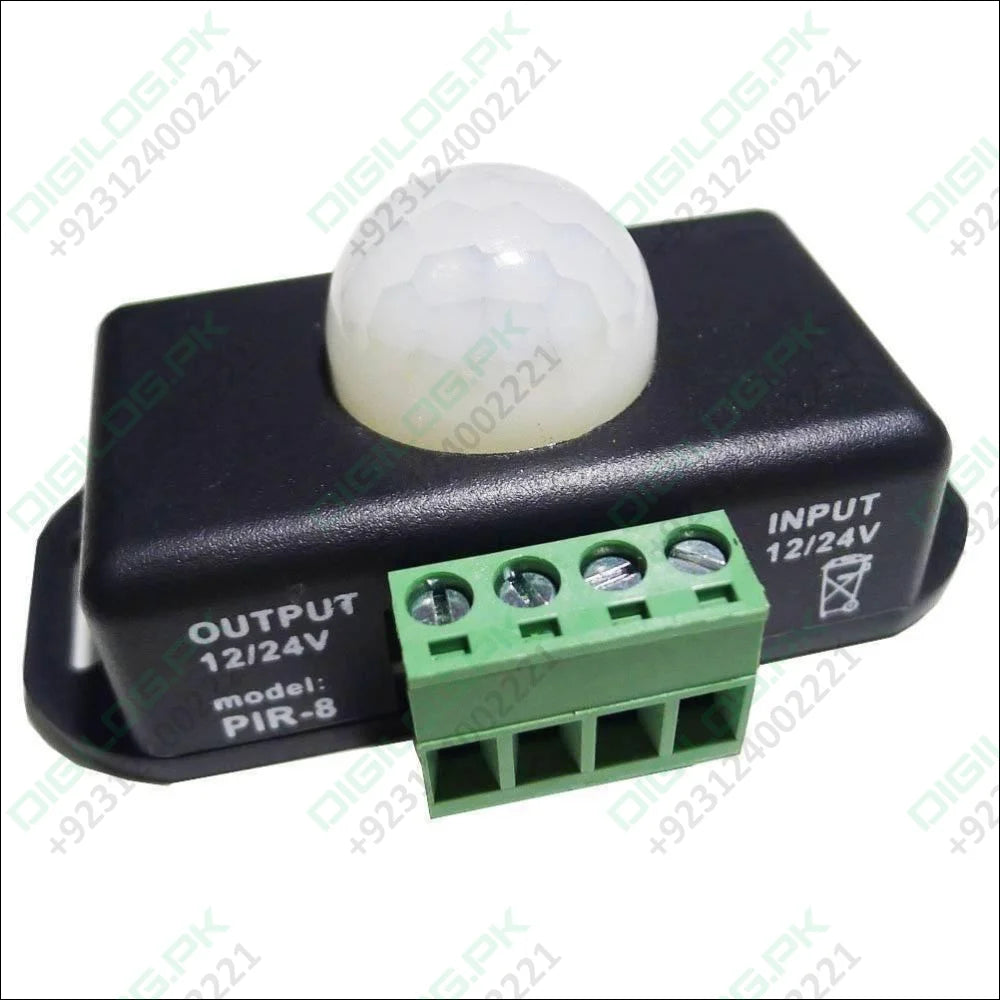

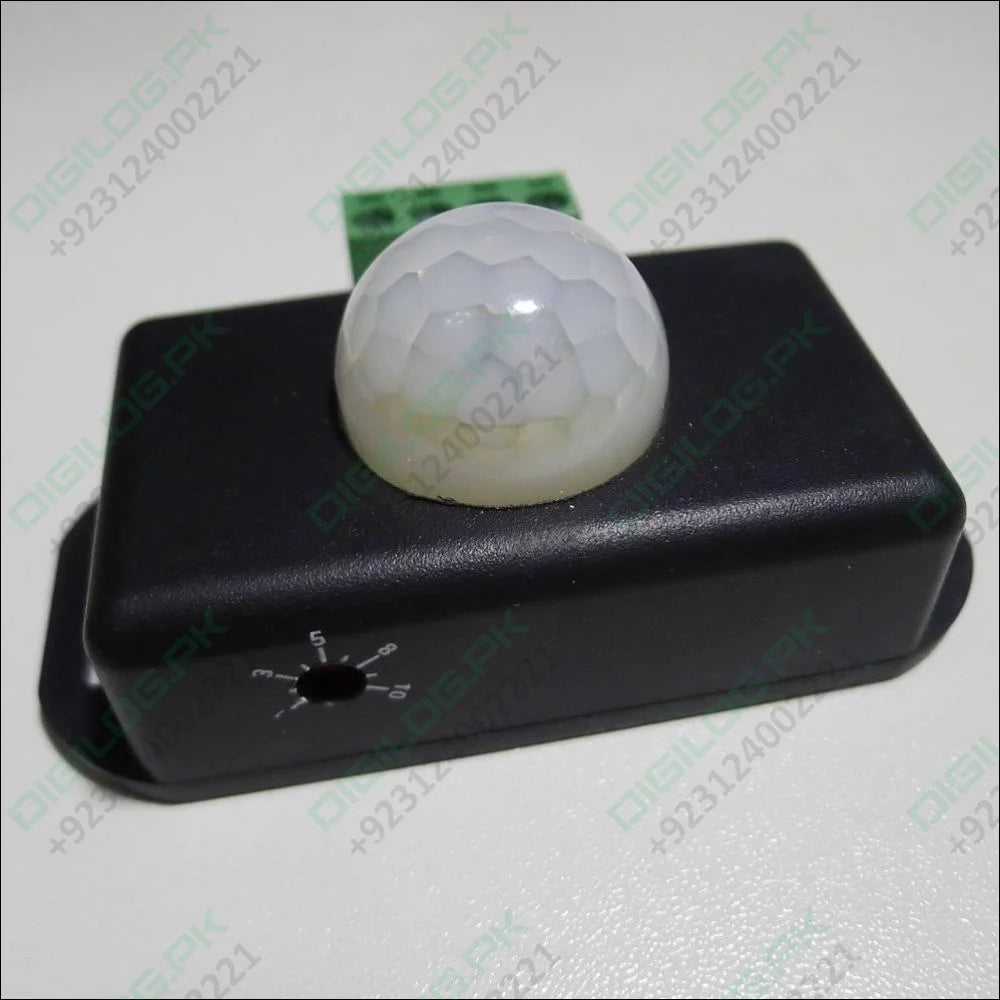

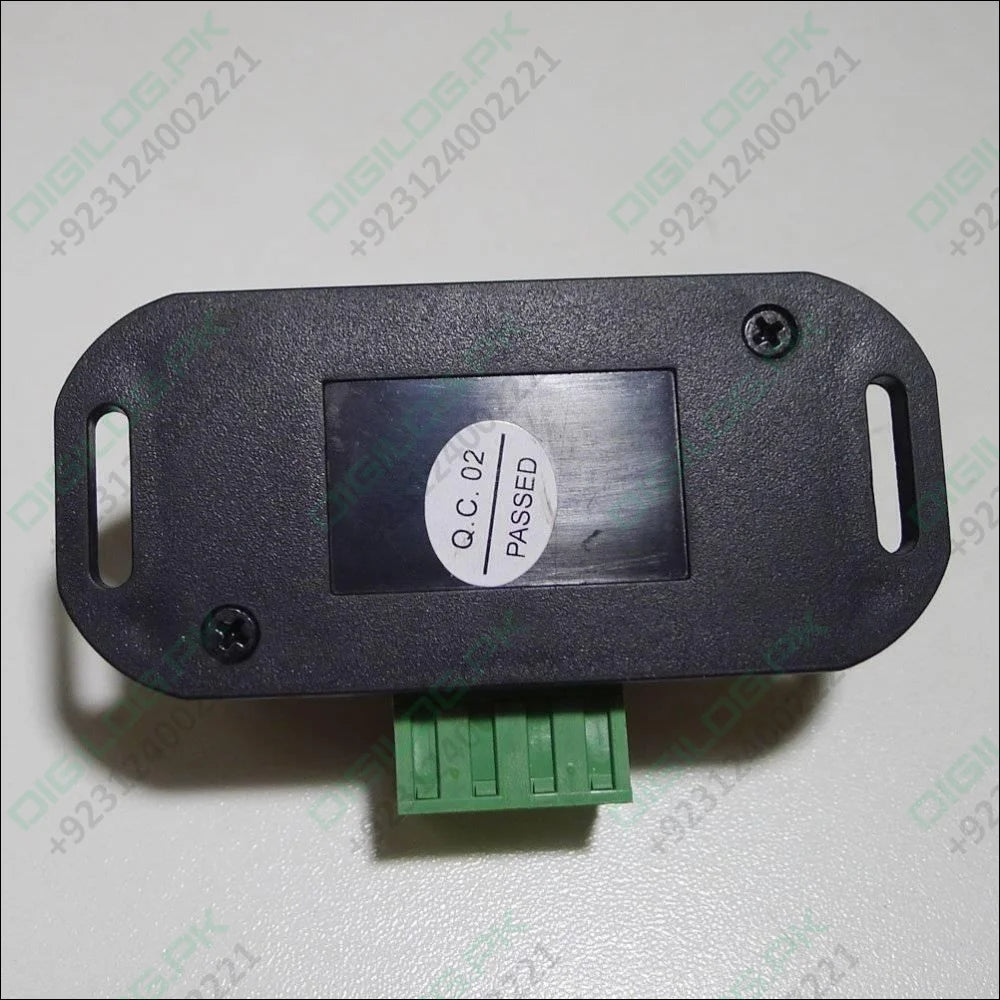

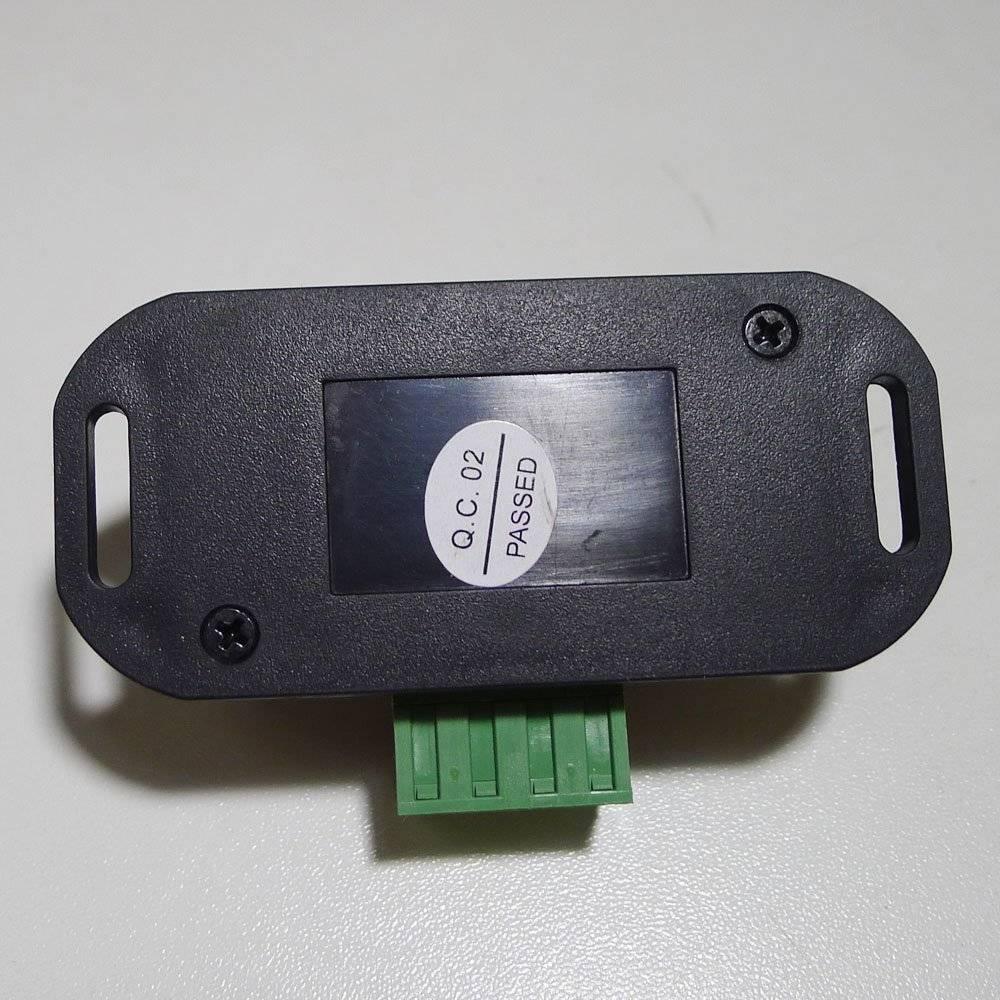

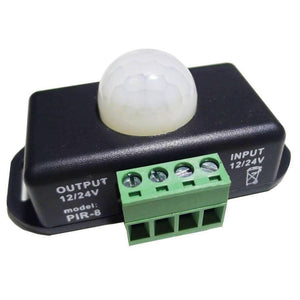

Pir8 Controller 12v 24v Pir Sensor Led Dimmer Switch Motion Timer Function Sign Control Led Strip Tape Lights In Pakistan

Infrared detection controller, adopt an infrared detection way to control load switch. LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function. The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet

Features:

1. Infrared detection controller, adopt an infrared detection way to control load switch
2. You can install the human body sensors in the appropriate environment according to actual needs
3. LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function
4. The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased
5. PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet
6. The field of view of the PIR Dome Lens is 60 degrees nominal
7. The switch operates on 12 or 24 volts DC and can switch up to a 6 amp load

Specifications:

1. Item name: body sense infrared led strip controller
2. Power supply voltage: 12-24V
3. Output voltage: 12-24V
4. Max load current: 6A
5. Induction range: 8m

Package Includes:

1x  PIR8 Controller 12V 24V PIR Sensor LED Dimmer Switch Motion Timer Function Sign Control LED Strip Tape Lights
