Pj-324 Pcb Mount Female Audio Connector Dip Stereo Headphone Jack

Rs 20 PKR
SKU: B384,IMP1000,Th500,KRT0,S
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

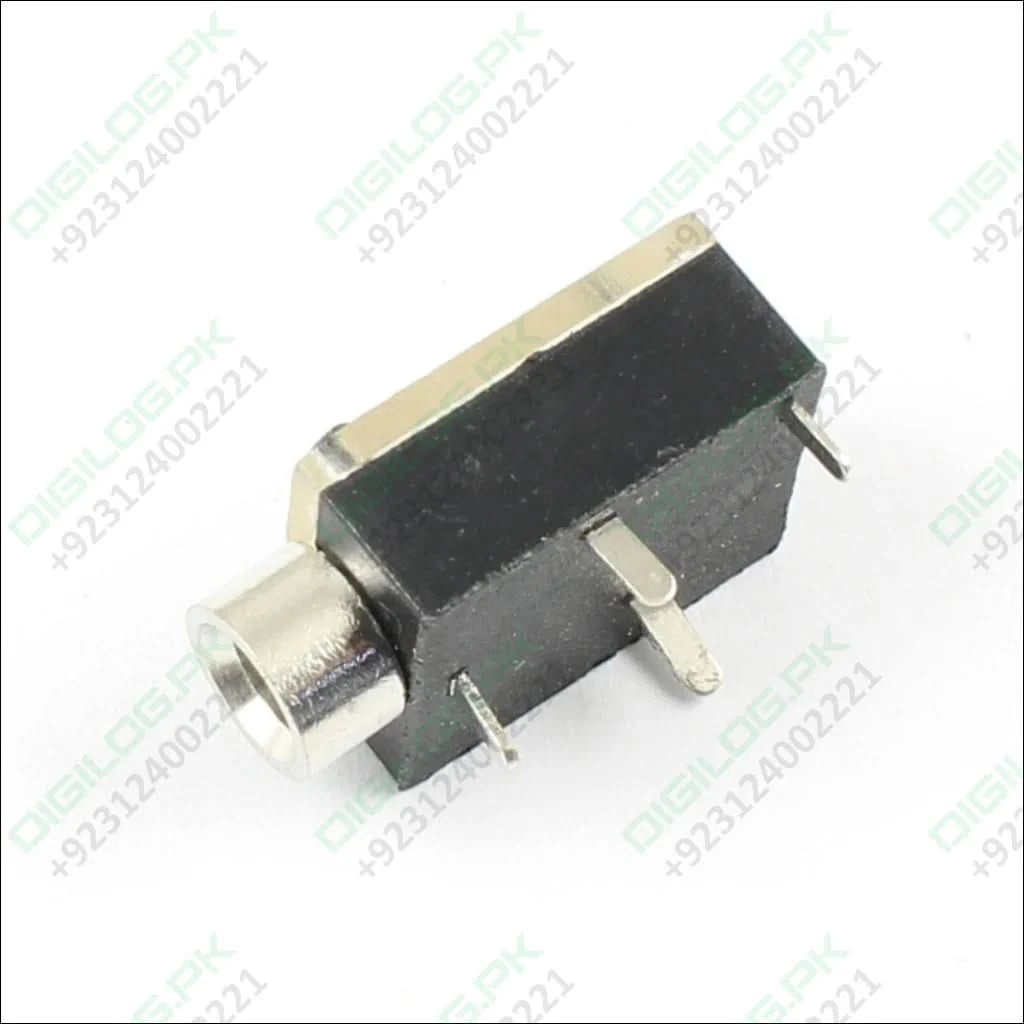

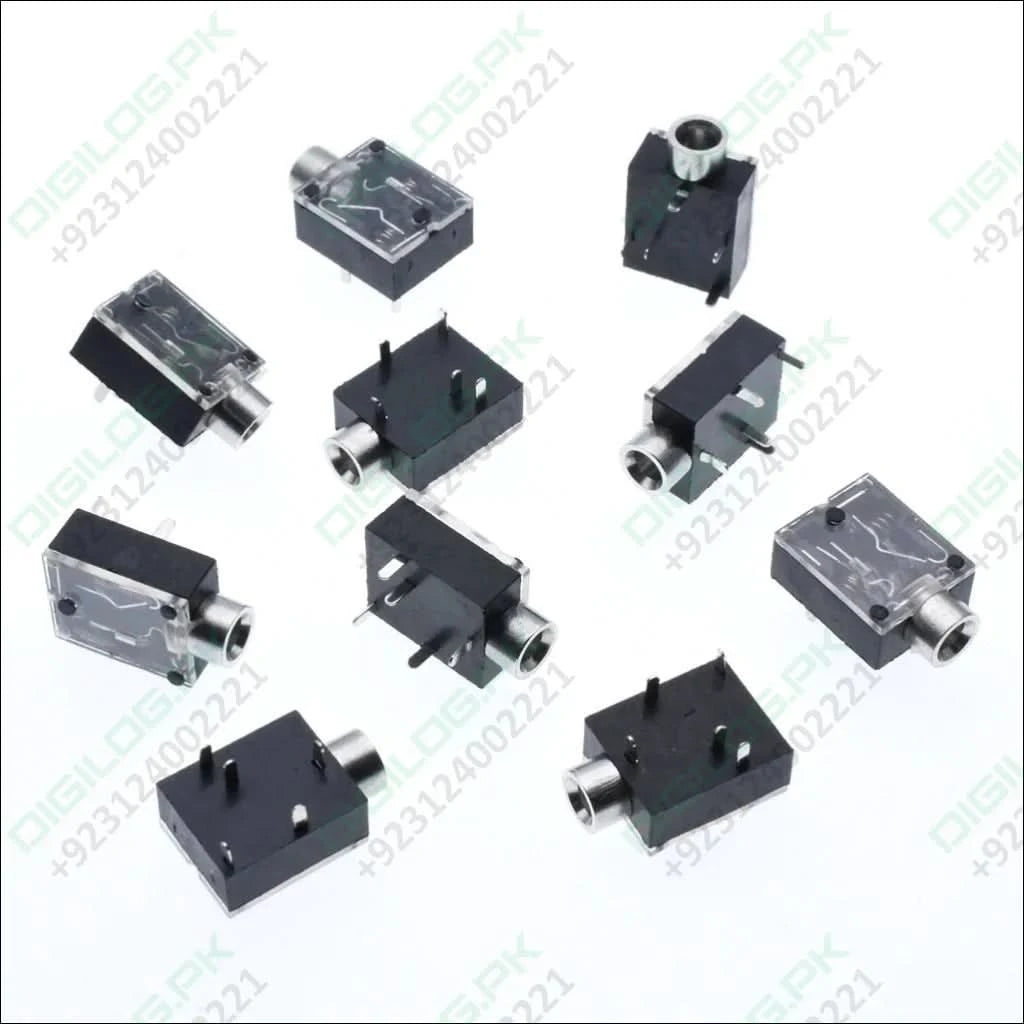

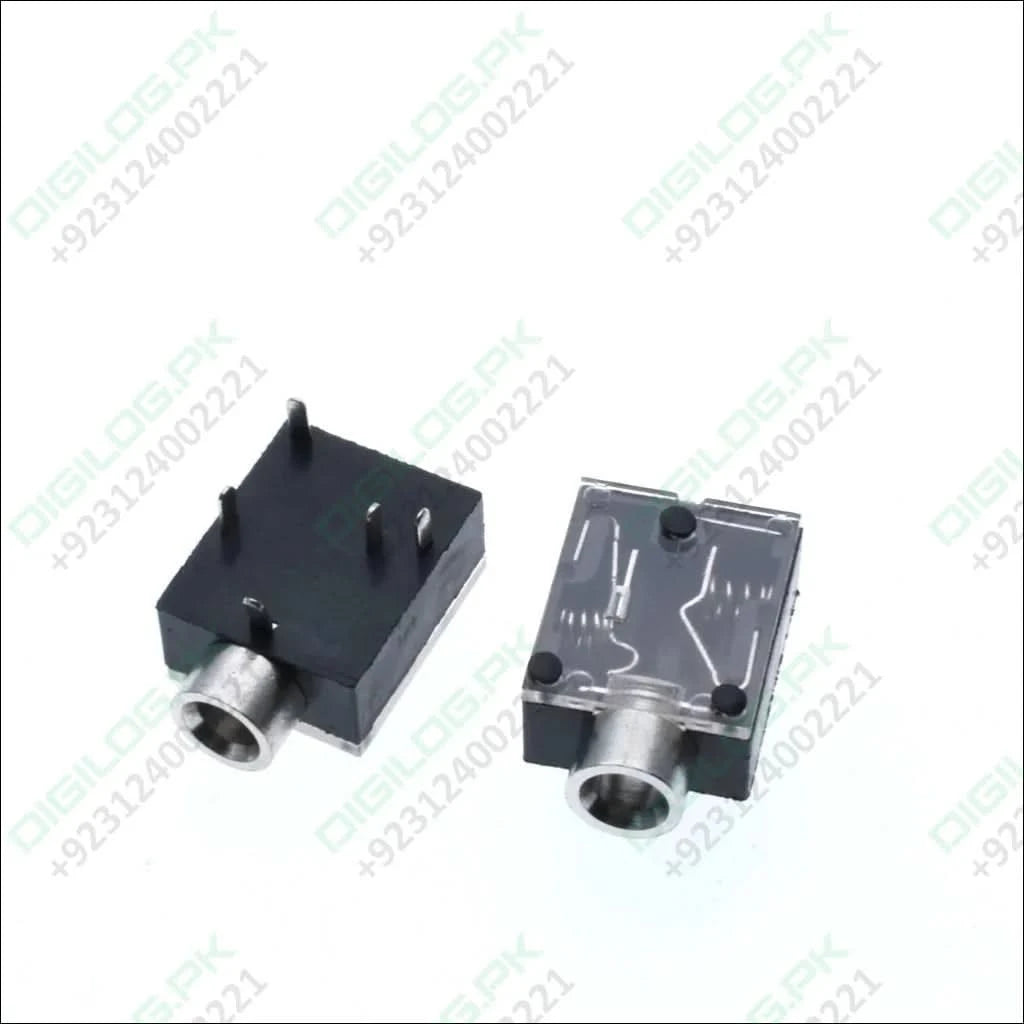

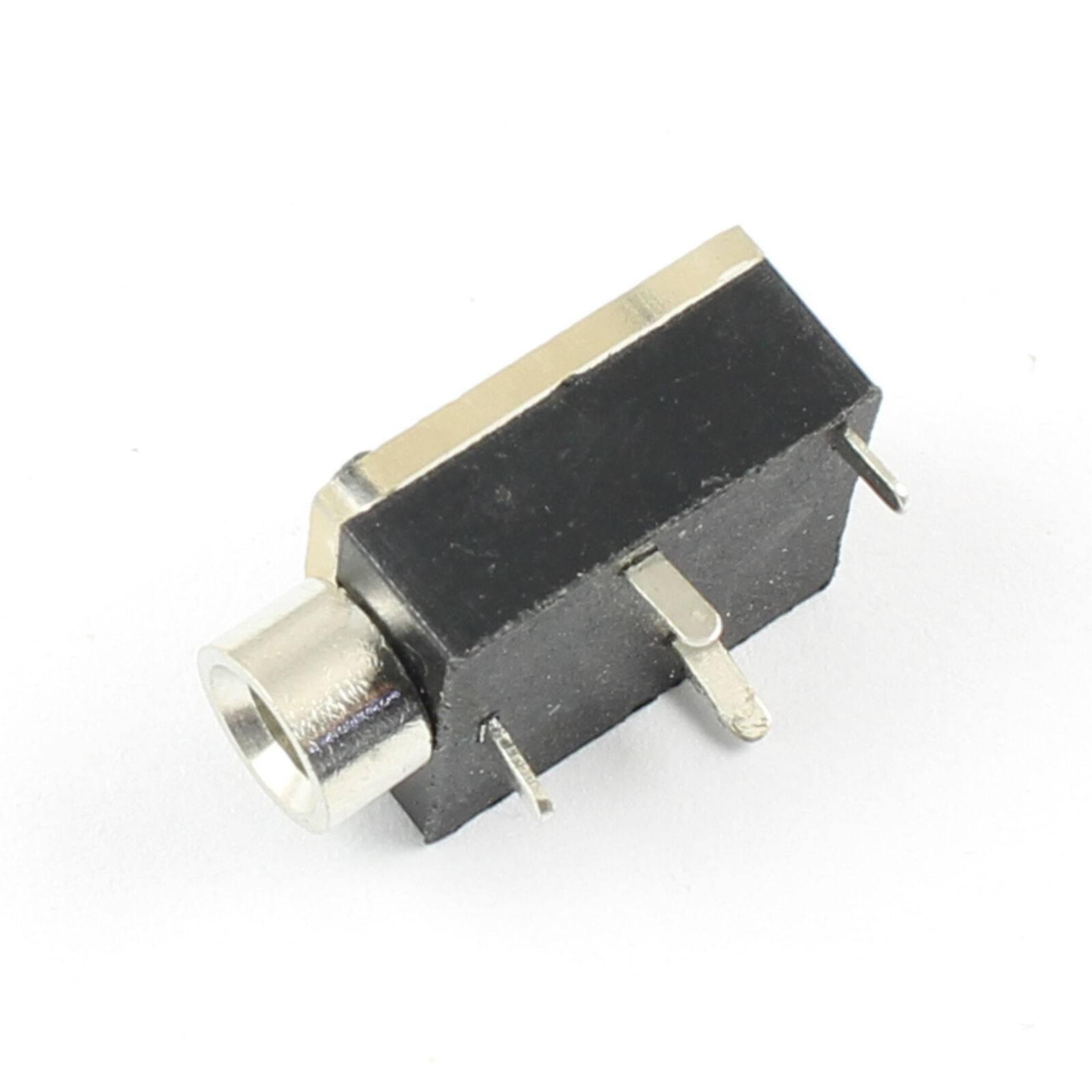

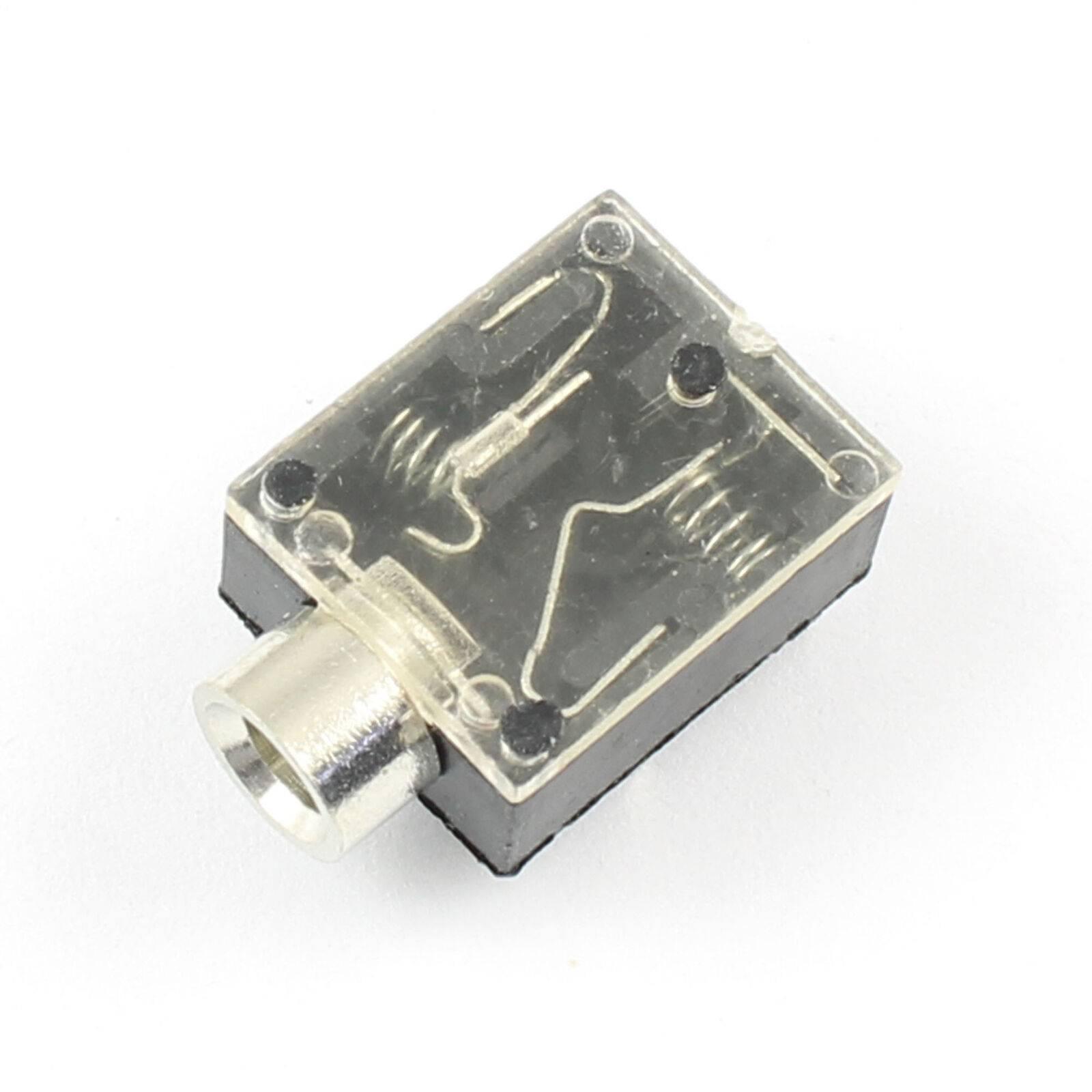

PCB Mount Female Audio Connector DIP Stereo Headphone Jack
3.5mm Stereo Jack Socket Chassis with nut PCB Panel Mount Chassis adapter

Specifications:

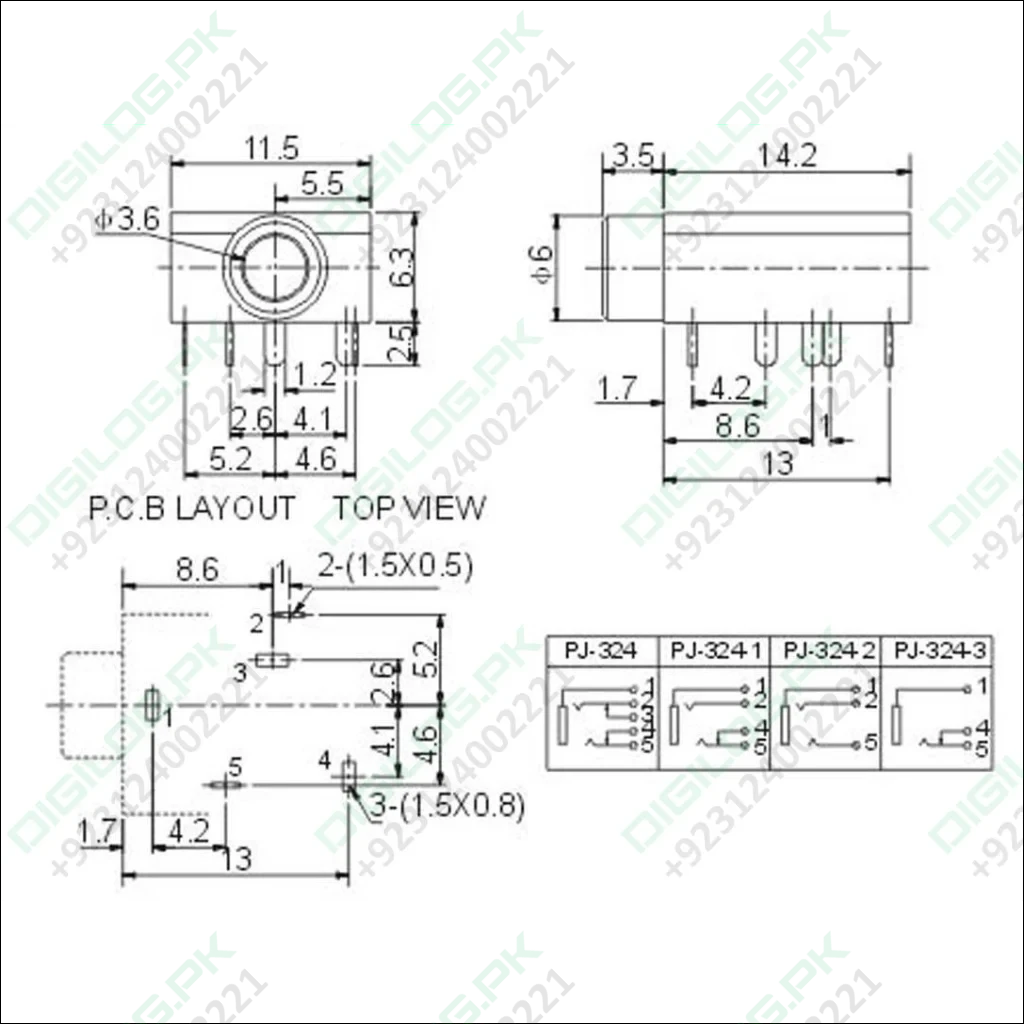

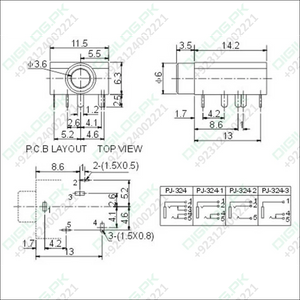

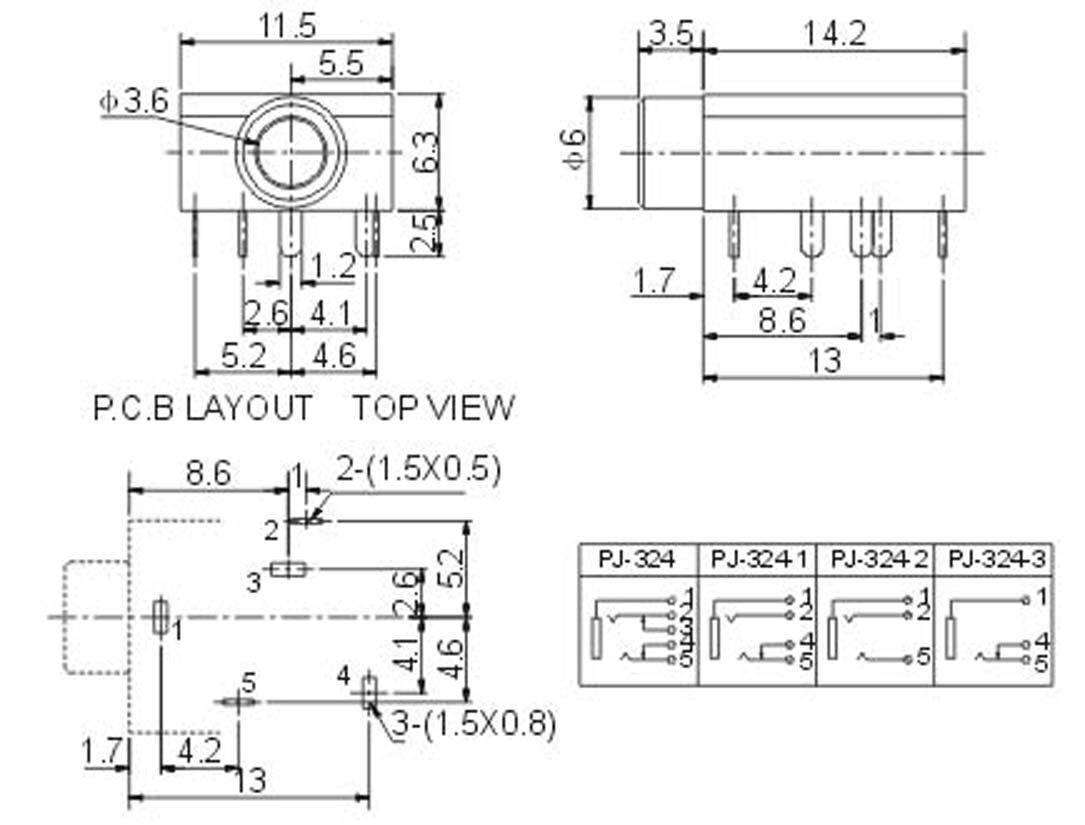

  1. Size : 1.7 x 1.1 x 0.9cm / 0.67″ x 0.43″ x 0.35″(L*W*H);
  2. Color : Silver Tone, Black
  3. Jack Connection: Female
  4. Contact Resistance: =0.03O
  5. Insulation Resistance: =100MO
  6. Withstand Voltage: AC500V(50Hz)/min
  7. Temperature Range: -40~ 55
  8. Rated Load: DC 30V 0.5A
  9. Insertion and Extraction Force: 3~20N
  10. Lift: 5000 times
  11. 3.5mm DIP phone jack used for mobile phone,MP3/MP4 player, other electronical equipment.

Package includes:

  • 1x  PCB-mount Audio female socket
