Description:

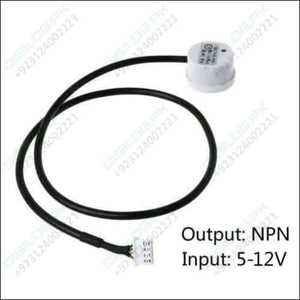

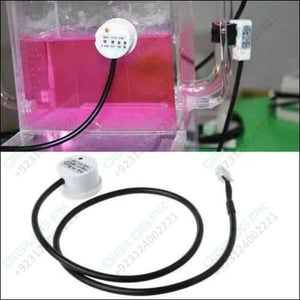

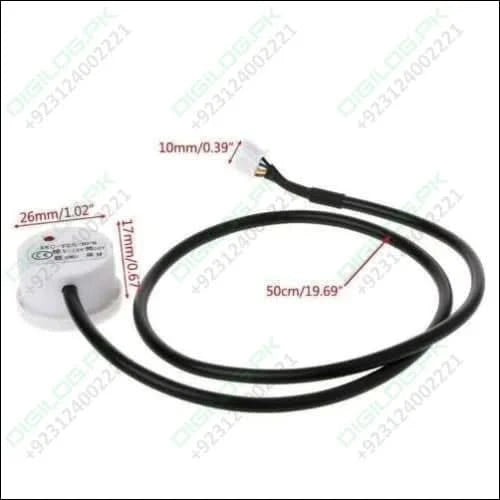

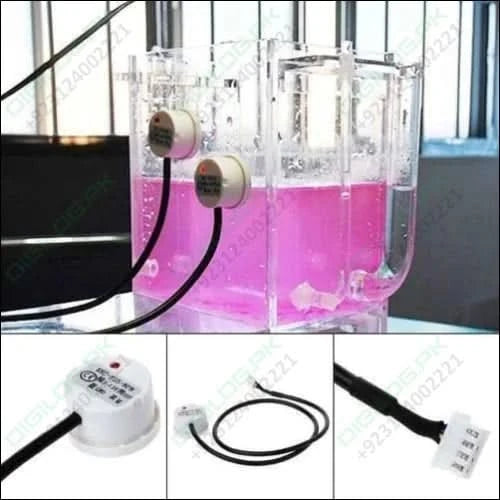

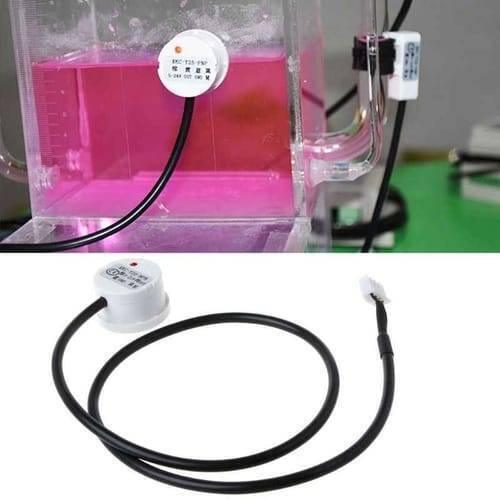

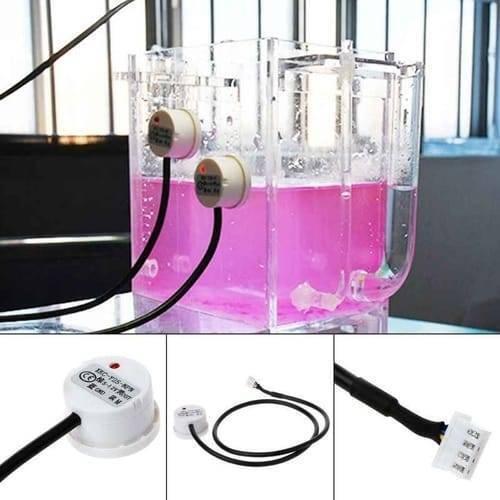

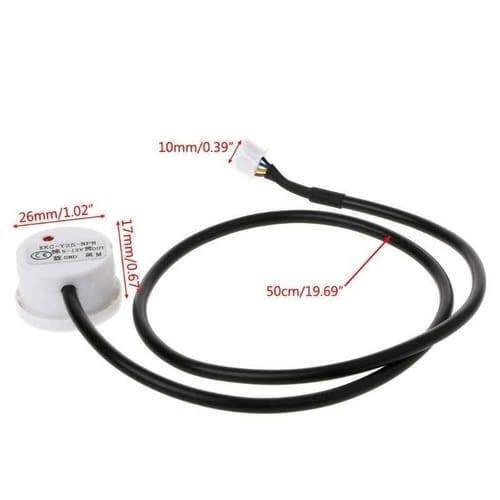

The XKC-Y25-NPN Contactless Liquid Level Sensor is designed to detect water and other liquids without physical contact. Ideal for non-metallic containers like plastic, glass, and ceramics, this sensor can detect liquids through up to 13mm wall thickness, making it perfect for corrosive, boiling, or hygienic applications.
Equipped with intelligent liquid level memory, adjustable sensitivity, and RS485 communication, this sensor delivers accurate and stable performance even in boiling conditions or harsh industrial environments.
It features a pure electronic circuit (no mechanical parts), providing long-term reliability, low maintenance, and exceptional anti-interference capability.
🔧 Key Features
-
✅ Non-contact liquid detection – Safe from corrosion, scaling, and debris
-
🔧 Works through plastic, glass, ceramic (13mm max)
-

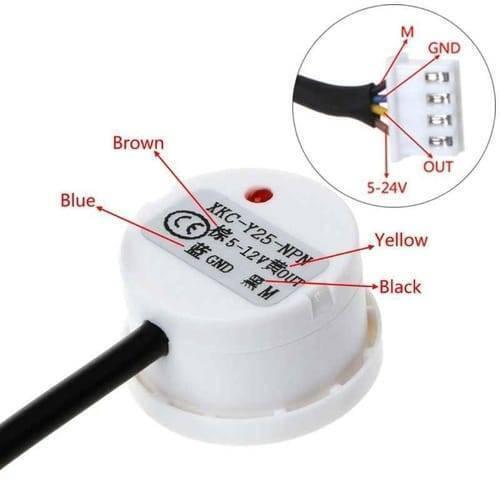

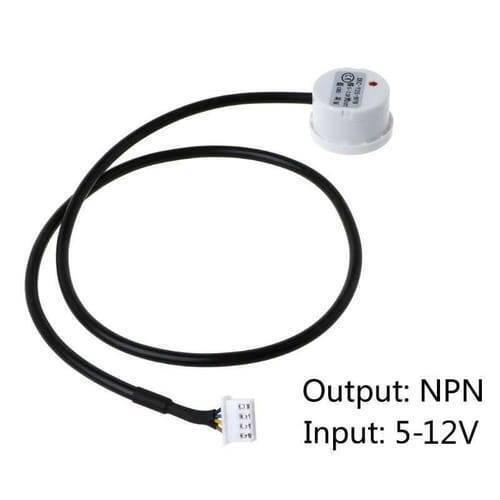

📶 NPN + RS485 Output – Supports high/low signal, microcontroller (MCU), or PLC integration
-
💧 Intelligent level memory – Automatically adjusts to liquid benchmark
-
🌐 Multi-point connectivity – Daisy-chain for multi-level monitoring
-
⚡ Wide Compatibility – Supports DC 5V to 12V input
-
🛡️ IP67 Waterproof + ABS Housing – Built to endure humid and wet environments
-
📊 Accurate, Fast Response – 500ms sensing delay
📋 Technical Specifications
| Specification | Details |
|---|---|
| Model | XKC-Y25-NPN |
| Output Type | NPN + RS485 |
| Input Voltage | DC 5V – 12V |
| Operating Current | 5mA |
| Output Voltage | High: VCC / Low: 0V |
| Output Current | 1–100mA |
| Response Time | 500ms |
| Sensing Thickness | Up to 13mm (non-metallic walls) |
| Operating Temp | 0°C – 105°C |
| Humidity Tolerance | 5% – 100% |
| Material | ABS |
| Protection | IP67 Waterproof |
Package Includes:
-
1 x XKC-Y25-NPN Liquid Level sensor
