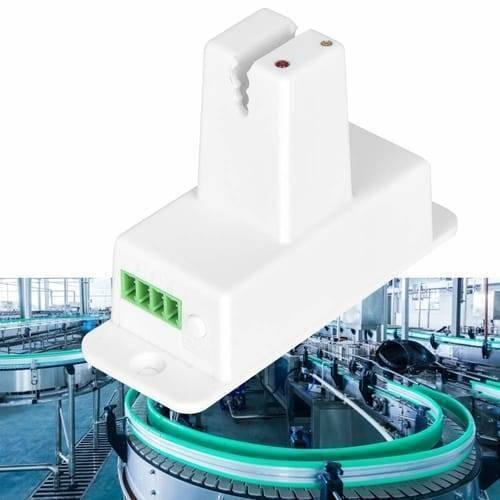

Non Contact Infusion Alarm Liquid Level Sensor Switch Xkc Y27

The intelligent non-contact small tube liquid level sensor uses advanced signal processing technology and high-speed signal processing chip, which is specially designed for liquid level detection of infusion tubes and industrial tubes. The intelligent non-contact liquid level Detector Switch can simultaneously output NPN and PNP signals to meet the needs of various occasions.

Features Of Contactless Infusion Alarm Liquid Level Sensor:

• Sensitivity adjustment
• Non Contact: Not in direct contact with liquid, will not be corroded by corrosive liquids such as strong acid and alkali, free from scale or other debris
• Smart reminder: Infusion completes automatic alarm

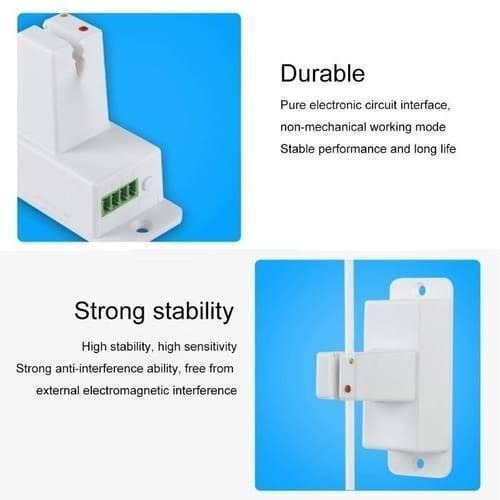

• Durable: Electronic circuit interface, non-mechanical working mode, stable performance, and long life
• Strong stability: Strong anti-interference ability, free from external electromagnetic interference

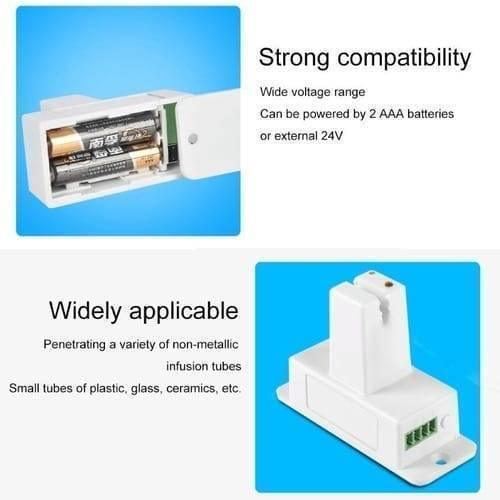

• Wide compatibility: Wide voltage range, can be powered by 2 AAA batteries or external 24V
• Application range: Small tubes of plastic, glass, ceramics, etc.  Medical infusion alarm, industrial liquid level detection, scientific research teaching equipment, sewage treatment equipment, water purification equipment, household appliances.

Specifications Of Non-contact Small Tube Liquid level sensor:

1. Product model: XKC-Y27
2. Response time: 500ms
3. Input voltage: 24V
4. Liquid temperature: -5~100°C
5. Battery-power: 3V (2*AAA battery)
6. Level error: ±3mm
7. Output mode: NPN and PNP
8. Product material: ABS+PC
9. Alarm mode: there is a buzzer / no buzzer
10. Current consumption: 50UA±5uA
11. Standard certification: CE
12. Environmental certification: RHOS-2.0
13. Line definition:
    • - (power negative)
    • P1 (NPN signal output)
    • P2 (PNP signal output)
    • + (power supply 24V positive)

Package Include:

• 1 X Non-Contact Liquid Level Sensor Switch XKC Y27
