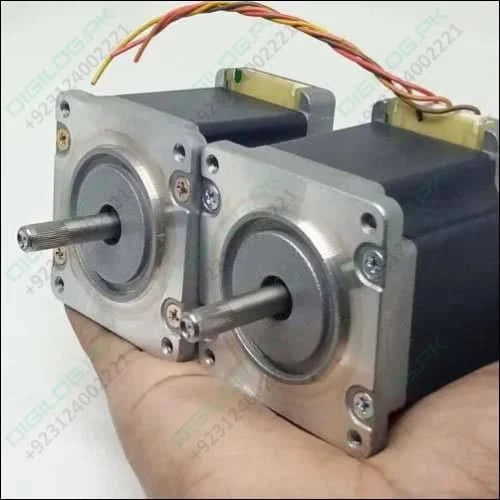

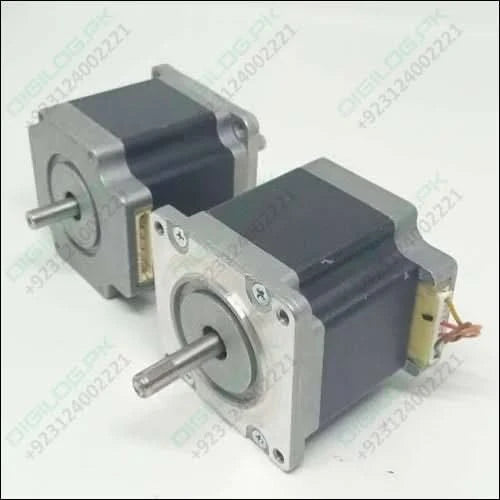

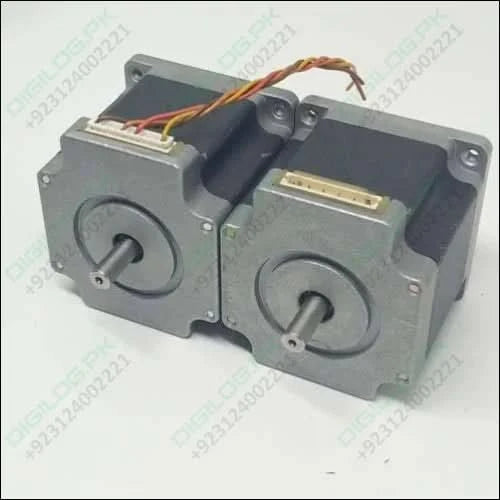

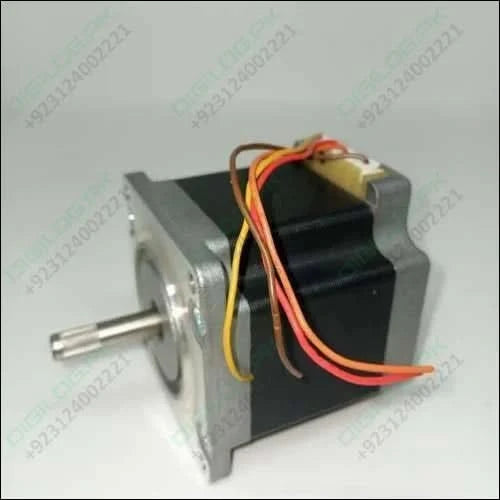

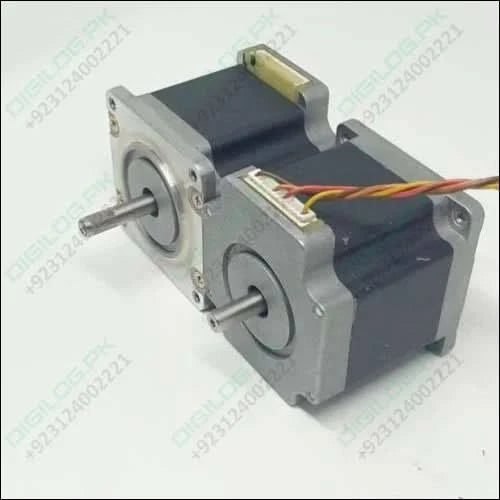

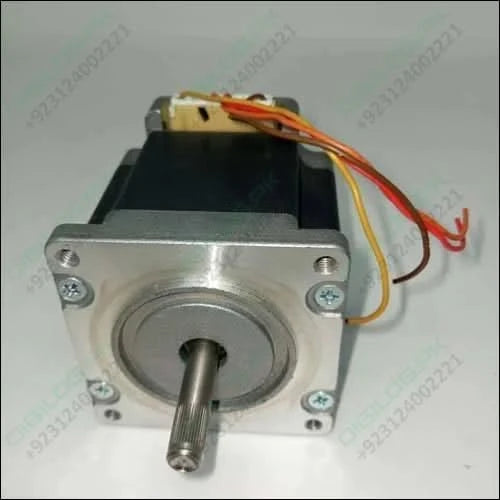

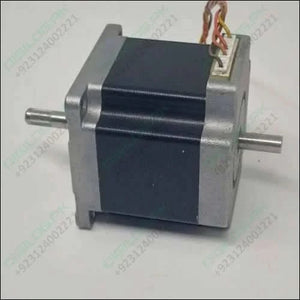

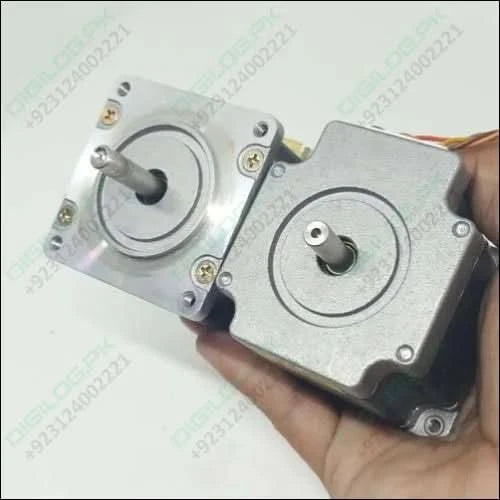

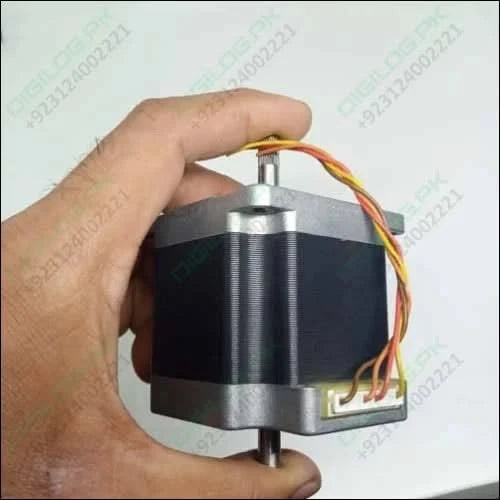

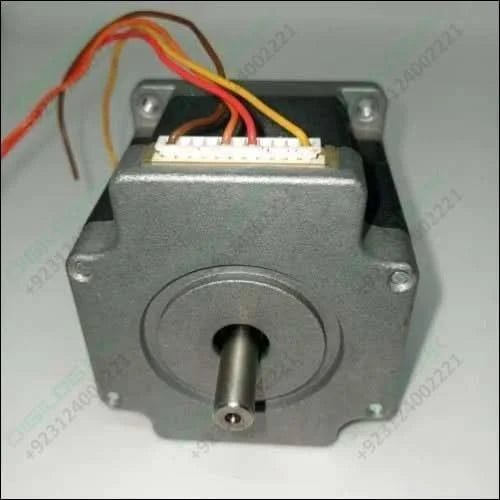

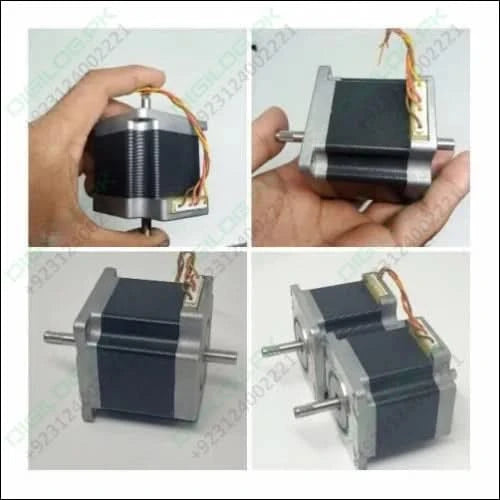

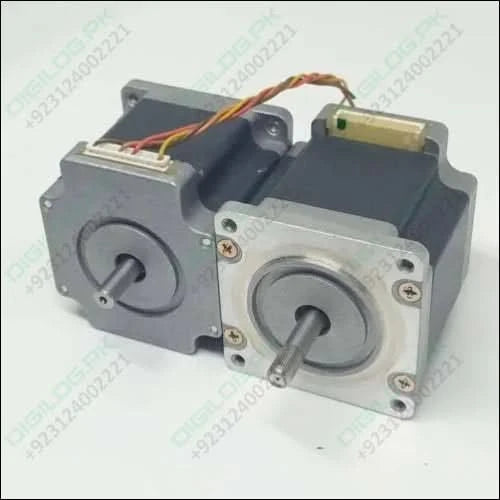

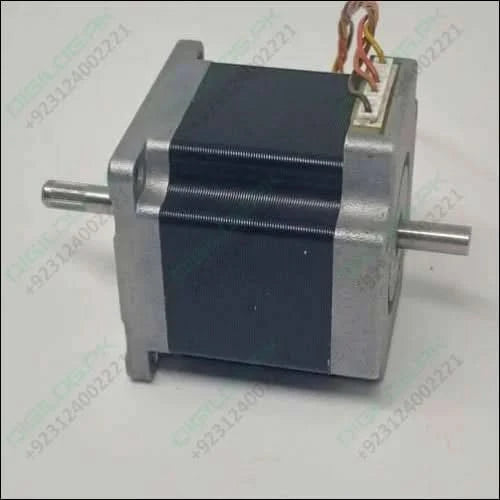

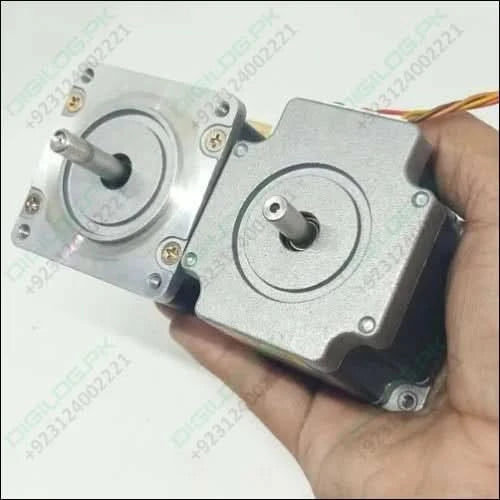

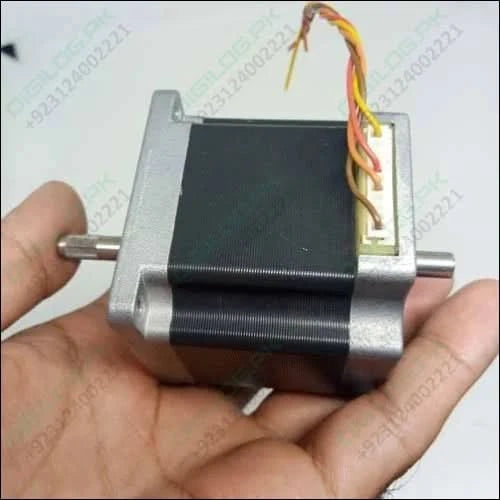

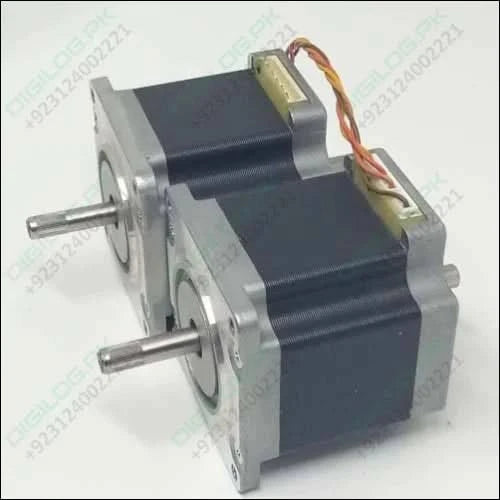

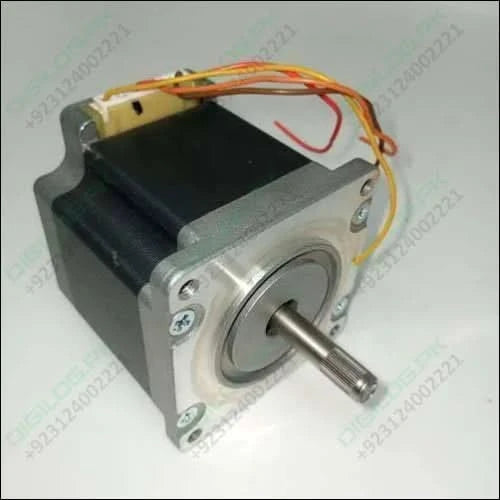

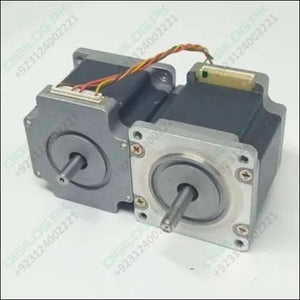

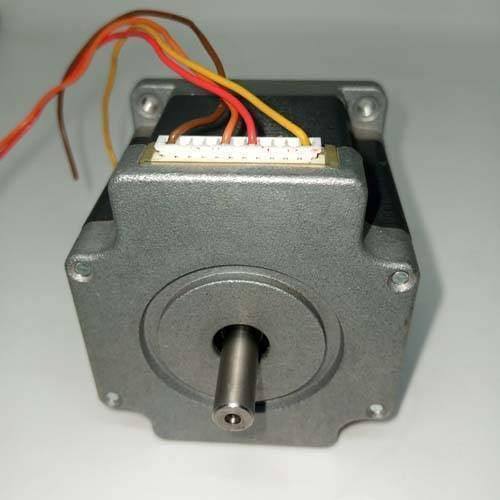

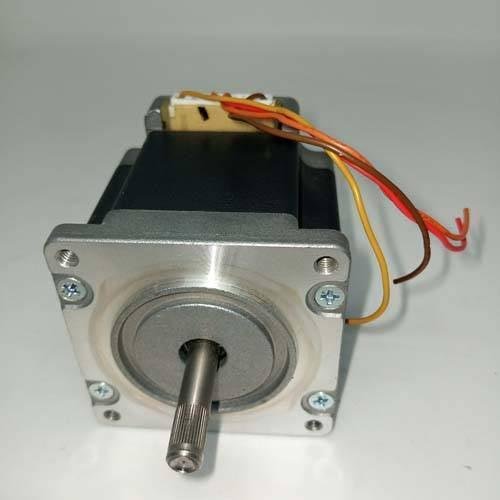

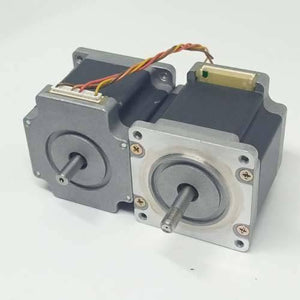

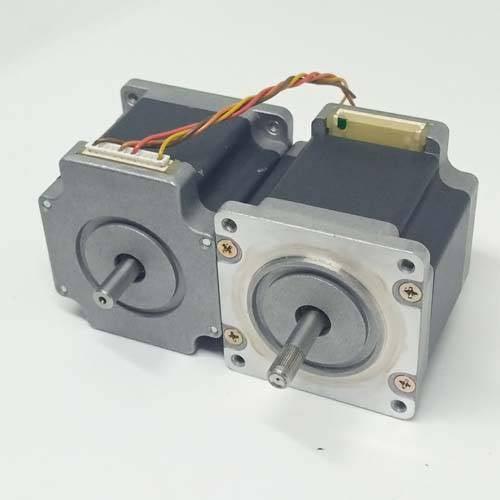

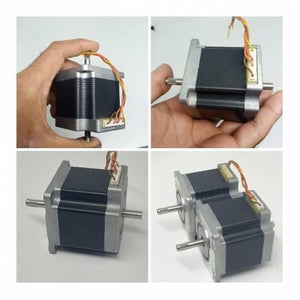

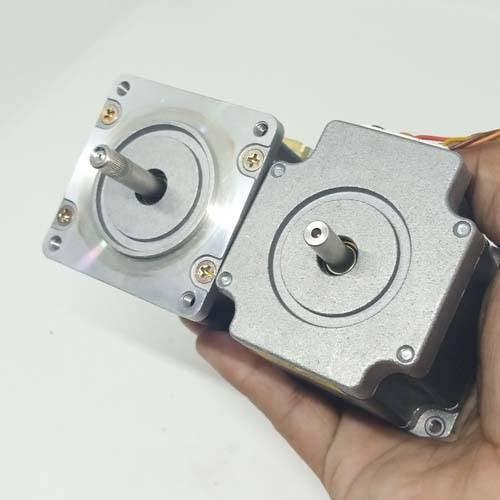

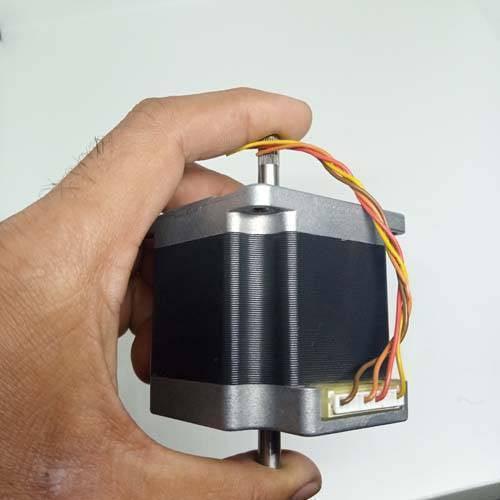

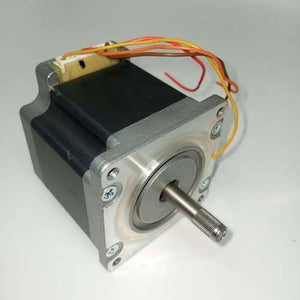

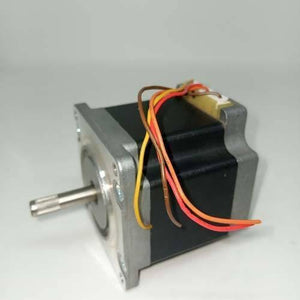

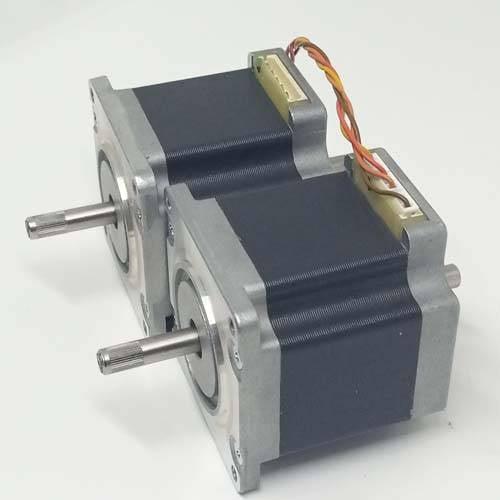

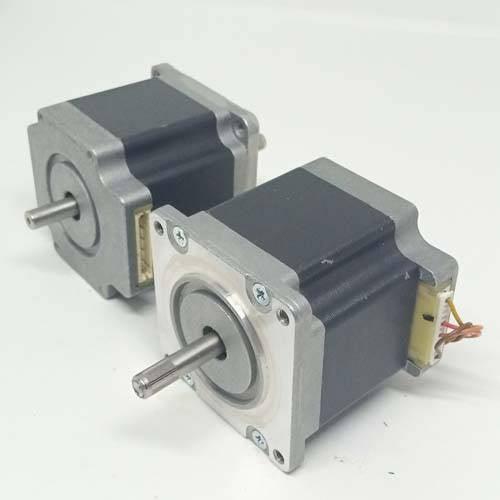

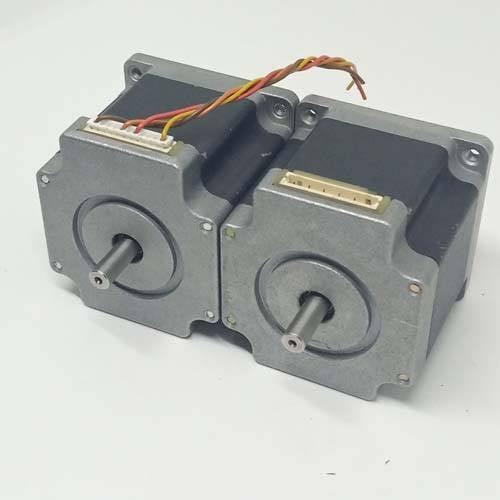

Dual Shaft Nema 23 2a Stepper Motor For Cnc 3d Printer

This is Dual Shaft NEMA 23 Stepper Motor,  which has 2A  Current capacity. This Bipolar NEMA 23 Stepper Motor is very useful in various applications, especially which demands low speed with high precision. D Cut 2A Nema 23 has many applications in machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema23 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 23, 1.8 deg. step angle (200 … It is one of most parameters for the stepper motor).

 Features Of 4 Wire Bipolar Nema 23 Dual Shaft Stepper Motor:

• It converts a train of input pulses into a precisely defined increment in the shaft position.
• This is a high-quality motor that can be used for a long time without stuck.
• It has a quite stable performance during work and will not lose a step.
• Low noise and big torque,
• This is a great choice if you need a stepper motor.
• Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications of NEMA23 1.8 Degree 2A Stepper Motor For CNC Machines:

1. Step Angle: 1.8°
2. Phase Current: 2A
3. Phase Resistance: 1.5Ohm
4. Phase Inductance: 2.8mH
5. Holding Torque: 40N.cm
6. Rotor Inertia: 54g.cm⊃2;
7. Wire: 4(Blue, green, Black, red)
8. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
9. Operating Temperature: -20℃~+70℃
10. Insulation Resistance: 100 MΩ Min. , 500VDC
11. Electric Strength: 500VAC for 1minute
12. Radial Clearance: 0.02Max. (450g-Load)
13. Axial Clearance: 0.08Max. (450g-Load)
14. Max. Axial Pressure: 20N

Note:

• This is a Used Product and may be scratches and little rust on it.
• Because of its weight, it's advance payment only

Package Includes:

• 1 x D cut Nema 23 Dual Shaft Motor
