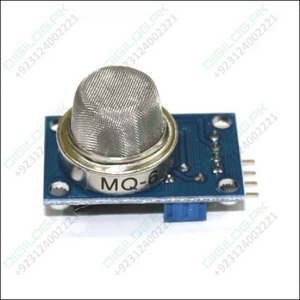

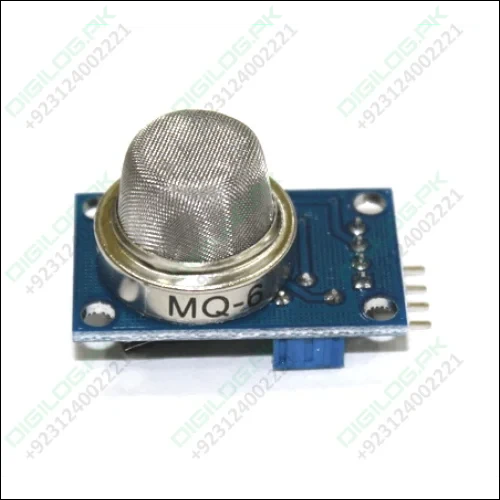

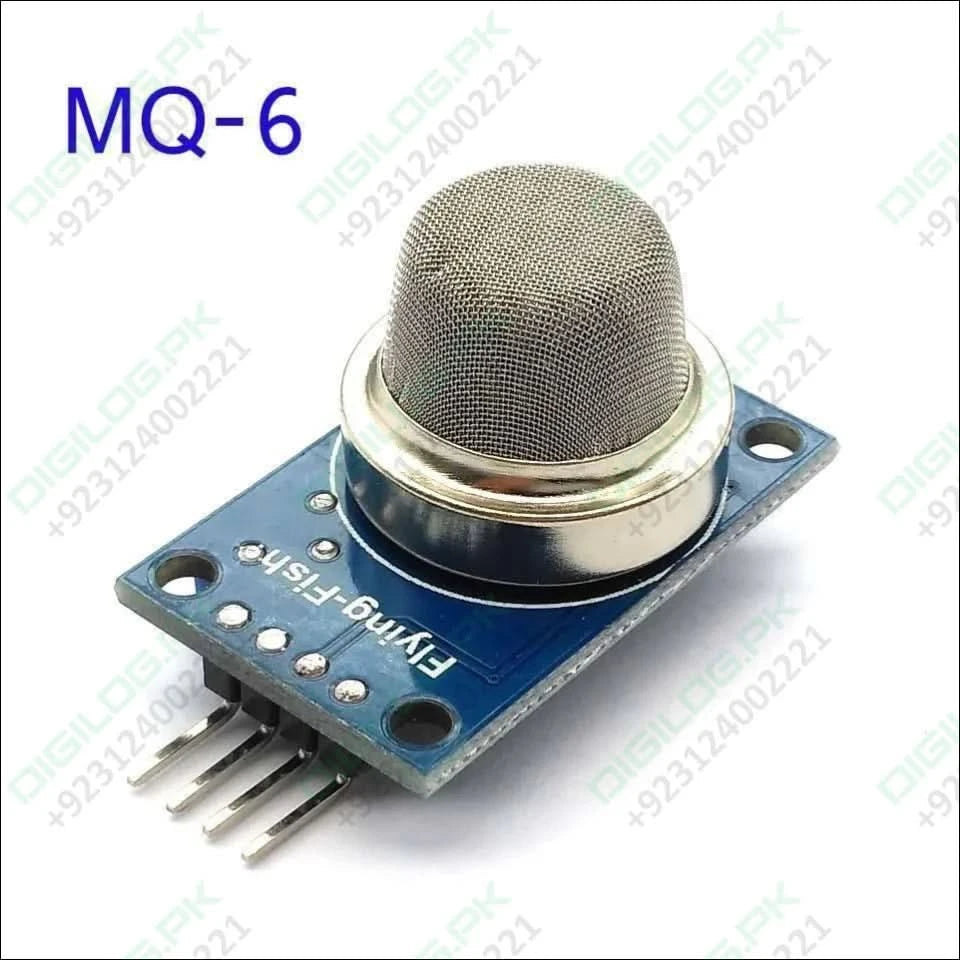

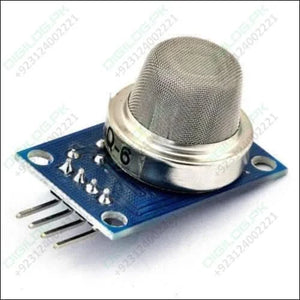

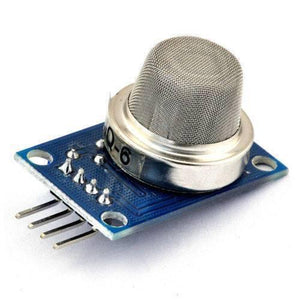

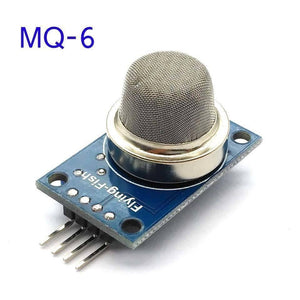

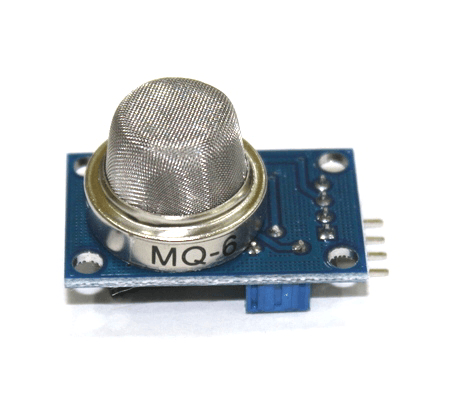

Mq6 Propane Gas Sensor Module In Pakistan

MQ6 MQ 6 MQ-6 Liquefied Petroleum isobutane propane gas Sensor ModuleThis sensor has a high sensitivity and fast response time. The sensor’s output is an analog resistance. The drive circuit is very simple; all you need to do is power the heater coil with 5V, add a load resistance, and connect the output to an ADC.

Sensitive material of MQ-6 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist, The sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.

MQ-6 gas sensor has high sensitity to Propane, Butane and LPG, also response to Natural gas. The sensor could be used to detect different combustible gas, especially Methane, it is with low cost and
suitable for different application

Character

1. Good sensitivity to Combustible gas in wide range
2. High sensitivity to Propane, Butane and LPG
3. Long life and low cost
4. Simple drive circuit

Application

1. Domestic gas leakage detector
2. Industrial Combustible gas detector
3. Portable gas detector

Specifications and Features:

1. Model No.: MQ-6
2. Dimensions: 36 x 20 x 22 mm(LxWxH)
3. Weight: 8 gm
4. Oprating voltage: +5v
5. Indication of the signal output
6. Dual signal output (analog output, and TTL level output)
7. TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
8. 0 ~ 5V analog output voltage, the higher the concentration, the higher the voltage
9. High sensitivity to hydrogen
10. Can be resistant to ethanol steam, LPG (petroleum), smoke interference
11. Has a long life and reliable stability
12. Fast response and recovery characteristics

Attachments and Links:

MQ-6 Datasheet:

Package Includes:

1 x MQ-6 Liquefied Petroleum isobutane propane gas Sensor module
