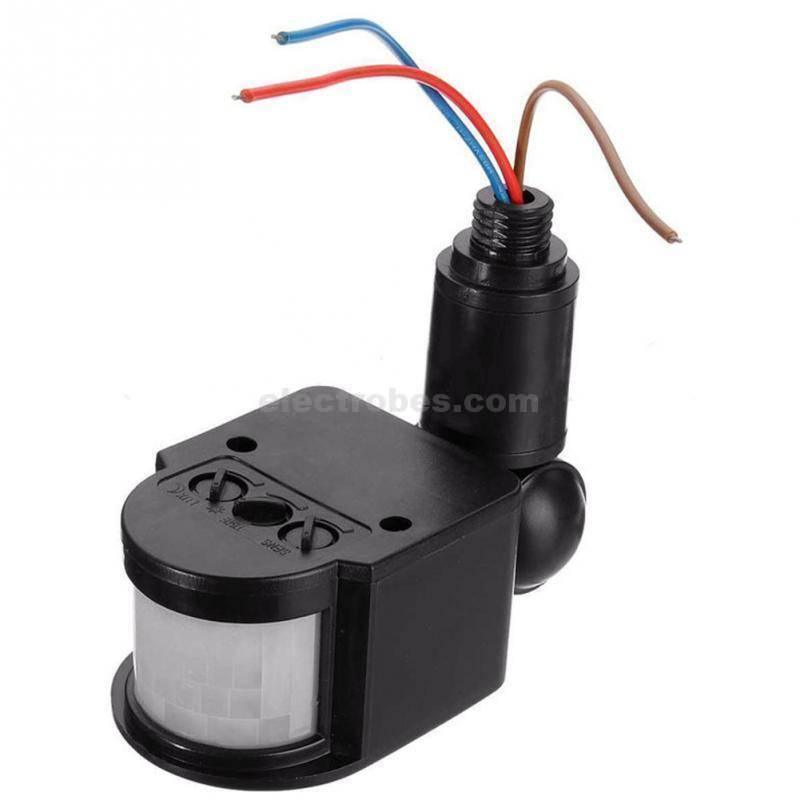

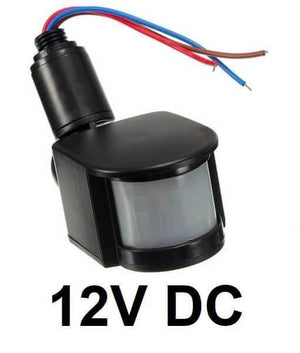

12v Automatic Infrared Pir Motion Sensor Detector Switch

A 12v Motion Sensor Detector Switch is used to sense the movement of people, animals, or other objects. Hence This electric sensor switch can be utilize in mechanically-activated lighting systems.

However 12 volts dc movement detector light switch is with load capacity, strong anti-jamming capability. Moreover this PIR on-off switch can automatically identify day and night, and the external environment illuminance can freely choose the starting job.

Features of 12v Motion Sensor Detector Switch:

• Load capacity, strong anti-jamming capability.
• Built-human infrared sensor module, sensor module light effects, also delay switch module.
• People into the sensing range can be automatically opened, after leaving the automatic delay off, can automatically identify day and night, and in addition the external environment illuminance can freely choose the starting job.
• Automatic work to do in the evening, during the day and closed. Users can adjust; although light time is adjustable and can be adjusted by the user according to local conditions.

Specifications Of 12 Volts Motion Sensor Switch Infrared PIR Detector Switch:

1. Colour: Black
2. Detection range: 180degree
3. Operating voltage: DC12V
4. Detection distance: 15m (24 Degrees Celsius)
5. Delay Time: 15 seconds to 7 minutes
6. Installation height: 1.8m-2.5m
7. Material: ABS
8. Installation: Open type, (hole 16mm) installation, adjusting for the next button.

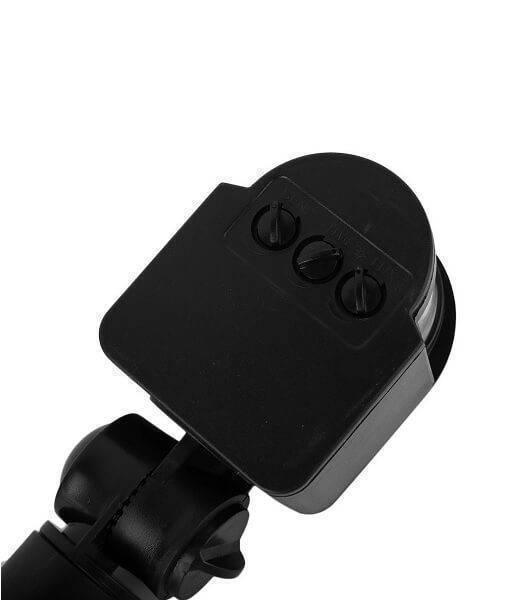

PIR Motion Sensor Adjustment:

• LUX: Adjust the working time (Day or Night)
• Sun position (Maximal): the sensor will work for the entire daytime.
• Moon position (Minimum): the sensor will work only at night mechanically.
• TIME: Adjust the delay time of the sensor (6sec~6min)
• SENS: Adjust the sensitivity of the sensor.

Wiring:

• Brown +
• Blue - ( Common)
• Red + Output Positive

Package Includes:

• 1 x 12V Outdoor Security PIR Human Body Motion Sensor Detector Inductor Switch For Led Floodlight
