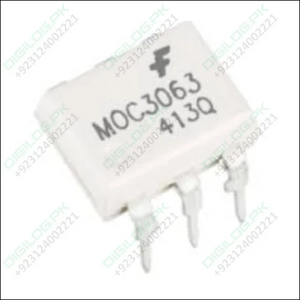

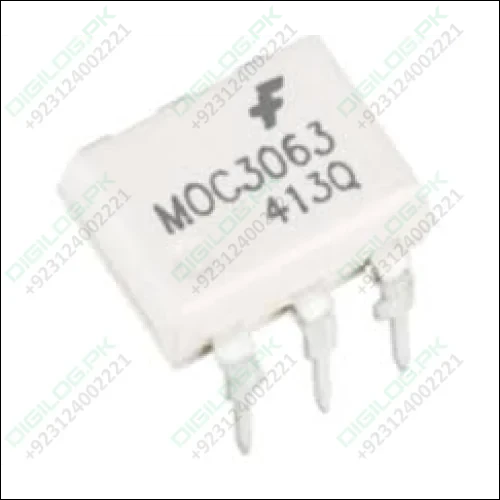

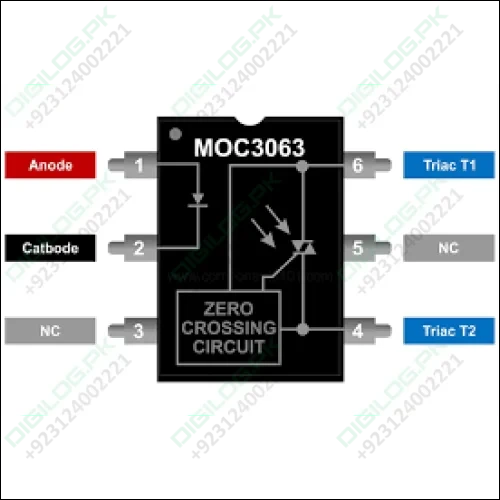

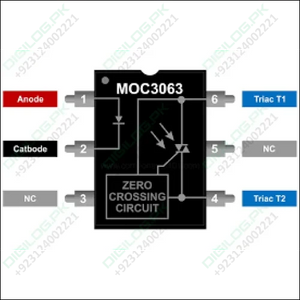

MOC3063 optocoupler

Description: The MOC3063 is an optically isolated triac driver optocoupler. It combines an LED optically coupled to a phototriac to provide isolation between input and output circuits while allowing control of AC loads through a triac. The MOC3063 is commonly used in applications requiring isolated control of AC loads such as motors, lamps, and heaters, providing robust isolation and reliable switching performance.

Key Features:

• Optically isolated triac driver
• High isolation voltage: 5000Vrms (min)
• Low trigger current (I_FT): 5mA (max)
• Peak off-state voltage (VDRM): 600V
• Zero-crossing circuitry for low EMI (Electromagnetic Interference)
• Low input control current requirement
• Compact DIP-6 package

Technical Specifications:

• Isolation Voltage: 5000Vrms (min)
• Peak Repetitive Off-State Voltage (VDRM): 600V
• Trigger Current (I_FT): 5mA (max)
• Operating Temperature Range: -40°C to +85°C
• Package Type: 6-pin DIP

Applications:

• AC motor controls
• Lighting controls
• Solid-state relays (SSRs)
• HVAC (Heating, Ventilation, and Air Conditioning) systems
• Home appliances
• Industrial automation
