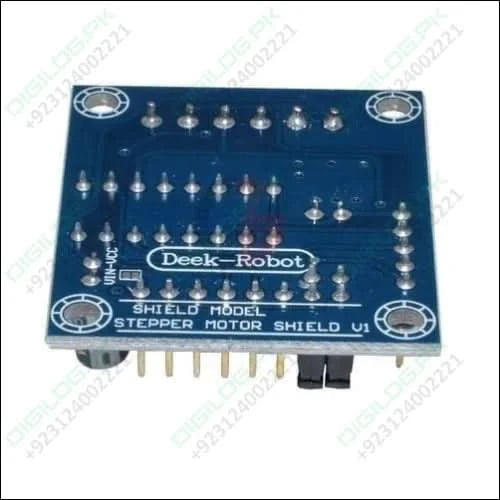

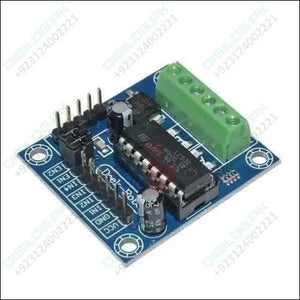

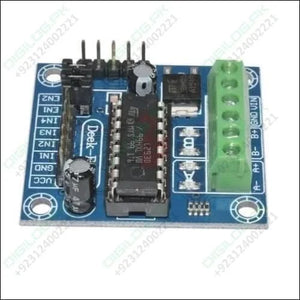

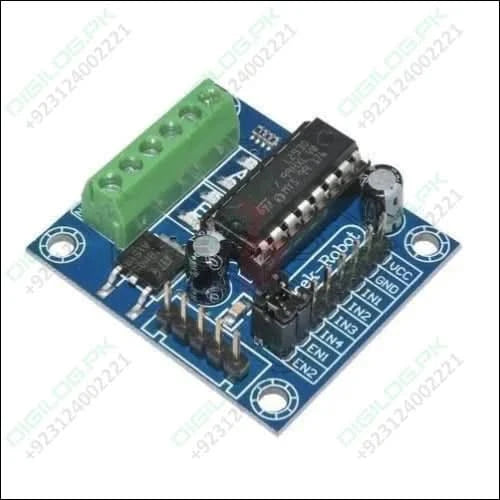

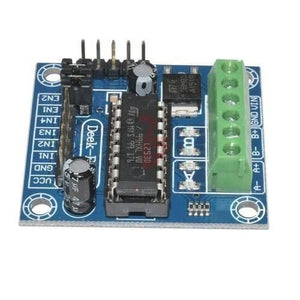

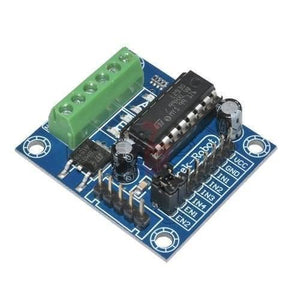

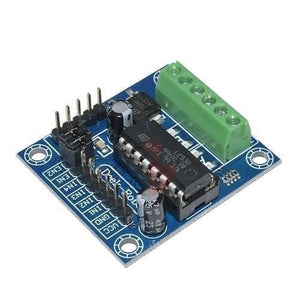

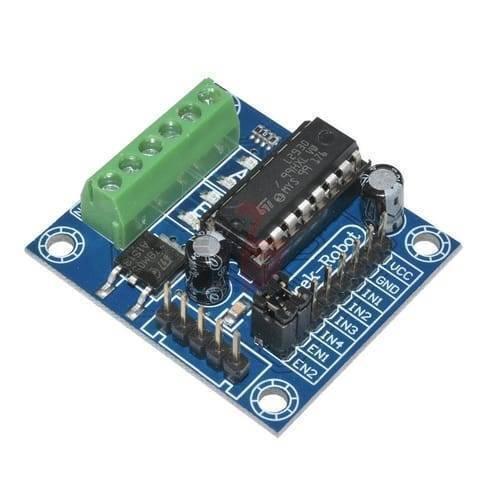

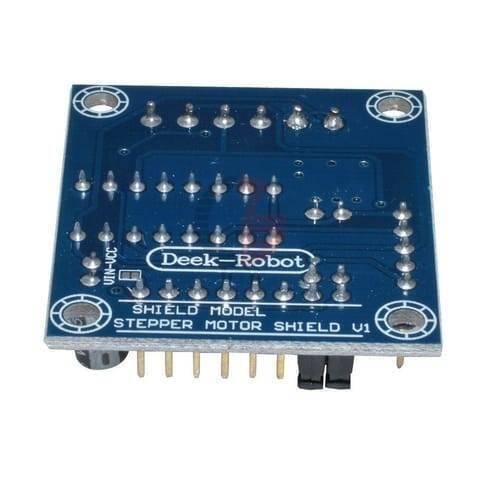

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560

SKU:B265,IMP100,Th50,A

Regular price Rs.160
Regular price Sale price Rs.160
Sale Sold out
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560  is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage, and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Features And Specifications Of Mini L293D Motor Driver Board 2CH Driver Shield L293  Expansion Board Module:

  • Enable facility.
  • Input Supply voltage (V) : 4.5 ~ 25
  • Output Current (per channel) (mA) : 600
  • Peak Output Current (per channel) (mA) : 1.2
  • Switching Frequency (KHz) : 5
  • No. of motors controlled by driver: 2
  • Overtemperature protection.
  • Logical “0” input voltage up to 1.5V(High noise immunity).
  • Internal clamp diodes.

Package Include:

  • 1 x  Mini Motor Drive Shield Expansion Board L293D

Best online shopping website for Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560 For Arduino Leonardo at cheap price in Lahore Faislabad Multan Quetta Sargodha Rahim Yar Khan Sialkot Sahiwal Gujrat Attock Gojra Sheikhpura Jahng Khanewal Okara Kasur Karachi and all over Pakistan

View full details

Description

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560  is a Device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoids, DC and stepping motors) and switching power transistors.

To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage, and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Features And Specifications Of Mini L293D Motor Driver Board 2CH Driver Shield L293  Expansion Board Module:

  • Enable facility.
  • Input Supply voltage (V) : 4.5 ~ 25
  • Output Current (per channel) (mA) : 600
  • Peak Output Current (per channel) (mA) : 1.2
  • Switching Frequency (KHz) : 5
  • No. of motors controlled by driver: 2
  • Overtemperature protection.
  • Logical “0” input voltage up to 1.5V(High noise immunity).
  • Internal clamp diodes.

Package Include:

  • 1 x  Mini Motor Drive Shield Expansion Board L293D

Best online shopping website for Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560 For Arduino Leonardo at cheap price in Lahore Faislabad Multan Quetta Sargodha Rahim Yar Khan Sialkot Sahiwal Gujrat Attock Gojra Sheikhpura Jahng Khanewal Okara Kasur Karachi and all over Pakistan
