Name: AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link
Brand: China
SKU: B845,krt127
Price: 120.0 PKR
Availability: InStock

Home ALL Products

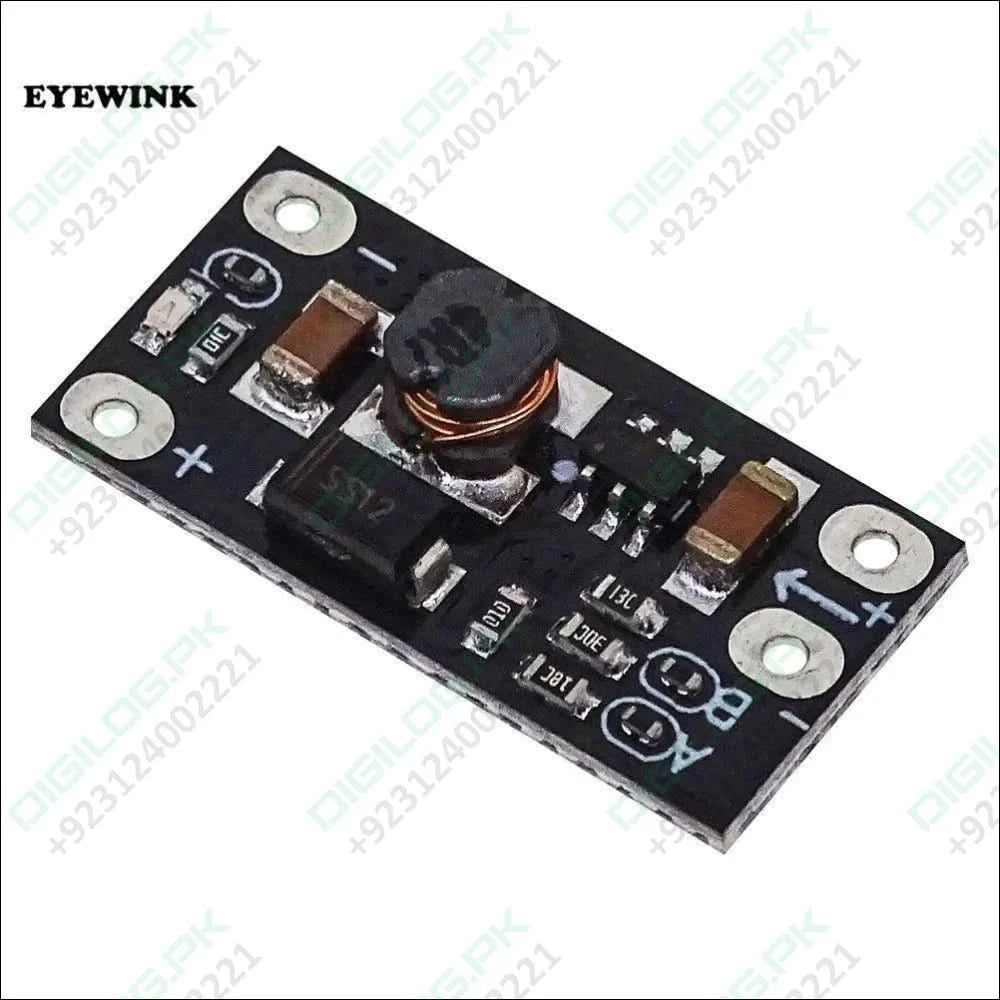

AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link - a small black rectangular electronic circuit board with a central inductor, capacitors, and four circular mounting holes.

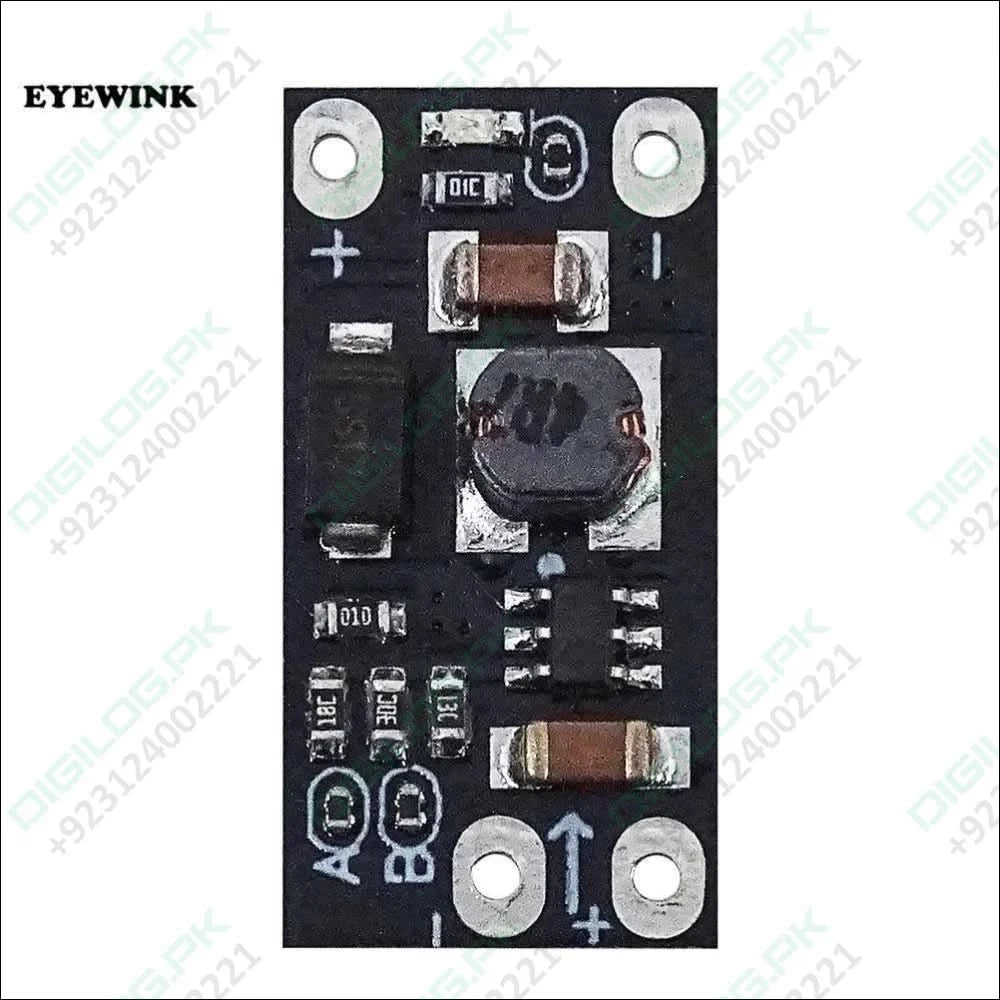

AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link - a small rectangular black circuit board featuring an inductor, a diode, capacitors, and input/output solder pads.

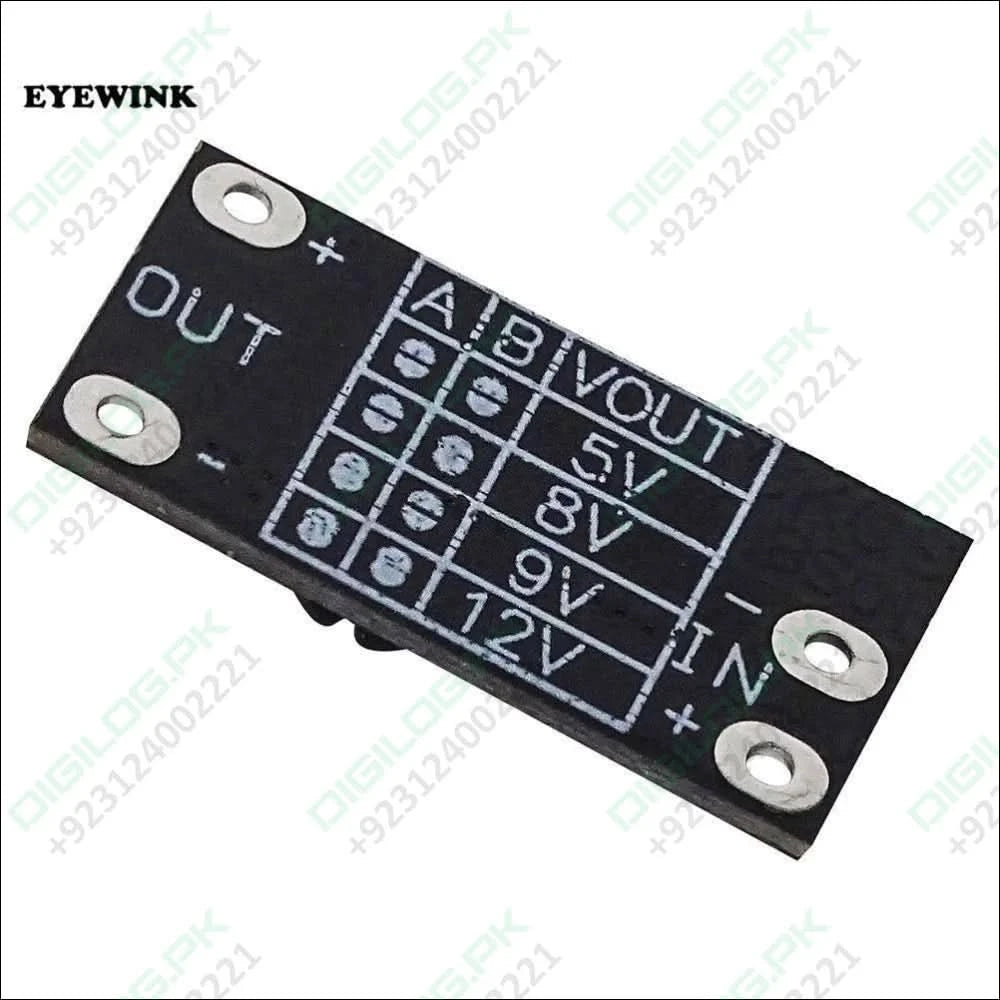

AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link - a small black rectangular circuit board showing a voltage selection table for 5V, 8V, 9V, and 12V outputs with input/output pads.

AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link

Rs 120

SKU: B845,krt127

Frequently Bought Together

Customers building this project usually buy these together.

8W USB Input DC-DC 3V-6V To 12V 3A Converter Step-up Module | Digilog.pk - a blue rectangular circuit board with an inductor, capacitor, and labeled terminals.

2 In 1 Charge And Boost Regulator Module 4.5-24V - USB Type-c J5019 - a green circuit board with a USB Type-C port and a small adjustable potentiometer.

J5019 Hw 357: Versatile Li-ion Charger And Boost Module For a Wide Range Of Applications - a green rectangular circuit board featuring a micro-USB port, a small adjustable potentiometer, and various surface-mount components.

This item: AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link -

Rs 120

8W USB Input DC-DC 3V-6V To 12V 3A Converter Step-up Module | Digilog.pk -

Rs 210

2 In 1 Charge And Boost Regulator Module 4.5-24V - USB Type-c J5019 -

Rs 210

J5019 Hw 357: Versatile Li-ion Charger And Boost Module For a Wide Range Of Applications -

Rs 160

Price for all:

Rs 700

Pickup available at Digilog Electronics

Usually ready in 2 hours

AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link

Rs 120

Mini Converter Boost Step Up DC-DC, 3V, 3.2V, 3.3V, 3.7V, 5V, 9V to 12V, PCB Board Module, can be configured 5V/ 8V/ 9V

Multi-function Mini DC-DC Boost Step Up Volt Converter 5V 6V 9V to 12V Power Supply Module
Description:

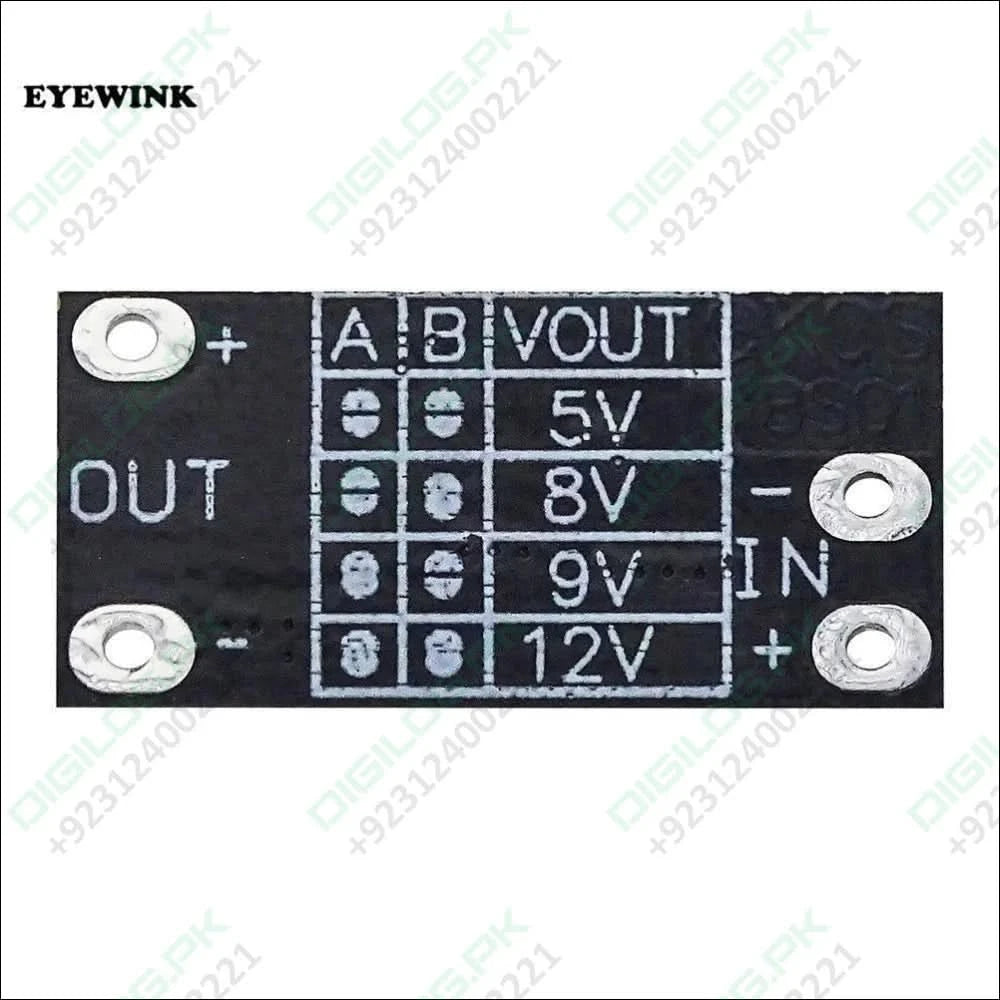

The front side of the PCB can be seen with the words A and B. The output voltage can be changed
by using the soldering iron to switch the pad on and off. In the table below, 0 means that the pad is
disconnected and 1 means that the pad is connected.
The basic parameters
The output voltage can be set to 5V / 8V / 9V / 12V, the default is 12V
Input voltage range: 2.5V ~ VOUT-0.5V
Output performance: take the input 3.7V lithium battery as an example, it can output 5V1.2A, 8V0.7A,
9V0.6A, 12V0.5A. Please make sure the input current and output current do not exceed 1.5A.
