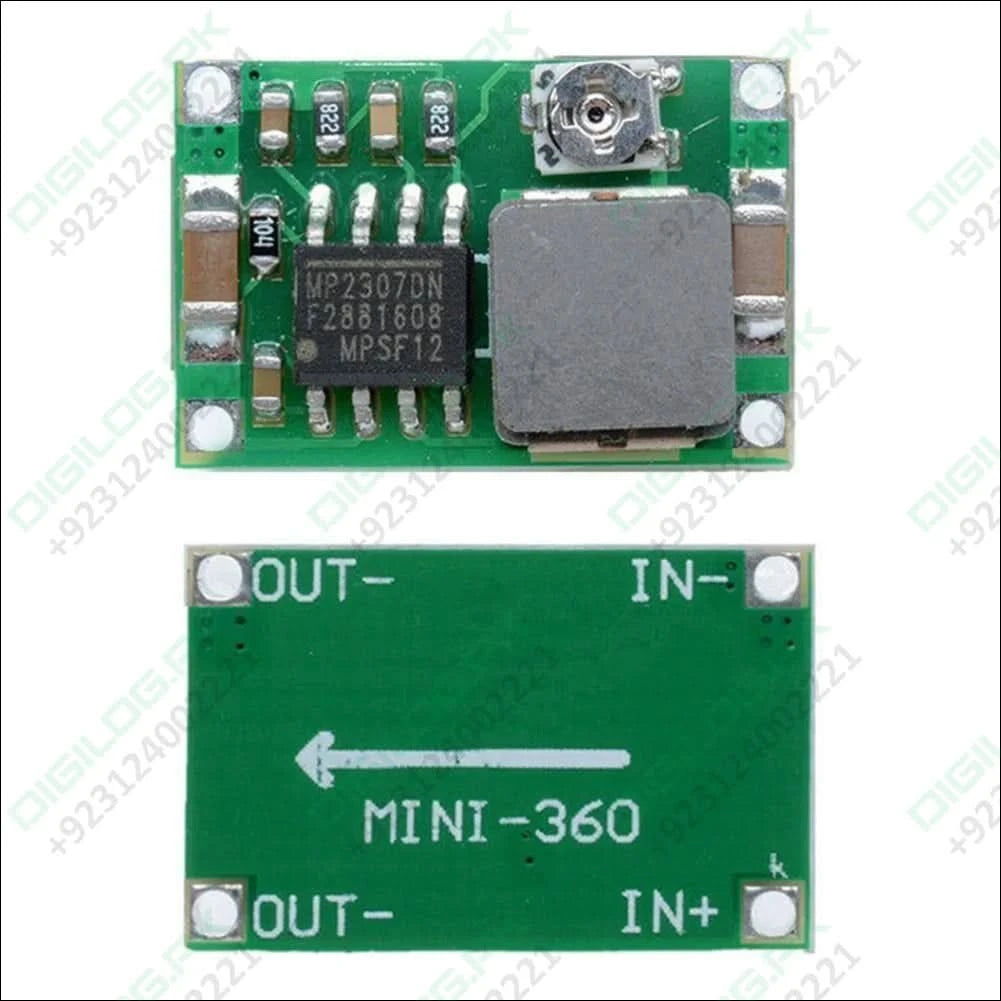

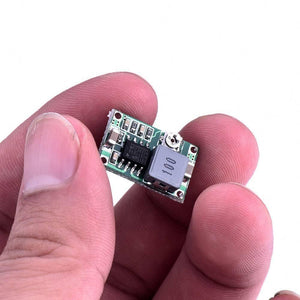

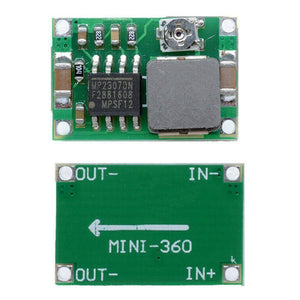

Mp2307 Mini 360 Dc To Dc Step Down Buck Converter Module In Pakistan

Mp2307 Mini 360 Dc To Dc Step Down Buck Converter Module In Pakistan

Regular price Rs 120
Regular price Rs 120 Sale price Rs 120
Sale Sold out
Shipping calculated at checkout.

SKU:B815,IMP100,Th50,A

NOTIFY ME WHEN IN STOCK

Mini-360 DC to DC 4.75V-23V to 1V-17V Buck Converter Step Down Module. Super compact and capable, this DC-DC buck converter can knock down a voltage from 23V to as low as 1V with up to 95% efficiency.


  • 10PCS Mini360 DC DC Buck Converter Step Down Module MP2307 4.75V 23V to 1V  17V 340KHz 17x11x3.8mm For Flight Control Car Module|supply power|dc dc  converterdc dc - AliExpress

    One of our engineers came by and showed off one of his latest finds, the Mini-360 DC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation!
    Specifications:
  • MPS MP2307DN buck regulator IC
  • 4.75 – 23VDC input voltage
  • 1.0 – 17VDC selectable output voltage
  • 3A surge current, 1.8A continuous rated current
  • Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
  • 340kHz switching frequency
  • 30mV no-load output ripple
  • 0.5% load regulation
  • 2.5% voltage regulation
  • -40 to +85°C operational temperature range
  • Built-in 160°C thermal shutdown
  • 17x11x3.8mm (0.67×0.43×0.15″)
    • Documentation

                          View full details

                          Description

                          Mini-360 DC to DC 4.75V-23V to 1V-17V Buck Converter Step Down Module. Super compact and capable, this DC-DC buck converter can knock down a voltage from 23V to as low as 1V with up to 95% efficiency.


                          • 10PCS Mini360 DC DC Buck Converter Step Down Module MP2307 4.75V 23V to 1V  17V 340KHz 17x11x3.8mm For Flight Control Car Module|supply power|dc dc  converterdc dc - AliExpress

                            One of our engineers came by and showed off one of his latest finds, the Mini-360 DC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation!
                            Specifications:
                          • MPS MP2307DN buck regulator IC
                          • 4.75 – 23VDC input voltage
                          • 1.0 – 17VDC selectable output voltage
                          • 3A surge current, 1.8A continuous rated current
                          • Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
                          • 340kHz switching frequency
                          • 30mV no-load output ripple
                          • 0.5% load regulation
                          • 2.5% voltage regulation
                          • -40 to +85°C operational temperature range
                          • Built-in 160°C thermal shutdown
                          • 17x11x3.8mm (0.67×0.43×0.15″)
                            • Documentation
