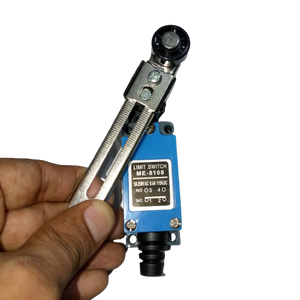

Me-8108 Mini Limit Switch - held in a hand, featuring a blue rectangular body with a metal roller lever arm and a label showing terminal numbers 1, 2, 3, 4.

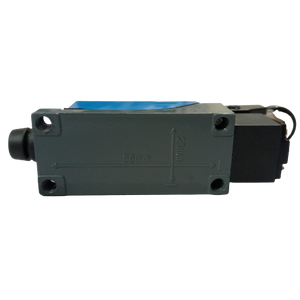

Me-8108 Mini Limit Switch - shown from the side, featuring a grey rectangular body with mounting holes and embossed 56mm and 21mm dimension markings.

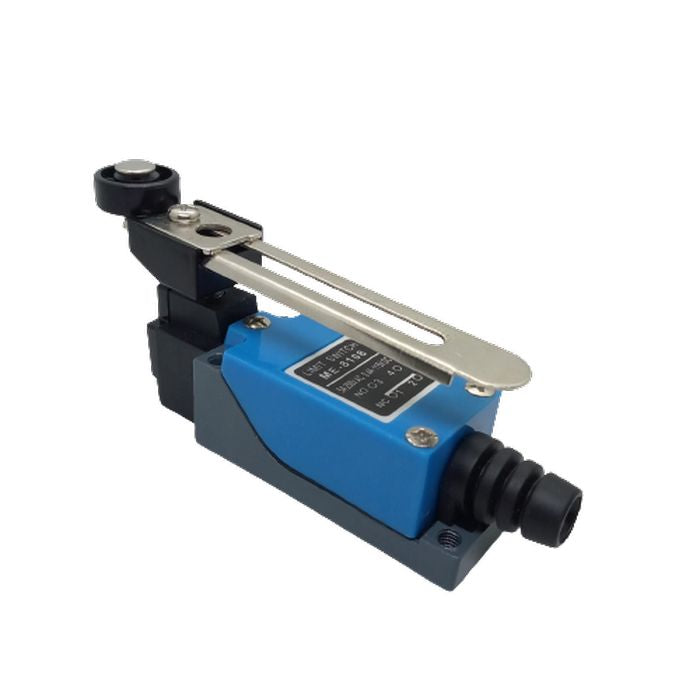

Me-8108 Mini Limit Switch - a blue and black rectangular body, a long adjustable metal lever arm with a roller, and a black cable gland.

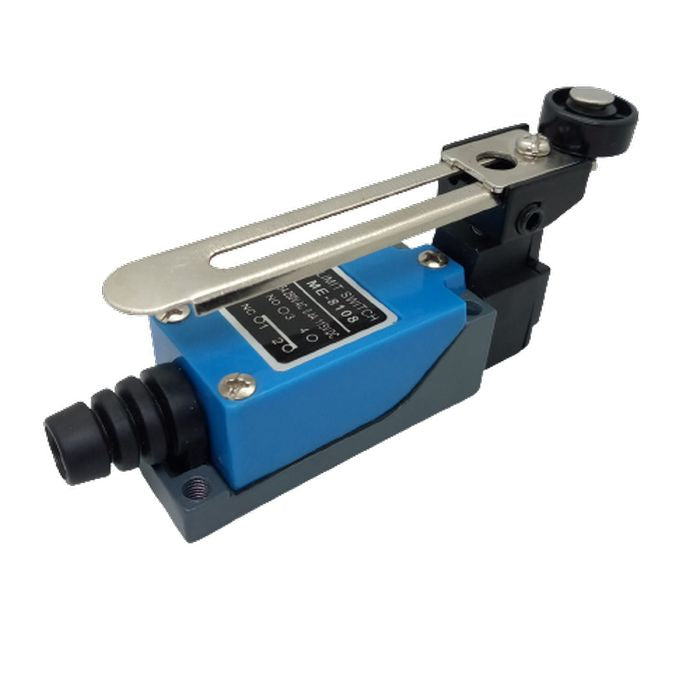

Me-8108 Mini Limit Switch - a blue rectangular body, a black cable gland, and an adjustable metal lever arm with a small black roller at the tip.

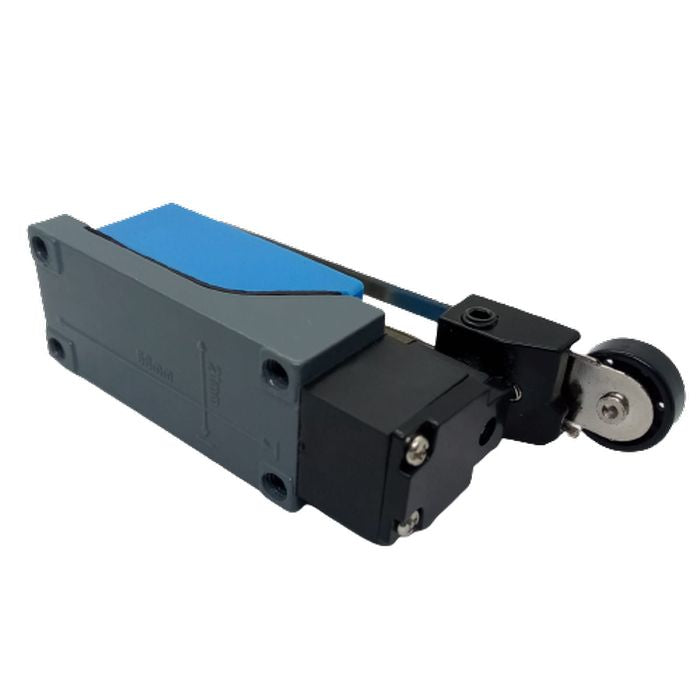

Me-8108 Mini Limit Switch - a grey and blue rectangular body with an adjustable metal lever arm and a black roller wheel at the end.

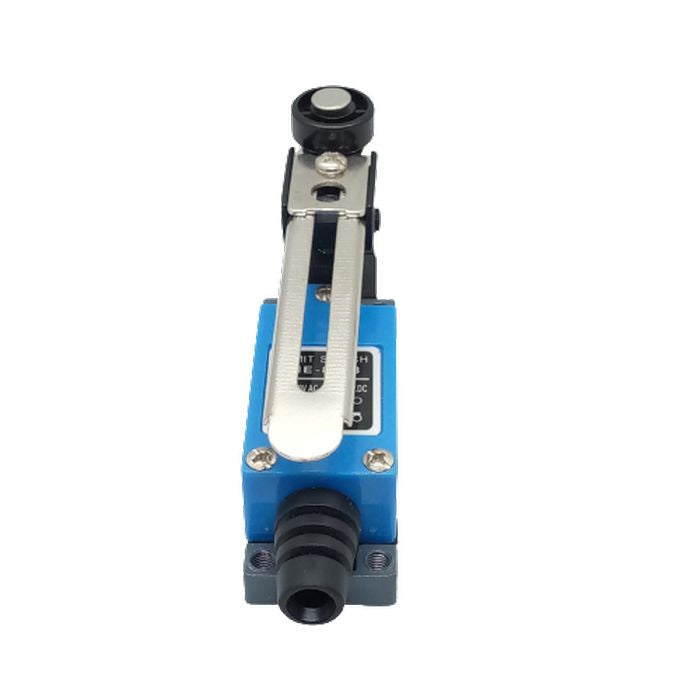

Me-8108 Mini Limit Switch - a blue rectangular body, a metal lever arm with a black roller, and a black cable gland at the base.

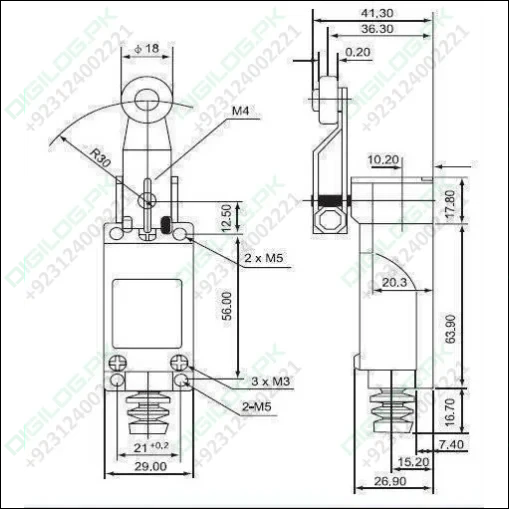

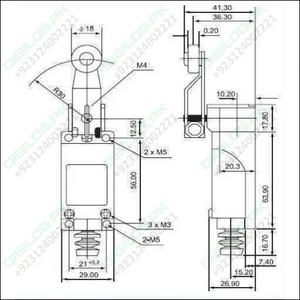

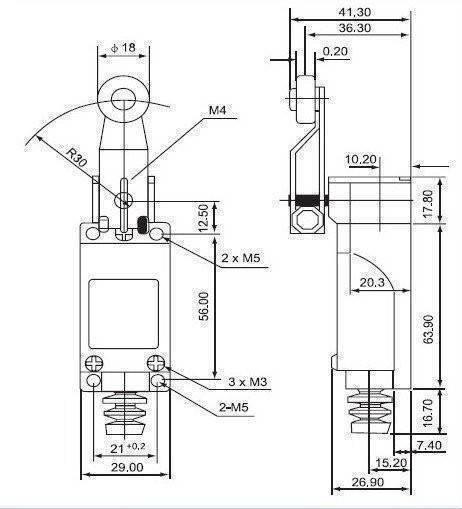

Me-8108 Mini Limit Switch - the front and side profile views with various measurements in millimeters.

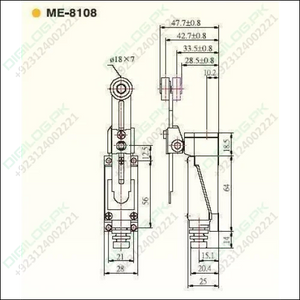

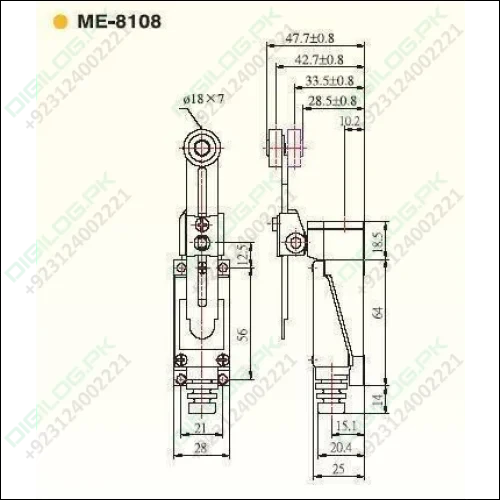

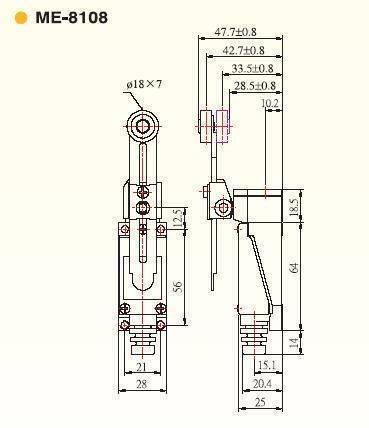

Me-8108 Mini Limit Switch - the front and side profile views with detailed measurements in millimeters.
Me-8108 Mini Limit Switch - held in a hand, featuring a blue rectangular body with a metal roller lever arm and a label showing terminal numbers 1, 2, 3, 4.
Me-8108 Mini Limit Switch - shown from the side, featuring a grey rectangular body with mounting holes and embossed 56mm and 21mm dimension markings.
Me-8108 Mini Limit Switch - a blue and black rectangular body, a long adjustable metal lever arm with a roller, and a black cable gland.
Me-8108 Mini Limit Switch - a blue rectangular body, a black cable gland, and an adjustable metal lever arm with a small black roller at the tip.
Me-8108 Mini Limit Switch - a grey and blue rectangular body with an adjustable metal lever arm and a black roller wheel at the end.
Me-8108 Mini Limit Switch - a blue rectangular body, a metal lever arm with a black roller, and a black cable gland at the base.
Me-8108 Mini Limit Switch - the front and side profile views with various measurements in millimeters.
Me-8108 Mini Limit Switch - the front and side profile views with detailed measurements in millimeters.

Me-8108 Mini Limit Switch

Sale price Rs 740
SKU: B144,L5,Th2,KRT
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Me-8108 Mini Limit Switch - held in a hand, featuring a blue rectangular body with a metal roller lever arm and a label showing terminal numbers 1, 2, 3, 4.

Me-8108 Mini Limit Switch

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Me-8108 Mini Limit Switch - held in a hand, featuring a blue rectangular body with a metal roller lever arm and a label showing terminal numbers 1, 2, 3, 4.
Me-8108 Mini Limit Switch
Sale priceRs 740

ME-8108 MINI LIMIT SWITCH IN PAKISTAN

Description:

Limit switch, compact design, long mechanical life.
Easy wiring with full open terminals.
High precision, high reliability
Dustproof, waterproof, oil proof construction (IP64)
Double circuit type
5A load current
Strong body with a combination of reinforced plastic and aluminum Die Casting components
Build in basic switch with double spring mechanism

Features:

Product Name mini : Limit Switch

Model No. ME-8108

Actuator Action Momentary

Actuator Type Rotary Adjustable Lever Arm with Roller

Contact Configuration 2 NC + 2 NO

Voltage Rating AC250V, 5A DC115V, 0.4A

Roller Dimension ~1.8 x 0.7cm / 0.7 x 0.3″(D*H)

Lever Arm Length ~11cm / 4.3″

Fixing Thread Diameter ~0.4cm / 0.2″

Total Size ~12.3 x 5.2 x 2.8cm / 4.8 x 2 x 1.1″(L*W*H)

Material Resin, Plastic, Metal

Color Blue, Gray, Black

Net Weight 93g

Frequently Bought Together

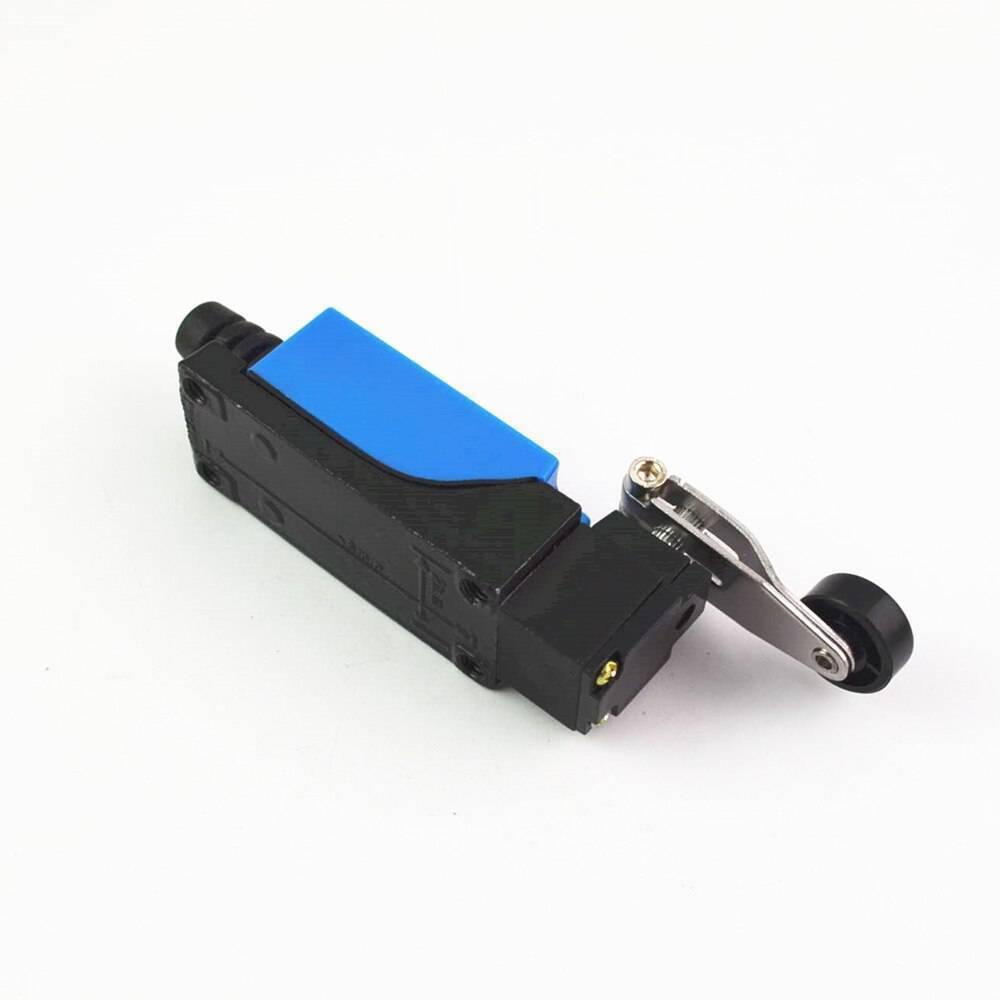

Me-8104 Rotary Plastic Roller Arm Enclosed Limit Switch - a blue and black rectangular device with a roller arm and a label showing model and specs. Me-8104 Rotary Plastic Roller Arm Enclosed Limit Switch - a black and blue rectangular switch body with a metal rotary arm and a plastic roller.
