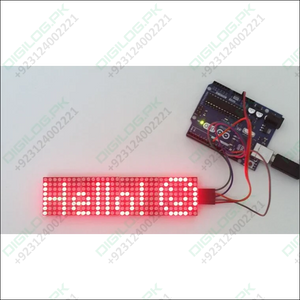

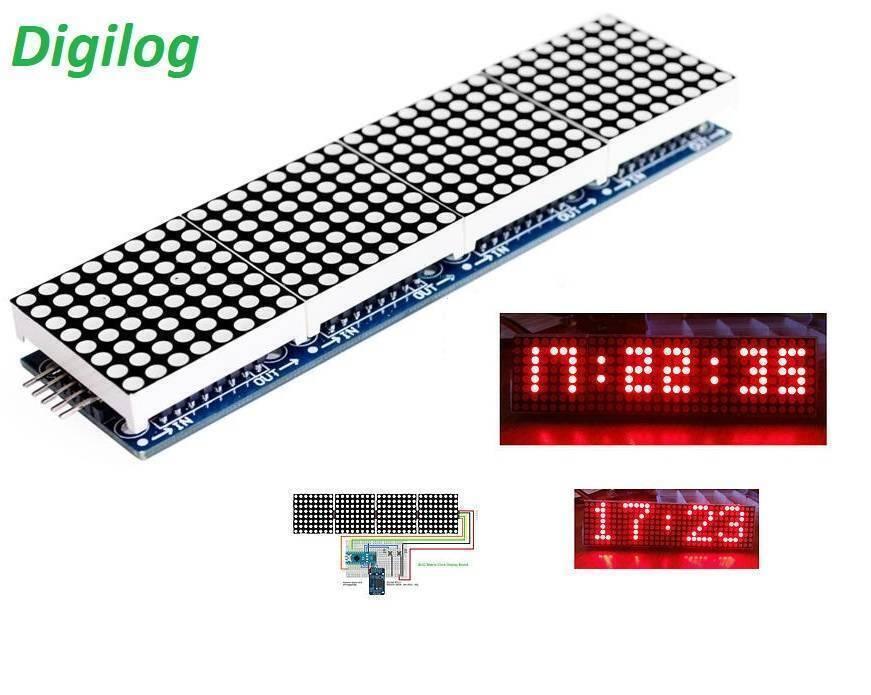

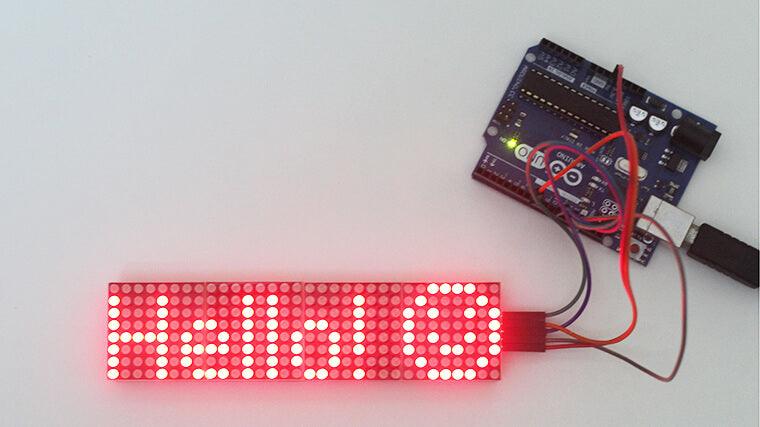

This is 8×8 (row by column 64x LED) dot matrix LED displays module based on MAX7219 IC. The displays are designed so that they can be mounted in a horizontal chain and can also be expanded in a vertical plane allowing versatile displays panel to be built. A convenient 3-wire serial interface connects to all common controller board like Arduino or Raspberry. Individual dot may be addressed and updated without rewriting the entire display. This module can be daisy chain to form a display panel for scrolling message board.

Brief Data:

• Matrix Size: 32×8 ( 256-Dots)
• Display Size: 128×33 mm.
• Display Color: Red.
• Interface: 3-Wires Serial Interface.
• Daisy chain for multiple modules.
• Operating voltage: 4.5 ~ 5V.
• Module size: 128 x 33 x 15 mm (L x W x H).
• Mounting Hole: M3.

Related Information:

• MAX7219 32×8 Display User Guide
• User Guide on 10++ Electronics Modules
• Youtube Demo.

Package Includes:

1x MAX7219 32×8 Dot Matrix Display Module
