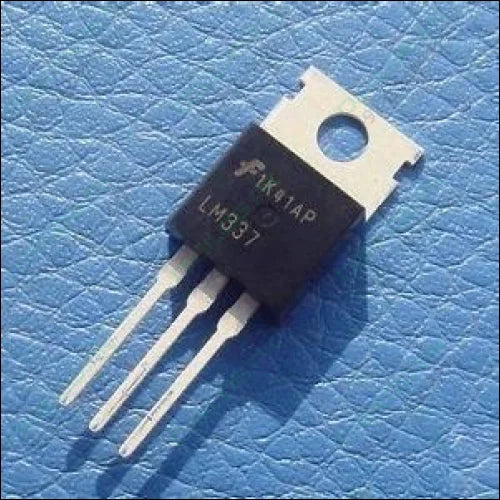

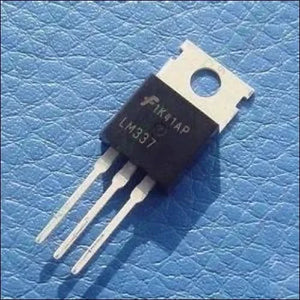

Lm337 Adjustable -ve Voltage Regulator

The LM137 series are adjustable 3-terminal negative voltage regulators capable of supplying in excess-1.5Aover a -1.2 to -37V output voltage range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulations are better than standard fixed regulators. Also, LM137 regulators are supplied in standard transistor packages which are easily mounted and handled. In addition to higher performance than fixed regulators, the LM137 series offers complete overload protection available only in integrated circuits. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.

Feature

1. Output Voltage Adjustable Down to Vref
2. Output Current up to 1.5A
3. Excellent Ripple Rejection
4. Load Regulation 0.3%
5. Line Regulation 0.01%
