An Operational Amplifier or op-amp is a voltage amplifying device. It is a high-gain electronic voltage amplifier with a differential input and usually a single-ended output. Quadruple operational amplifier are a device consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.

Features:

• 2-kV ESD Protection for:
  • LM224K, LM224KA
  • LM324K, LM324KA
  • LM2902K, LM2902KV, LM2902KAV
• Wide Supply Ranges
  • Single Supply: 3 V to 32 V
    (26 V for LM2902)
  • Dual Supplies: ±1.5 V to ±16 V
    (±13 V for LM2902)
• Low Supply-Current Drain Independent of
  Supply Voltage: 0.8 mA Typical
• Common-Mode Input Voltage Range Includes
  Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters
  • Input Offset Voltage: 3 mV Typical
    A Versions: 2 mV Typical
  • Input Offset Current: 2 nA Typical
  • Input Bias Current: 20 nA Typical
    A Versions: 15 nA Typical
• Differential Input Voltage Range Equal to
  Maximum-Rated Supply Voltage:
  32 V (26 V for LM2902)
• Open-Loop Differential Voltage Amplification:
  100 V/mV Typical
• Internal Frequency Compensation

Datasheet:

datasheet for LM2902N

Package Include:

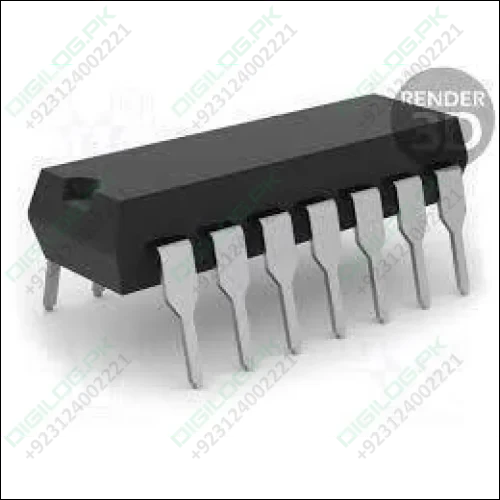

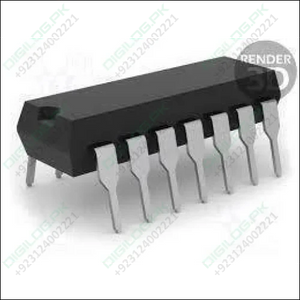

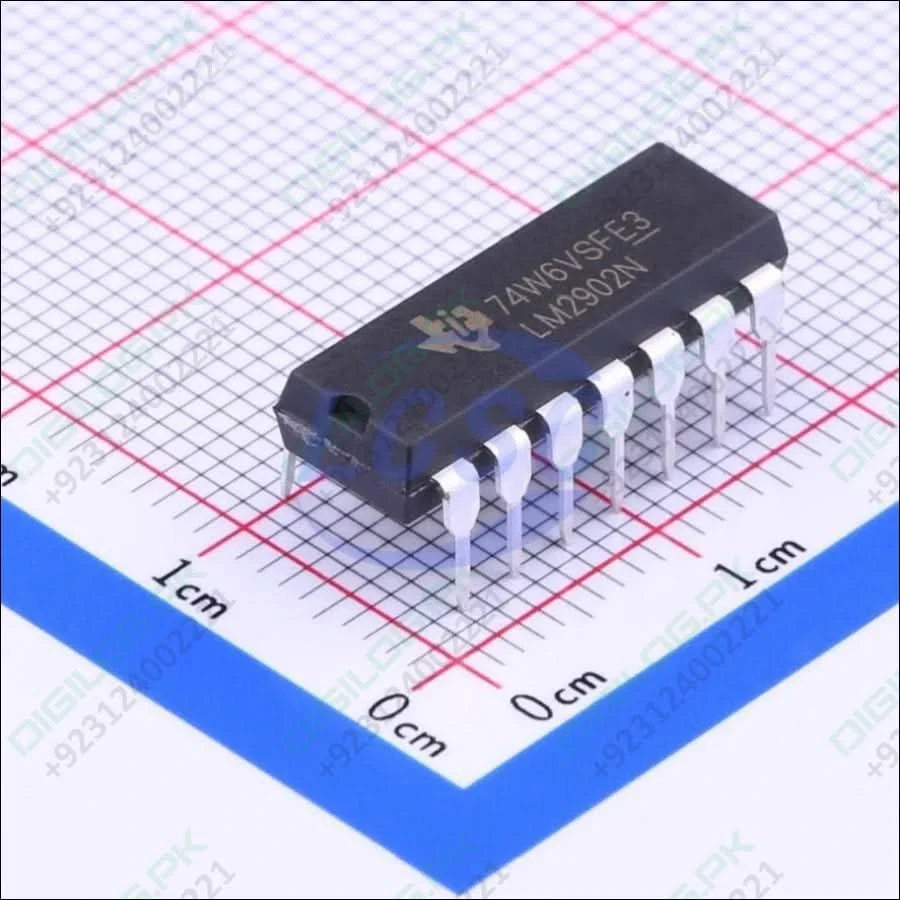

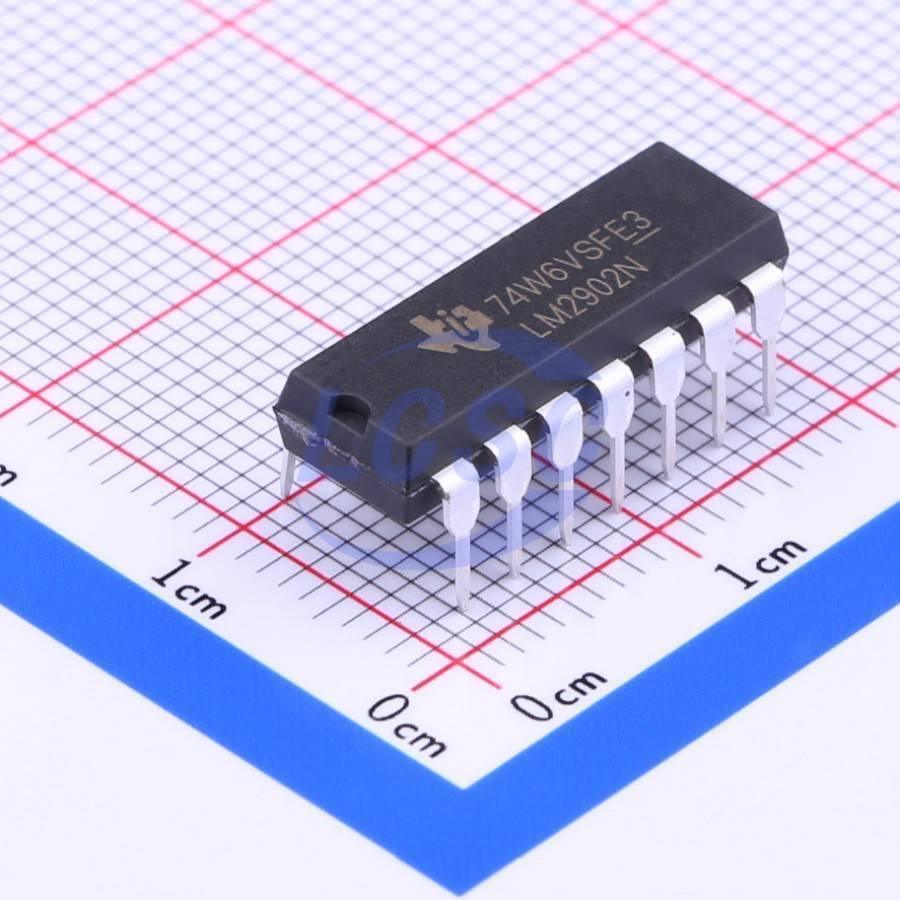

1x LM2902N OP AMP IC
